Understanding Single Phase Circuit Diagrams Key Components and Connections
Start by identifying the primary circuit components: a power source, conductive path, load, and control elements. Use standardized symbols–a horizontal line for neutral, a sinusoidal wave for AC input, and dashed lines for ground connections. Avoid arbitrary placements; group related elements to minimize crossover points. For residential setups, place the breaker panel at the center, with branch circuits radiating outward in a star configuration. This reduces voltage drop and simplifies troubleshooting.
Label every wire with gauge, function, and termination points. A 12 AWG copper conductor suffices for 20-amp circuits, while 14 AWG works for 15-amp. Mark neutral wires in white or gray, hot wires in black, red, or another non-green color, and ground exclusively in green or bare copper. For industrial applications, add color-coding for phases (e.g., brown, orange) to prevent misconnections.
Integrate safety devices before the load: install a double-pole breaker rated for the system’s amperage (typically 15–50A for household use). Position surge protectors near sensitive equipment, and use residual-current devices (RCDs) for outlets in damp areas. Keep wire runs under 100 feet to maintain voltage stability; for longer distances, upsize conductors by 20% or add a subpanel.
Validate the layout with a multimeter: measure 120V (±5%) between hot and neutral, 0V between neutral and ground, and 240V (±5%) between two hots in split configurations. For motor-driven loads, include a capacitor (sized at 1.5–2.5 μF per HP) to correct phase shift. Document all values directly on the plan using permanent, legible annotations–avoid handwritten notes prone to smearing.
Key Components of a Monofunctional Electrical Layout
Begin by identifying the power source–typically a 230V AC supply for residential setups. Ensure the main breaker matches the circuit’s current rating, with 16A or 20A being common for standard loads. A misaligned breaker risks overheating or tripping under normal conditions.
Wire sizing must align with the expected load: 2.5 mm² copper conductors suit general-purpose outlets, while 1.5 mm² suffices for lighting. Avoid undersized wiring as it leads to voltage drops and fire hazards, particularly in circuits exceeding 10 meters. Use color-coding: brown for live, blue for neutral, and green-yellow for earth.
Isolate critical elements with dedicated switches or relays. For instance, refrigeration units or servers demand uninterrupted power, requiring a separate fuse or miniature circuit breaker (MCB). Label each component clearly–vague markings complicate troubleshooting and increase downtime during faults.
Grounding is non-negotiable. A missing or improper earth connection turns appliances into shock hazards. Verify earth continuity with a multimeter; readings below 1Ω confirm safety. For sensitive electronics, add a residual current device (RCD) with a 30mA trip threshold to cut power instantly during leaks.
Test the layout under load before finalizing. Measure voltage at the farthest outlet–drops exceeding 5% indicate undersized wires or loose connections. Record baseline values for future maintenance; deviations signal developing issues like corrosion or insulation breakdown.
Document the arrangement with precise notation, including wire routes, terminal points, and load ratings. Store this reference near the distribution board. During modifications, cross-check against the original design to prevent overloading or conflicting configurations.
Core Parts of a Monophase Electrical Layout
Identify the power source immediately–typically a 230V AC supply in residential setups–marked with clear voltage labels (e.g., L for line, N for neutral). Use standardized wire colors: brown (live), blue (neutral), and green/yellow (earth) to prevent miswiring. For overload protection, integrate a 6-16A miniature circuit breaker (MCB) rated for the expected load; never exceed 80% of its capacity for continuous use. Precision in component placement reduces noise and voltage drops: keep wires under 3 meters between elements, and group high-current paths (e.g., motor connections) near the source to minimize resistance losses.
Critical elements include:
- Load: Specify exact wattage (e.g., 75W compressor) and type–inductive (motors), resistive (heaters), or capacitive (LEDs)–to select proper protection devices. Inductive loads demand snubber circuits (RC pairs) to suppress transients.
- Switching: Use contactors for loads >10A; relays suffice for
- Grounding: Connect earth to all metallic enclosures and conductive parts, ensuring
- Metering: Add analog ammeters (
- Protection: Combine MCBs with residual-current devices (RCDs, 30mA sensitivity) for shock prevention. For variable-speed drives, add EMI filters (20-200kHz range) to comply with EN 55011 standards.
Avoid daisy-chaining protection devices; route each load through its own breaker to isolate faults.

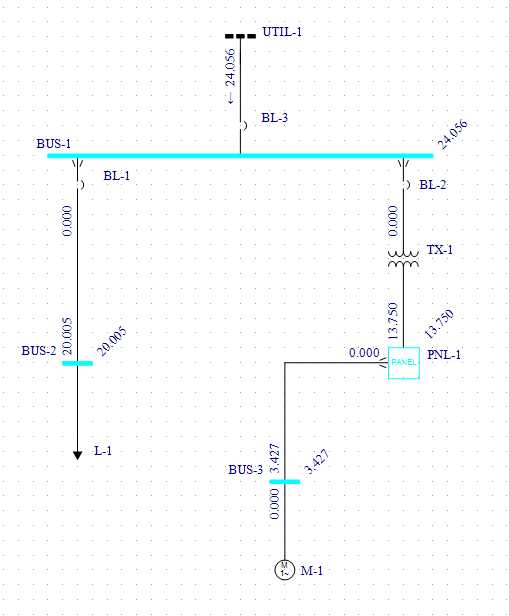

How to Construct a One-Line Electrical Representation
Gather all required symbols for circuit components before sketching. Standard elements include a power source (denoted by a circle with a “+” and “-” sign), protective devices (fuses or breakers depicted as a rectangle with a diagonal line), conductors (straight horizontal or vertical lines), and loads (resistors shown as zigzag lines or motors as circles with “M”). Verify symbols match IEEE or IEC standards to prevent misinterpretation.
Begin at the power origin, typically the utility feed, and draw a vertical line downward representing the live conductor. Position the main protective device (e.g., breaker) within the first 5 cm of the line to maintain clarity. Label its current rating (e.g., 20A) immediately adjacent using a text height of 3 mm for readability. Extend the conductor downward, ensuring consistent line weight (0.5 mm) for all connections.
Attach branch lines horizontally from the main conductor at 90-degree angles, spaced at least 2 cm apart to avoid clutter. Each branch should include a protective device (breaker or fuse) before connecting to a load. For inductive loads like motors, add a capacitor symbol (parallel lines) near the load to indicate power factor correction if applicable.
Use dashed lines for neutral conductors, distinguishing them from live paths. Place a ground symbol (three descending lines of decreasing length) at key points: the service entrance and downstream of major loads. Maintain a 1.5 cm gap between neutral and ground symbols to comply with electrical code spacing requirements.
Incorporate control devices such as switches (represented by a gap in the conductor with a slanted line) between the protective device and load. Position switches at a uniform distance of 4 cm from loads for consistency. Label each switch with its function (e.g., “S1: Motor Start”) using 2.5 mm text, aligned horizontally with the symbol.
Verify all connections by tracing each path manually with a pencil. Check for unintended intersections or missing links, particularly at junctions where three or more conductors converge. Use a triangle symbol (△) to denote delta-connected loads or a “Y” for wye configurations, ensuring proper configuration identifiers are clearly marked.
Scan the completed drawing for scale accuracy. Measure critical dimensions: line lengths should not deviate more than 2% from intended values, and symbol sizes must remain within ±1 mm of specified dimensions. Save the file in vector format (e.g., SVG or DXF) to preserve resolution for future modifications or printing at A3 size.
Standard Icons in One-Line Electrical Drawings
Begin by memorizing the core graphical elements for components to read layouts swiftly and avoid misinterpretation. The resistor icon, a zigzag line or rectangle with “R” inside, represents passive current limitation. Capacitors use two parallel lines separated by a gap or curved plates labeled “C”. Inductors appear as coiled wires with “L” notation. Power sources split into AC (sine wave in a circle) and DC (straight and dashed line pairs). Switches come as mechanical contacts (simple breaks in lines) or semiconductor variants (diode symbol). Always cross-check labels–”L1″ signifies live input, “N” neutral, and “PE” protective earth.
Critical Path Components
| Symbol | Component | Key Function | Error Risks |
|---|---|---|---|
| ⏚ | Ground | Safety reference for all voltages | Incorrect grounding causes equipment damage |
| Transformer | Voltage step-up/down via coils | Phase mismatch if coil ratio ignored | |
| ⬜⚡ | Breaker | Circuit protection under overload | Faulty sizing risks fire |
| –||– | Relay | Remote switching via magnetic coil | Unintended contacts degrade signal fidelity |
Use a color-coding standard to distinguish wiring paths–black for live conductors, white/light blue for neutral, and green/yellow stripes for earth. Terminal blocks employ numbered circles (e.g., “L1 → 1”, “N → 2”). Motor symbols simplify to a circle with “M” inside, but multi-speed variants add concentric circles. Diodes, depicted as triangles against a bar, indicate unidirectional current flow; arrows clarify signal direction. Always verify element ratings next to symbols (e.g., “C=10µF”, “R=47kΩ”) to ensure component compatibility during assembly or troubleshooting.
Decoding Load Hookups in One-Line Electrical Drawings
Identify the neutral conductor first–it’s typically drawn as the longest horizontal line at the bottom of the layout, often unlabeled or marked with an “N.” Active wires branch upward from this baseline, feeding each device in sequence. Trace each vertical drop from the main bus to its endpoint; the symbol at the termination reveals the load type: a zigzag for resistive elements, a coil for inductive devices, or parallel lines for capacitive components.
Count the number of active conductors between the bus and the device–each extra wire beyond the first signals a multi-wire hookup. A single branch feeding a lamp symbol indicates 2-wire service, while two branches leading to the same motor label denote split-tap connections for dual-voltage operation. Verify whether the branches merge into a single terminal block; if they don’t, expect separate overcurrent protections for each leg.
Check for dashed lines intersecting the conductors–they highlight isolation points like disconnects, circuit breakers, or thermal cutouts. A small square with a diagonal slash denotes a fuse; a rectangle with a curved notch signifies a breaker. Measure the distance between dashed lines and loads–shorter spans imply local protection, longer spans centralize safeguards upstream.
Look for numerical annotations next to each load. A “16 A” marking beside a resistive element means the circuit must handle 16 amperes continuously; a lower-rated breaker here risks nuisance tripping. Motors often carry dual figures–”FLA 5 A” indicates full-load amperage, “LRA 25 A” the locked-rotor inrush; match wire gauges accordingly.
Spot relays or contactors inserted between bus and load–they convert manual commands into automated sequences. A rectangular symbol with a diagonal line shows a normally-open contact; a straight line denotes normally-closed. Identify the auxiliary coil wiring–typically a smaller circle beside the main device–to understand start/stop logic.
Map shared neutrals carefully. Two loads sharing one return wire must sum their currents–if both draw 10 A each, the neutral carries 20 A. Overlooking this leads to overheating in 2-wire shared configurations. Use separate returns for inductive loads to prevent back-feed voltages.
Confirm voltage drop symbols–arrows pointing inward at either end of a conductor indicate permissible milli-volt loss. A “3 %” label near a 120 V run limits drop to 3.6 V; exceeding it dims lights or stalls motors. Multiply conductor length by load current, then consult copper resistivity tables for appropriate wire size.
Inspect grounding paths last. A downward triangle next to a load denotes chassis ground; a wavy line signifies system earth. Ensure every metallic enclosure connects back to the main ground bus–missing links create floating potentials that shock operators. Use color coding if available: green for earth, white for neutral, and red/black for active legs.
