Schematic Overview of Engineering Material Classification Types and Categories
Begin with a two-axis framework to segment substance types by primary composition and performance traits. Position metallic compounds on the left vertical axis, ceramics and organic polymers on the right, reserving the lower horizontal plane for composites. This arrangement immediately clarifies fundamental differences in bonding mechanisms–ionic, covalent, and metallic–and avoids misclassification of hybrid systems.
Label each branch with precise temperature resistance ranges and tensile strength values (e.g., titanium alloys: 300–600 MPa, 315–600°C). Use color-coding to denote thermal conductivity bands–blue for insulators (≤1 W/m·K), red for conductors (>200 W/m·K)–and apply diagonal hatching to indicate corrosion susceptibility. This transforms raw data into actionable visual cues, reducing misinterpretation during material selection.
Integrate application-specific symbols directly into the chart: a gear icon for mechanical components, a circuit symbol for electronic substrates, and a flame outline for high-temperature environments. Place them adjacent to relevant substance groups with directional arrows to streamline cross-referencing. Ensure all symbols adhere to ISO 14617-1 standards to prevent ambiguity.
For dynamic conditions, annotate each substance with modulus of elasticity and fracture toughness (e.g., glass-ceramic: E ≈ 65 GPa, K₁c ≈ 2.5 MPa·m½). These metrics should appear in a compact table inset within the core structure, not as separate legends. This eliminates redundant lookups while maintaining clarity under time constraints.
Include a secondary layer beneath the main graph that maps processing routes–casting, sintering, extrusion–via dashed lines connecting each substance to its fabrication method. Use thickness variations to indicate cost-efficiency: single-pixel lines for ≤ $5/kg, double-pixel for $5–$50/kg, and triple-pixel for >$50/kg. This second layer ensures the diagram remains useful beyond initial categorization, supporting cost-sensitive decision-making.
Structural Grouping of Industrial Substances: Visual Framework

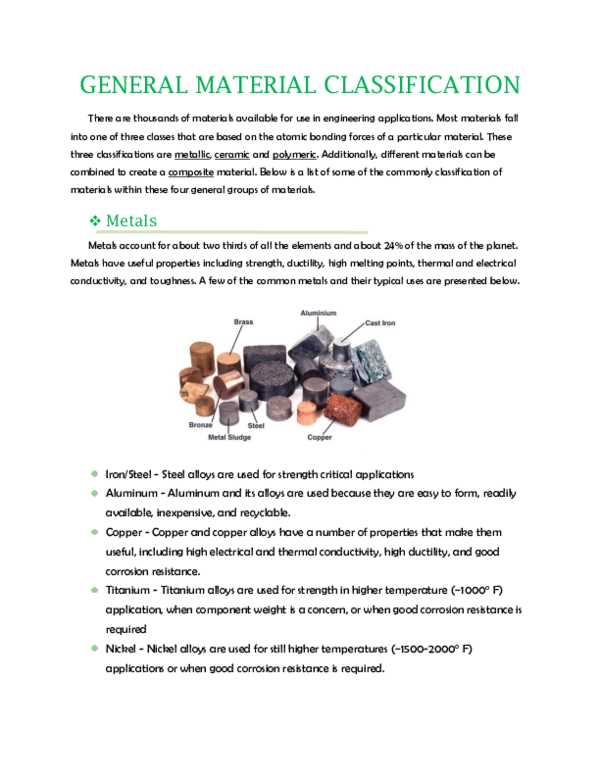

Begin by segmenting primary categories into metals, polymers, ceramics, and composites–each forms a distinct branch in the flowchart. Metals subdivide into ferrous (steels, cast irons) and non-ferrous (aluminum, copper, titanium), while polymers split into thermoplastics (polyethylene, PVC) and thermosets (epoxy, polyurethane). Ceramics include traditional (clay, glass) and advanced (alumina, zirconia), and composites merge matrices (e.g., polymer-based) with reinforcements (carbon fiber, glass). Label each branch with mechanical properties (e.g., tensile strength, thermal conductivity) to guide selection.
| Category | Subtype | Key Properties | Typical Applications |
|---|---|---|---|
| Metals | Ferrous | High strength, magnetic | Structural beams, machinery |
| Non-ferrous | Corrosion-resistant, lightweight | Aerospace, electrical wiring | |
| Polymers | Thermoplastics | Recyclable, ductile | Packaging, piping |
| Thermosets | Heat-resistant, rigid | Adhesives, insulators |
Incorporate color-coding to distinguish branches: red for metals, blue for polymers, green for ceramics, and yellow for composites. Use dashed lines for emerging variants (e.g., nanomaterials, biodegradable polymers) to highlight innovation pathways. Annotate intersections (e.g., metal matrix composites) with percentage ratios of constituents or performance trade-offs (e.g., “aluminum matrix + 30% SiC → 50% higher stiffness”).

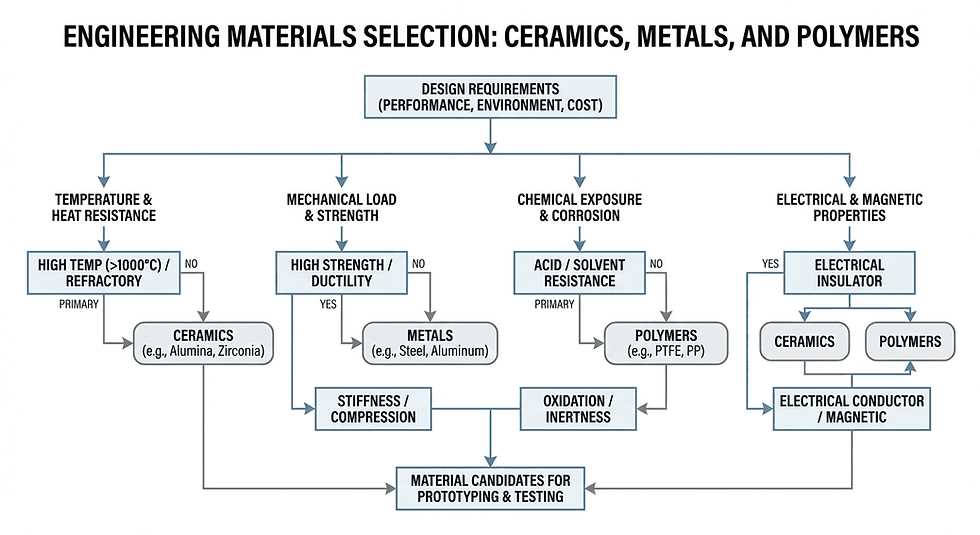

Embed decision nodes at critical splits in the chart. For example, at the metal/polymer bifurcation, add criteria like “Operating temperature > 300°C?” or “Weight constraint to direct users to the optimal path. Link secondary properties (e.g., cost/kg, machinability) to each node using tooltips or pop-ups for deeper analysis without cluttering the main visual.
Validate the framework with ASTM/ISO standards for accuracy. Cross-reference property values (e.g., “316 stainless steel: 565 MPa yield strength”) with industrystandard databases. Include a “Limitations” column in the table–for instance, “carbon fiber composites: poor UV resistance”–to force balanced evaluation during material selection.
Integrate feedback loops for iterative refinement. Add a “User Case” input field where designers can input project-specific parameters (e.g., load cycles, chemical exposure) to generate dynamic recommendations. For example, inputting “marine environment, cyclic loading” might prioritize titanium alloys or fiberglass composites while flagging potential corrosion risks for steels.
Export the framework as an interactive SVG with hyperlinks to supplier datasheets or simulation tools. For instance, clicking on “aramid fibers” could open a tensile strength calculator or a supplier quote form. Prioritize scalability–ensure the chart accommodates subdivisions (e.g., “smart alloys” under metals) without requiring structural overhauls. Update quarterly to reflect new entries like graphene-enhanced polymers or bio-based resins.
Core Principles for Categorizing Substances in Technical Blueprints
Prioritize mechanical behavior by splitting alloys, polymers, ceramics, and composites into primary clusters based on yield strength, elasticity modulus, and fracture toughness thresholds. For ferrous metals, use ASTM standards (A36, A572) to define sub-groups; non-ferrous variants (aluminum 6061, copper C110) require distinct branches with conductivity and corrosion resistance metrics. Thermoplastics like ABS or nylon integrate deformability under load as a key differentiator, while thermosets demand thermal stability data.
- Deformation under stress: yield point (MPa) vs. ultimate tensile strength.
- Thermal limits: melting range (°C) or glass transition for non-metallics.
- Electrical attributes: resistivity (Ω·m) or dielectric strength (kV/mm).
- Chemical endurance: resistance to acids, alkalis, or solvents (weight loss %).
- Density ratios: lightweight composites (carbon fiber) vs. heavy refractories (tungsten).
Organize hierarchies using fabrication constraints–cast, wrought, sintered, or additive-manufactured forms must occupy separate nodes. Each node should reference industry codes (ISO 683 for steels, ISO 1629 for rubbers) to avoid ambiguity. For instance, powder-metallurgy parts and rolled sheets warrant divergent paths due to grain structure disparities. Include machinability ratings (1–100 scale) where relevant, as this dictates tooling choices and cost drivers.
Incorporate environmental sustainability criteria by tagging substances with embodied energy (MJ/kg) and recyclability percentages. Aluminum alloys (95% recyclable) contrast with epoxy composites (single-use only). Label hazardous traits–lead-containing brass or asbestos–with clear warning icons. For high-temperature applications, cross-reference oxidation resistance (mass gain mg/cm²) with creep rupture data (hours at 80% tensile strength). This ensures blueprints double as lifecycle guides.
Building a Practical Taxonomy Chart for Technical Substances
Begin by identifying core families: metals, polymers, ceramics, and composites. List each group in vertical columns, spacing them evenly to allow horizontal expansion for subcategories. Metals split into ferrous (irons, steels) and non-ferrous (aluminum, copper, titanium). Polymers branch into thermoplastics and thermosets. Ceramics divide into oxides, carbides, and nitrides. Composites segment into fiber-reinforced and particulate types. Use straight lines to connect each category to its parent group; keep angles sharp for readability.
Break each family into specific grades. For steels, include carbon, alloy, stainless, and tool varieties. Under thermoplastics, note polyethylene, polypropylene, PVC, and nylon. Label oxide ceramics as alumina or zirconia. Add breakdown arrows only where more than two variants exist, reducing visual clutter. Limit branch depth to three levels; deeper hierarchies confuse rather than clarify.
Refining Group Boundaries
Define qualitative thresholds between grades. Set carbon steel apart from alloy steel at 3% total alloying elements. Mark thermoplastics by melting behavior: PVC softens at 80°C, nylon at 220°C. Distinguish alumina from zirconia by hardness: 1400 HV vs 1100 HV. Place numeric thresholds on the connecting lines, aligning decimals vertically for quick comparison. Highlight exceptions–titanium alloys that behave like ceramics under oxidation–in red dashed borders.
Validate the layout with cross-property connections. Link ductile iron to thermoplastics via fatigue resistance curves; match aluminum alloys to fiber composites via density ranges (2.5–2.8 g/cm³). Draw curved bridges only if properties overlap consistently; otherwise, omit decorative curves. Place numerical properties in compact tables beneath each group, using sans-serif fonts for precision.
Finalize with consistent legend symbology. Apply solid rectangles for metals, dashed ovals for polymers, dotted triangles for ceramics, and grid-filled hexagons for composites. Color-code rectangles: blue for ferrous, yellow for non-ferrous. Assign red to polymers, green to ceramics, purple to composites. Print test copies at 50% scale to verify legibility; adjust line weights to 0.75 pt for fine detail and 1.5 pt for category boundaries.
Common Mistakes When Structuring Component Groups in Visual Charts
Overloading a single node with more than five subtypes forces readers to scroll or zoom, breaking the flow of understanding. Limit subcategories to three or four per parent group, and use color or numbered labels to clarify hierarchy without clutter. Tools like Lucidchart or Mermaid.js allow collapsing branches–apply this to deeper layers where finer distinctions add no immediate value.
Misaligning identical categories across branches creates false comparisons. If “thermal conductivity” appears under both metals and polymers, the visual path must mirror the layout exactly–same indentation, same arrow style, same box dimensions. Deviations imply unintended ranking or significance, skewing interpretation. Use grid snapping in diagramming software to enforce consistency.
Ignoring Cross-Link Relevance
Connecting unrelated properties–like tensile strength to biodegradability–dilutes focus. Draw links only when they reflect measurable interactions, such as how corrosion resistance affects lifespan in marine alloys. Label each cross-connect with precise wording: avoid generic terms like “related” or “impact.” Instead, specify “sacrificial anode dependency” to maintain rigor.
Failing to anchor visual elements to a logical baseline causes floating conclusions. Every property node should descend from a defined attribute–mechanical, chemical, or functional–or risk becoming an orphaned exception. Place ambiguous items (e.g., “shape memory”) under “special behaviors” with dotted borders to signal provisional status.
Using inconsistent terminology across labels confuses pattern recognition. Choose one term–”elastic modulus” or “Young’s modulus”–and apply it uniformly, including abbreviations. Maintain parallel phrasing: if density is “kg/m³,” thermal expansion coefficients must follow the same unit format. Export diagrams as SVG to preserve text fidelity during scaling.
Neglecting Accessibility Constraints
Color-coding without fallbacks obscures meaning for color-blind viewers. Pair hues with distinct patterns–stripes for ceramics, cross-hatch for composites–and include a legend within the viewport margins. Ensure text-to-background contrast ratios exceed 4.5:1 (WCAG AA) by testing with tools like WebAIM Contrast Checker. For print outputs, embed redundant text descriptors directly beneath icons.
