Complete Coleman Mach Air Conditioner Wiring Diagram Guide and Troubleshooting
Start by locating the terminal board on the climate control unit–typically mounted inside the recreational vehicle’s ventilation compartment behind a removable panel. Identify the color-coded leads: red for 12V power, black for ground, yellow for fan control, and blue for compressor activation. Many installation issues stem from misrouted yellow and blue wires; verify these connect to the correct 30A relays if the system fails to engage cooling.

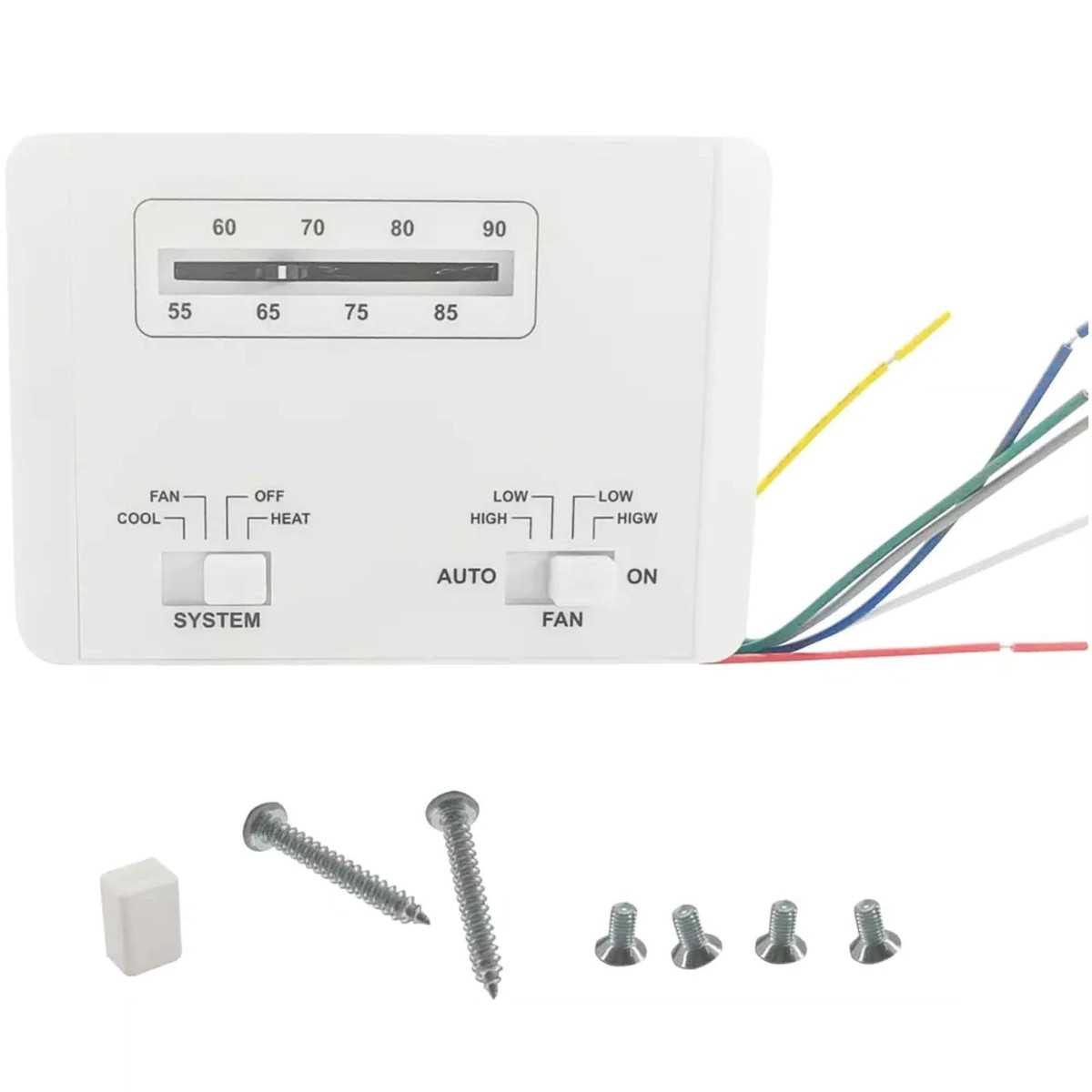

Check the thermostat interface next. Most models use a five-wire setup: R (power), G (fan), Y (cooling), W (heating), and C (common). If the unit cycles erratically, test continuity on the Y and C terminals with a multimeter. A reading above 2 ohms indicates corroded contacts–replace the thermostat or clean terminals with contact cleaner.
Examine the fuse block adjacent to the unit. 15A and 20A fuses protect separate circuits; a blown fuse often causes silent operation. Swap in an identical fuse, but first inspect the inline power wires for chafing or exposed copper–especially near sharp metal edges inside the compartment. Secure any damaged sections with heat-shrink tubing to prevent shorts.
Trace the low-voltage wires from the control module to the roof unit. Pinch connectors frequently loosen during transit; use needle-nose pliers to crimp each connection firmly. If the fan runs but doesn’t vary speed, focus on the gray wire linking the module to the motor resistor. A faulty resistor manifests as three preset speeds instead of infinite adjustment–locate it beneath the fan shroud and replace if malfunctions persist.
For units unresponsive to inputs, bypass the onboard controller by jumpering Y to R directly at the terminal. Immediate compressor activation confirms controller failure; download the manufacturer’s service manual for the exact board revision and order the PCB directly. While awaiting replacement, splice a temporary toggle switch to the compressor relay (blue wire) to maintain cooling.
Understanding Your RV Climate System Electrical Layout
Locate the power distribution panel behind the control unit’s cover–typically secured with two screws. Disconnect the 12V battery before inspecting to prevent short circuits. Check for burnt connections on the 30-amp relay responsible for compressor activation; corrosion here disrupts cooling cycles. Use a multimeter to verify 12.6V DC at the red input wire to the thermostat–any reading below 11.8V signals a weak battery or faulty alternator.
Key Connection Points and Troubleshooting Steps
- Thermostat Wiring: The blue wire (low-speed fan) and yellow wire (high-speed fan) must terminate at the fan motor’s corresponding colored terminals. Crossed wires cause erratic fan behavior or failure to start.
- Compressor Relay: Test continuity across the relay’s coil terminals (85 and 86). No continuity? Replace the relay–often the culprit behind silent compressors.
- Ground Path: The black wire from the unit must connect to a clean chassis ground. Scrape off paint or rust at the connection point to ensure a direct metal-to-metal bond.
- Pressure Switch: Bypass the switch temporarily by jumping its terminals with a paperclip (engine off!). If the compressor starts, the switch needs recalibration or replacement.
Reassemble components only after labeling each wire with masking tape–include the terminal destination (e.g., “To fan motor, blue”). For AC units with heat strips, verify the brown wire’s connection to the heater relay; a loose brown wire trips the 15-amp fuse. Post-reassembly, power on the system and monitor for unusual noises (grinding = compressor bearing failure; clicking = relay cycling too rapidly). Keep a spare 30-amp fuse and relay in your toolkit–these fail without warning during peak load.
Step-by-Step Guide to Identifying Critical Electrical Parts in Climate Control Systems
Begin by shutting off the power source at the breaker panel to prevent accidental shorts or electrical hazards. The main control board is typically mounted behind the interior vent assembly–remove the front grille by releasing the clips or screws securing it. Label each connector before detaching to simplify reassembly.
Trace the high-voltage leads from the compressor and fan motor back to their relay switches. These relays are often housed in a compact junction box near the unit’s blower assembly. Use a multimeter set to continuity mode to verify connections; a reading of zero ohms confirms an intact circuit, while infinite resistance indicates a break.
| Component | Color Coding (Common) | Typical Location | Voltage Range |
|---|---|---|---|
| Compressor Lead | Red, Black | Rear exterior chassis | 230V (dual-phase) |
| Fan Motor | Blue, White | Behind evaporator coil | 115V (single-phase) |
| Capacitor | Brown, Yellow | Adjacent to compressor | 370V (start/run) |
Locate the transformer–usually a rectangular box with two input wires (black/white) and output terminals (blue/red) marked for 24V AC. The secondary side powers the thermostat circuit; if the climate system fails to respond, test these terminals first. A faulty transformer often reads below 22V or shows no output.
Inspect the terminal block where the thermostat wires connect. Most models use a standardized pinout: red for power, yellow/green for compressor/fan control, and white or orange for heating elements if equipped. Cross-reference the terminal labels with the system’s documentation–mismatches account for half of intermittent failures.
Examine the thermistor or temperature sensor, a small probe inserted into the air intake. Resistance should decrease linearly as temperature rises (e.g., 10k ohms at 25°C, 5k ohms at 40°C). Drift beyond 10% from standard resistance curves indicates a defective sensor requiring replacement.
For dual-voltage units, the wiring changeover jumper must align with the supply voltage (115V or 230V). Check the jumper’s position against the electrical rating label–incorrect settings will trip breakers or damage components. Recheck all connections after servicing to ensure no loose strands or reversed polarity, then restore power and monitor for proper operation.
How to Identify and Trace Power Supply Lines in an RV Climate Control Unit
Locate the main electrical panel first. In most RV heating and cooling systems, this panel is housed near the blower motor or under the interior access hatch. Remove the cover carefully–some units use snap-on clips, while others require a screwdriver. Label each cable with masking tape and a permanent marker before disconnecting anything to avoid confusion during reassembly.
Key Visual Indicators for Power Cables
- Color coding: High-voltage supply lines (110-120V AC) are typically black or red, though some older models may use white with black stripes. Low-voltage thermostat leads (24V AC) often appear as yellow, green, or blue. Neutral wires are white, and grounding wires are bare copper or green.
- Wire gauge: Thicker cables (12-14 AWG) handle the main power feed, while thinner wires (18-22 AWG) connect to the control board or sensors. Check the imprint on the insulation for gauge confirmation–printed text like “AWG 14” or “14/2” confirms size.
- Insulation texture: Power supply wires usually have smooth, thick insulation resistant to heat. Thermostat leads may have a rougher, flexible coating for easier routing around corners.
Use a multimeter set to AC voltage to verify live circuits. Probe the suspected hot wire while touching the neutral or ground–expect 110-120V for main power or 24V for control circuits. Switch the meter to continuity mode to trace wires from the panel to the compressor or fan motor. Attach one probe to a wire at the panel and touch the other to the same wire at its endpoint–an audible beep confirms the connection.
Common Connection Points and Potential Pitfalls
- Compressor terminal block: Often has three wires–start, run, and common. Mark these terminals (labeled “C,” “R,” and “S”) before working near them. Misconnection here can damage the unit’s capacitor.
- Blower motor: Usually has a separate harness with spade connectors. The brown wire typically carries the capacitor lead; disconnect power before removing these. Corrosion on spade ends can cause intermittent failures.
- Transformer output: A small coiled component near the control board steps down 120V to 24V. Check for 24V at the secondary side–no voltage suggests a failed transformer or blown fuse.
- Control board terminals: Look for labels like “G” (fan), “Y” (cool), “W” (heat), and “R” (power). Verify voltage between “R” and other terminals–24V confirms proper function. Loose connections here mimic thermostat failures.
Inspect wires for damage before tracing. Frayed insulation, brittle coating, or melted sections indicate overheating–replace the entire cable rather than splicing. Rodents target these systems; chewed wires may cause short circuits. Disconnect the battery and shore power before cutting into any harness to prevent sparks.
Map the circuitry on graph paper. Sketch each component (compressor, blower, thermostat) and note wire colors and connection points. Photograph each step with a camera for reference. If the existing schematics differ from the physical setup, prioritize the observed layout–aftermarket modifications are common.
Test all safety devices before energizing the unit. The thermal cutoff switch near the evaporator coil trips if airflow is blocked; reset it manually. The high-pressure cutoff switch on the condenser line trips during airflow restrictions–locate it and verify continuity. Bypass these temporarily for testing, but reinstall them before permanent operation.
Reconnect power only after visual and electrical checks. Energize the system in stages: first the main power, then the thermostat circuit, and finally the compressor. Monitor for unusual noises or burning smells. If the fan runs but the compressor doesn’t, suspect a faulty start capacitor or relay–test these components with an analog meter on the capacitance setting.
