Step-by-Step Doorbell Circuit Wiring Guide for Home Installation

Start by identifying the low-voltage transformer–typically a small metal box mounted near the main electrical panel or inside a utility closet. Most residential setups use 16-24V AC, but verify the output printed on the transformer’s label before proceeding. If the voltage doesn’t match the chime unit’s requirements (usually 8-24V), replace the transformer to avoid damaging the mechanism.

Locate the push-button switch near the entrance. Run a two-conductor bell wire (18-22 AWG) from the switch to the chime’s front terminal. Connect one wire to the switch’s screw terminal and the other to the chime’s common (COM) or transformer (TRANS) post. Avoid loose connections–solder or use crimp connectors rated for stranded wire to prevent intermittent failures.

For a second chime sound (e.g., back door), use a three-conductor wire. Route the third conductor from the rear push-button to the chime’s rear terminal, leaving the other two wires connected as before. Check continuity with a multimeter (Ω setting) before powering on–resistance should read near zero ohms when the button is pressed.

Mount the chime indoors near the entryway, but away from humid areas like bathrooms or kitchens. Secure the backplate with screws, ensuring it’s level to prevent rattling. If the unit has a mechanical plunger, lubricate it annually with light machine oil to maintain smooth operation. Test the system by pressing each button–distinct tones should sound without delay.

Tuck excess wire into wall cavities, but leave 6-8 inches near the chime for servicing. Label each wire at both ends with masking tape (e.g., “Front COM,” “Rear BUTTON”) to simplify future repairs. If buzzing occurs, add a 0.1µF non-polarized capacitor across the chime’s terminals to suppress interference from dimmer switches or fluorescent lights.

For older homes with plaster walls, use a fish tape or stiff wire to guide the cable through existing conduits. Avoid drilling into studs blindly–use a stud finder or knock lightly to detect hollow spaces. If retrofitting, consider upgrading to a solid-state chime (which often includes a diode bridge for polarity protection) for longer lifespan.

How to Install a Classic Chime System

Start by disconnecting power at the circuit breaker before handling any electrical components. Identify the transformer–typically a small box mounted near the electrical panel or inside a utility closet–rated for 16V to 24V AC. Verify voltage with a multimeter; mismatched voltage will damage the chime mechanism or cause weak operation.

Locate the push button at the front entrance. Remove the existing cover and strip ¼ inch of insulation from both incoming wires (if replacing an old unit). Connect these to the terminals on the new button, ensuring polarity isn’t critical for AC circuits. Secure the button back into place, testing for proper activation before proceeding.

Run 18-gauge low-voltage cable from the button to the chime unit. Route wires through walls or conduit to avoid physical damage, leaving 6 inches of slack at each endpoint for easy termination. Keep connections short–excessive cable length increases resistance, reducing signal strength and causing sluggish response.

Connecting the Chime and Transformer

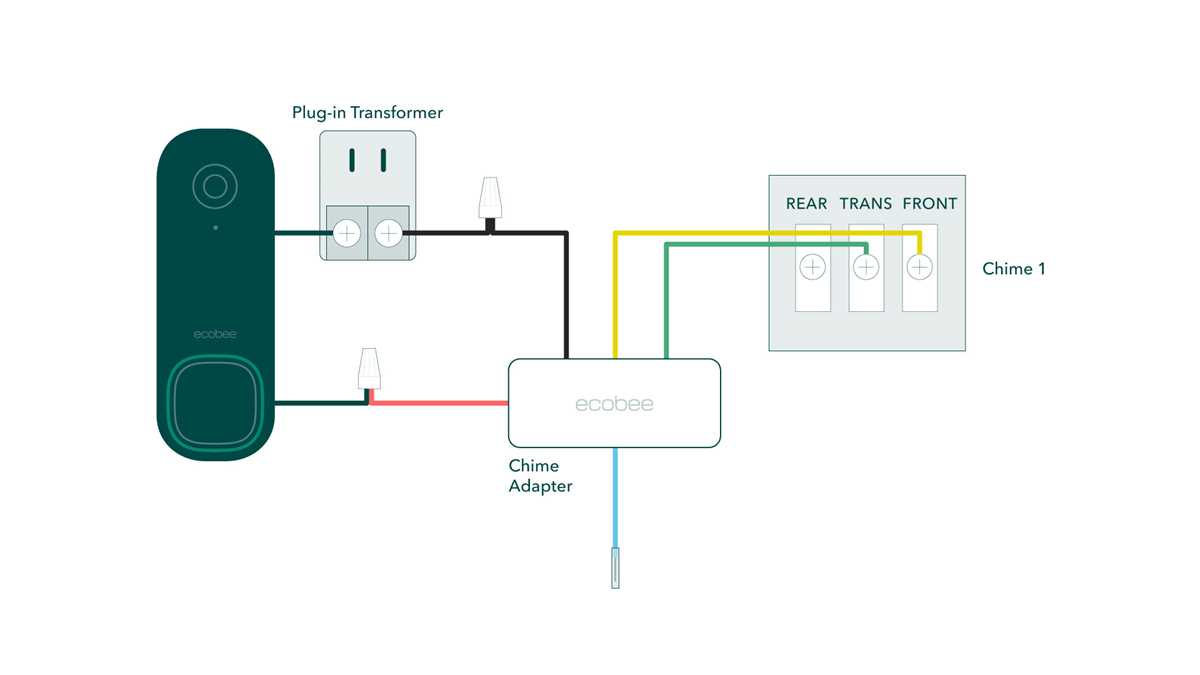

Mount the chime box in a dry, accessible location–hallways or entryways work well–using screws or adhesive strips. Open the chime cover and note the terminal labels: most models have “Front,” “Transformer,” and sometimes “Rear” or “Side” for secondary buttons. Connect one wire from the transformer to the “Transformer” terminal and the other to the “Front” terminal.

Attach the wires from the front push button to the “Front” terminal and a second transformer wire. If adding a secondary button (e.g., for a back door), repeat the wiring process using the “Rear” or “Side” terminal. Double-check all connections for tightness; loose wires create intermittent faults or buzzing sounds.

Restore power at the circuit breaker and test each button individually. Listen for a clear, single-tone chime; a weak or erratic sound indicates a voltage drop or damaged wire. If troubleshooting, measure voltage at the chime terminals–it should match the transformer’s output rating within ±1V.

For outdoor buttons, use weatherproof covers and silicone sealant around cable entries to prevent moisture ingress. Replace frayed wires immediately; corrosion inside connections is a leading cause of system failure. If retrofitting an older home, check for buried lead-sheathed cables–common in pre-1980s installs–and replace them to avoid shorts.

Consider adding a surge protector for the transformer if your area experiences frequent voltage spikes. For renters or temporary setups, clamp-style wire connectors allow for tool-free installation, though twist-on wire nuts provide more reliable long-term security. Always label each wire at the chime box for future maintenance.

Essential Equipment and Supplies for Installing a Chime System

Select a low-voltage transformer rated between 10 to 24 volts AC–most modern push-button chimes operate efficiently at 16 volts. Ensure the transformer’s wattage matches the chime unit’s requirements; a 10-15 watt model suffices for single-button setups, while dual-button systems may need 20-30 watts. Check the transformer’s mounting compatibility (wall, junction box, or plug-in) before purchasing.

Use 18-gauge solid copper wire for the signal circuit, as it balances conductivity with flexibility for routing through walls or conduit. Avoid stranded wire, which can fray when connecting to terminal screws. For outdoor runs exposed to moisture, opt for UV-resistant, PVC-jacketed wiring to prevent degradation. Pre-stripped wires with color-coded insulation simplify identification, reducing errors during installation.

Tools for the job: A voltage tester (non-contact type) verifies transformer output before connecting components–never assume power is off. Wire strippers with 18-gauge notches prevent nicks that weaken connections. Needle-nose pliers bend wire properly around terminal screws, while a small flathead screwdriver tightens them securely. A short length of fish tape helps thread wires through tight spaces, especially in retrofit installations.

Specialized Components for Reliability

Install a weatherproof push-button cover if the button is exposed to rain or direct sunlight. Metal or high-impact plastic housings last longer than brittle materials. For multi-tone chimes, ensure the internal solenoid matches the voltage of the transformer; mismatched voltage causes weak or distorted sounds. Backup batteries (typically 9V) are optional but useful in areas with frequent power outages–choose models with low-voltage cutoff to avoid draining prematurely.

Conduit protectors or flexible cable raceways shield wires from nails or screws during wall repairs. Use wire nuts or crimp connectors for splices, then wrap them with electrical tape for insulation. For concrete or brick surfaces, masonry anchors and screws keep the button or transformer securely mounted. A multimeter set to AC voltage mode confirms proper connections–expect 16V at the chime terminals when the button is pressed.

Avoid using staples for securing low-voltage wires near household circuits; if staples pierce insulation, they risk shorting against adjacent 120V lines. Instead, use insulated cable clamps spaced every 18-24 inches. For complex layouts, a wiring schematic drawn on graph paper saves time–label each wire’s path (e.g., “transformer to button red”) to troubleshoot quickly if the system fails post-installation.

How to Install a Chime Power Supply: A Practical Walkthrough

Locate the electrical panel and switch off the circuit powering the entry signal system. Use a non-contact voltage tester near the existing unit’s connections to confirm the absence of live current before proceeding. Failure to verify this step risks severe electrical shock or damage to components.

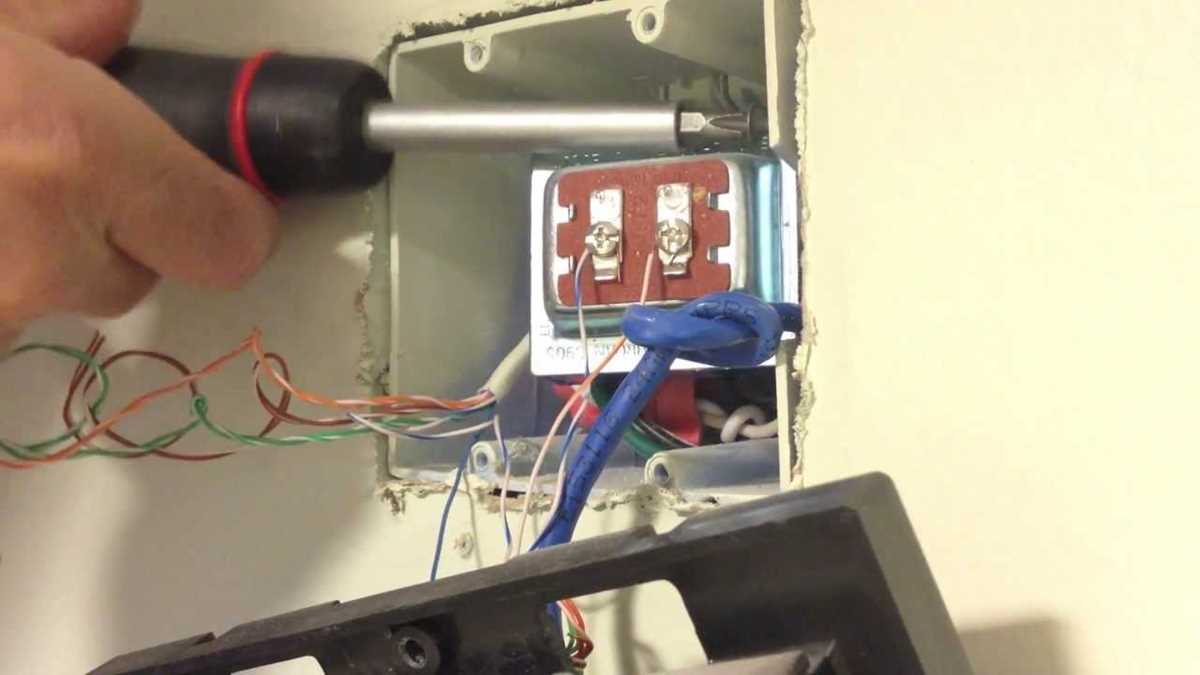

Mount the new voltage converter near the breaker box or along an accessible low-voltage run, ensuring it adheres to local building codes. Secure it with screws or brackets to a dry, non-combustible surface like metal conduit or a grounded junction box. Keep a minimum clearance of 3 inches from flammable materials. Check the label for input/output specs–common ratings include 16VAC or 24VAC at 10VA to 30VA. Mismatched voltage will fry the signaling device or cause erratic operation.

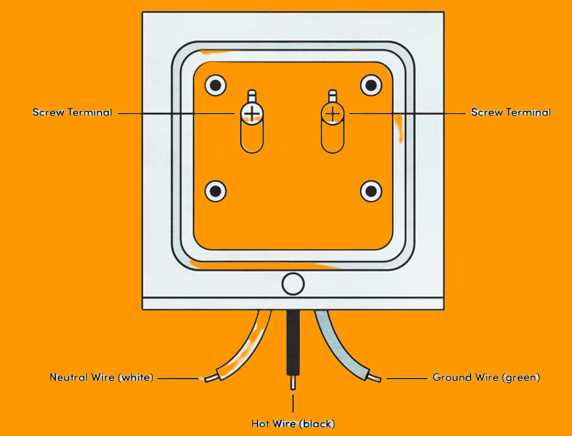

• Strip 3/8 inch of insulation from the incoming 120V conductors (typically black and white).
• Connect the black wire to the transformer’s primary hot terminal (marked LINE or H).
• Attach the white wire to the neutral terminal (marked NEUTRAL or N).
• If present, ground the bare copper or green wire to the transformer’s grounding screw or the metal enclosure.

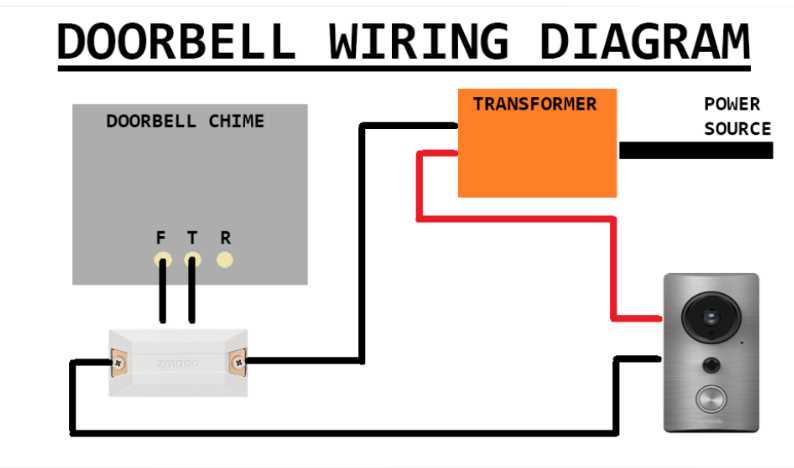

After securing the high-voltage side, route the low-voltage output wires (usually red and white) to the push-button and chime mechanism. Twist the red wire from the converter to the push-button’s terminal, then join the other end to the chime’s front or rear terminal; splice the white wire directly to the remaining chime input. Use wire nuts or crimp connectors rated for 20 gauge solid copper. Avoid loose connections–intermittent voltage drops will shorten the unit’s lifespan.

Restore power at the circuit breaker, then press the visitor alert button to verify operation. If no sound emits, immediately cut power and inspect all splices and terminal tightness. Measure AC voltage across the chime’s terminals with a multimeter; expect a reading within 1V of the converter’s rated output. Deviations beyond this range indicate a faulty transformer or incorrect terminal pairing. Replace any damaged hardware instead of attempting repairs–cost of new components is negligible compared to fire risk.
