Building and Understanding Constant Current Source Circuit Designs
For applications requiring exact amperage control–LED arrays, battery charging, or sensor calibration–an adjustable flow regulator ensures consistency despite fluctuations in input voltage or load impedance. A simple design using a transistor and an operational amplifier (op-amp) achieves better than 1% stability across a 5V to 30V range, provided the base-emitter junction remains forward-biased between 0.6V and 0.7V. Select a Darlington pair or MOSFET with a low RDS(on) if the target amperage exceeds 1A to minimize heat dissipation.

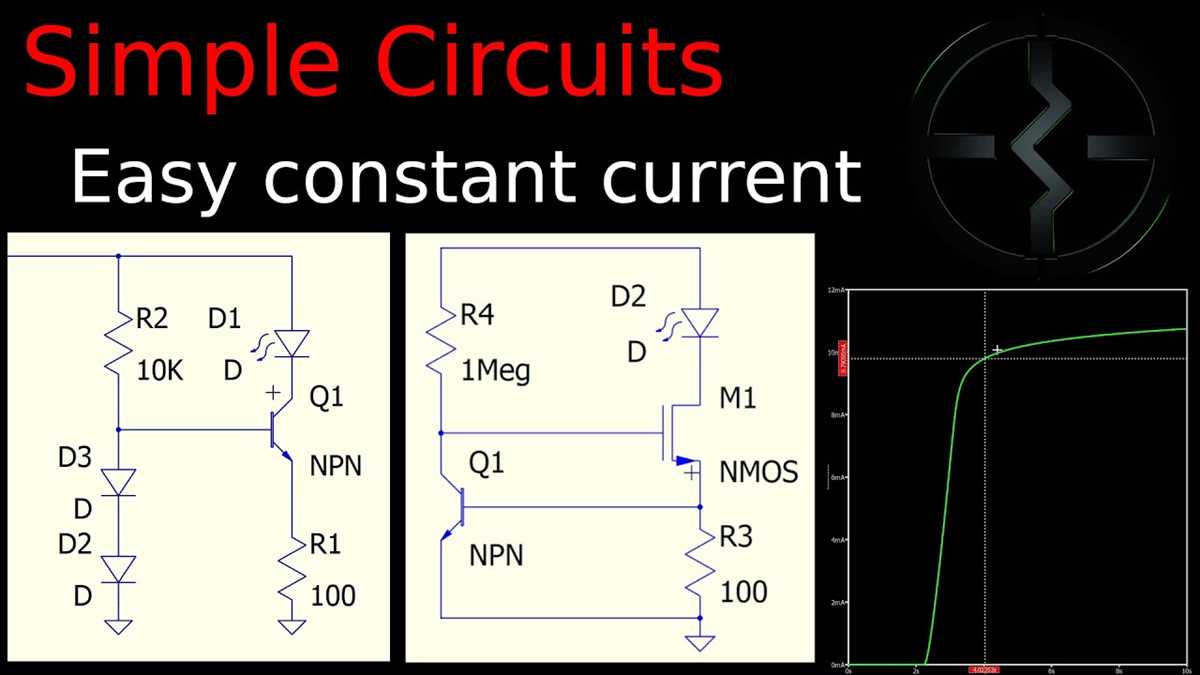

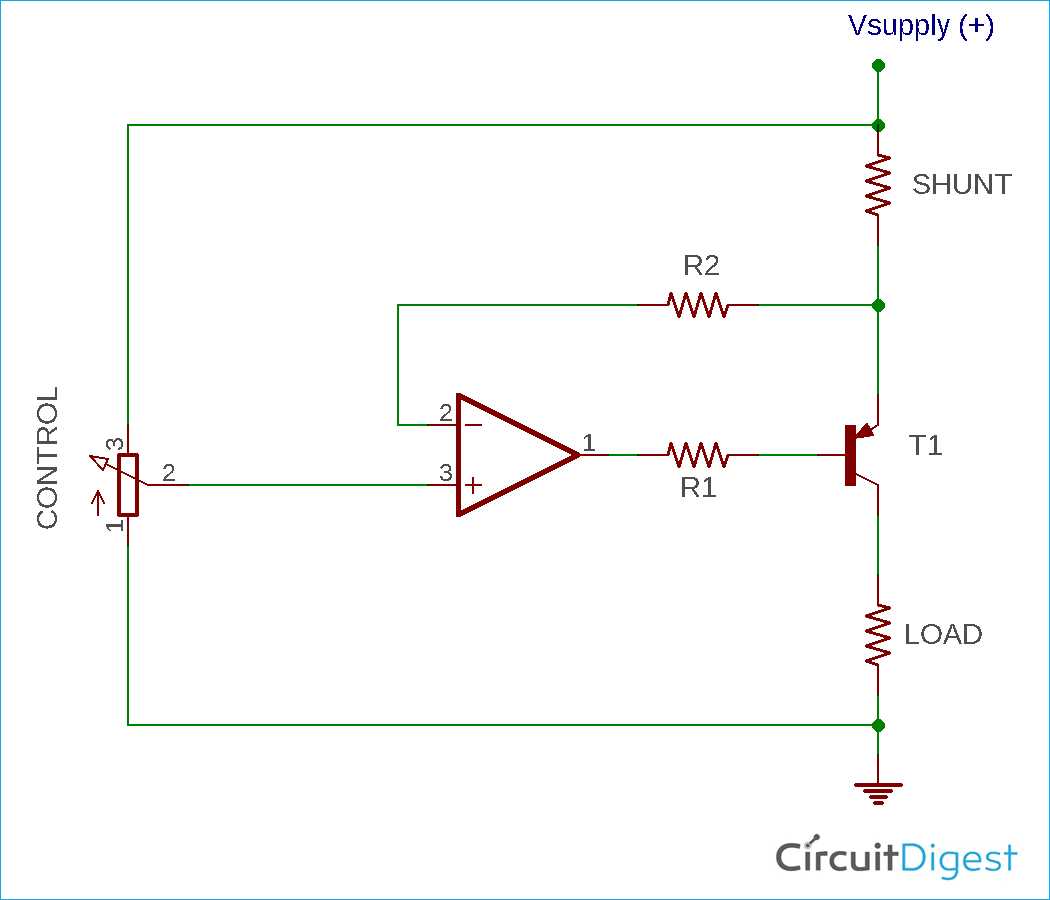

Reference configuration: Connect the non-inverting input of an LM358 or similar op-amp to a low-tolerance reference diode (TL431) set at 2.5V. Tie the inverting input to a shunt resistor (typically 0.1Ω to 1Ω, carbon film preferred for thermal stability) in series with the load. Adjust feedback via a 10kΩ potentiometer wired as a voltage divider to fine-tune the desired flow through the transistor. Ensure the transistor’s collector-emitter breakdown rating exceeds the maximum input voltage by at least 20%.
Thermal derating is critical: a TO-220 package like the TIP120 sustains 5A continuous at 25°C but drops to 3A at 75°C. Mount the transistor on a 15°C/W heatsink if ambient exceeds 40°C. For pulsed loads (e.g., motor drives), reduce the shunt resistor value to prevent transient voltage spikes from saturating the op-amp. Capacitors–10µF across the supply and 0.1µF at the op-amp inputs–filter noise above 10kHz, essential for consistent regulation in switching power supplies.
Accuracy hinges on layout: keep high-flow traces short and wide, at least 2.5mm per ampere, and separate them from the op-amp’s feedback loop to avoid parasitic oscillations. Test with a load sweep from 10Ω to 1kΩ; a properly designed setup shows less than 50mV deviation across the shunt resistor over the entire range. If overshoot exceeds 10% during load transients, increase the compensation capacitor (typically 10nF) in parallel with the feedback resistor.
Designing a Stable Load-Regulating Schematic

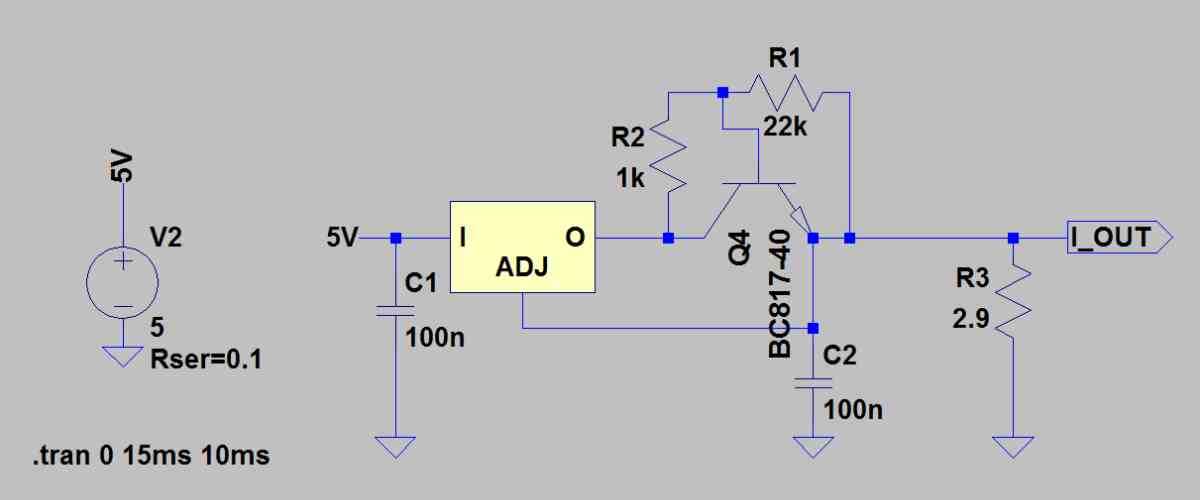

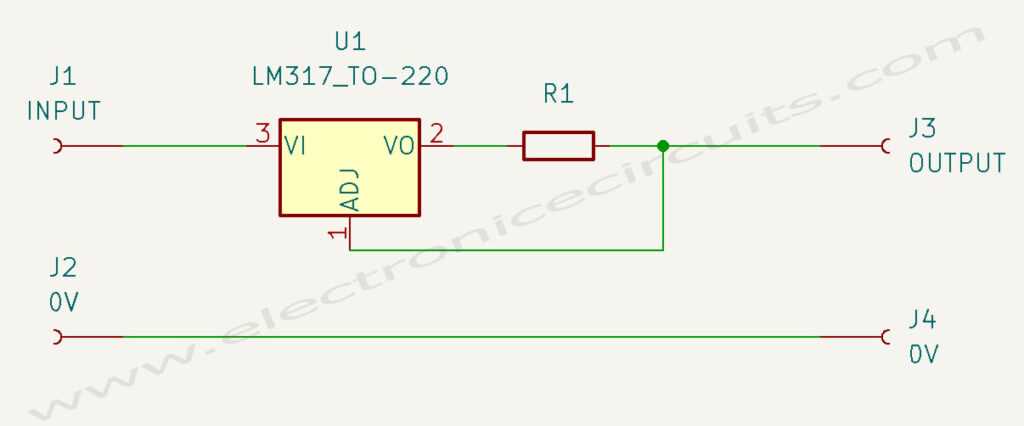

Start with a linear regulator topology if precision below 1% tolerance is required. Use an LM317 as the core component for adjustable arrangements–set the reference resistor (R1) at 240Ω to establish a 1.25V baseline between the adjustment pin and output. For higher power applications, pair it with a TIP31C transistor to handle up to 3A while keeping thermal dissipation manageable. Always place a 1µF decoupling capacitor on the input and a 10µF capacitor on the output to prevent oscillations.
For low-power LED arrays, employ a dedicated driver IC like the AL8805. Configure it with a sense resistor (Rs) calculated as Rs = 0.2 / desired_amperage–for example, 0.5Ω yields 400mA. Bypass the IC’s enable pin with a 0.1µF capacitor to filter noise. Avoid PWM dimming unless the IC explicitly supports it, as abrupt switching can introduce flicker in sensitive applications like microscopy lighting.
When galvanic isolation is necessary, opt for a flyback converter topology. Use the LT3795 controller with a coupled inductor–specify a 3:1 turns ratio for 12V-to-5V conversion at 500mA. Place a snubber (1kΩ + 1nF) across the MOSFET’s drain-source to suppress voltage spikes exceeding 100V. Verify stability by checking the loop response with a network analyzer; phase margin should exceed 45° at the crossover frequency.
High-current systems demand active cooling. For a 10A setup, mount the pass element on a heatsink with a thermal resistance below 2°C/W. Use a thermistor (NTC 10kΩ) to monitor temperature–shut down the system if it exceeds 85°C. Copper pours on the PCB should be at least 2oz thickness; reinforce critical traces with solder wick to handle transient surges.
Troubleshooting Common Issues
If the output drifts more than 5% under load, suspect poor grounding–separate analog and power grounds, connecting them only at a single star point. For ripple exceeding 50mVpp, increase the output capacitor’s ESR rating (target <0.1Ω) or add a ferrite bead in series. Verify the feedback path with an oscilloscope; stray capacitance above 10pF can destabilize the loop.
Field-programmable designs benefit from a digital potentiometer like the MCP41HVX1. Set its wiper via SPI, using a 1% tolerance resistor network for the coarse adjustment. For redundancy, include a hardware override: a jumper that bypasses the potentiometer and clamps the output to a fixed 100mA via a 12.5Ω resistor. Always fuse the input–fast-acting 1.5x the maximum expected amperage prevents catastrophic failure during short circuits.

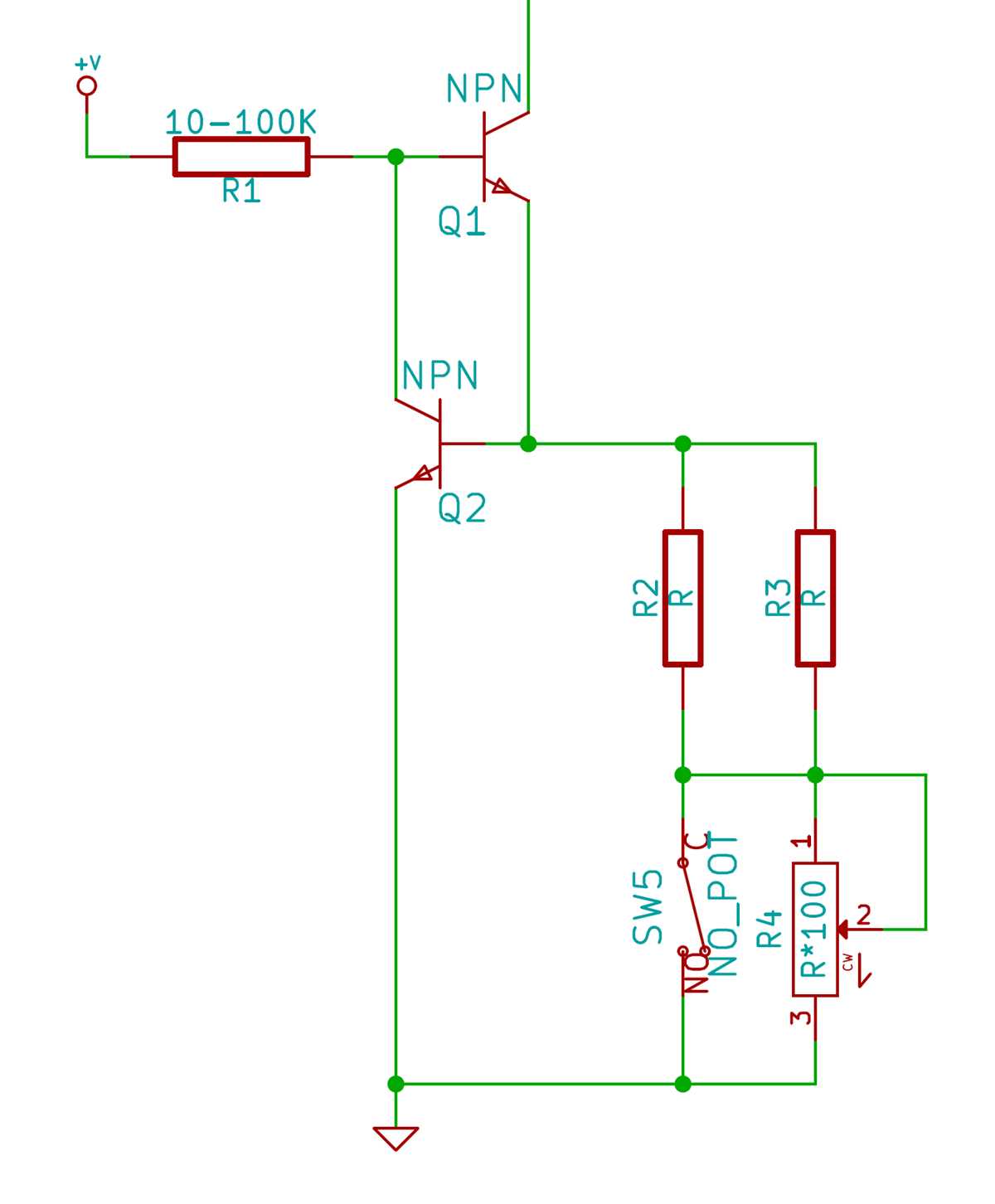

Core Elements for a Reliable Stabilized Power Flow Generator
Start with a precision transistor–preferably a bipolar junction type like the 2N3904 or BC547. These devices handle low to moderate loads (up to 200 mA) with minimal drift, provided they operate in the active region. For higher demands, a MOSFET (IRFZ44N) offers superior thermal stability and efficiency, though gate threshold voltage must be matched to the control signal. Ensure the chosen device has adequate power dissipation; calculate junction temperature using P = VCE × Iload + VBE × Icontrol to avoid thermal runaway.
A stable reference is non-negotiable. A Zener diode (1N4733A for 5.1V) is the simplest option, but noise and temperature coefficients degrade performance. Replace it with a precision voltage reference IC like the TL431, which offers programmable regulation (1.24V to 36V) with a 0.5% tolerance. For ultra-low drift, an LM385 (1.2V or 2.5V) or REF02 (5V) delivers 10 ppm/°C stability–critical for sensitive applications. Always bypass the reference with a 0.1µF ceramic capacitor to suppress high-frequency noise.
Feedback Loop: The Regulation Backbone
An operational amplifier (op-amp) forms the feedback loop’s nucleus. The LM358 (dual) or OPA2134 (audio-grade) excel in single-supply configurations, but the LT1006 (precision) wins for sub-millivolt offsets. Wire the op-amp as a comparator: the non-inverting input ties to the reference, while the inverting input senses the load via a low-value resistor (1Ω for 1A nominal). This resistor’s tolerance (
The sense resistor’s value dictates the target flow rate. For 50 mA, use 20Ω (2V drop at reference); for 1A, scale down to 0.1Ω (100mV drop). Kelvin connections eliminate trace resistance errors; solder the voltage taps directly to the resistor pads, minimizing parasitic losses. If the op-amp’s output swings below the transistor’s base-emitter voltage, add a small resistor (1kΩ) in series to ensure full turn-on. For severe loads, a Darlington pair (TIP120) or a gate driver (TC4427) may be necessary to overcome beta limitations.
Thermal design dictates long-term stability. Mount the transistor on a heatsink rated for at least twice the calculated power dissipation. Use thermal paste and tighten mounting screws to 0.5 Nm torque for consistent thermal transfer. Add a 10kΩ thermistor on the heatsink near the transistor; if temperature exceeds 80°C, trigger an over-temperature shutdown via a comparator (LM393) tied to the op-amp’s enable pin. Decouple all ICs with 10µF tantalum and 0.1µF ceramic capacitors at the supply pins to prevent oscillations. For EMI-sensitive environments, shield the entire assembly in a grounded metal enclosure.
How to Calculate Resistor Values for Desired Load Flow
Begin with Ohm’s Law: divide the source voltage by the target amperage to determine resistance. For a 12V supply requiring 20mA, calculate R = V / I, yielding 600Ω. Select the nearest standard value–560Ω or 680Ω–based on tolerance tolerance (1%, 5%, or 10%). Verify the actual flow using the chosen resistor; a 560Ω part at 12V produces ~21.4mA, while 680Ω delivers ~17.6mA. Adjust for component drift: higher-tolerance parts reduce error.
Account for voltage drop across active elements like LEDs. A white LED typically drops 3.2V; subtract this from the supply before applying Ohm’s Law. For a 9V source and 15mA target, use R = (9V – 3.2V) / 0.015A, resulting in 387Ω. Round to 390Ω (E24 series) or 383Ω (E96 series). Measure post-assembly; variations in LED forward voltage (±0.2V) alter flow by ±3%. Overdrive risks thermal runaway–limit to 80% of maximum rating.
For series configurations, sum individual loads before calculation. Two 3.2V LEDs in series under 12V demand R = (12V – 6.4V) / 0.02A, equating to 280Ω. Pick 270Ω or 300Ω from E24 stock. Parallel paths require separate resistors unless matched loads ensure equal sharing. A 20mA split across two identical paths needs two 1.2kΩ resistors; mismatch causes uneven distribution, potentially exceeding device limits.
Dynamic sources (e.g., PWM) demand RMS analysis. A 50% duty cycle at 12V averages 6V; calculate as if the mean voltage were static. Thermal effects complicate precision: a 25°C increase raises resistor values by ~1% (carbon film) to 0.1% (metal film). Compensate by derating calculated values by 5–10% or using temperature-stable parts. For high-power applications, ensure resistors dissipate P = I²R without exceeding wattage ratings–0.25W parts suffice for ≤25mA at 600Ω.
Validate with a multimeter before finalizing. Clip probes across the resistive element; expected deviation should not exceed ±5% of nominal. If readings diverge, recheck connections, source stability, and component markings. Sub-1Ω resistors (

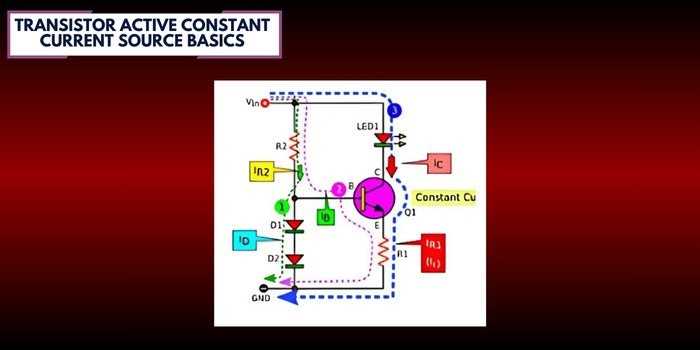

Step-by-Step Assembly of a Transistor-Based Stabilized Flow Source
Begin by selecting a BC547 NPN transistor for its low saturation voltage and stable performance at low voltages. Pair it with a 2N2222 as an alternative if the BC547 is unavailable–both handle up to 800 mA with a collector-emitter breakdown above 40V.
Choose a precision resistor for the emitter path. For a target flow of 20 mA, use a 62 Ω, 1% tolerance resistor; verify its value with a multimeter before soldering. Test different resistor values (see table below) to fine-tune the output:
| Resistor (Ω) | Estimated Flow (mA) | Notes |
|---|---|---|
| 33 | 30 | Uses base-emitter voltage drop (~0.6V) |
| 62 | 20 | Standard for 5–12V input range |
| 120 | 10 | Low-power applications |
Connect the transistor’s base to a voltage divider using two resistors–4.7 kΩ and 1.5 kΩ–to set a reference of ~1.2V. This ensures the transistor regulates without thermal runaway. Avoid values below 1 kΩ to prevent excessive base load.
Attach the load (e.g., an LED or small motor) between the transistor’s collector and the supply’s positive terminal. Keep leads short to minimize parasitic resistance; a 10 cm wire adds ~0.1 Ω, skewing precision at low flow rates.
Power the setup with a 9V battery or bench supply. Measure the flow across the emitter resistor with a multimeter; expect ±5% deviation from calculations due to transistor tolerances. For higher accuracy, replace the BC547 with a TIP31C–its 3A capacity reduces errors under load fluctuations.
Add a 100 nF ceramic capacitor between the supply rails near the transistor to suppress high-frequency noise. Neglecting this step may cause erratic behavior in sensitive loads, especially above 1 kHz operating frequencies.
For adjustable flow control, replace the emitter resistor with a 1 kΩ potentiometer. Sweep its resistance while monitoring the multimeter–stop when the target value stabilizes. Secure the potentiometer’s shaft with a lock nut to prevent drift.
Finally, enclose the assembly in a small aluminium project box if operating above 50 mA. Transistors dissipate heat proportional to the flow; without heatsinking, a BC547 may exceed its 350 mW limit within minutes at 100 mA. Use thermal paste if mounting directly to a metal surface.
