Detailed CPU Architecture Schematic and Circuit Design Breakdown

Begin by isolating the arithmetic logic unit (ALU) in your schematic–this core block demands high-speed transistor configurations, typically arranged in complementary pairs for optimal switching efficiency. Prioritize 14nm or 7nm FinFET layouts for the ALU to minimize leakage while maintaining clock speeds above 3.5 GHz. Use differential signaling for the internal data buses to reduce noise susceptibility; a 64-bit wide path with ECC (error-correcting code) safeguards against bit flips in demanding workloads.

Separate cache hierarchies into distinct layers: L1 (split into 32KB instruction/data), L2 (unified 256KB–1MB), and L3 (shared 2MB–64MB). Employ SRAM cells for L1/L2 with 6-transistor (6T) designs for speed, while L3 benefits from 12-transistor (12T) configurations for lower power. Position write-back buffers between cache levels to prevent stalls during memory operations, ensuring <10ns latency for frequent accesses.

Integrate phase-locked loops (PLL) to distribute clock signals, using multi-threshold CMOS to balance performance and power. The PLL should lock within 20 reference cycles to avoid metastability. For power delivery, route VDD/GND planes in parallel to the core logic, with decapacitor arrays placed every 50µm to suppress voltage droop. Avoid IR drops exceeding 5% of nominal voltage by widening traces to 2x minimum width near high-current blocks like the floating-point unit (FPU).

Connect IO controllers via serialized differential pairs (e.g., PCIe 5.0, DDR5) with pre-emphasis and equalization to counteract signal degradation. Use on-die termination (ODT) for DDR interfaces to eliminate reflections, and isolate analog PLLs from digital noise using deep N-well isolation. For voltage regulation, deploy integrated buck converters with 90% efficiency at 1.2V core voltage, reducing PCB complexity.

Verify thermal constraints by placing on-chip temperature sensors (e.g., diode-based) near hotspots like the execution units. Set throttling thresholds at 90°C, with emergency shut-off at 110°C. Ensure thermal interface material (TIM) has a conductivity >10 W/m·K, paired with a copper heat spreader for even dissipation. Test signal integrity with eye diagrams at 10Gbps+ to confirm <15% jitter under maximum load.

Processor Schematic: A Field-Engineered Dissection

Start with identifiable blocks: core logic clusters, cache banks, and bus interfaces. Trace power rails first–V_CC and V_SS grids outline active zones before signal paths. Use a thermal camera to verify rail integrity; anomalies often pinpoint flawed transistor banks.

Core logical units demand discrete probing:

• ALU arithmetic blocks: check carry-lookahead chains under 1 GHz test patterns.
• Floating-point pipelines: verify normalization stages via precision IEEE-754 vectors.
• Control logic decoder: isolate micro-op sequencers using dedicated RTL snapshots.

Inject targeted stimulus waveforms (SPICE netlists) for real-metal validation.

Cache hierarchy exposes unique failure signatures:

1. L1 instruction cache: persistent I-cache misses under 4K instruction loops signal tag comparator faults.
2. L2 unified: monitor SRAM cell retention errors via extended hold timings (25 ns @ 1.2 V).
3. Last-level: probe coherency hubs–directory scrubbers fail silently during concurrent reads.

Cross-reference traces against die photos; misaligned vias betray defective etching passes.

Bus fabric diagnostics precede clock distribution:

• Memory controllers: enforce tRAS/tCAS margins (2-3-2-6 timing cardinals).
• PCIe lanes: validate LTSSM link training under PCIe-CEM compliance loads.
• Coherent interconnect: stress home node arbitration with back-to-back requests.

Synchronize oscilloscope measurements against PLL reference (19.2 MHz crystal).

Thermal sensing grids overlay functional zones–each sensor cluster maps to specific die quadrant:

• Core 0: center-left (2.2 mm² hotspot).
• GT slice: northeast (1.8 W/mm² peak).
• Uncore cache ring: annular 7 mm radius.

Verify differential pairs first–resistive unbalancing manifests as erratic LVDS eye diagrams.

Always retrieve original GDSII stream files–foundries redact parasitic elements post-tapeout. Cross-layer capacitance tables (M1-M6 stack) reveal unintended clock domain overlaps. Isolate debug ports early: JTAG TAP chains sequentially unroll scan flops across reset domains. Memory BIST engines mask ECC-correctable bitflips unless configured for transparent scrubbing; force parity errors to surface latent row hammer defects.

Key Components and Their Schematic Representations

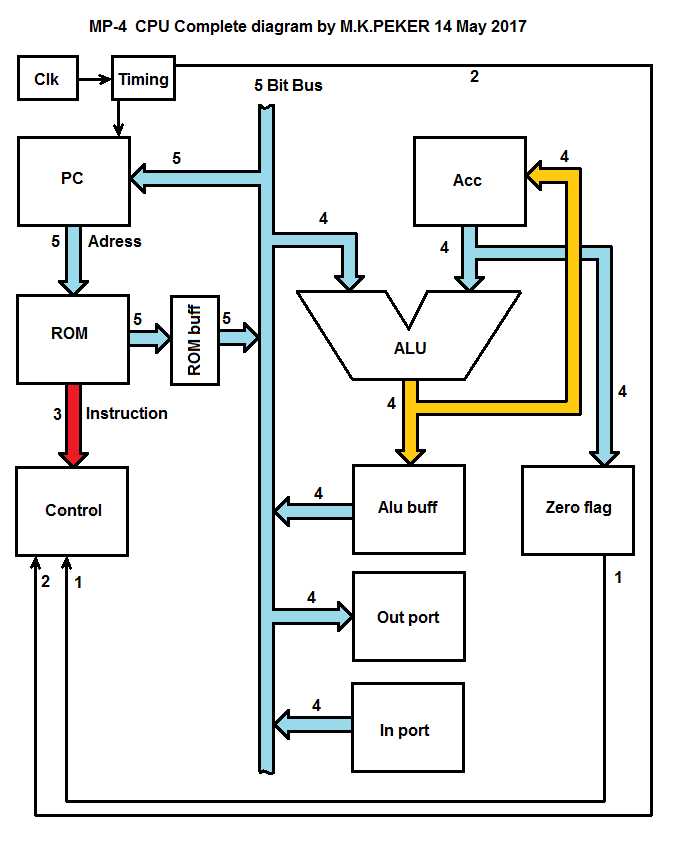

Start by mapping the arithmetic logic unit (ALU) first–its symbol resembles a trapezoid with input lines feeding into the wide side and outputs emerging from the narrow end. Label each pin with its function: A and B for operands, F for the result, and flags like carry-out or zero. Use a truth table to verify behavior before committing to silicon layout.

Registers appear as rectangles with parallel input/output lines, but distinguish them by their control signals. A 32-bit general-purpose register requires separate lines for clock, write enable, and data in/out. Group them in banks of eight for clarity, using dashed lines to indicate shared control logic. Include a reset pin to force zero state during power-up.

Component	Schematic Symbol	Critical Pins	Typical Width
ALU	Trapezoid	A, B, F, carry, zero	32–64 bits
Register	Rectangle	Clock, write enable, data	8–64 bits
Instruction Decoder	Triangle with bar	Opcode in, control out	16–32 lines

For the instruction decoder, adopt a triangle with a horizontal bar at its base–this distinguishes it from comparators. The opcode enters at the apex, while control signals (register select, ALU operation, memory read/write) exit along the base. Add a 4-bit mode pin for microcode override during debugging.

Multiplexers demand layered rectangles with selection lines running perpendicular to data paths. A 2:1 MUX needs one select line; 4:1 requires two. Place selection logic as close as possible to the inputs to minimize propagation delay. Use Enable pins to gate output during pipeline stalls.

Cache memory symbols combine standard AND-OR arrays with additional lines for tag, valid, and dirty bits. Separate instruction and data caches into stacked rectangles, each with its own address decoder. Mark hit/miss lines explicitly–this prevents timing conflicts during speculative execution.

Clock trees emerge as branching lines from a single oscillator rectangle, with buffers represented by small triangles. Insert inverters after every 12 buffers to maintain edge sharpness. Distribute reset synchronously, avoiding glitches by tying it to the rising edge of the clock.

Power rails run across the top and bottom of the layout, with decoupling capacitors drawn as hashed rectangles every 0.2mm. Label voltage domains (1.2V core, 3.3V I/O) in bold, and isolate analog ground with a separate plane. Use thermal vias near high-current paths to prevent hotspots.

Step-by-Step Guide to Sketching a Fundamental Processor Schematic

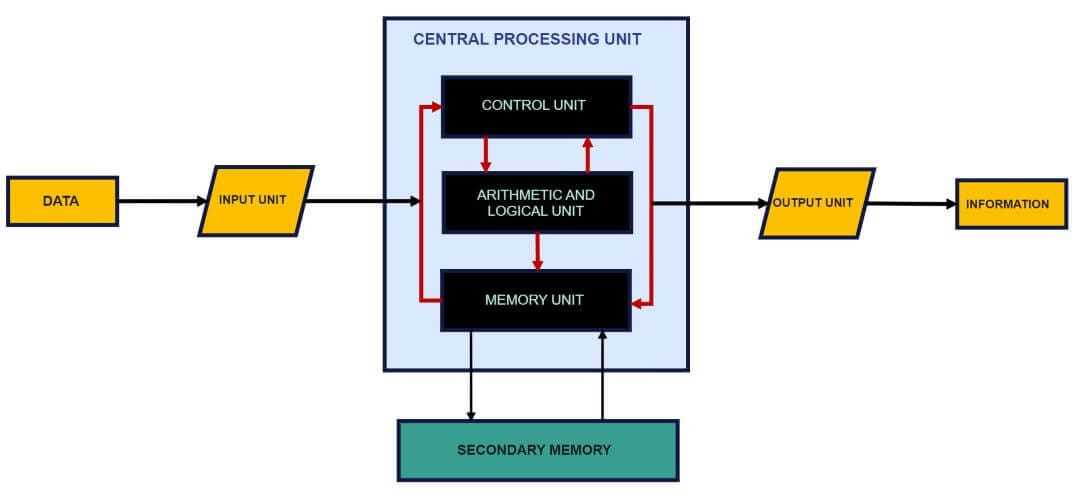

Begin with a block-level representation before detailing individual logic gates. Outline primary functional units: arithmetic logic core, control path, register matrix, and memory interface. Use standardized symbols for each component–rectangles for functional blocks, circles for clock signals, and arrows for data flow direction. Keep spacing consistent to avoid clutter.

Break the design into three core segments:

• Execution Core: Position the arithmetic logic unit (ALU) centrally, flanked by temporary storage blocks (accumulator, flag register). Label input/output buses with bit-widths (e.g., 8-bit, 16-bit) to maintain accuracy.
• Control Path: Draw a finite state machine (FSM) as a separate block adjacent to the execution core. Connect it via microinstructions–use dashed lines for control signals and solid lines for data paths.
• I/O Interface: Place memory access ports (address/data buses) along the periphery. Include read/write enable signals and distinguish them with unique colors or line styles.

Use graph paper or digital grid tools to define precise component dimensions. A 5×5 mm square per logic gate ensures readability while allowing sufficient routing space. For complex schematics, dedicate one layer per signal type (power rails, data, clock, ground) to minimize interference.

Signal Routing Priorities

1. Clock distribution: Route the master clock first–use a tree or H-tree topology for minimal skew. Keep traces short and equal-length where possible.
2. Critical paths: Identify high-speed data signals (e.g., ALU outputs) and prioritize their isolation from noise-sensitive controls.
3. Ground planes: Integrate a dedicated layer for grounding to reduce crosstalk between analog/digital sections.

Annotate every connection with pin numbers and signal names. Use abbreviations consistently–e.g., “ADDR” for address lines, “DATA” for data buses. Include a legend in the corner mapping abbreviations to full terms. For multi-stage designs, add stage labels (e.g., “Stage 1: Fetch”) above relevant subcircuits.

Final Verification Checklist

Validate the schematic against these constraints:

• All gates have defined input/output directions.
• No floating pins–attach unused inputs to VCC or ground via pull-up/down resistors.
• Clock domains are synchronized–use flip-flops or latches for phase alignment.
• Bus widths match across connected components (avoid 8-bit to 16-bit mismatches).
• Thermal considerations: Label high-power sections (e.g., voltage regulators) for potential heat dissipation plans.

Export the final schematic in both vector (SVG/PDF) and raster (PNG) formats. Include a separate netlist file for automated simulation tools, listing all connections in a standardized syntax like SPICE or Verilog.
