Complete Craftsman Lawn Mower Electrical System Wiring Layout Guide
Locate the main ignition switch first–it connects directly to the battery via a red wire, typically rated for 10-12 AWG. Trace this line to the solenoid, where a thinner activation wire (usually 16-18 AWG) triggers engagement. If voltage drops below 11.8V at the battery terminals, inspect the ground connection adjacent to the engine block; corrosion here disrupts circuit integrity.
Examine the PTO clutch next–it operates on a separate 15A fuse. Follow the purple wire from the clutch to the safety switch beneath the seat. A malfunction here often mimics electrical failure; clean contacts with 600-grit sandpaper and apply dielectric grease to prevent oxidation. Verify continuity using a multimeter set to 200Ω–readings above 5Ω indicate wear.

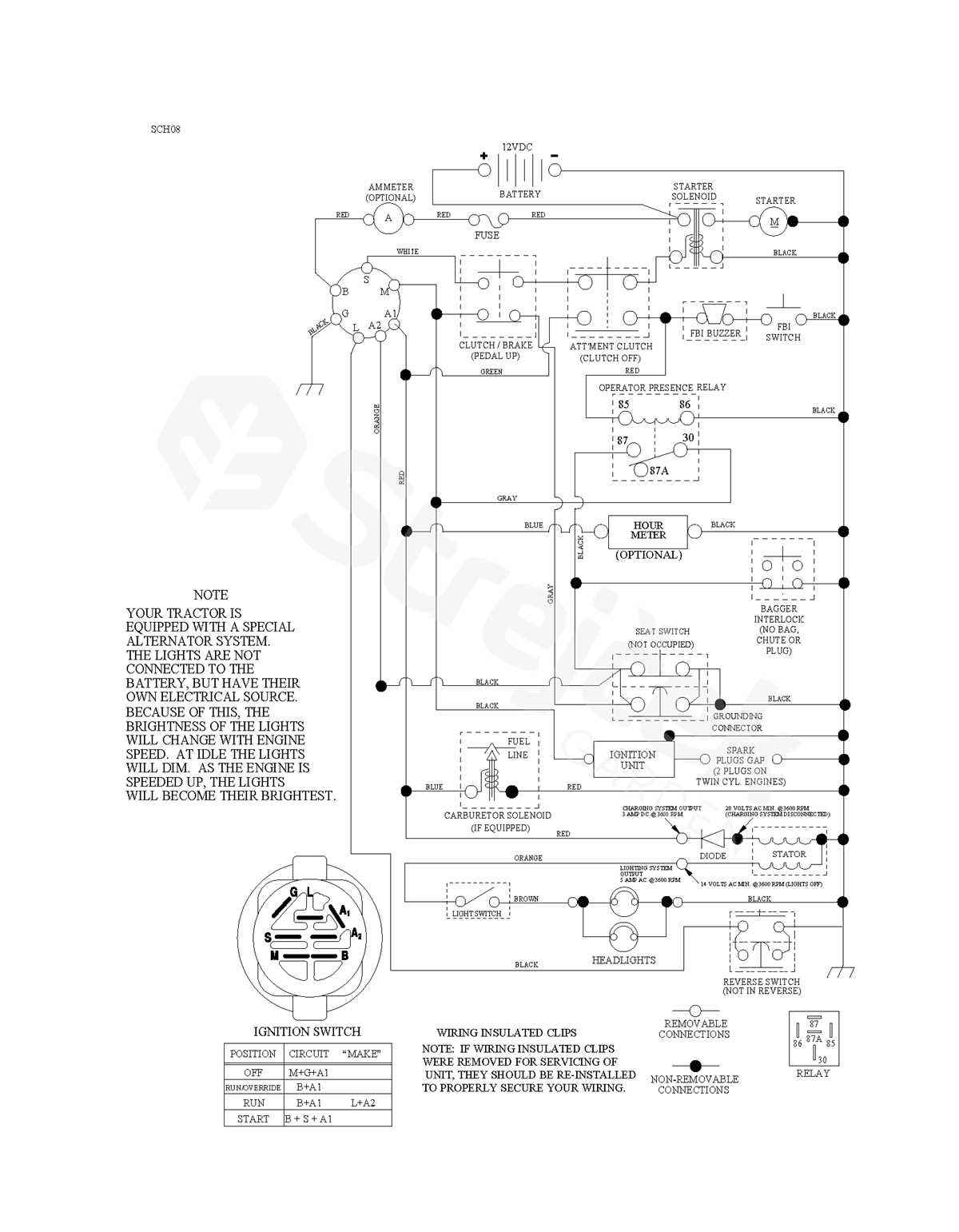

For auxiliary components like lights or electric blades, reference the schematic’s lower quadrant. Green wires denote grounds; ensure they terminate to unpainted metal surfaces within 12 inches of their load. Side panels often conceal in-line connectors–press release tabs fully to avoid intermittent disconnections during vibration. If relay clicks but the starter motor fails, test for 12V at the solenoid’s “S” terminal during ignition.
Store diagrams unfolded in a sealed plastic sleeve to prevent moisture absorption. Label all disconnections with masking tape to avoid misplacement during reassembly. For models manufactured post-2015, note the integrated hour-meter wired in parallel to the ignition system–interference here skews runtime readings.
Electrical Layout for Gas-Powered Lawn Equipment
Start by locating the ignition switch harness–typically a 4- to 6-pin connector near the control panel. Disconnect the battery terminal (negative first) before handling any live circuits. Label each wire with masking tape and a marker: red (12V constant), black (ground), yellow (starter solenoid), blue (safety interlock), and green (PTO clutch). Verify voltage at the switch with a multimeter; 12.6V indicates a fully charged system, while readings below 11.8V suggest a failing battery or parasitic drain.

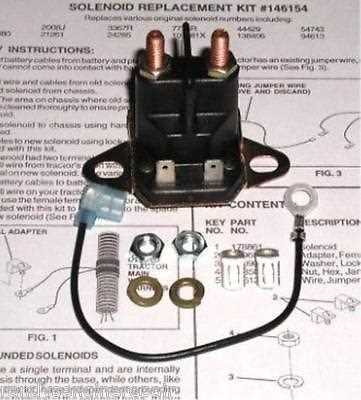

Trace the solenoid’s thick gauge wire (10-12 AWG) from the starter post to the ignition switch. Ensure the crimp connectors are free of corrosion–clean with a wire brush and dielectric grease before reattaching. If the engine cranks but won’t start, check the safety switch sequence: seat sensor, blade engagement lever, and bail bar must all be in the correct position to complete the circuit. Bypass switches temporarily with a jumper wire for diagnostics, but replace faulty units immediately to avoid unintended engagement.
Examine the PTO clutch wiring next. The coil resistance should measure 3.5–5.0 ohms; readings outside this range indicate internal failure. Inspect the flywheel’s stator output–AC voltage should spike to 30–40V during cranking. If absent, test the rectifier/regulator for continuity; a blown component often causes dim lights or erratic engine behavior. Look for melted insulation on the harness near the exhaust manifold, a common failure point due to heat exposure.
For intermittent stalling, probe the magneto ignition module. Connect the multimeter’s positive lead to the high-tension lead and the negative to the engine block–voltage should jump to 20kV+ during cranking. Lower readings confirm a weak spark, requiring module replacement. When reinstalling the engine shroud, secure the harness away from moving parts and sharp edges; use zip ties every 4–6 inches to prevent chafing. Route wires above pulleys and belts to avoid entanglement.
Reassemble only after confirming all connections. Reconnect the battery (positive first), then perform a final voltage check at the ignition coil–12V with the key on, 0V with the key off. Start the engine and monitor the PTO clutch engagement time; delays longer than 1.5 seconds suggest a worn clutch or weak battery. Store unused equipment with the battery disconnected to prevent drawdown, and coat terminal connectors with corrosion inhibitor annually.
Finding Electrical Connector Points on Your Garden Machine
Check under the operator’s seat first. Most models hide primary link clusters beneath a plastic cover or shield fastened with two or three 10mm bolts. Remove the bolts with a socket, lift the cover gently, and you’ll expose the main junction–colored leads branch from this central hub to the engine, deck motor, and safety switches.
- Engine connector: Round plug with three or six male pins, usually encased in black or gray rubber.
- Ignition module: Smaller rectangular clip holding two or four wires,often with red and white strands.
- Blade engagement switch: Square four-pin socket near the blade lever, often blue or green housing.
Trace cables from the rear wheel motors toward the transaxle. Look for a compact harness tied with zip-ties beside the frame rails; snip these carefully with wire cutters. The motor socket typically features four spade terminals–two thick for power, two narrow for ground. Note: disassembling the rear wheel hub often isn’t needed; connectors sit just outside on most 42- and 50-inch decks.
Follow the thick red cable from the battery forward along the left frame rail. After 12–18 inches, it splits at a Y-connector feeding both the solenoid and hour meter. The solenoid terminal uses a large eyelet lug, while the meter clip resembles a miniature automotive fuse holder–check these if the starter cranks but blades remain idle.
Step-by-Step Guide to Tracing Ignition System Connections
Begin by locating the coil pack under the engine shroud–it’s typically secured with two bolts and connects to a handful of colored leads. Use a multimeter set to 20k ohms to verify resistance between the coil’s primary and secondary terminals. Expected readings should fall between 0.5 and 2.0 ohms for primary and 5,000 to 15,000 ohms for secondary. Deviations indicate internal degradation.
Disconnect the battery first to eliminate accidental shorts. Label each lead with masking tape before removal: “B” (black) to ground, “R” (red) to the kill switch, “Y” (yellow) to the stator, and “W” (white) to the spark plug. Trace the red lead back to the ignition switch using a continuity tester–it should show zero ohms when the switch is turned to “on” and infinite resistance when off. If readings are inconsistent, inspect the switch contacts for corrosion.
Test the kill circuit by probing the black lead while grounding the engine block. The circuit should open (infinite resistance) when the safety lever is engaged and close (near-zero resistance) when released. If the reading remains open, check the lever’s microswitch and its pigtail for broken wires–common failure points near flexing areas.
| Component | Color Code | Function | Test Point |
|---|---|---|---|
| Coil Primary | Black | Ground | Engine block |
| Ignition Switch | Red | Power supply | Switch terminals |
| Kill Switch | Red/Black stripe | Safety circuit | Switch harness |
| Stator | Yellow | Charging | Coil connector |
Inspect the white lead’s path to the spark plug boot. Tug gently on the lead to ensure it’s crimped securely–loose connections cause intermittent misfires. Remove the boot and check for carbon tracking inside; clean with dielectric grease if residue is present. Replace the boot if cracks are visible.
Examine the flywheel magnets for debris or metal shavings, which disrupt the stator’s magnetic field. Rotate the flywheel manually and listen for scraping noises–indicative of stator rub. Gap specifications between the flywheel and stator poles range from 0.008 to 0.012 inches; adjust using a non-magnetic feeler gauge if outside tolerance.
Reconnect the battery and test spark output. Ground a spare spark plug against the cylinder head and crank the engine–blue-white spark confirms operational ignition. Weak or orange spark suggests weak stator output; measure AC voltage at the yellow lead while cranking–it should exceed 30VAC.
Finalize by securing all connections with heat-shrink tubing or electrical tape, avoiding zip ties near moving parts. Route leads away from exhaust components and sharp edges. Recheck torque on coil mounting bolts–8 to 12 ft-lbs–to prevent vibration-related failures.
How to Verify Electrical Circuit Integrity in Your Equipment’s Safety Switch
Disconnect the power source before testing. Locate the battery terminals and detach the negative cable to prevent accidental shorts. Remove the switch cover–typically secured by two screws–and expose the internal connectors. Identify the two terminals where the wires attach; one will be the common (input) and the other the normally open (output) terminal.
Set your multimeter to continuity mode or the lowest ohms setting (200 Ω). Place one probe on the common terminal and the other on the normally open terminal. A functional switch should show infinite resistance when inactive–no beep or needle movement. Activate the switch by pressing its lever or plunger. Resistance should drop to near zero, and the meter should emit a tone if in continuity mode. If readings remain unchanged, the switch has failed.
Check for voltage at the terminals if continuity tests pass but the system still malfunctions. Reconnect the battery and switch the multimeter to DC voltage (20V range). Probe the common terminal and ground–expect battery voltage (12V nominal). Move the probe to the output terminal while holding the switch closed. Voltage should match the input. A drop below 10V indicates a faulty switch, corroded contacts, or a compromised cable running from the switch to the control module.
Inspect the wiring harness for damage while testing. Gently tug each conductor near the switch to reveal hidden breaks or frayed strands. Strip back the insulation if corrosion is visible–use a wire brush to clean the exposed copper. Re-crimp or solder connections if necessary. Apply dielectric grease to prevent future oxidation. Replace any wires exhibiting brittleness or excessive wear, as these will cause intermittent failures.
Reassemble the switch only after confirming all readings meet specifications. Secure the cover tightly to prevent moisture ingress. Reconnect the battery and test the equipment’s operation. If the engine still fails to start or the blades remain unresponsive, repeat the voltage test at the control module input–consistent power there suggests a deeper electrical fault requiring schematic analysis.
