How to Wire a Light Switch and Outlet Combo Step-by-Step Guide

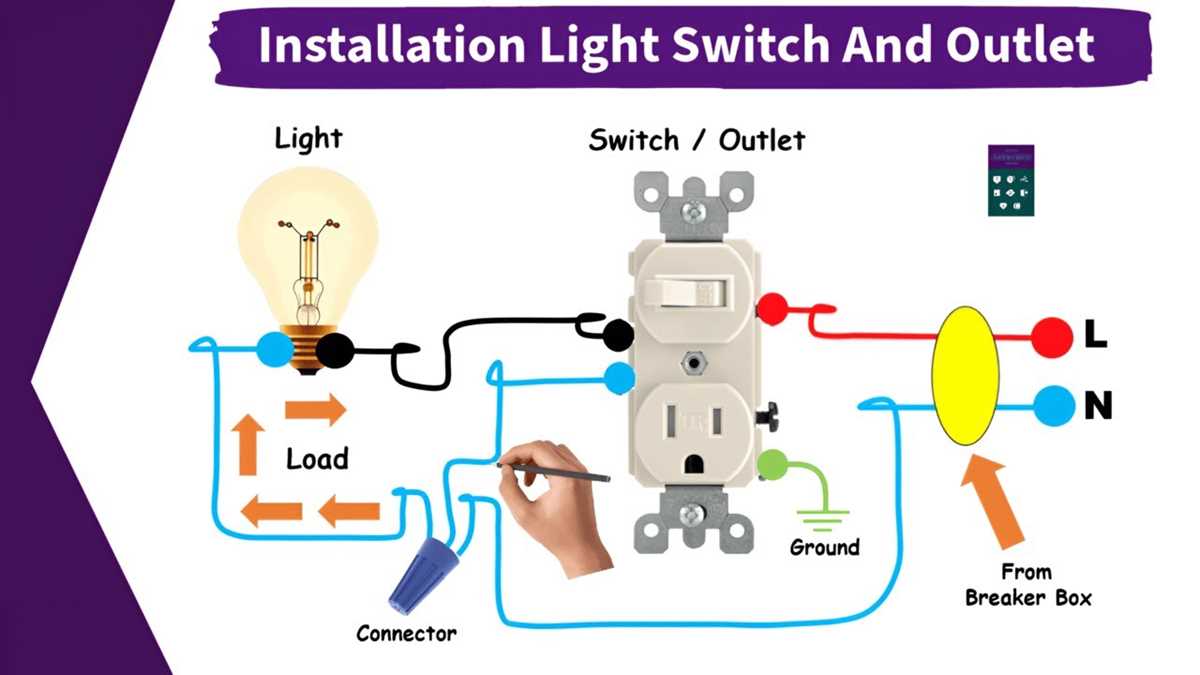

Install a single device combining a toggle actuator and a power socket by connecting the hot wire (black) to the brass-colored terminal marked with a screw. Ensure the neutral wire (white) secures to the silver terminal, while the ground wire (green or bare) fastens to the green grounding screw. This setup eliminates redundant runs and consolidates space in a single-gang box.

Verify the circuit’s amperage rating before proceeding–15-amp circuits require 14-gauge wiring, while 20-amp circuits demand 12-gauge conductors. If the existing circuit lacks capacity, either extend a dedicated line or split the load by running a separate branch. Failure to match wire gauge to breaker size risks overheating and potential fire hazards.

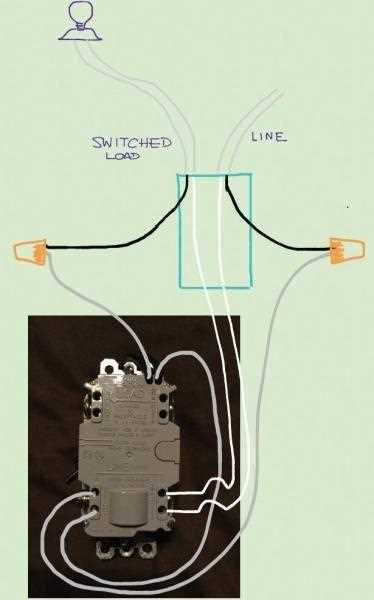

For dual-function configurations (e.g., actuator controlling both fixture and socket), splice the incoming hot wire to two pigtails: one for the actuator’s brass terminal, the other for the socket’s brass terminal. The socket’s neutral must remain unswitched–connect it directly to the white wire bundle. Label all splices with wire nuts and wrap with electrical tape to prevent loosening.

Test the setup with a multimeter before restoring power. Probe the socket’s slots–expected readings are 120V between hot and neutral, 0V between neutral and ground. If readings deviate, recheck all connections, focusing on loose terminals or reversed polarity. For split-circuit designs (e.g., half-hot socket), confirm the actuator’s toggle interrupts only the intended conductor.

If the device includes a built-in fuse or GFCI protection, ensure proper grounding–ungrounded GFCI outlets provide no shock protection, only nuisance-tripping prevention. For older installations, replace the outlet box if rusted or deformed; standard gang boxes measure 3.25″ deep, while shallow boxes (2.75″) may not accommodate tight bends in 12-gauge wire.

How to Wire a Dual-Control Electrical Unit

Start by turning off the circuit breaker to the area where you’ll work. Use a non-contact voltage tester to confirm no current is flowing to the existing device. Remove the faceplate and unscrew the mounting screws to access the terminals. Identify the common terminal–usually marked with a darker screw or labeled “COM”–as it carries the incoming power for both functions.

For a standard split-configuration installation, connect the hot wire from the power source to the common terminal. If adding a new cable from an existing fixture, strip ¾ inch of insulation from the wires and twist them clockwise before securing them under the appropriate screws. Tighten each connection firmly to prevent loosening over time.

Attach the neutral wire to the silver terminal if your model includes a plug-in receptacle. Ensure the neutral wire is continuous if extending power to another device downstream–never splice it unless using UL-listed wire connectors. Verify the ground wire is connected to the green screw or bare copper terminal for safety.

When wiring a half-hot configuration, separate the red and black wires from the same cable. Connect one to the brass terminal for the plug-in and the other to the remaining brass terminal for the toggle. This allows one function to remain live while the other is controlled independently. Confirm the polarity by matching wire colors to terminal screws.

For a shared-neutral setup, ensure the neutral wire splits evenly between both portions of the unit. Use a pigtail splice if the device lacks a dedicated neutral terminal. Avoid daisy-chaining neutrals, as this can cause overheating. Test each connection with a multimeter set to continuity mode before re-energizing the circuit.

Reinstall the device into the electrical box, ensuring no wires are pinched behind the mounting straps. Secure the faceplate, restore power at the circuit breaker, and test both functions–press the button and flip the lever–to confirm proper operation. If either fails, recheck the connections for loose strands or incorrect polarity.

For wiring variations, consult the manufacturer’s instructions imprinted on the device or included with the packaging. Some models require specific jumper configurations for three-way setups. Always adhere to local electrical codes regarding box fill limits and wire gauge requirements to ensure compliance and safety.

Essential Gear and Supplies for Installing a Dual-Function Control Device

Begin with a non-contact voltage detector to confirm circuits are de-energized before handling terminals. Choose a model with a sensitivity range of 50V to 1000V AC and a visible/audible alert; brands like Klein Tools NCVT-3 or Fluke 1AC-II offer reliable readings in tight electrical panels. Verify the detector works on a known live source before relying on it–false negatives risk severe injury.

Insulated screwdrivers with shaft guards prevent accidental shorts when securing terminal screws. Opt for a set with shaft diameters matching common gauge screws (3/16″ to 1/4″) and handles rated for 1000V. Quality options like Wera Kraftform or Wiha protect against slips, especially in confined junction boxes where clearance is minimal. Pair these with needle-nose pliers for bending wires–ensure they have crimping notches if also terminating connectors.

Specialized Supplies for Secure Terminations

Use wire strippers calibrated for 14–10 AWG solid and stranded copper. Avoid generic strippers; precision-ground cutting edges from Ideal T-Stripper or Knipex prevent nicked conductors, which weaken connections and pose fire risks. For older installations, add a fish tape (25–50 ft) to route wires through conduit or stud cavities–rigid steel works better than fiberglass in rough studs but requires a pulling grip to avoid fraying ends.

Gang boxes rated for at least 20 cubic inches accommodate dual-function devices without crowding. Opt for deep (3.5″) metal boxes if splicing additional conductors–plastic boxes are too shallow for code compliance. Secure the box with adjustable bar hangers if retrofitting into existing walls; toggle bolts work for drywall, but toggle straps stabilize heavier loads in plaster. Apply silicone-based lubricant to screws to ease future disassembly without stripping threads.

Safety gear includes arc-rated gloves (ASTM F2675, Class 2) and ANSI Z87.1-rated goggles to shield against sparks during live troubleshooting. A multimeter with a continuity buzzer (e.g., Fluke 17B) verifies grounding paths and tests switch functionality post-installation. Keep a roll of electrical tape (minimum 600V rating) for insulating wire nuts where slack is tight, and a torque screwdriver (0.5–2.5 Nm) ensures terminal connections meet manufacturer specs (typically 12–18 in-lbs for most devices).

How to Wire a Split-Controlled Receptacle: A Practical Walkthrough

Disconnect power at the circuit breaker before handling any terminals–use a non-contact voltage tester to confirm the line is dead. Identify the feed cable entering the box: the black (live) wire, white (neutral), and bare copper (ground). The brass screws accept the live conductor; silver screws take the neutral; green or bare screws secure the grounding wire. Verify the feed cable’s origin–whether it extends from the breaker panel or another junction–to avoid misrouting current.

Attach the incoming live wire to the brass terminal on the split receptacle’s input side–this supplies power continuously to one socket. Strip ½ inch of insulation from the white neutral conductor and loop it clockwise under the silver terminal, tightening the screw until snug. The grounding wire must connect to the green grounding terminal; if absent, bond it directly to the metal box using a grounding pigtail and a listed connector. For safety, fold excess wire neatly into the box without crowding.

Configuring the Switch-Controlled Segment

Locate the short black jumper wire linking the input brass terminal to the adjacent brass screw on the switch-controlled half–this jumper remains factory-installed in most split models but requires confirmation. If missing, cut a 6-inch length of 12-gauge black wire, strip both ends, and connect one end to the input brass terminal alongside the incoming live conductor. Secure the other end to the switch brass screw.

Run a second cable into the box: its black conductor connects to the switch’s second brass terminal, while its white neutral joins the neutral bundle under the silver screws. The bare grounding wire merges with the existing grounding bundle. Toggle the breaker on briefly, test both sockets with a plug-in tester, then toggle off before finalizing box assembly–half the receptacle stays live, the other responds to the control device.

Installing a Fused Plug Socket with Manual Control from Ground Up

Start by cutting power at the circuit breaker panel–verify absence of voltage with a non-contact tester before handling any conductors. For a standard 15-amp residential setup, use 14 AWG copper wire (rated for 90°C); for 20-amp, upgrade to 12 AWG. Strip ½ inch of insulation from the ends of each wire, ensuring no exposed copper extends beyond the terminal screws to prevent short circuits. Color-coding is critical: black wires carry line voltage, white wires serve as neutral return paths, and bare or green wires provide grounding.

Mount the device box–single-gang, 18 cubic inches minimum–to accommodate wiring without overcrowding. Insert the feed cable (from power source) through the box’s knock-out hole, leaving 6 inches of slack for connections. Wire nut the incoming neutral (white) to the receptacle’s silver terminal and the outgoing neutral (if applicable). The incoming hot (black) attaches to the brass terminal of the manual actuator’s top screw; from the actuator’s bottom screw, run a jumper wire to the brass terminal of the plug socket. Ground wires connect to the green terminal screw and bond with a pigtail to the metal box if not self-grounding.

Component	Terminal Color	Wire Gauge (Amp)	Torque Specification
Hot Conductor	Brass	14 (15A) / 12 (20A)	12 lb-in
Neutral Conductor	Silver	14 (15A) / 12 (20A)	12 lb-in
Grounding Conductor	Green	14 (15A) / 12 (20A)	15 lb-in

After securing all connections, gently tuck wires into the box, ensuring no sharp edges contact insulation. Align the assembly faceplate with the box’s mounting screws–hand-tighten first to avoid thread stripping, then finalize with a screwdriver. Restore power at the breaker and test both the actuator (on/off functionality) and the plug socket with a multimeter or load tester: verify 120V between hot and neutral, 0V between hot and ground when actuator is off, and proper grounding continuity.

For GFCI-protected circuits, replace the standard plug socket with a GFCI variant–follow the same wiring logic but connect the feed wires to the “LINE” terminals and downstream loads (if any) to the “LOAD” terminals. Label the GFCI device per NEC 2023 requirements: “GFCI Protected” and “No Equipment Ground” if applicable. Secure the cover plate and store excess cable neatly inside the box with a tie-wrap to prevent conduit strain.
