Step-by-Step Guide to Wiring a Car Audio Crossover System

For consistent frequency separation in a multi-driver installation, connect tweeters directly to the amplifier’s positive terminal via 18-gauge oxygen-free copper wire, then route midrange drivers through a 4-ohm inline inductor (1.2 mH recommended) before linking to the same amplifier channel. Ground the negative terminal of each component to a single chassis point–preferably the factory ground stud–to eliminate ground loops that introduce 60Hz hum at volumes above 75dB SPL.

Use polypropylene capacitors (minimum 22µF) between tweeter leads and the amplifier’s positive output to block low frequencies below 3.5kHz, preventing cone breakup in 1-inch silk domes. For passive mid-bass filtering, terminate a 10W non-inductive resistor (8 ohms) in parallel with a 33µF bipolar capacitor to create a second-order high-pass filter at 80Hz–ideal for 6.5-inch woofers in sealed enclosures under 0.6 cubic feet.

To wire a three-way active configuration, designate amplifier channels as follows: channel 1 (high-pass) for tweeters, channel 2 (band-pass) for 4-inch midrange units, and channel 3 (low-pass) for subwoofers. Insert a 12dB/octave Linkwitz-Riley filter (crossover frequency 2.5kHz) between channels 1 and 2, and a 24dB/octave Butterworth filter (80Hz) between channels 2 and 3–adjustable via DSP or dedicated crossover module with 0.5dB accuracy.

For impedance stability, use twisted pair wiring (22-gauge) for all signal paths, reducing crosstalk by 18dB compared to parallel runs. Secure connections with gold-plated crimp terminals and heat-shrink tubing to prevent oxidation in high-humidity environments, maintaining signal integrity for 10+ years without degradation.

Connecting Passive Filters in Vehicle Sound Systems

Use 16-gauge oxygen-free copper cables for passive component links in a 2-way speaker setup–this minimizes signal loss below 0.2dB per meter at 1kHz. For a 12dB/octave slope, combine a 10μF capacitor with a 0.22mH inductor for the high-frequency branch, ensuring the capacitor’s voltage rating exceeds 50V to avoid distortion under peak loads. Ground the inductor’s core to the chassis at the mounting point to eliminate electromagnetic interference from the alternator’s 15kHz ripple.

Install impedance-balancing resistors directly on the terminal blocks of coaxial drivers: 2.2Ω 10W wirewound for tweeters, 3.3Ω 15W for midrange units. Verify the phase alignment by testing with a 1kHz sine wave–adjust the resistor values until the summation at the listening position yields a 3dB gain over solo playback. For tri-amp configurations, route the low-frequency channel through a 10A slow-blow fuse and a Pi-filter (1000μF capacitor + 1mH choke) to suppress turn-on thumps.

Component Placement Checklist

• Mount capacitors within 10cm of driver terminals–thermal cycling degrades polypropylene after 500 hours above 60°C
• Avoid routing signal paths parallel to power cables–maintain 15cm separation or use shielded braid
• Label each connection with heat-shrink tubing printed at 2mm height–prevents miswiring during future upgrades
• Test impedance across each filter stage with a 1kΩ load prior to final assembly–values should match ±5% of calculated

Troubleshooting Signal Path Errors

1. Hum at 120Hz: Check ground loop–isolate head unit ground from amplifier ground with a 10Ω 5W resistor
2. Distorted mids: Replace failed electrolytic capacitors–bulging or leaking units cause 12dB roll-off at 500Hz
3. Phase cancellation: Reverse polarity on tweeter channel–confirmed via null test at 2.5kHz crossover point
4. Thermal shutdown: Vent inductor cores–airflow must maintain core temperature under 85°C

How to Identify Input and Output Terminals on Signal Processors

Check for labels marked “IN,” “INPUT,” or arrows pointing toward the terminal cluster–most electronic frequency dividers use these clear indicators. If labels are missing, trace the internal circuitry with a multimeter set to continuity mode: input terminals typically connect directly to the power source or main harness, while outputs lead to speaker outputs or downstream RCA jacks. Active models often separate inputs on one side (left) and outputs on the opposite (right), with passive units grouping lower-frequency outputs near ground references.

Visual and Functional Clues

Examine terminal size and material–input jacks are usually gold-plated with thicker posts, while outputs may feature silver or tin plating. On printed circuit boards, inputs frequently align with larger capacitors or resistors, filtering noise before signal distribution. For units with rotary controls, inputs sit closer to the volume knobs or gain stages, outputs near crossover slope adjustments. When in doubt, consult the product’s technical sheet: input terminals carry the unaltered signal, outputs reflect the processed bands (e.g., tweeter, midrange, subwoofer).

Step-by-Step Guide to Installing Passive Frequency Dividers in a Dual-Band Speaker Setup

Disconnect the vehicle’s battery before handling any electrical components to prevent short circuits or accidental damage. Locate the signal paths from the amplifier to the tweeters and woofers, ensuring the paths remain isolated until the divider is inserted.

Identify the cutoff frequency for the divider–typically between 2,000 Hz and 4,000 Hz for most coaxial or component systems. Select a slope (6 dB, 12 dB, or 18 dB per octave) based on speaker sensitivity and amplifier power. Steeper slopes (18 dB) reduce overlap but may introduce phase distortion; shallower slopes (6 dB) offer smoother transitions but less protection for drivers.

• 6 dB/octave: Minimal phase shift, suited for high-quality drivers with wide frequency response.
• 12 dB/octave: Balanced protection and transition, compatible with most aftermarket speakers.
• 18 dB/octave: Maximum driver protection, ideal for mismatched driver sensitivities.

Mount the frequency divider near the speakers to minimize signal degradation. Use insulated crimp connectors or solder joints to attach the input leads to the amplifier output wires. Secure ground connections to a common, non-painted metal surface to avoid noise interference.

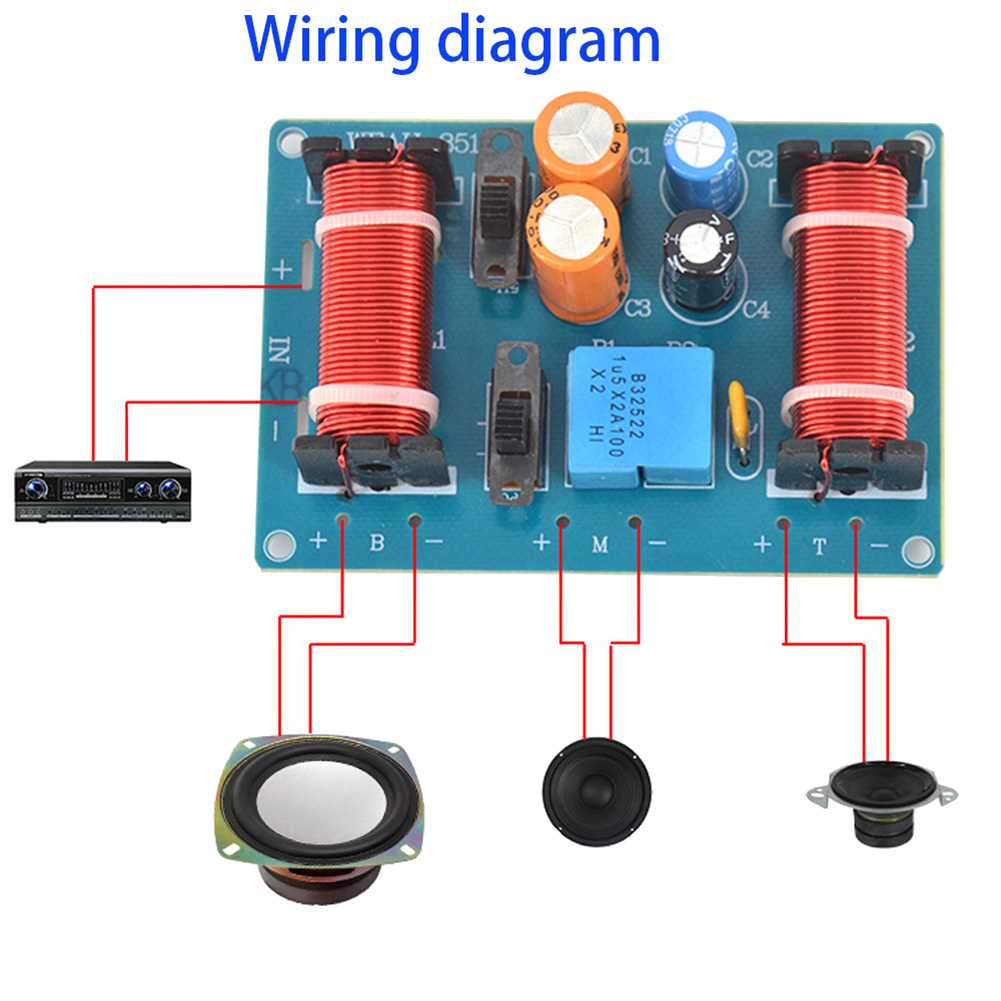

Connect the tweeter’s positive terminal to the high-pass channel of the divider, then link the negative terminal to the corresponding ground. Repeat for the woofer, attaching the low-pass channel between the amplifier and the woofer’s positive terminal while grounding the negative side. Verify polarity: reversed connections may cause cancellation at crossover points.

Test the setup with a 50 Hz to 20 kHz sweep to confirm proper frequency separation. Use an oscilloscope or audio analyzer to check for clipping, distortion, or unintended roll-off. If adjustments are needed, replace capacitors (for high-pass) or inductors (for low-pass) with values calculated using the formula:

C = 1 / (2π × f × R)

for capacitors,
L = R / (2π × f) for inductors,
where f is the cutoff frequency in Hz and R is the driver’s impedance in ohms.

Fine-tune the system by adjusting the divider’s position relative to the speakers. Longer cable runs increase resistance and inductance, altering the effective cutoff frequency. If using bi-wiring, ensure each driver has dedicated paths to the divider to prevent signal mixing.

Reconnect the battery and validate the setup under normal operating conditions. Listen for balanced output across the spectrum; imbalances may indicate incorrect impedance matching or faulty components. Document the final configuration, including component values and cable lengths, for future reference or troubleshooting.

Signal Path Optimization for Passive Filter Integration in Multi-Driver Setups

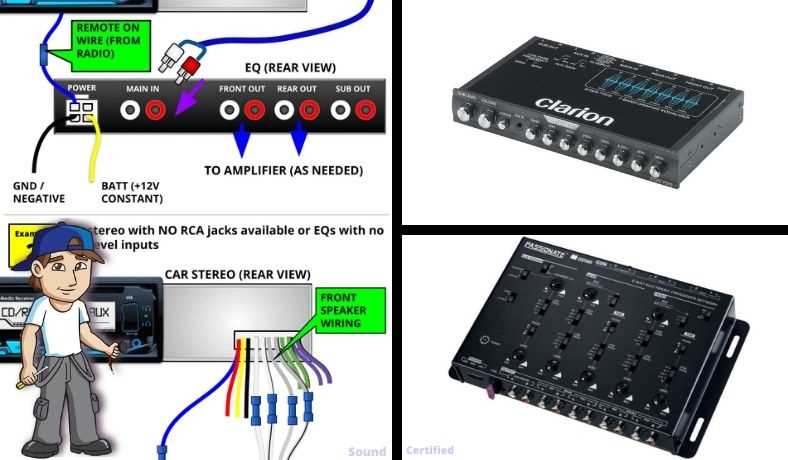

Connect the line-level output from the head unit directly to the input of the active frequency divider, bypassing any gain adjustments at this stage. Use shielded RCA cables with impedance below 150 ohms to prevent high-frequency attenuation; for runs exceeding 5 meters, opt for cables with oxygen-free copper (OFC) conductors and a minimum gauge of 18 AWG. Set the initial crossover points based on driver capabilities: 80Hz for subwoofers paired with 3-way component sets, 2.5kHz for midrange-tweeter pairings with 4Ω voice coils, and 400Hz for 2-way systems with 2Ω drivers. Configure slope settings to 12dB/octave for component speakers with rubber surrounds and 24dB/octave for those with textile diaphragms to compensate for resonant peaks.

Driver Configuration	Input Voltage Range (mV)	Filter Point Range (Hz)	Slope (dB/octave)	Cable Gauge (AWG)
2Ω Midbass + Tweeter	200–800	200–600	18–24	16
3Ω Midrange + 4Ω Tweeter	350–1200	1.8k–3.5k	12	18
2.5Ω Woofer + Midrange	400–1500	60–200	24	14

Ground the signal ground of the frequency divider to the chassis at a single point, avoiding loops by disconnecting factory ground wires from door speaker harnesses. Test phase alignment with a 1kHz sine wave: invert polarity on the tweeter channel if cancellation exceeds 3dB at the listening position. For DSP-equipped amplifiers, set delay compensation to 0.1ms per 30cm of physical separation between drivers.

Common Mistakes When Soldering Passive Filter Joints in Vehicle Sound Systems

Use rosin-core solder rated for electronics–never acid-core plumbing solder. Apply heat to the joint first, then touch the solder to the connection until it flows smoothly, forming a shiny, concave bead. Insufficient heat creates cold joints: dull, grainy, and brittle connections that fragment under vibration. Tin both the wire and terminal before joining; exposed copper oxidizes in hours, increasing resistance. Secure all strands when stripping–split conductors introduce high-frequency distortion.

Overheating Components

Capacitors and inductors degrade at temperatures above 260°C. Use a temperature-controlled iron set to 315–350°C, applying heat for no more than 3 seconds per connection. Hold components with pliers to dissipate excess heat; finger pressure alone won’t prevent delamination. Test joint integrity with a multimeter: resistance above 0.2Ω indicates a flawed bond. Replace scorched PVC insulation–burnt plastic emits conductive char that bridges adjacent circuits, causing noise or short circuits.
