Building a Set Top Box Schematic Complete Circuit Design Guide
Begin by selecting a primary processing unit with sufficient I/O bandwidth for video decoding and signal handling–common choices include ARM Cortex-A series or MIPS-based SoCs with clock speeds above 1 GHz. Ensure the chipset supports HDMI 2.0 or higher for 4K passthrough, integrating an HDCP 2.2-compliant transceiver to prevent signal degradation. Allocate dedicated power rails for the core, DDR memory, and peripheral interfaces, using low-dropout regulators (LDOs) with at least 80% efficiency to minimize thermal dissipation.
Place the tuner module adjacent to the demodulator IC, maintaining impedance-controlled traces (50 Ω) for RF signals. For DVB-S2/C/T hybrid receivers, opt for a multi-standard demodulator like the MaxLinear MxL69x or STMicroelectronics STiD135, ensuring proper clock synchronization via a temperature-compensated crystal oscillator (TCXO) with ±10 ppm stability. Isolate high-speed data lines (e.g., PCIe, USB 3.0) with ground planes beneath to reduce crosstalk, and route differential pairs with matched lengths (±5 mils).
Incorporate flash memory (NAND or NOR) with a minimum capacity of 128 MB for firmware storage, interfaced via a bootloader-compatible SPI or parallel bus. For persistent user data, add an eMMC or microSD slot with wear-leveling support to extend lifespan. Use a real-time clock (RTC) with battery backup–Maxim DS1338 or similar–soldered near the power management IC (TI TPS65217, NXP PCA9450) to retain time and configuration during power cycles.
For input protection, include bidirectional TVS diodes on HDMI, USB, and Ethernet ports, rated for at least 20 kV ESD compliance. Add ferrite beads (e.g., Murata BLM18PG) on power lines to suppress high-frequency noise. If incorporating Wi-Fi/Bluetooth, use a shielded module (Intel AX200, Qualcomm QCA9377) with co-located antenna traces, keeping 3 mm clearance from other components to avoid interference.
Validate signal integrity using an oscilloscope with ≥200 MHz bandwidth for HDMI and LVDS traces, probing at the source and load to confirm rise times below 1 ns. Test power delivery with a DC load analyzer, ensuring voltage ripple stays under 50 mVpp at full load. For EMI compliance, perform pre-scan testing with a spectrum analyzer, adjusting component placement if spurious emissions exceed FCC Part 15 Class B limits.
Decoding the Electronic Blueprint of a Media Receiver
Start by identifying the core microcontroller unit (MCU) on the electronic layout–typically an ARM Cortex-A series or MIPS-based processor. Ensure the chosen chip supports hardware-accelerated decoding for H.265/HEVC and AV1 formats at resolutions up to 4Kp60, as modern broadcast demands these specifications. Verify power delivery to the MCU with a dedicated 3.3V rail, decoupling capacitors (0.1µF and 10µF) placed within 2mm of each power pin to filter high-frequency noise.
The tuner module–DVB-S2, DVB-T2/C or ATSC–must be isolated from digital circuits using a separate ground plane to prevent signal degradation. Use a shielded enclosure for the tuner IC and place impedance-matched traces (typically 75Ω for RF) with minimal vias to avoid reflection. For satellite receivers, integrate a low-noise block (LNB) supply circuit (13V/18V) with current-limiting to protect against short circuits during signal disruption.
Memory allocation requires at least 1GB DDR3/DDR4 RAM for smooth multitasking and 8GB eMMC flash for firmware storage. Route DDR data lines with controlled impedance (34Ω–50Ω) and length-match within ±5mm to prevent timing skew. Place termination resistors (22Ω–47Ω) near the MCU for signal integrity, and use series resistors (33Ω) on clock lines to dampen overshoot.
For HDMI output, implement a Type-D or Type-A connector with an ESD protection diode (e.g., PESD5V0S1BB) on each data lane. Ensure the HDMI PHY chip supports HDCP 2.3 and ARC/eARC for audio return channels. Keep HDMI traces under 100mm and avoid sharp angles to maintain signal integrity–45° mitered bends are optimal. Include a 5V rail with a current rating of at least 500mA to comply with HDMI’s power delivery requirements.
The power management circuit should combine a primary buck converter (e.g., TPS54335) to step down 12V input to 3.3V/5V, and an LDO (e.g., AP2204K) for sensitive analog blocks. Use ceramic capacitors (X7R or X5R) for input/output filtering–avoid electrolytics near high-speed switching regulators. Add a thermal fuse (125°C) near the MCU to prevent overheating in confined enclosures, and ensure the PCB has thermal vias beneath the processor for heat dissipation.
For user interaction, integrate an IR receiver module (e.g., HS0038B) with a pull-up resistor (10kΩ) on the data line to match the MCU’s input logic. If including front-panel LEDs, use a current-limiting resistor (220Ω–470Ω) to prevent excessive brightness. For debugging, expose UART pins (TX/RX) at 3.3V logic levels and include test points for I2C/SPI buses, allowing firmware updates via bootloader without disassembly.
Avoid routing high-speed signals (e.g., DDR, HDMI) near switching power supplies or noisy components like Wi-Fi modules (if included). Use ferrite beads (e.g., BLM18PG121SN1L) to filter EMI on power lines entering the RF tuner. For PCB layer stackup, prioritize a 4-layer design with dedicated power/ground planes to reduce crosstalk; signal layers should be adjacent to reference planes, and high-speed traces routed on outer layers with proper shielding.
Before finalizing the layout, simulate critical paths (e.g., DDR memory, HDMI lanes) using tools like HyperLynx or Altium Designer’s signal integrity analyzer. Validate the design with an oscilloscope–check for noise margins
Critical Elements in a Receiver Circuit Board Design
Select a high-performance SoC (System-on-Chip) with embedded tuner support–prioritize models like Broadcom BCM7251S or STMicroelectronics STiH412, as they integrate DVB-S2X, HEVC 4K decoding, and multistandard demodulation. Pair it with a power-efficient DDR4 SDRAM (minimum 2GB) and 8GB eMMC for firmware storage to ensure seamless UI navigation and app multitasking. Route clock signals (27 MHz crystal oscillator) directly to the SoC with minimal trace impedance–keep traces under 0.5 inches and avoid vias to prevent phase noise. Isolate digital and analog grounds via a single-star point near the SoC’s AGND pin, using ferrite beads (600 Ω @ 100 MHz) for noise suppression on sensitive RF inputs.

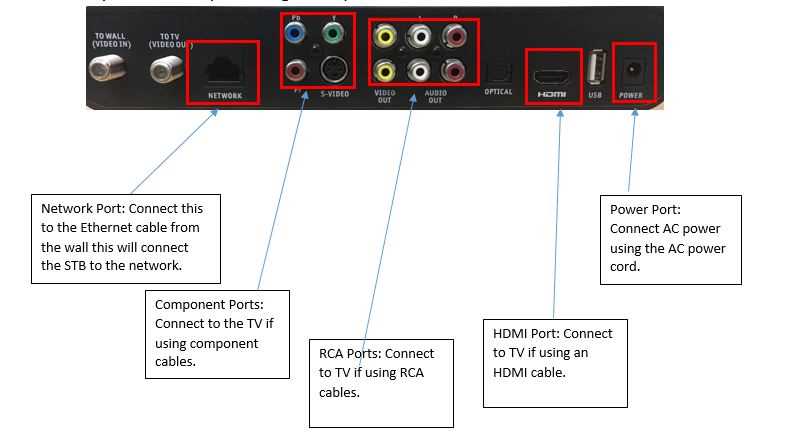

Key Peripheral Interfaces
Implement HDMI 2.1 with EQ circuitry (e.g., TI TMDS141) for reliable 4K@60Hz output–include EDID pull-up resistors (3.3 kΩ) and hot-plug detection (4.7 kΩ to 5V). For legacy AV, integrate an analog video encoder (e.g., Analog Devices ADV7391) with 75 Ω output impedance matching. Include dual USB 3.0 ports with overcurrent protection (1.1A resettable fuses) and ESD diodes (e.g., Semtech RClamp0584P) on data lines. For RF, use a quad-band LNB controller (like MaxLinear MxL865) with I2C-controlled attenuation (0–30 dB) to compensate for signal fluctuations. Route Ethernet magnetics (10/100/1000 Mbps) with center-tapped transformers and common-mode chokes (e.g., Murata DLM21LN101SK2L) to meet IEEE 802.3 isolation requirements.

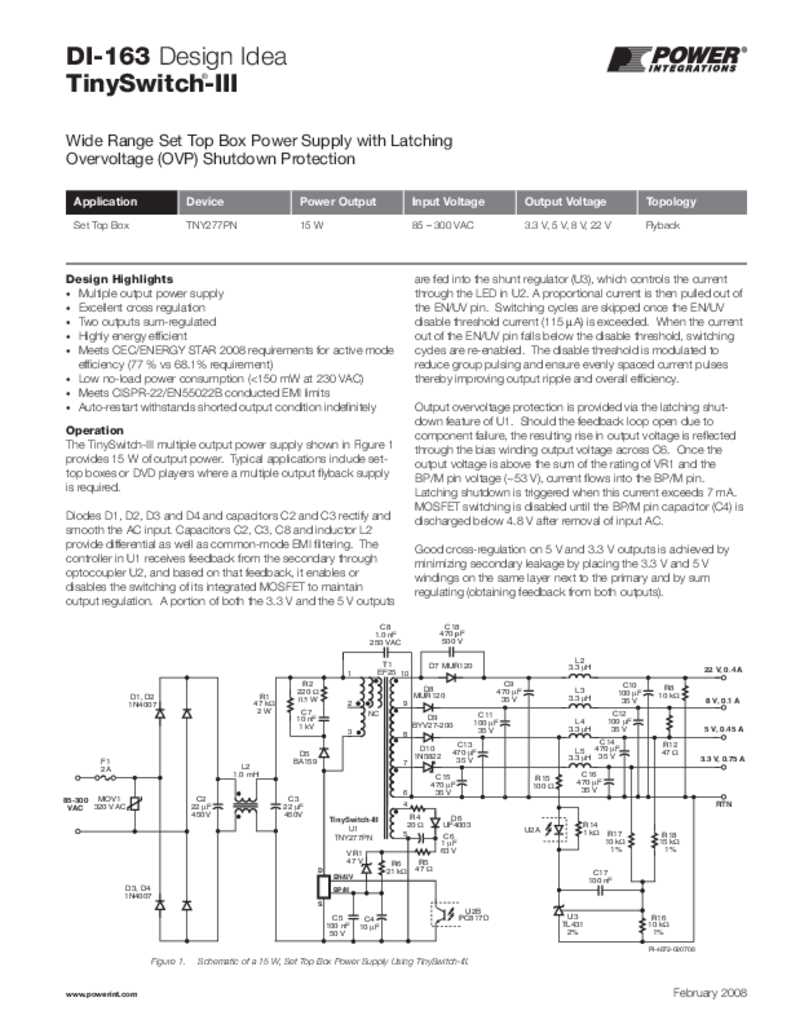

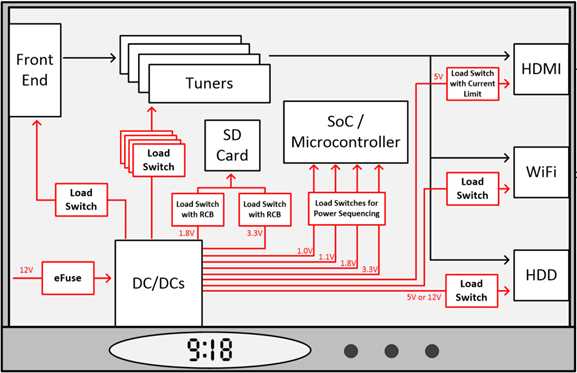

Step-by-Step Power Supply Design for Multimedia Receiver Circuits
Begin with an isolated flyback converter for offline AC-DC conversion, using an integrated controller like ON Semiconductor NCP1250 or Power Integrations INN3267C. Select a primary-side MOSFET (e.g., Infineon IPA60R1K6CE) with 600V breakdown and DS(on) for minimal conduction losses. Size the high-voltage DC link capacitor (22-47μF/400V, X2-class) to meet hold-up requirements (>20ms at 90VAC input) while maintaining ESR EFD20 core with a turns ratio of 1:0.15 for 5V output, ensuring primary inductance of 1.2-1.8mH verified via LCR meter. Add a 1N4937 fast recovery diode on the secondary for synchronous rectification, paired with a 33μH/1.5A output choke to suppress switching noise below 30mVp-p.
Implement linear post-regulators for noise-sensitive rails:
- For 3.3V, use LD1117V33 followed by a 10μF tantalum and 0.1μF ceramic at the load; ensure thermal pad area ≥200mm² on 2oz copper.
- For 1.8V, cascade two AP1117-1.8 regulators with staggered output capacitors (47μF electrolytic + 22μF MLCC) to prevent oscillation.
- Add a 4.7Ω/1W series resistor on the 12V rail feeding flash memory to limit inrush current to
Route all ground returns separately to a single star point near the bulk capacitor to prevent cross-regulation exceeding 1%. Test stability with a 0-100% load step while monitoring overshoot (

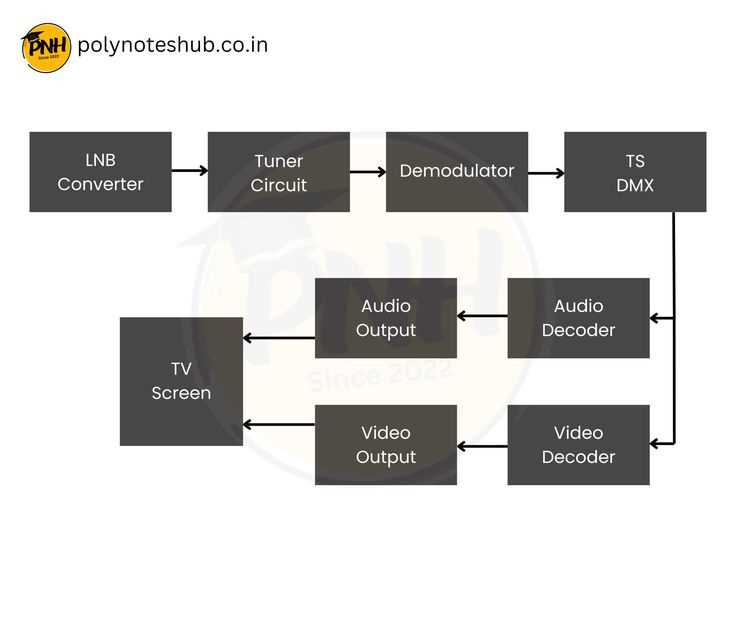

Signal Processing Blocks: Tuner, Demodulator, and Decoder Connections
Route the RF input directly to a dual-conversion tuner like the MAX2165 for satellite applications. This component handles signal amplification and downconversion to a fixed intermediate frequency (IF) of 480 MHz, critical for maintaining signal integrity in noisy environments. Ensure proper impedance matching between the tuner’s output and the subsequent demodulator input–use a SAW filter with 30 MHz bandwidth to eliminate adjacent channel interference before further processing.
Demodulator Integration Challenges
Select a demodulator supporting QPSK, 8PSK, or DVB-S2 standards, such as the STV0910. Connect the tuner’s IF output to the demodulator’s ADC input with a 50-ohm transmission line to prevent reflections. For terrestrial or cable signals, opt for an ATSC/QAM demodulator like the Si2168; here, the tuner’s IF should be 36 MHz. Configure the demodulator’s clock recovery loop with a damping factor of 0.707 to balance lock speed and stability.
Avoid connecting the demodulator’s output directly to the decoder. Insert a transport stream processor, like the BCM7412, to handle packet filtering, descrambling, and PCR recovery. This step prevents buffer overflows in the decoder by ensuring smooth data flow. For conditional access systems, route the scrambled transport stream through a CAS interface module (e.g., Conax or Nagra) before the decoder to avoid decrypting delays.
Decoder selection depends on the target application. For H.264 video, use the T2120; for HEVC, opt for the T6400. Connect the transport processor’s parallel or serial output (typically 8-bit parallel at 100 MHz) to the decoder’s input with matched trace lengths to reduce skew. Disable the decoder’s internal clock recovery if feeding it a synchronized transport stream–this reduces jitter by up to 15%.
Grounding and Power Considerations
Isolate analog and digital grounds at the tuner, demodulator, and decoder. Use a star grounding topology with the main ground point near the power regulator to minimize noise coupling. Power each block with separate LDOs: 3.3V for the tuner (with
Validate signal paths with an oscilloscope. Check the ADC output for a clean constellation diagram–distortions indicate improper IF filtering or demodulator misconfiguration. For the decoder, monitor the DTS/PTS timestamps; drift exceeding ±50ms suggests transport stream corruption or PCR errors. Log bit error rates (BER) at the demodulator output–target
