How to Read and Use a Current Transformer Wiring Diagram Step-by-Step
Start by verifying the core ratio before mapping any current transformer (CT) layout. Standard ratios–like 100:5, 200:5, or 400:5–must match the system’s nominal current. A mismatch distorts readings, risks tripping relays, or damages meters. Check the nameplate; if uncertain, measure primary current with a clamp meter at full load.
Burden resistance dictates accuracy. For 5A secondary CTs, keep burden below 0.2 ohms; 1A secondaries tolerate up to 1 ohm. Use twisted-pair leads (minimum 1.5 mm²) to minimize loop impedance. If leads exceed 10 meters, increase wire gauge or switch to 1A CTs to avoid voltage drop issues.
Ground the secondary circuit at one point only, typically at the meter or relay panel. Floating grounds induce stray currents, skewing phase readings in polyphase setups. For differential protection, confirm polarity: the primary H1 terminal connects to the line-side bus, secondary X1 to the load-side relay. Reverse polarity causes reversed current flow, triggering false trips.
Series vs. parallel configurations: multiple CTs on a single phase require series connection if loads are additive (e.g., monitoring multiple feeders). Parallel connections split current proportionally–ensure ratios match. For three-phase systems, arrange CTs in delta or wye; wye (star) simplifies summing zero-sequence currents but requires phase correction in software.
Avoid open-circuit secondaries at all costs. An unloaded CT produces dangerously high voltages–up to thousands of volts–which can arc through insulation or destroy connected devices. Always short-circuit unused CTs with a jumper or use a shorting block. If maintenance requires disconnection, power down the primary circuit first.
For Rogowski coils, note the integrator required: these air-core transformers output a voltage proportional to dI/dt, so integrate the signal for accurate RMS current. Calibration is critical; verify with a known current source before commissioning. Shielded cables (100 pF/m or better) prevent noise pickup in high-frequency applications.
Digital relays and smart meters often need resistor shunts for compatibility. 5A CTs typically require 0.05–0.2 ohms; 1A CTs need 0.5–2 ohms. Check device specs–some meters include internal burden. Exceeding maximum burden invalidates waveform accuracy, especially for harmonic analysis.
Test polarity with a DC battery: briefly connect (e.g., 1.5V) to primary H1/H2; secondary X1/X2 should show a positive or negative kick on a multimeter. Consistency across phases ensures correct directionality in directional relays. If polarity is wrong, swap leads only on the secondary side–never alter primary connections in energized systems.

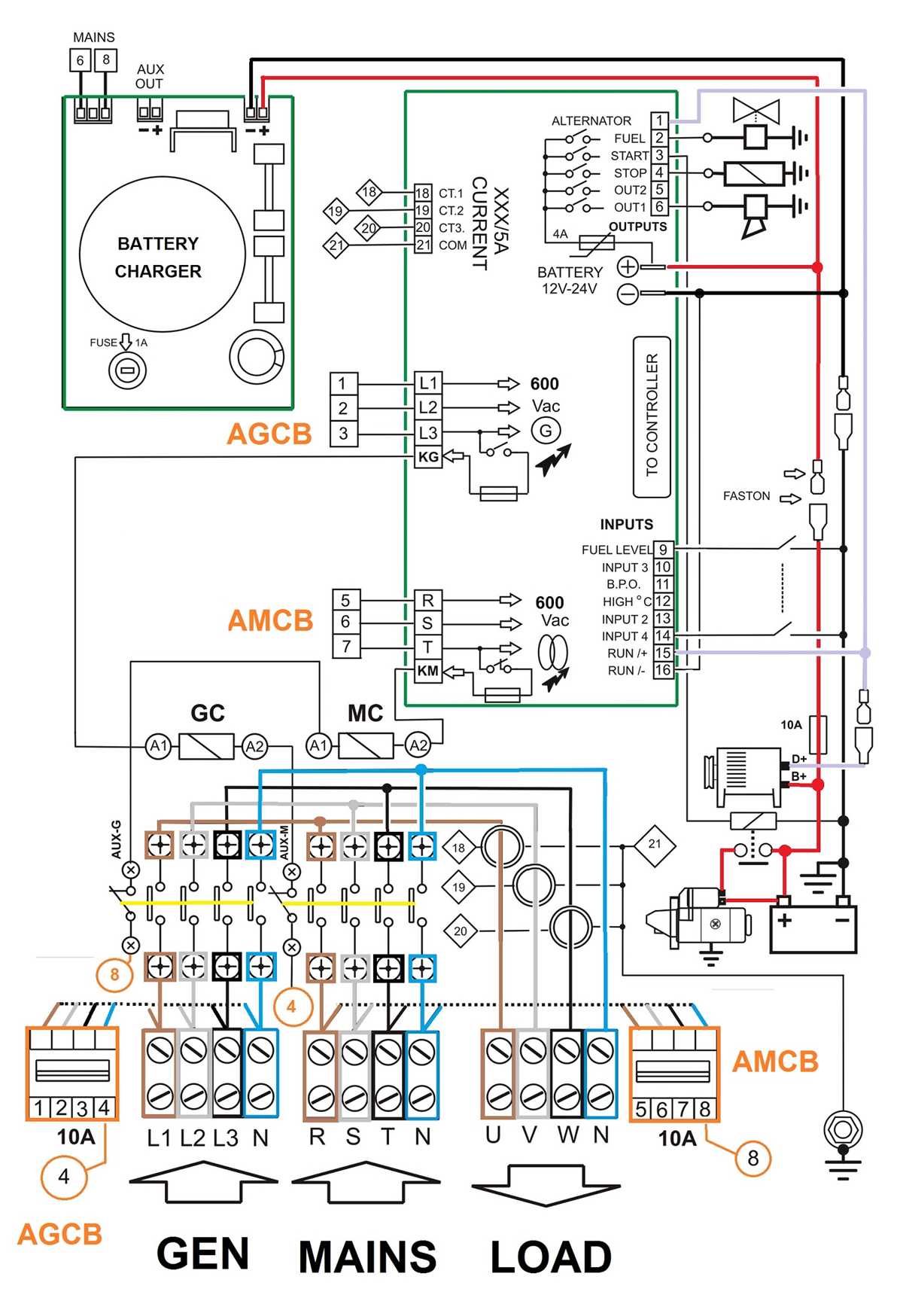

Key Connections in Current Transformer Schematics
Begin with verifying the polarity markings on the transformer core–typically labeled as *P1* (primary start) and *P2* (primary end), along with *S1* (secondary start) and *S2* (secondary end). Incorrect alignment here introduces phase errors, distorting metering or protection signals. For revenue-grade systems, ensure *S2* is grounded at the burden resistor to prevent hazardous floating voltages while maintaining measurement accuracy within ±0.1% for class 0.2 devices.
Select the burden resistor based on the secondary current rating–5A CTs require 0.2Ω to 0.5Ω, while 1A models need 1Ω to 3Ω. Exceeding these values increases saturation risk under fault conditions, particularly in protection circuits where 10x overcurrent may occur. For differential schemes, match ratios across all cores within 5% to avoid false tripping due to imbalance currents.
Route secondary leads away from high-voltage conductors to minimize capacitive coupling, which can skew readings by up to 3% in long cable runs. Use shielded twisted pairs (STP) for lengths over 10 meters, terminating the shield at *one* end only (typically the meter side) to prevent ground loops. Avoid daisy-chaining multiple loads–each device should connect radially to the CT terminals to preserve signal integrity.
For split-core configurations, confirm the core closure mechanism engages fully; partial closure drops measured current by 15-40%. In substation environments, isolate CT secondary circuits from DC control systems via optically coupled interfaces or interposing relays to prevent interference from surges. Document lead colors and terminal designations in a legend–red for *S1*, white for *S2*, and black for earth–as standard practice reduces troubleshooting time by 60%.
Validate connections under load using a clamp-on meter: phase shift should not exceed 1° between primary and secondary. For dual-tap CTs (e.g., 200/400/600:5A), ensure only one tap is energized at a time–parallel taps introduce circulating currents, reducing accuracy by up to 50%. In high-temperature settings, derate the CT by 0.5% per 10°C above 40°C to prevent core material degradation.
How to Identify CT Polarity and Connection Terminals
Label each current transformer (CT) terminal immediately upon unpacking. Use a permanent marker to denote “P1” on the side facing the power source and “P2” on the load-facing side. Verify markings against the manufacturer’s scheme–some European models reverse this convention.
Attach a multimeter set to DC voltage mode (low range) between the CT’s secondary terminals. Inject a brief, low-current DC pulse into the primary circuit (e.g., a 9V battery with a 1 kΩ resistor). The positive meter deflection indicates P1 alignment; a negative reading confirms reversed polarity. Repeat at three points along the conductor to rule out transient errors.
Record terminal orientation in a reference table. Include columns for CT model, primary conductor size, and measured polarity. Cross-check against the relay or meter documentation–some devices require all P1 terminals upstream for accurate summation.
| CT Model | Primary Conductor (AWG) | P1 Terminal Direction | Secondary Pinout |
|---|---|---|---|
| Schneider 100:5 | 2/0 | Toward breaker | S1: Left, S2: Right |
| ABB KOKM 1200:5 | 350 MCM | Away from load | S1: Top, S2: Bottom |
Twist secondary leads tightly and insulate with heat-shrink tubing. Loose strands introduce phase errors, particularly in high-frequency harmonics. Confirm insulation resistance (>1 MΩ) between each terminal and ground before energization.
Use a phase-angle meter for final verification. Connect the primary circuit to a known reference (e.g., a grid-tied inverter) and compare secondary signals. A 180° offset indicates reversed polarity; adjust terminal connections or reverse the burden resistor.
Color-code secondary circuits: red for P1/S1, black for P2/S2. Add a yellow stripe to burden resistor leads to prevent accidental inversion. Document all changes in the panel schedule with initials and date.
Test differential protection schemes with a primary current of at least 10% of CT rating. Inject current into one CT at a time and monitor relay feedback. Misalignment triggers false trips–reversing secondary leads on the offending CT resolves 90% of such issues.
Recheck polarity after any disturbance (e.g., component replacement, breaker operation). Use thermal imaging to detect uneven heating in secondary circuits, which signals high-resistance connections or reversed polarity under load.
Step-by-Step Guide to Integrating Current Transformers with Measurement and Protection Devices
Verify CT Ratio and Burden Compatibility before making connections. Match the transformer’s primary rating to the system current–oversized or undersized units distort readings. Check the secondary burden (ohmic load) against the meter or relay specifications; typical values range from 2.5 VA to 15 VA. Exceeding burden capacity degrades accuracy, especially in protective relays where saturation curves dictate fault detection thresholds. Use a clamp-on ammeter to confirm primary current if system parameters are uncertain.
Connect Polarity Correctly to avoid reversed measurements or relay misoperation. Mark the transformer primary terminals: “P1” aligns with incoming phase conductor, “P2” with outgoing. On the secondary, “S1” corresponds to the positive terminal for metering, “S2” to neutral or return. Swap connections if waveforms appear inverted–protective relays may misinterpret directionality, triggering false trips. For differential schemes, ensure consistent polarity across all CTs in the circuit.
Ground the Secondary Circuit at a Single Point to prevent circulating currents. Leave “S2” ungrounded under normal operation for metering accuracy, but solidly ground it when connecting to protective relays to limit transient voltages. Use a dedicated terminal block for grounding–never share paths with other circuits to avoid interference. For multi-core installations, isolate each secondary circuit to prevent cross-coupling; ferro-resonance risks increase with improper grounding.
Select Adequate Cable Gauge based on loop impedance. For 5A secondary circuits, use 2.5 mm² (14 AWG) copper conductors for runs under 50 meters; increase to 4 mm² (12 AWG) for longer distances to minimize voltage drop. Shielded twisted-pair cable reduces noise in sensitive applications like power-quality monitoring. Terminate all conductors with compression lugs–tinning introduces resistance variability. Test continuity with a megohmmeter (minimum 500 V DC) before energizing; readings below 100 MΩ indicate insulation failure.
Validate Operation with Secondary Injection before live commissioning. Apply incremental current (e.g., 0.1–1.0 pu using a test set) to verify linear response across the transformer’s range. Check phase-to-neutral balance in three-phase systems–deviations exceeding 5% suggest incorrect connections or core saturation. For relays, simulate fault conditions (e.g., 10× rated current) to confirm pickup time meets coordination curves. Record calibration offsets if digital meters display nonlinearity; most relays tolerate ±3% error without recalibration.
