How to Wire Cub Cadet PTO Switch Step-by-Step Guide with Diagram

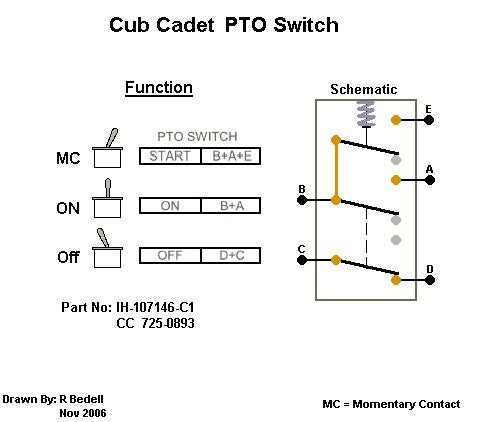

Start by locating the power take-off engagement control on your tractor’s dashboard. The system typically consists of a three-position selector (off, on, and momentary activation) paired with a solenoid-actuated clutch. Trace the wiring harness from the control panel to the rear-mounted clutch assembly–this path involves a 12-gauge red wire (constant 12V source), a yellow wire (switched output to the solenoid), and a black wire (ground return). Cross-reference these colors with your tractor’s service manual, as deviations exist between models produced before and after 2015.

Attach a multimeter set to DC voltage (20V range) to verify power flow at the control terminals. Probe the red wire while the ignition is on–readings should show 11.5V to 14.5V. If voltage drops below 11V, inspect the fuse panel (typically a 10A fuse) and the battery-to-starter relay circuit. For tractors with diesel engines, ensure the glow plug controller isn’t drawing excessive current during startup, which can starve the PTO circuit.

Next, test the yellow wire’s continuity when toggling the control. The wire should carry 12V only in the “on” position and drop to 0V when switched off. If voltage persists, suspect a short-to-ground in the harness or a faulty control–replace the selector if resistance exceeds 2 ohms between the yellow and black wires. For momentary activation models, confirm the micro-switch inside the control clicks audibly and registers 0.1V–0.3V across its contacts when depressed.

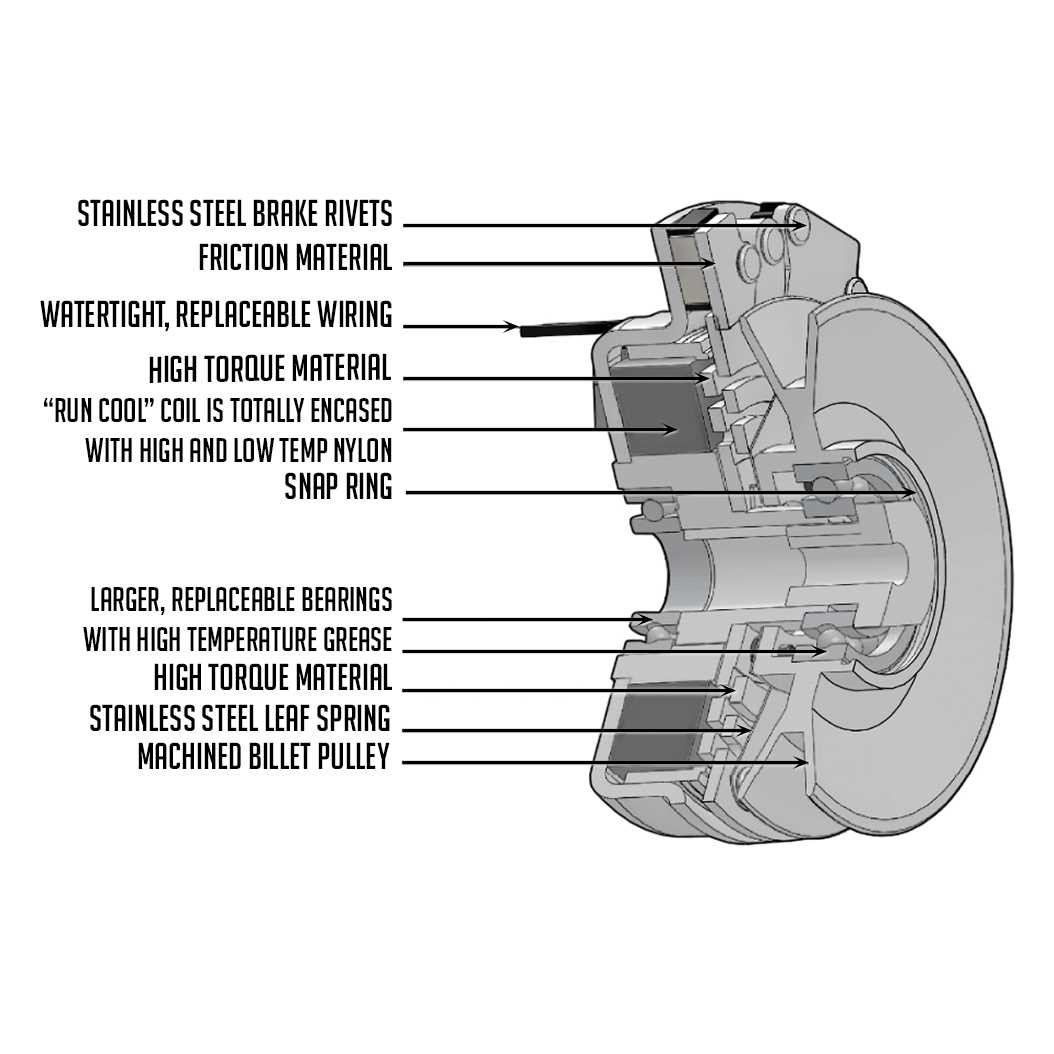

Ground integrity is critical–scrape corrosion from the tractor’s frame at the grounding point (usually a M8 bolt near the rear axle). A weak ground causes intermittent solenoid engagement, often mistaken for a failed clutch. Use a star washer to ensure metal-to-metal contact. If the solenoid clicks but the clutch doesn’t engage, disassemble the unit to check for worn splines or sheared drive keys, common in high-hour tractors.

For tractors equipped with an electronic governor, note that the PTO circuit may share a relay with the fuel shutoff solenoid. Label all connections before disconnecting to avoid mis-wiring, which can lead to uncommanded engine shutoff or starter motor engagement while running. Always disconnect the battery’s negative terminal before servicing the harness to prevent short circuits.

Understanding Your Mower’s Engagement System Electrical Layout

Trace the red wire from the engagement lever’s microswitch to the solenoid on the engine bracket–this carries the activation signal. Use a multimeter to verify 12V DC output when the lever is toggled; absence indicates a faulty relay or crimped connection. Replace damaged connectors with 18-gauge spade terminals, ensuring a secure fit to prevent intermittent failures during high-vibration operation.

Identifying Key Connection Points

Locate the orange wire linked to the ignition module; it feeds power to the engagement mechanism when the engine runs. Splice corrosion here often causes erratic disengagement–clean terminals with electrical contact cleaner and apply dielectric grease. If voltage drops below 11.5V under load, test the battery’s cold-cranking amps or inspect the ground strap for oxide buildup.

Examine the gray wire running from the engagement lever to the electric clutch–this is the ground return path. Securely fasten it to the mower’s frame using a star washer to maintain conductivity. Loose grounds mimic clutch failure, so tighten bolts to 10-12 ft-lbs and verify continuity with a continuity tester before reassembly.

For models with hour meters, ensure the yellow wire from the engagement lever bypasses the meter unless explicitly required. Connecting it directly to the clutch improves reliability, as meter circuits often introduce resistance that weakens clutch activation. Use heat-shrink tubing on all splices to prevent short circuits from grass clippings or moisture.

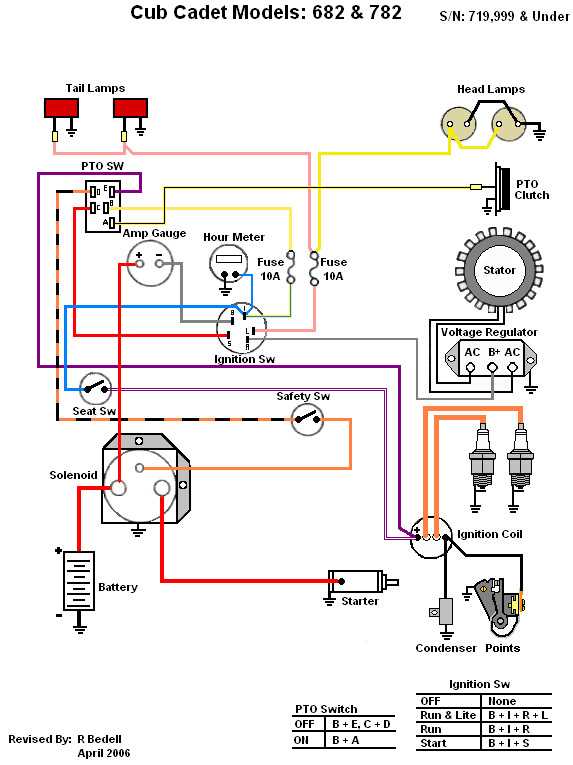

Keep a schematic specific to your model year, noting variations: earlier units use a three-wire setup, while newer ones integrate a fourth wire for safety interlocks. Label wires with colored tape during disassembly to avoid miswiring–a misrouted purple wire, for instance, can energize the clutch permanently, leading to belt slippage or motor burnout.

Locating the Proper Leads for Implement Engagement Controls on Garden Equipment

Begin by tracing the harness from the activation mechanism to the terminal block beneath the operator’s seat or dashboard panel. Manufacturers typically color-code lead sets: the ignition-sourced input wire is often red or orange, while the ground return is black or dark brown. Intermediate connector pins–usually green or yellow–carry the signal to the solenoid relay that triggers the clutch assembly. Isolate each lead with a multimeter set to continuity mode; the activation circuit should register 12 volts DC when engaged.

Verify the main power feed by probing the red lead against chassis ground–expect consistent voltage during engine operation. If readings fluctuate or drop below 11 volts, inspect the fuse link or battery connections for corrosion. The relay control line, frequently marked with a stripe, demands pulsing voltage only when the lever is toggled, distinguishing it from steady power feeds. Mistaking this for the main input risks damaging the clutch coil, leading to premature failure.

For models with hour-meter integration, note the auxiliary blue-white wire looping through the meter before returning to the harness–this path must remain uninterrupted for accurate logging. When splicing leads during repairs, use heat-shrink tubing rather than electrical tape; prolonged exposure to moisture and vibration degrades tape adhesion, causing intermittent shorts. Secure all connections with crimp connectors rated for 20-amp circuits, ensuring the crimp barrel captures both wire strands fully to prevent pull-out under load.

Certain vintage units feature a bypass circuit for safety interlocks–identify the white-yellow secondary lead connecting to seat or blade sensors. This wire must show zero resistance to ground when the interlock conditions are met; failure here prevents engagement even if primary leads are intact. Replace any connectors exhibiting pitted contacts or discoloration immediately, as these accelerate voltage drop and erratic operation.

After confirming lead assignments, reassemble the harness conduit, routing wires away from sharp edges and moving linkages. Tape bundles at 8-inch intervals to prevent chafing, using non-conductive spiral wrap for high-vibration zones. Re-test the activation sequence before full reassembly to avoid revisiting the installation due to overlooked errors in wiring order.

Step-by-Step Guide to Testing Voltage on Implement Engagement Control Lines

Disconnect the connector from the activation module before proceeding. Set a multimeter to DC voltage mode (20V range) and probe the terminal pins on the harness side while engaging the lever. A reading of 12–14V should appear on the supply line (typically a red or yellow wire) when activated. If voltage is absent, inspect the fuse box–look for a 15A fuse marked “Implement”–and replace if blown. No output on the signal wire (often blue or green) suggests a faulty relay or broken trace on the control board.

1. Locate the connection point behind the operator panel where the engagement lever terminates. Label each wire using masking tape to avoid misprobing.
2. Use needle probes to pierce insulation at intervals of 10 cm along the entire length, checking for voltage drops. A drop below 11.8V indicates internal corrosion or a partial short–strip the wire section and solder a bypass.
3. Test continuity on the ground return (black or brown wire) by touching one multimeter lead to the chassis and the other to the wire end. Resistance should read <0.5 ohms; higher values require cleaning contact points or replacing the ground strap.

Reconnect the harness after testing. Engage the lever while monitoring voltage; if the reading fluctuates or drops intermittently, replace the engagement solenoid. Use dielectric grease on connectors to prevent future oxidation–apply a pea-sized dab to each metal contact.

Frequent Electrical Errors During Deck Engagement Control Upgrades

Misaligning the power feed from the ignition circuit to the 15-amp fuse before routing to the engagement control causes overheating and intermittent operation. Always trace the red wire from the solenoid terminal to the fuse block–verify continuity with a multimeter (0.5 ohms or less) before securing connections. Untwist wire pairs by more than 0.5 inches, and solder joints instead of relying on crimp connectors, which corrode within 18 months in humid conditions.

• Connecting the safety interlock (seat switch) in parallel rather than series will bypass the lockout function, violating safety standards. Test with a continuity checker: disengaged seat should show open circuit (1+ megaohms).
• Reversing polarity on the 12V output terminal damages internal relays–label wires before removal and match colors to the manual’s pinout diagram.
• Ignoring the ground terminal near the mounting bracket leads to voltage drops; scrape paint off the frame for a direct metal-to-metal contact.
• Using 18-gauge wire for the auxiliary circuit overloads the path, causing melted insulation. Minimum 14-gauge is required for 20A loads.

After reassembly, bench-test with a 9V battery and LED: short green to white wire–LED should illuminate. If not, recheck the blue wire’s path from the engagement lever microswitch to the control module. Factory harnesses often include an inline resistor (330 ohms); bypassing it increases current draw by 30%, risking premature solenoid failure.
