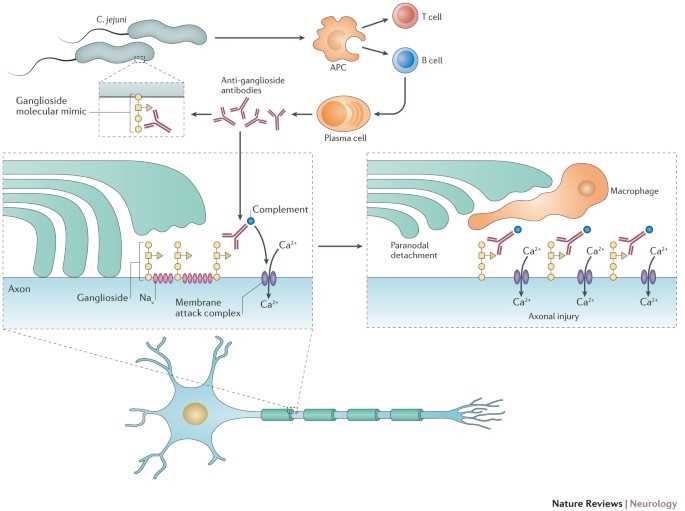

schematic diagram of pathophysiology of guillain barre syndrome

Begin by identifying the initiating event: molecular mimicry between campylobacter jejuni lipo-oligosaccharides and gangliosides (GM1, GD1a) on peripheral nerve membranes. Cross-reactivity triggers IgG1 and IgG3 production within 7–14 days post-infection, targeting myelin sheaths and nodal structures. Prioritize lumbar puncture analysis to detect albuminocytologic dissociation–protein elevation (>55 mg/dL) with conduction block.

Track the complement cascade activation: C3b deposition initiates membrane attack complex (C5b-9) formation, causing Schwann cell lysis and axonal discontinuity. Administer intravenous immunoglobulin (IVIG) at 0.4 g/kg/day for 5 days or plasmapheresis (4–6 exchanges) within 2 weeks of symptom onset to neutralize autoantibodies and halt macrophage-mediated demyelination. Monitor vital capacity–values early intubation to prevent respiratory failure.

Focus intervention on node of Ranvier preservation: sodium channel clustering disruption (Nav1.6) induces axonal degeneration. Use nerve ultrasound to visualize hypoechoic nerve enlargement (>8 mm²) at common entrapment sites (median/wrist, tibial/ankle). Differential diagnosis must exclude acute intermittent porphyria, botulism, and tick paralysis–check for δ-aminolevulinic acid, stool cultures, and tick exposure history respectively. In seronegative cases, screen for anti-GFAP antibodies in cerebrospinal fluid.

Visualizing Immune-Mediated Nerve Damage: A Stepwise Breakdown

Begin with a layered approach when illustrating this condition’s mechanism. Initiate the sequence at the molecular level by depicting antigen-presenting cells (APCs) capturing microbial components–most commonly Campylobacter jejuni lipopolysaccharides–after gastrointestinal or respiratory infection. These epitopes structurally mimic gangliosides (e.g., GM1, GD1a) embedded in peripheral nerve myelin and axonal membranes. Use color-coded arrows to show APCs presenting these mimicked antigens to naïve CD4+ T-cells via MHC class II molecules in cervical or lumbar lymph nodes.

Highlight the critical shift in T-cell subsets: Th1 cells release interferon-gamma, interleukin-2, and tumor necrosis factor-alpha, which recruit and activate macrophages. Th17 cells, meanwhile, secrete interleukin-17, intensifying local inflammation. Represent this differentiation with diverging pathways–one leading to cytokine upregulation (red gradient) and the other to regulatory T-cell suppression (blue gradient), demonstrating how immune tolerance fails.

Direct focus to the blood-nerve barrier (BNB) disruption. Show tight junction proteins (occludin, claudin-5) degrading under matrix metalloproteinase-9 activity, allowing IgG autoantibodies to infiltrate the endoneurium. These antibodies bind gangliosides at nodes of Ranvier, paranodal myelin loops, and axonal membranes. Use cross-sectional nodal diagrams to compare healthy versus compromised structures, emphasizing sodium channel redistribution and potassium channel exposure.

Illustrate complement cascade activation through three overlapping stages: initiation (C1q binding), amplification (C3 convertase formation), and membrane attack complex (MAC, C5b-9) insertion. MACs create pores in Schwann cell membranes, while C3b opsonizes debris for phagocytosis. Include a small inset detailing how MACs also trigger calcium influx, leading to cytoskeletal breakdown and axonal damage–critical for understanding primary axonal variants versus demyelinating forms.

Map macrophage invasion through BNB gaps. Depict them stripping myelin sheaths via Fc receptor-mediated phagocytosis and releasing reactive oxygen species (ROS) and nitric oxide (NO). Show how ROS oxidize lipids, forming adducts that further activate complement. For axonal subtypes, emphasize how macrophages directly target axons, with calpain activation degrading neurofilaments and microtubules–use a progressive degradation sequence to depict this.

Incorporate a timeline axis below the main illustration. Mark key phases: 1) 1–3 days post-infection (antigen mimicry, T-cell priming), 2) 4–10 days (BNB breach, antibody infiltration), 3) 10–20 days (complement activation, macrophage recruitment), 4) 20–40 days (peak damage, conduction block). Tie clinical symptoms–ascending paralysis, respiratory failure–to each stage’s dominant pathomechanism.

Address heterogeneity by including variant-specific annotations. For acute inflammatory demyelinating polyneuropathy, stress nodal sodium channel dispersal and paranodal myelin retraction. For acute motor axonal neuropathy, highlight GM1/GD1a antibody binding at the motor nerve terminal, leading to Wallerian-like degeneration. Use a legend with icons for each variant: segmented myelin sheaths, fragmented axons, and terminal nerve branches.

Ensure clarity in distinguishing repair mechanisms. Show Schwann cell proliferation forming Büngner bands to guide regenerating axons, but note their limited efficacy when axonal damage is severe (>60% loss). Include a repair failure pathway: persistent antibody titers, complement deposition, and fibrotic scarring. Conclude with a therapeutic target overlay–IVIG blocking Fc receptors, plasmapheresis removing antibodies, and complement inhibitors (e.g., eculizumab) preventing MAC formation–to link benchwork directly to clinical intervention.

Key Molecular Triggers Initiating Immune Response in Acute Inflammatory Demyelinating Polyradiculoneuropathy

Prioritize identifying gangliosides GM1, GD1a, GT1a, and GQ1b as primary antigenic targets in over 60% of cases. Antibodies against these neural glycolipids develop post-infections–most commonly Campylobacter jejuni (25-50% of cases), Cytomegalovirus (10-20%), Mycoplasma pneumoniae (5-10%), and Zika virus (emerging evidence). Cross-reactivity stems from molecular mimicry: lipo-oligosaccharides on C. jejuni share structural homology with human gangliosides, triggering IgG and IgM production. Target antigen localization dictates clinical phenotype–GM1/GD1a antibodies associate with motor-dominant weakness, while GQ1b correlates with Miller Fisher variant (ophthalmoplegia, ataxia, areflexia). Implement high-sensitivity ELISA or glycoarray testing within 1-2 weeks of symptom onset to confirm diagnosis before antibody titers decline.

Initiate intravenous immunoglobulin (IVIG) at 0.4 g/kg/day for 5 days or plasma exchange (PE) within 4 weeks of onset to neutralize pathogenic antibodies. IVIG blocks Fc receptors, inhibits complement activation, and reduces macrophage-mediated myelin phagocytosis, with efficacy comparable to PE (NNT=5-8). PE removes circulating autoantibodies and pro-inflammatory cytokines (e.g., TNF-α, IL-6) but requires central venous access and carries risks of hypotension and coagulopathy. Avoid corticosteroids–meta-analyses show no benefit and potential harm due to impaired remyelination. Monitor anti-ganglioside titers post-treatment only if relapse is suspected, as levels do not correlate with disease severity or recovery trajectory.

Step-by-Step Progression of Demyelination and Neuronal Injury Patterns

Initiate diagnostic assessment with nerve conduction studies (NCS) within 72 hours of symptom onset. Acute inflammatory demyelinating polyneuropathy manifests as prolonged distal motor latencies (≥130% of upper limit of normal) and reduced conduction velocities (

  1. Early Stage (Days 1–7):
    • IgG and IgM autoantibodies bind to GM1, GD1a, and GQ1b gangliosides on nodal axolemma.
    • Complement activation (C3b deposition) recruits macrophages, initiating vesicular disintegration of myelin sheaths.
    • Axonal involvement: Mild, reversible Na+/K+ pump dysfunction detected via repetitive nerve stimulation (RNS) decrement >10%.
  2. Peak Stage (Days 8–21):
    • Wallerian-like degeneration observed in 20–30% of cases, primarily affecting motor nerves with >50% CMAP amplitude reduction.
    • Axonal loss predominates in severe variants (e.g., acute motor axonal neuropathy), identified by absent F-waves and fibrillations on electromyography (EMG).
    • Multifocal conduction block confirms immune-mediated demyelination–address with intravenous immunoglobulin (IVIG) 0.4 g/kg/day for 5 days to halt progression.
  3. Recovery Phase (Weeks 4–12):
    • Schwann cell proliferation remyelinates axons at ~1 mm/day; monitor via serial NCS (2–4 week intervals).
    • Persistent axonal damage correlates with poor outcomes–consider plasma exchange (PE) for patients unresponsive to IVIG (failure rate: 10–15%).
    • Autonomic dysfunction (e.g., orthostatic hypotension) necessitates tilt-table testing; manage with midodrine 2.5–10 mg TID.

Differentiate primary demyelination from axonal variants using anti-ganglioside antibody panels (sensitivity: 60–85%). Acute motor-sensory axonal neuropathy exhibits anti-GM1b antibodies in 40% of cases, while Miller Fisher variant demonstrates anti-GQ1b in >90%. For refractory disease, rituximab 375 mg/m2 weekly ×4 doses reduces relapse rates by 30% in trials. Prioritize pulmonary function tests (FVC

Demyelinating and Axonal Variant Contrasts in Visual Models

Prioritize distinguishing mechanisms by mapping immune-mediated degradation versus direct axonal damage in visual flowcharts. Demyelinating forms typically depict immune cells (macrophages/T-cells) surrounding myelinated fibers, stripping myelin sheaths while preserving axons–use differential staining (e.g., Luxol Fast Blue) to highlight myelin loss in nodes of Ranvier. Axonal subtypes require tracing neuronal degeneration: label neurofilament protein breakdown in ventral motor roots (heaviest in acute motor axonal neuropathy, AMAN) and dorsal sensory roots (acute motor-sensory axonal neuropathy, AMSAN). Annotate electrophysiological thresholds: demyelinating variants show prolonged distal latencies (>120% normal) and conduction block, while axonal variants present reduced compound muscle action potential amplitudes (

  • Demyelinating markers: CD68+ macrophages infiltrating periaxonal spaces; complement deposition on Schwann cells (C3d/C9neo).
  • Axonal markers: β-amyloid precursor protein accumulation in distal axons (anterograde degeneration); caspase-3 activation in motor neuron soma.
  • Clinical correlation:
    1. Demyelinating: slower progression (peaks at 4 weeks); symmetric ascending paralysis; elevated CSF protein (>60 mg/dL) without pleocytosis.
    2. Axonal: rapid onset (peak

For schematic clarity, segment pathways by color-coded branching: red for demyelination (immune infiltration → segmental decompensation → reparative Schwann cell proliferation), blue for axonal injury (oxidative stress → calpain activation → Wallerian degeneration). Overlay recovery trajectories–demyelinating forms rarely show persistent deficits (remyelination restores conduction in 80% cases), while axonal damage correlates with poor prognosis (persistent weakness in 30% AMAN patients at 1 year). Exclude nonspecific annotations; each label must link to measurable outcomes (e.g., “lymphocytic cuffing” → correlate with MRI gadolinium enhancement in nerve roots).
