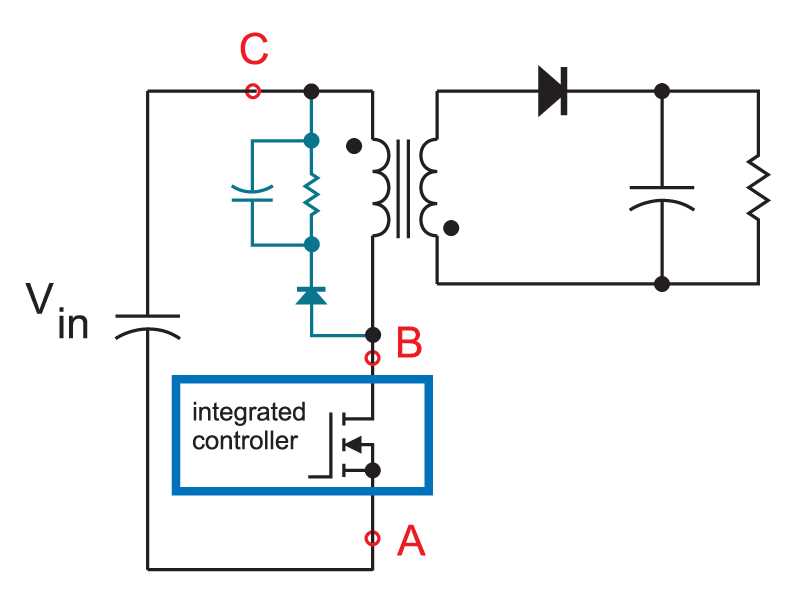

Practical Guide to Designing Accurate Current Measurement Circuits
Start by selecting a shunt resistor with a value between 0.01Ω and 0.1Ω for most low-voltage applications. Nickel-chromium alloys resist temperature drift better than copper, ensuring stable readings under 2W dissipation. Place the resistor directly in the power path of the load, avoiding long traces that introduce parasitic inductance–trace length should not exceed 10mm for frequencies above 1 kHz. Ground the sense line at the resistor’s negative terminal to eliminate noise from ground loops.
Use a differential amplifier with a common-mode rejection ratio (CMRR) above 90 dB to reject supply variations. INA188 or AD8418 handle ±26V input range, suitable for industrial sensors. Configure gain between 20x and 100x: higher gain amplifies noise, while lower gain forces the ADC to work harder. Connect a 100nF capacitor across the amplifier’s supply pins to stabilize the reference voltage near the sensor’s ground.
Route the amplified signal to an ADC with at least 12-bit resolution–16-bit SAR converters like ADS1115 offer 860 samples/sec with built-in PGA. Keep the analog and digital grounds separate until they meet at a single star point near the ADC. Shield the signal lines with a copper pour tied to analog ground, reducing EMI from switching regulators. For currents above 10A, replace the shunt with a Hall-effect sensor (e.g., ACS723), which isolates the path but adds ±2% accuracy tolerance.
Calibrate against a known load–precision resistors or a Keysight 34465A multimeter–adjusting the amplifier’s offset trim if readings drift more than 0.5%. For pulsed loads, add a 1μF film capacitor across the shunt to smooth transient spikes. Test under full load for at least 30 minutes to expose thermal drift; readings should stabilize within 1°C of ambient. Document the schematic with reference designators, test points, and tolerance limits (±1% resistors, ±5% capacitors) to ensure repeatability in production.
Designing a Robust Electrical Flow Sensing Setup
Use a shunt resistor paired with a differential amplifier for accurate low-side sensing in DC applications. Select a resistor with a tolerance of 1% or better to minimize error propagation; values between 0.01Ω and 0.1Ω balance power dissipation and signal amplitude. Ensure the amplifier’s input impedance exceeds 10MΩ to prevent loading effects, and set a gain of 10–100 depending on expected flow rates–higher gains improve resolution but risk saturation at peak loads. For 3.3V or 5V systems, calculate maximum voltage drop across the shunt to confirm it stays within the amplifier’s common-mode range.
For high-frequency or transient analysis, replace the shunt with a Hall-effect sensor like the Allegro ACS723. These devices isolate the sensing path, eliminate insertion loss, and handle ±5A to ±100A with 20kHz bandwidth. Mount the sensor perpendicular to PCB traces carrying the load path to avoid magnetic interference from neighboring conductors. Calibrate offset drift by shorting the input terminals and recording the zero-flow voltage; compensate in firmware for shifts exceeding 5mV under operating temperature swings.
In three-phase AC monitoring, deploy three identical Rogowski coils wrapped around each conductor. Ensure the coils share the same turns count and core diameter; even minor mismatches distort phase accuracy. Connect the coil outputs to integrator circuits with a time constant (τ = R×C) matching the lowest frequency component–50μs is typical for 50Hz grids–to reconstruct the original waveform without attenuation. Include a reset switch across the integrator capacitor to discharge DC buildup after prolonged use.
For battery-powered devices, prioritize low quiescent current: a TI INA219 draws 10μA, offering 12-bit resolution over a ±3.2A range with I²C interface. Combine it with a MOSFET bypass switch to disconnect the sensing element when idle, reducing standby consumption to
Selecting an Optimal Shunt Resistor for Precise Load Tracking
Start with a resistor value between 0.01Ω and 0.1Ω for most low-side sensing setups handling 1A to 10A ranges. Lower values reduce power loss but demand amplifiers with sub-millivolt resolution; higher values simplify signal conditioning yet introduce unacceptable thermal drift at load swings above 5A. Verify the resistor’s temperature coefficient–prefer ±50 ppm/°C or better–to prevent 0.5% reading errors per 10°C shift.
Use four-terminal Kelvin resistors for currents exceeding 5A or when the sensing path exceeds 10 mm. These resistors eliminate lead resistance errors, which can reach 0.5 mΩ per cm–enough to skew 1A readings by 10% in copper traces. Metal film resistors reach 200 ppm/°C; bulk metal foil types drop to 10 ppm/°C but cost five to ten times more. For pulsed loads, match the resistor’s thermal time constant to the repetition rate–ceramic substrates respond in 50 ms, while aluminum-core types need only 5 ms.
Calculate power dissipation as I²R; a 0.05Ω resistor at 8A dissipates 3.2W, requiring at least a 2512 package or a TO-220 heatsink. Thick-film resistors tolerate 0.5W/mm²; precision foil handles 1W/mm² but saturates at 125°C. Avoid carbon composition resistors–their 500 ppm/°C drift distorts readings by 2% over 20°C spans.
Pair the resistor with an instrumentation amplifier set for a gain of 10 to 100; 16-bit ADCs need at least 8 μV/LSB resolution. TI’s INA188 tolerates 36V common-mode while delivering 0.1% gain error. For high-voltage rails, opt for isolated amplifiers like Analog Devices’ AD215; its 1500 V isolation prevents ground loops from corrupting 20 mA readings.
How to Wire a Shunt Resistor in Series with High-Current Loads
Select a shunt with a resistance value low enough to minimize power dissipation but high enough to generate a readable voltage drop. For loads up to 100 A, a 50 mV shunt (e.g., 0.5 mΩ) is typically sufficient; above 100 A, opt for 100 mV shunts (e.g., 1 mΩ or lower). Verify the shunt’s continuous and peak ratings–most commercial shunts handle 1.5–2× overload for short durations, but prolonged overcurrent can distort readings or damage the device.
Place the shunt directly in the return path–between the load’s negative terminal and the power source’s ground–to avoid ground loops. Use thick copper wire or bus bars (minimum 12 AWG for 50 A, 6 AWG for 100 A+) for all connections, ensuring total loop resistance stays below 1% of the shunt’s value. Example: For a 0.5 mΩ shunt, keep additional resistance under 5 µΩ. Crimp or solder terminals to the shunt’s designated pads (not the sensing points) to prevent measurement errors from thermal EMF.
Isolate sensing wires from high-amperage conductors to prevent induced noise. Use twisted-pair, shielded cables for differential measurements, routing them away from switching regulators or motors. For distances over 30 cm, employ differential amplifiers with >80 dB CMRR to reject common-mode interference. Table 1 lists recommended cable gauges based on shunt type:
| Shunt Type | Max Amperage | Sense Wire Gauge | Cable Length Limit |
|---|---|---|---|
| 50 mV, 0.5 mΩ | 75 A | 24 AWG | 50 cm |
| 50 mV, 0.5 mΩ | 100 A | 22 AWG | 1 m |
| 100 mV, 1 mΩ | 200 A | 20 AWG | 2 m |
| 100 mV, 0.3 mΩ | 300 A | 18 AWG | 3 m |
Thermal drift can skew readings–ensure the shunt’s temperature coefficient (TC) aligns with your application. Manganin shunts (TC: ±15 ppm/°C) suit precision tasks, while constantan (TC: ±30 ppm/°C) works for general use. Mount the shunt away from heat sources; forced air cooling may be needed above 150 A. Calibrate at the expected operating temperature using a 4-wire method: apply a known reference flow via a programmable source, adjust the ADC’s gain/offset to match the shunt’s voltage output.
Troubleshooting Installation Errors
Symptoms like erratic readings or zero output often stem from incorrect polarity–verify the sense wires align with the shunt’s marked terminals. If using Kelvin connections, confirm the outer pads carry the full flow while the inner pads deliver only the sensing signal. For high-frequency loads (e.g., PWM drives), add a low-pass filter (cutoff ≤1 kHz) to reject switching noise without attenuating the DC component. Replace the shunt if its resistance shifts >0.5% after prolonged use–degradation indicates overheating or material fatigue.

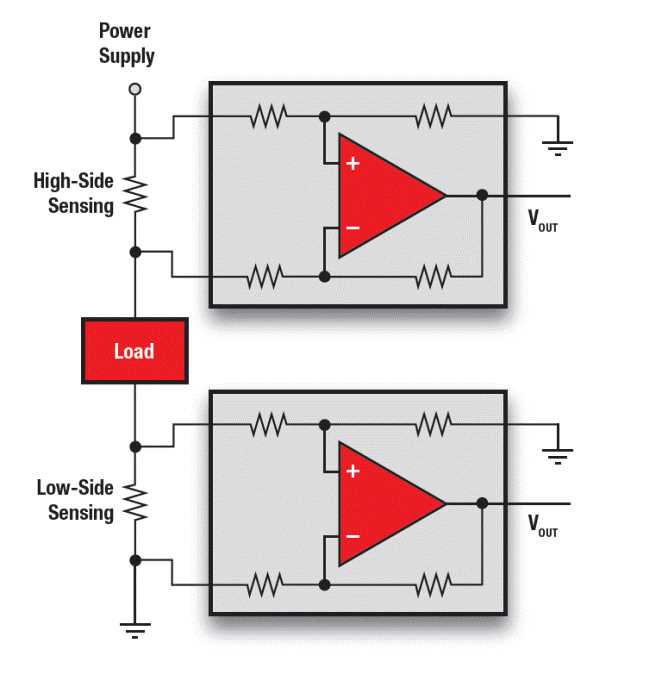

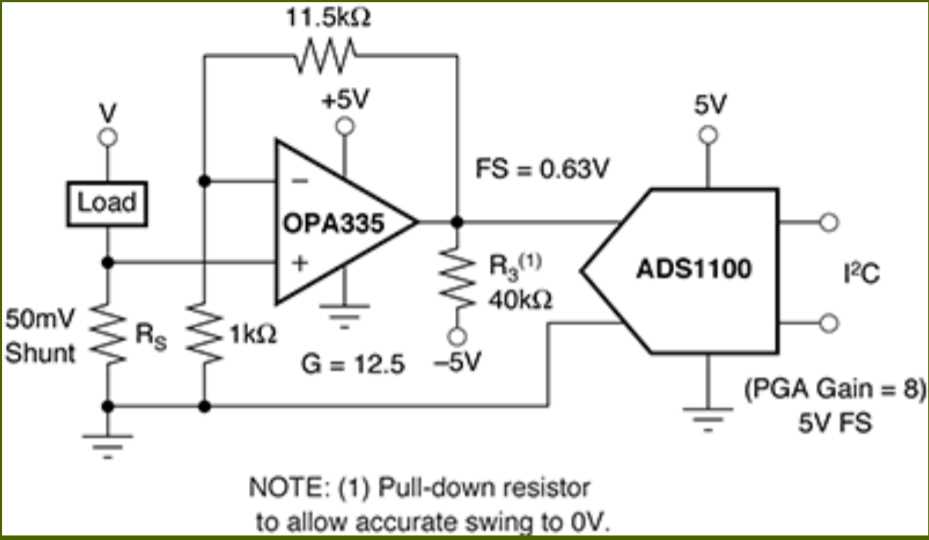

Op-Amp Configuration for Signal Amplification in Low-Side Sensing
For precision in low-side sensing, use a differential amplifier with a gain of 10–50, depending on shunt resistance. A 0.1Ω shunt resistor paired with a 20V/V op-amp yields ±1V output for a ±5A load. Select rail-to-rail output op-amps (e.g., LMV324, TSV912) to avoid clipping near ground potential. Keep input offset voltage below 1mV to prevent errors in small-signal applications.
Implement a three-op-amp instrumentation amplifier for high common-mode rejection (>80dB). Connect the first two stages as non-inverting amplifiers with matched resistors (1% tolerance) to reject noise. The third stage acts as a differential amplifier, adjusting gain via a single resistor ratio:
- Use R_gain = 1kΩ for 10V/V gain.
- Increase R_gain to 10kΩ for 100V/V gain.
This topology excels in industrial environments with 50/60Hz interference.
Noise Reduction Techniques
Minimize high-frequency noise with a 2-pole active filter at the op-amp output. For a 1kHz cutoff:
- First stage: R = 10kΩ, C = 16nF.
- Second stage: R = 10kΩ, C = 100nF.
Place a 10nF bypass capacitor between the op-amp’s supply pins and ground. Avoid ceramic capacitors for filtering due to microphonic effects–use film or tantalum types.
For battery-powered systems, employ a chopper-stabilized op-amp (e.g., AD8551) to eliminate 1/f noise. Chopper amplifiers introduce switching artifacts; mitigate with a post-filter (e.g., RC = 1ms). Alternatively, use a zero-drift op-amp (OPA333) for sub-μV offset drift without switching noise.
Layout and Grounding Best Practices
Route the input traces as a differential pair with matched lengths (±2mm). Separate the op-amp’s analog and digital ground planes, connecting them at a single point near the power source. Use a star grounding topology for the shunt resistor’s low-side terminal to prevent ground loops. Place decoupling capacitors (0.1μF X7R) within 2mm of the op-amp’s supply pins. Avoid vias in the high-impedance input paths to reduce parasitic capacitance.
