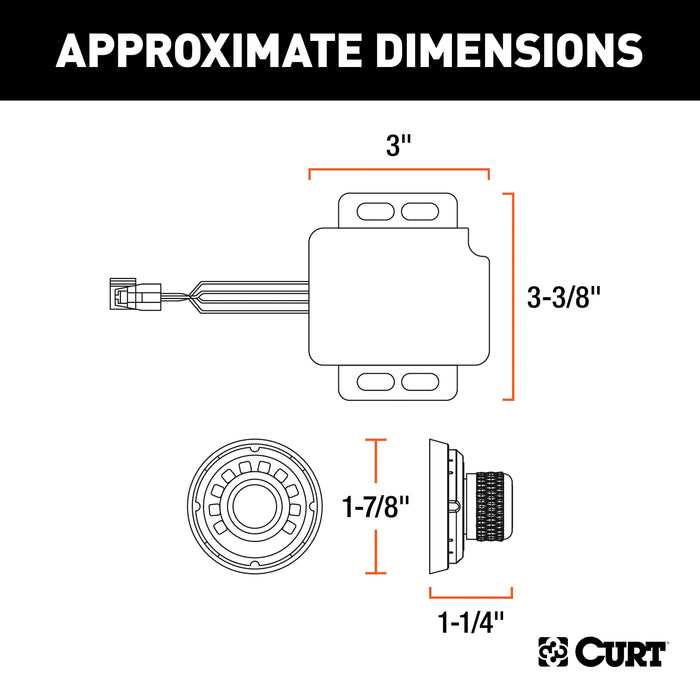

Step-by-Step Guide to Wiring a Curt Brake Controller in Your Vehicle

Connect the power lead directly to the vehicle’s fuse box using a 30-amp circuit breaker for overcurrent protection. Locate the ignition-switched circuit–typically found behind the dashboard on the driver’s side–to ensure the activation module operates only when the engine runs. Avoid using accessory circuits, as they may not handle the required amperage during heavy braking.

Run the signal wires from the module to the trailer connector using 12-gauge stranded copper cable, secured every 18 inches with nylon zip ties. Route the wiring along the vehicle’s frame, away from sharp edges and moving parts like control arms or exhaust components. Use dielectric grease on all connectors to prevent corrosion, especially in wet or off-road conditions.

Test the proportional response by accelerating to 25 mph, then applying gradual stopping force. The trailer’s stopping mechanism should mirror the vehicle’s deceleration without locking up. If inconsistent, verify grounding–attach the ground wire to a clean, unpainted metal surface with a self-tapping screw and star washer to ensure minimal resistance.

For vehicles with integrated tow packages, splice into the factory harness at the rear junction box. Identify the blue wire (activation signal) and the red wire (power feed) using a multimeter set to DC voltage. Never tap into lighting circuits, as this can cause erratic operation or damage the vehicle’s electrical system.

Guide to Connecting Your Towing System’s Electronic Interface

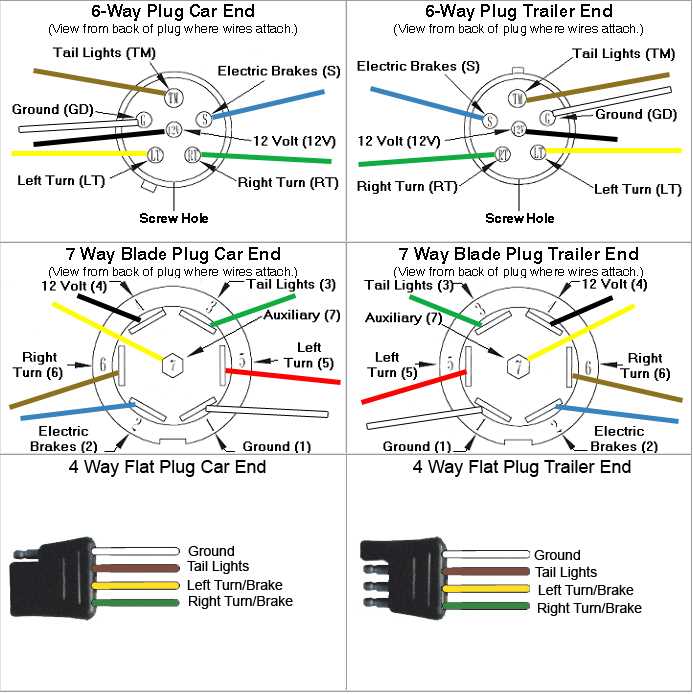

Begin by locating the vehicle’s 7-way trailer plug. Most modern trucks and SUVs include this connector as standard equipment, typically mounted near the rear bumper or integrated into the hitch assembly. Verify the pin assignments before proceeding–common configurations label the electric actuator circuit on pin 2 (center bottom) and the power input on pin 7 (top center). Cross-reference with your specific model’s manual to confirm, as discrepancies can lead to improper signal transmission or damage to the module.

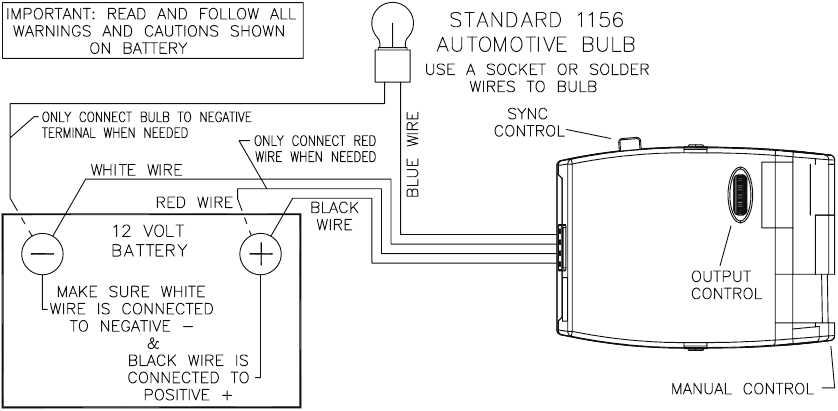

The interface unit requires a direct 12V power feed from the battery to function reliably under load. Route a 10-gauge fused wire (minimum) from the positive terminal through the firewall, avoiding engine compartments where heat or moving parts might compromise integrity. Secure connections with crimp sockets and heat-shrink tubing; soldering is optional but reduces risk of corrosion over time. Ground the system using an 8-gauge wire attached to a clean chassis point–paint or rust can disrupt conductivity, so sand the surface to bare metal before affixing.

Critical Component Connections

Component	Wire Gauge	Terminal Type	Special Notes
Battery (+)	10 AWG	Ring terminal	Install 30A fuse within 7 inches of terminal
Chassis ground	8 AWG	Ring terminal	Remove paint/oxidation before attaching
Trailer connector (pin 2)	14 AWG	Spade connector	Wrap in dielectric grease to prevent moisture ingress
Stoplight circuit	16 AWG	Butt splice	Use T-tap connector; avoid cutting OEM wiring

For vehicles equipped with a factory-installed harness, tap into the existing stoplight circuit at the junction box beneath the dashboard or behind the kick panel. Use a T-tap connector to preserve OEM wiring integrity–never cut or splice directly into factory wires unless no alternative exists. Test continuity with a multimeter before finalizing connections; a reading of 0 ohms confirms proper bonding.

After securing all wires, enable the system by toggling the main switch to the “armed” position. Observe the indicator light–solid illumination confirms power delivery, while flashing patterns suggest a fault code. Apply the tow vehicle’s service pedal to verify proportional signal output; the trailer’s actuators should respond smoothly without delay or chatter. If erratic behavior occurs, recheck ground connections and inspect for pinched or frayed wires along the routing path. Repeat testing under load with the trailer attached to validate full system functionality.

How to Pinpoint Critical Connections in Your Towing System Harness

Start by locating the power feed line–typically a thick red or yellow wire with a gauge between 10 and 14. This segment carries battery voltage directly to the module and must be fused within 7 inches of the vehicle’s power source to prevent shorts. Check for insulation color consistency along the entire run; any abrupt changes signal splices or potential failure points. Use a multimeter set to DC voltage, probe the wire while activating the system, and verify a steady 12–14V reading under load. Absence of voltage indicates a break or corrosion at connectors, which often hide behind dash panels or near the battery tray.

Ground and Signal Paths

The ground reference is usually a black or white wire bundled with the main harness, terminating at a chassis point free of paint or rust. Ensure it secures to bare metal with a star washer and torque to 8–12 ft-lbs–loose connections create erratic operation. Signal wires, often blue or blue-striped, carry activation pulses to the trailer interface. Trace these back to the module’s output pin; if voltage appears here but fails at the trailer plug, inspect the breakaway switch and in-line diodes for voltage drop. Use a test light to confirm signal continuity–probing the blue wire should briefly illuminate when manual override is engaged.

Identify the brake light input by following the harness to its tail light circuit tap. This wire, commonly brown with a colored stripe, delivers a 12V pulse during pedal application. Confirm its function by tapping the pedal while monitoring with a test light; the light should mirror brake lamp activation. If no pulse is detected, check for blown bulbs or a faulty relay before assuming harness failure. Isolate this line from the turn signal feed to prevent feedback–incorrect splicing here causes erratic trailer light behavior.

Auxiliary outputs like trailer charge lines appear as solid green or orange wires, often thicker than signal paths. Measure their voltage at the vehicle-side connector; a healthy output maintains 13.2–14.5V unloaded. If readings fluctuate or drop under 12V, examine the alternator’s diode trio and charging system integrity. Label each wire with masking tape immediately after verification–misidentification during reinstallation risks component damage. Store disconnected wires in plastic bags to prevent shorts, and always reconnect ground last to avoid transient spikes.

Step-by-Step Guide for Installing Trailer Electronic Stopping Mechanism

Locate the main power source under the dashboard–typically a 12V auxiliary circuit or ignition-switched terminal. Verify voltage with a multimeter to confirm consistent output (12-14V). Attach the red input cable from the control module to this terminal using a crimp connector or soldered joint, then insulate with heat-shrink tubing. Avoid tapping into fuse circuits unless equipped with a dedicated relay, as insufficient current can cause intermittent failures.

Ground and Actuator Signal Integration

Connect the black negative lead from the unit directly to an unpainted metal chassis point near the mounting location. Ensure zero corrosion or paint; scratch the surface if necessary. Route the blue signal cable (thin gauge) to the trailer’s 7-way connector, securing it to pin labeled “electric overdrive” or equivalent. Use a butt splice for the trailer-side link, matching wire gauge (16-14 AWG) to prevent voltage drop. Test continuity with a probe before finalizing connections.

For the stoplight feed (usually green), splice into the vehicle’s brake light circuit behind the taillight assembly. Employ a T-tap connector or solder joint, sealing the junction with liquid electrical tape. This link ensures proportional activation when the towing vehicle’s pedal is engaged. Verify that the circuit’s amperage draw (typically 2-4A per actuator) matches the control module’s rating to avoid overheating.

Adjust sensitivity settings via the module’s dial or digital interface after securing all connections. Start with a mid-range value and perform a road test, gradually increasing intensity until wheels lock momentarily when stopping at 5-10 mph. Fine-tune based on trailer load weight–lighter loads require lower settings to prevent excessive jerking. Secure loose cables with zip ties or loom tubing, keeping them away from moving parts and exhaust.

Finalize installation by double-checking all joints for tightness and insulation. Apply dielectric grease to the 7-way connector pins to prevent oxidation. Confirm operation by activating the manual override (if available) to verify actuator response. Document the chosen settings for future reference, noting adjustments needed for varying trailer weights or road conditions.

Resolving Signal Interference in Towing System Connections

Check the ground connection first if the electronic feed behaves erratically. A weak or corroded ground terminal often mimics power supply issues, causing flickering displays or intermittent activation. Strip the wire back to bare metal, clean the contact surface with a wire brush, and secure it to the chassis with a self-tapping screw rated for 10 AWG or thicker.

Inspect inline connectors for heat damage. Burnt plastic or discolored terminals indicate excessive current, typically from a short or undersized cable. Replace any 16 AWG leads with 14 AWG minimum; use crimp sleeves lined with adhesive for waterproofing. Verify torque on all terminal blocks–loose connections generate resistance, leading to voltage drop that disrupts feedback loops.

If the system activates unpredictably, split the harness routing from power cables. Keep the signal wires at least 6 inches apart from high-current lines (12V auxiliary, battery feeds). Cross them at 90° angles if unavoidable, and shield sensitive paths with braided EMI tape. Measure voltage at the module input with a multimeter while toggling the manual lever; a deviation greater than 0.3V suggests interference.

Fuse and Relay Diagnostics

• Remove the fuse block cover and probe each socket with a test light. A dim or blinking response points to a corroded socket or undersized fuse; replace the fuse holder if corrosion is visible.
• Swap the relay with a known-good unit of the same part number (typically SPDT, 30A). If the issue persists, check the relay socket for carbon deposits–clean with electrical contact cleaner and a stiff brush.
• Test the control circuit by jumping the relay coil terminals with a paperclip while monitoring dash output. No reaction indicates a broken wire or faulty circuit board; proceed to trace continuity from the dash unit to the relay.

Oscillating trailer response usually stems from a faulty wiring harness between the vehicle and trailer plug. Disconnect the connector and inspect the pins for pitting or bent contacts; straighten pins with needle-nose pliers and apply dielectric grease. Use a pinout tester to confirm correct voltage at each terminal–missing 12V at terminal 1 (brake light) or terminal 3 (ground) requires replacement of the trailer-side wiring loom.

For vehicles with integrated systems, disconnect the trailer connector and observe if the dash display normalizes. If it does, the trailer harness has a short; if not, the vehicle’s circuit is suspect. Probe the harness connector with a multimeter set to continuity–any reading below 1MΩ between pins indicates a short to ground or another pin. Isolate the faulty wire by cutting back the harness in 12-inch sections until the short disappears.

When experiencing delayed engagement, calibrate the sensitivity setting. Shift into reverse, depress the pedal fully, and hold the manual lever down for 10 seconds until the LED blinks twice–this resets the gain algorithm. Re-test under load; if delay persists, measure resistance across the trailer magnets (should read 3.5–5.0Ω per brake). Readings outside this range confirm a magnet failure or broken wire inside the brake assembly.
