Designing a Reliable Data Acquisition System Circuit Layout Guide

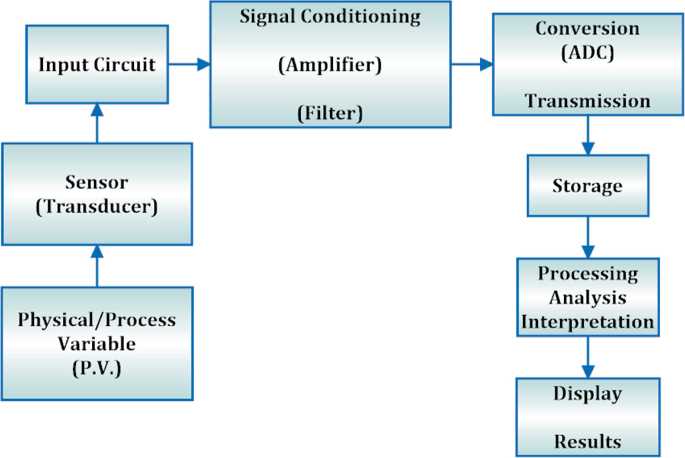

Start with a low-noise signal conditioning stage. Use an instrumentation amplifier like the AD8221 with a fixed gain of 100–1000, depending on sensor output. Ground the reference pin to the analog ground plane and decouple the supply pins with 0.1µF capacitors placed within 5mm of the IC.
For analog-to-digital conversion, select an ADC with at least 16-bit resolution and sampling rates matching your signal bandwidth–typically 1kHz–10kHz for industrial sensors. The ADS1115 or LTC2308 are practical choices. Ensure the ADC’s voltage reference is stable; consider an external REF3030 (3V) if the internal reference drifts due to temperature.
Isolate digital interfaces to prevent noise coupling. Use optocouplers like the HCPL-0600 for SPI or I²C lines, powered by separate 3.3V regulators (LD1117V33). Route digital traces perpendicular to analog traces and maintain a minimum clearance of 2mm to reduce crosstalk.
Power supplies must be isolated. Use a mean-well IRM-05-5 AC-DC converter for the analog section and a traco TMR 1-0511 DC-DC module for the digital side. Add pi filters (LC, 10µH + 100µF) on each rail to suppress high-frequency noise.
Grounding follows a star topology. Connect all ground returns–sensor, analog, digital–to a single point near the ADC’s ground pin. Avoid ground loops by ensuring no more than 0.1Ω resistance between any two ground points. Use a 4-layer PCB with dedicated ground and power planes to minimize impedance.
For sensor excitation, provide a stable current or voltage source. Use the XTR111 for 4–20mA loops or a precision voltage reference (e.g., LT1021) for bridge circuits. Calibrate excitation levels to match sensor specs; a 0.1% tolerance resistor network ensures accuracy.
In high-speed layouts, match trace lengths for differential pairs. Keep clock lines (SPI, I²C, ADC sampling) under 50mm and terminate with 100Ω resistors to prevent reflections. Shield critical traces with adjacent ground traces on both sides.
Include test points (0.1″ headers) at key nodes–sensor input, ADC input, power rails–to verify signals with an oscilloscope. Label each point clearly with silkscreen (e.g., “TP_SENSOR_IN”).
Designing a Measurement Harvesting Schematic

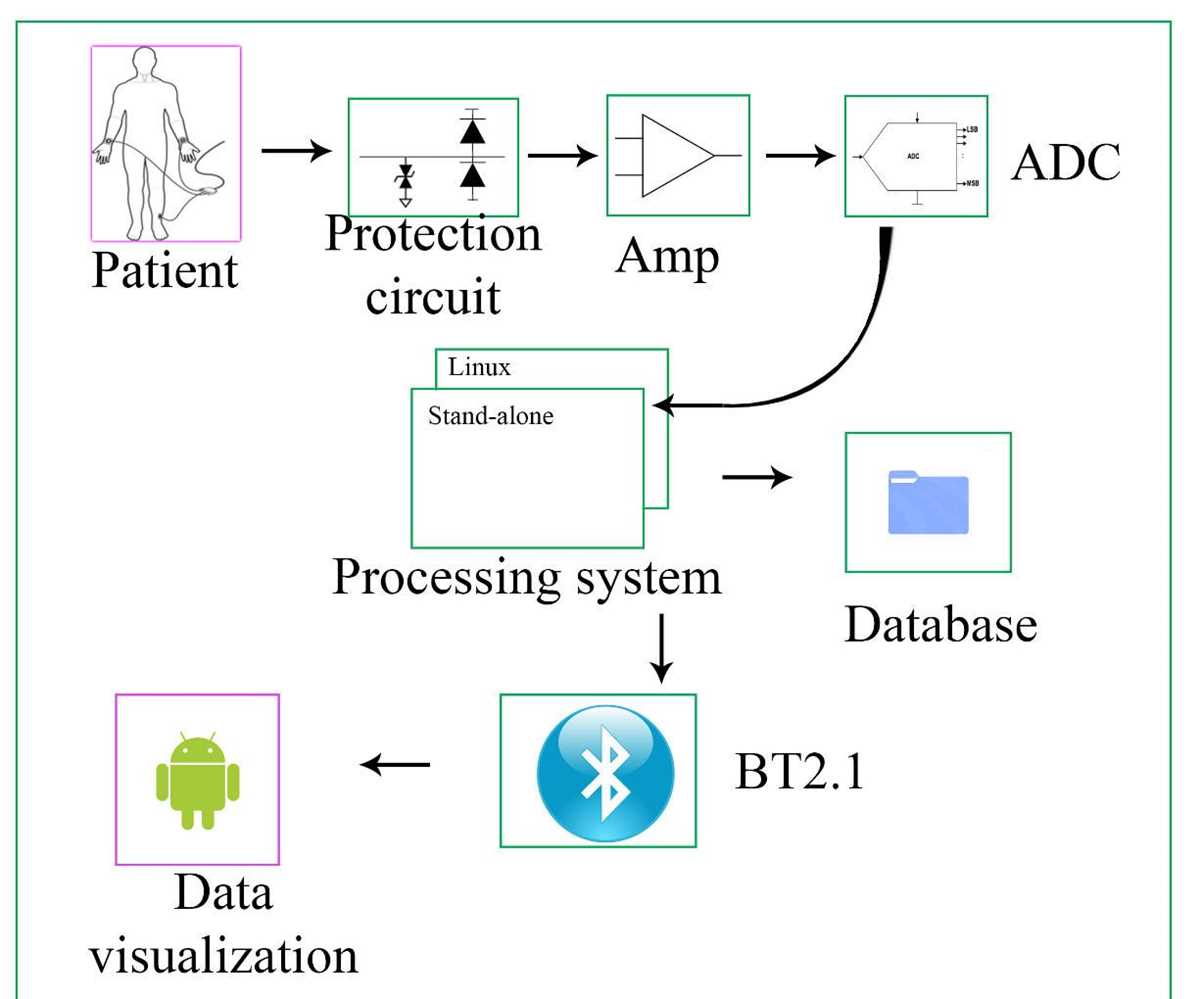

Begin by selecting a precision ADC with at least 16-bit resolution and a sampling rate exceeding 100 kSPS to capture high-frequency signals without aliasing. Pair it with an anti-aliasing filter–Butterworth or Chebyshev–configured at 80% of the ADC’s Nyquist frequency (e.g., 40 kHz for a 50 kSPS ADC) to eliminate out-of-band noise. Use a low-noise op-amp like the OPA227 or LT1028 for signal conditioning, ensuring a gain bandwidth product 10× the input signal’s highest frequency. Power the op-amp with ±5V rails to avoid clipping and maintain linearity.
Critical Component Placement
- Position the ADC as close as possible to the sensor–ideally within 5 cm–to minimize EMI pickup and signal degradation.
- Route analog traces perpendicular to digital lines, maintaining a minimum 3 mm clearance to prevent crosstalk.
- Use a star grounding topology, connecting all ground references to a single point near the ADC’s analog ground pin to reduce ground loops.
- Decouple each IC with a 0.1 µF ceramic capacitor placed within 2 mm of the power pins, supplemented by a 10 µF tantalum capacitor for low-frequency stability.
- Avoid vias in critical signal paths; if necessary, use at least two vias in parallel to reduce inductance.
For multi-channel setups, implement a multiplexer with low on-resistance (e.g., MAX4619) and channel-switching times under 1 µs to prevent signal skew. Add a 10 kΩ pull-down resistor on unused multiplexer inputs to prevent floating nodes. Store raw samples in a FIFO buffer (e.g., IDT7204) with a depth of at least 4 kB to accommodate bursty data streams. Interface the buffer to a microcontroller via SPI at 10 MHz or I²C at 1 MHz, ensuring the clock frequency is at least 5× the sampling rate to avoid bottlenecks. Include a watchdog timer (e.g., MAX6381) to reset the microcontroller if it stalls for more than 100 ms.
Selecting Sensors and Signal Conditioning Components

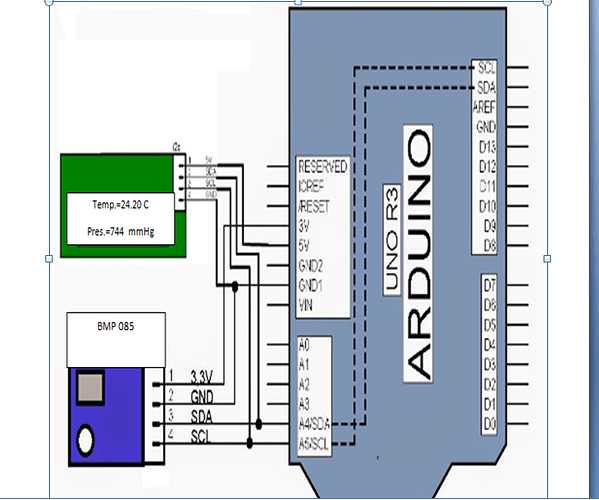

Prioritize sensors with a signal-to-noise ratio (SNR) above 70 dB for precision measurements, particularly in industrial environments with electromagnetic interference (EMI). For example, the Analog Devices ADXL355 accelerometer achieves 75 dB SNR at 1 kHz bandwidth, outperforming MEMS alternatives like the STMicroelectronics LIS3DH (60 dB). Pair high-impedance sensors (>10 kΩ) with instrumental amplifiers (e.g., Texas Instruments INA849, 1.1 nV/√Hz noise density) to prevent signal degradation–standard op-amps (LM358) introduce 20–30 nV/√Hz noise, rendering them unsuitable for microvolt-level inputs. For thermocouples (Type K), use cold-junction compensation ICs (MAX31855) with ±2°C accuracy; software-based compensation (e.g., Arduino libraries) adds ±5°C error due to ADC nonlinearities.
Matching Components to Environmental Constraints
In high-temperature applications (150–300°C), select Pt100 RTDs over thermistors–self-heating error in 10 kΩ NTC thermistors can exceed 0.5°C, while thin-film Pt100 (e.g., Honeywell HEL-705) maintains ±0.1°C stability. For strain gauges, opt for 350 Ω models (e.g., Omega SGD-3/350-LY11) to minimize lead wire effects; excitation voltages should not exceed 5 V for Wheatstone bridge circuits to avoid gauge burnout (power dissipation
Designing the Analog-to-Digital Converter (ADC) Interface
Select an ADC with a resolution matching signal dynamics–12-bit for ±10V ranges, 16-bit for 4-20mA loops. Noise-sensitive applications demand oversampling: sample at 10× the signal bandwidth to leverage digital filtering.
Place antialiasing filters immediately before the converter input, using a 3rd-order Butterworth with cutoff at 0.45× sampling rate. Surface-mount capacitors (NP0 dielectric) within 5 mm of the input pin suppress high-frequency spikes.
Terminate analog traces differentially: route pairs on adjacent layers, separated by a ground plane. Keep copper pours 3× trace width apart to prevent capacitive coupling. For multi-channel boards, star-connect grounds at a single point under the ADC.
Drive the reference node with a low-drift shunt (LM4140, 6 ppm/°C) or series regulator (ADR4525). Bypass with 10 µF tantalum in parallel with 0.1 µF ceramic at the reference pin. Avoid switching regulators on the reference rail.
Configure the sampling clock as a clean square wave from a crystal oscillator or PLL. Maintain 50 Ω controlled impedance on clock traces. For jitter-sensitive designs, shield the clock line with grounded guard traces.
SPI configuration: use mode 0 (CPOL=0, CPHA=0) for most ADCs. Set SCK frequency below ADC maximum (typically 1–20 MHz). Include series resistors (22 Ω) at MOSI and MISO to damp reflections. Add 10 kΩ pull-ups on CS and SDO if floating inputs risk metastable states.
For hardware-averaged signals, employ a dual-rank architecture: an FPGA buffers 16 samples per channel, then computes the arithmetic mean before serial transfer. Reduces host CPU load by 90% while maintaining synchronous timestamps.
Isolation and Noise Mitigation in Signal Chains
Deploy galvanic isolation via digital isolators with >2.5 kV RMS reinforced insulation (e.g., Texas Instruments ISO774x) between analog front-end and processing blocks. Use isolated DC-DC converters (RECOM Rxx-x.x Series) to eliminate ground loops; specify >80% efficiency at 1W output to minimize EMI from switching. Optocouplers remain viable only when preserving isolation >10 kV/µs common-mode transient immunity (CMTI), essential for motor drives or medical monitors.
| Noise Source | Countermeasure | Performance Metric |
|---|---|---|
| Cable Crosstalk | Twisted Pair (1 pair/channel) + Shield | Capacitance <30 pF/m, Impedance 120±10 Ω |
| Power Supply Ripple | Second-Order LC Filter | Corner Frequency <1 kHz, >60 dB Attenuation @ 1 MHz |
| RF Interference | Faraday Cage (Mu-metal) | Shielding Effectiveness >80 dB @ 1 GHz |
Ferrite beads (Fair-Rite 2643166002) shunt high-frequency noise >1 MHz to ground before it enters the ADC; place beads on every Vcc and signal line within 2 cm of the converter. Select beads with impedance ≥600 Ω @ 100 MHz and DC resistance ≤0.3 Ω. Separate analog and digital ground planes, stitching them only at a single star point beneath the ADC to prevent return currents from digital switching corrupting low-level analog signals.
Selecting Between MCUs and FPGAs for Signal Handling
Opt for a microcontroller (MCU) when sampling frequencies stay below 1 MHz and algorithms demand sequential logic with minimal branching. ARM Cortex-M4F cores handle floating-point math in real-time, consuming ~100 mW at 80 MHz while executing PID control or FFT on batches of 1024 samples at 50 kSPS. MCUs simplify firmware with preemptive RTOS, reducing latency in interrupt-driven workflows–critical for sensor fusion where jitter must stay under 10 μs. Peripherals like 12-bit ADCs and DMA offload CPU cycles, freeing it for filtering or machine-learning inference on static datasets.
FPGA Advantages for Parallel Signal Paths
Develop on FPGAs when simultaneous streams exceed four channels or require
Hybrid approaches integrate both: use an MCU’s DMA controller to buffer FPGA-processed sequences, leveraging its 32-bit buses for bulk transfers at 400 MB/s. For example, an STM32H7 feeds raw ADC streams to an FPGA module via quad-SPI, preserving precise timing while letting the CPU focus on TCP/IP stack or GUI tasks. Cost diverges sharply–MCUs average $5 for production volumes, whereas FPGAs start at $50 per unit but eliminate external DSPs or ASICs, cutting BOM by 30% for high-channel-count designs.
