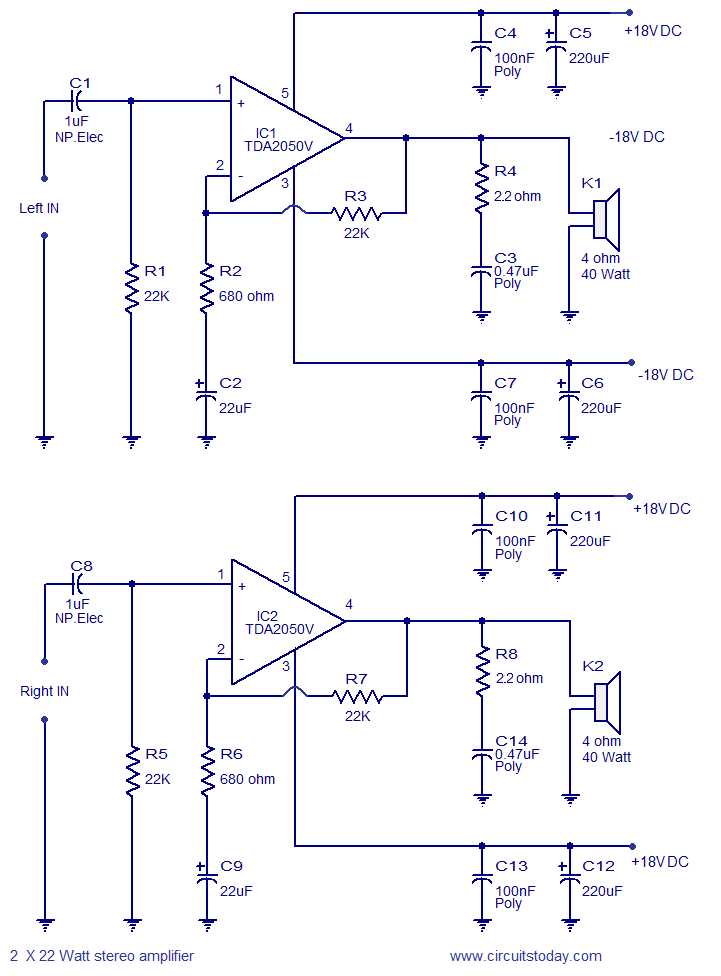

Start with a non-inverting operational configuration when precise DC signal scaling is critical. Use a TL072 or LM358 for low-noise performance–both handle input ranges close to the negative rail, ideal for single-supply setups. Keep feedback resistors under 1MΩ to minimize thermal noise; a 10kΩ input resistor paired with a 100kΩ feedback resistor yields a stable 10x gain. Add a 10μF tantalum capacitor at the op-amp’s power pin to filter supply ripple, especially in battery-powered devices.

For differential signal paths, pair matched resistor values (0.1% tolerance) across both inputs to reject common-mode noise. A high-precision INA125 instrument booster simplifies this, offering 100dB CMRR at gains above 100V/V. Offset nulling is non-negotiable for DC-coupled stages–use a 10kΩ potentiometer between the op-amp’s offset pins, adjusting until output sits at 0V with no input signal.

Thermal drift sabotages stability in high-gain setups. Select resistors with ±50ppm/°C or better; metal film types outperform carbon. Power dissipation must stay below 500mW per stage–derate components if ambient exceeds 50°C. For multi-stage designs, inter-stage coupling via 33μF electrolytic capacitors blocks DC while passing signals down to 0.1Hz, but introduces phase shifts–compensate with a 22pF feedback capacitor to prevent high-frequency oscillations.

Ground layout demands star topology–route all return paths to a single low-impedance node near the power supply. Avoid daisy-chaining grounds, as even milliohm resistances create crosstalk in microvolt-sensitive setups. For PCB-based designs, separate analog and digital planes, joining them only at the regulator’s output. Test stability by injecting a 1kHz, 10mV sine wave–ringing or overshoot signals underdamped loops; correct with bandwidth-limiting capacitors (5pF–100pF) across feedback paths.

Voltage swing limitations dictate rail choices. With a ±12V supply, outputs typically swing to ±10V; for single-ended 5V, expect 0.5V–4V before clipping. Rail-to-rail op-amps like OPA340 extend this, but distortion rises near the extremes–limit signals to 80% of supply for linear operation. For instrumentation applications, add back-to-back Schottky diodes across inputs to clamp transients during power cycles.

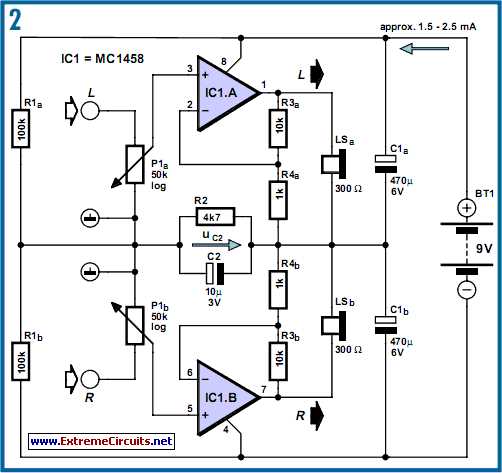

Building a Precision Signal Booster: Key Schematic Insights

Start with a low-noise operational IC like the OPA2188 for high DC accuracy. Its 0.3μV/°C drift and 130dB open-loop gain make it ideal for sensitive applications. Pair it with a dual-rail supply (±5V minimum, ±15V optimal) to avoid clipping in single-ended configurations. Bypass each power pin directly to ground with 0.1μF ceramic capacitors, placed no more than 2mm from the IC pins.

For gain setting, use a resistance ratio of Rf/Rin where Rf connects from output to inverting input, and Rin links input signal to inverting input. A 1kΩ Rin with 10kΩ Rf yields 10x gain. Add a 100pF compensation capacitor in parallel with Rf to prevent high-frequency oscillations. Use 1% tolerance resistors to maintain better than 0.5% gain error. Include a trimpot (10kΩ) in series with Rin for fine adjustment.

Stability and Noise Reduction Techniques

Minimize thermal EMF by soldering input resistors directly to the PCB without wire leads. Route signal traces away from power components and use a ground plane under the IC to reduce inductive coupling. Shield the input section with a copper pour connected to ground, extending 5mm beyond trace edges. For extreme low-noise needs, replace the OPA2188 with an LT1028 (1.1nV/√Hz noise) and add a low-pass filter (10kΩ + 10nF) at the input.

Test the booster with a 0.1Hz-10Hz bandpass filter to isolate DC performance. Apply a 100mV DC input and measure output drift over 1 hour; target less than 5μV variation. If exceeding this, check for solder flux residue near input terminals–clean with isopropyl alcohol and re-test. Add a 10MΩ resistor from inverting input to ground to prevent output saturation during open-input conditions.

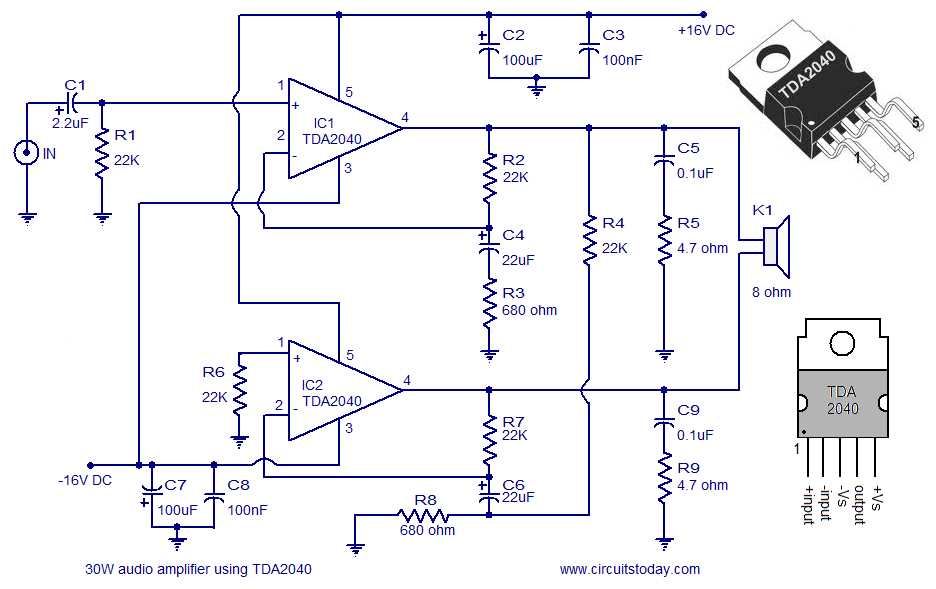

Output Stage Considerations

Buffer the output with a unity-gain follower (e.g., LT1010) if driving loads under 100Ω. This isolates the gain stage from capacitive loads, which can cause phase shifts and instability. For long cable runs, add a series resistor (47Ω) at the output to dampen reflections. When interfacing with ADCs, insert a low-pass filter (1kΩ + 1nF) to prevent aliasing of high-frequency noise.

For bipolar output swings, ensure the power supply rejection ratio (PSRR) exceeds 120dB. Linear regulators like the LT3045 (±0.8μV/°C drift) outperform switching supplies here. Log failures where output exceeds ±90% of rail voltage–this typically indicates inadequate PSRR or thermal drift in the IC. Document offset voltages at 25°C, 50°C, and 75°C to validate long-term stability.

Key Components for Constructing a Single-Stage DC Signal Booster

Select an active device with a high gain-bandwidth product for linear operation. Bipolar junction transistors (BJTs) like the 2N3904 or BC547 work well for low-power applications, offering current gain (h_fe) between 100–300. Field-effect transistors (FETs), such as the 2N7000 or J112, provide high input impedance, reducing loading effects on preceding stages. Match the component’s voltage rating to your supply–common emitter configurations handle 10–30V, while cascoded arrangements extend this to 50V or more.

Biasing resistors define the operating point and stability. For a common emitter setup, use a voltage divider with R_b1 and R_b2 (e.g., 47kΩ and 10kΩ) to set the base voltage. Emitter resistor R_e (100Ω–1kΩ) stabilizes the quiescent current; bypass it with a capacitor (e.g., 100µF) to preserve AC gain. Temperature drift is minimized by ensuring R_b ≤ 10 × R_e and using silicon transistors with V_be ≈ 0.6–0.7V.

• Coupling capacitors: Use 1–10µF electrolytics for low-frequency signals or 0.1µF ceramics for high-pass filtering above 10Hz. Polarized types must align with DC polarity; reverse bias risks leakage or failure.
• Bypass capacitors: Critical for AC performance–10–100µF across R_e prevents gain roll-off below 20Hz. Ceramic capacitors (0.01–0.1µF) near the power supply pins suppress noise.
• Load resistor: R_c (1–10kΩ) balances output swing and distortion. Lower values reduce voltage gain but improve linearity; higher values risk clipping at lower input levels.

Power supply requirements depend on configuration. A single-ended supply (e.g., 12V) suits common emitter designs, while differential stages need dual rails (±5V to ±30V). Use a 78LXX linear regulator for stability; decouple with 0.1µF capacitors at the input/output pins. For battery-powered units, ensure the regulator’s dropout voltage (typically 2V) is met at minimum input voltage.

Feedback components control gain and linearity. Add a resistor (R_f, 10–100kΩ) between collector and base for negative feedback, reducing gain to -R_f/R_e. Frequency response tailoring uses R_f–C_f networks (e.g., 10kΩ + 100pF) to flatten roll-off above 10kHz. Avoid excessive feedback (gain

Thermal management is often overlooked. A small heatsink (e.g., TO-92 clip-on) prevents drift in BJTs dissipating >100mW. For FETs, gate leakage doubles every 10°C–use R_g ≤ 1MΩ to minimize input bias current effects. Ambient temperature compensation may require NTC thermistors (e.g., 10kΩ @ 25°C) in the bias network.

Output protection safeguards downstream components. Add a 1N4007 diode across the output for inductive load clamping. Series resistors (100Ω) limit current during short circuits, while Zener diodes (5.1V–12V) clamp excessive voltage swings. For high-impedance loads, buffer the stage with an emitter follower (R_e = 1kΩ) to maintain signal integrity.

Step-by-Step Assembly of a Common-Emitter DC Signal Booster

Select a low-noise NPN transistor like the 2N3904 or BC547 for stable performance. Match its gain (hFE) to your load requirements–typically between 100 and 300 for small-signal tasks. Verify the datasheet for maximum collector current to avoid thermal runaway; 50 mA is a safe baseline for most low-power applications.

Place a 10 kΩ resistor between the base and your input node to establish a proper bias point. Pair it with a 1 kΩ resistor from the base to ground to fine-tune input impedance while preventing excessive current draw. For improved stability, swap the fixed ground resistor with a potentiometer to adjust gain without replacing components.

Connect a 10 µF electrolytic capacitor in series with the input to block DC offsets while passing the desired signal. Ensure correct polarity–negative terminal faces the input source. Follow with a 0.1 µF ceramic capacitor across the power rails near the transistor to suppress high-frequency noise, especially in noisy environments.

Attach a 1 kΩ load resistor from the collector to the supply voltage (+9V to +12V recommended). Larger values reduce power consumption but may limit output swing. Add a 100 µF output capacitor to isolate the load, using a short lead length to minimize inductance, which can distort high-frequency response.

Solder a heat sink if driving heavy loads–even small transistors can reach 70°C under continuous operation. Test bias voltages at the base (0.6–0.7V), emitter (close to 0V), and collector (~half the supply) to confirm linear operation. Adjust resistor values incrementally; a 5% change can shift performance significantly.

Use shielded cables for weak signals, grounding the shield at one end only to prevent ground loops. For prototyping, breadboard placement matters–keep high-impedance nodes short to avoid parasitic capacitance effects. Verify signal integrity with an oscilloscope before final assembly; clipping suggests insufficient bias or excessive input levels.
