Complete DC Converter Circuit Diagram Guide for Beginners and Engineers

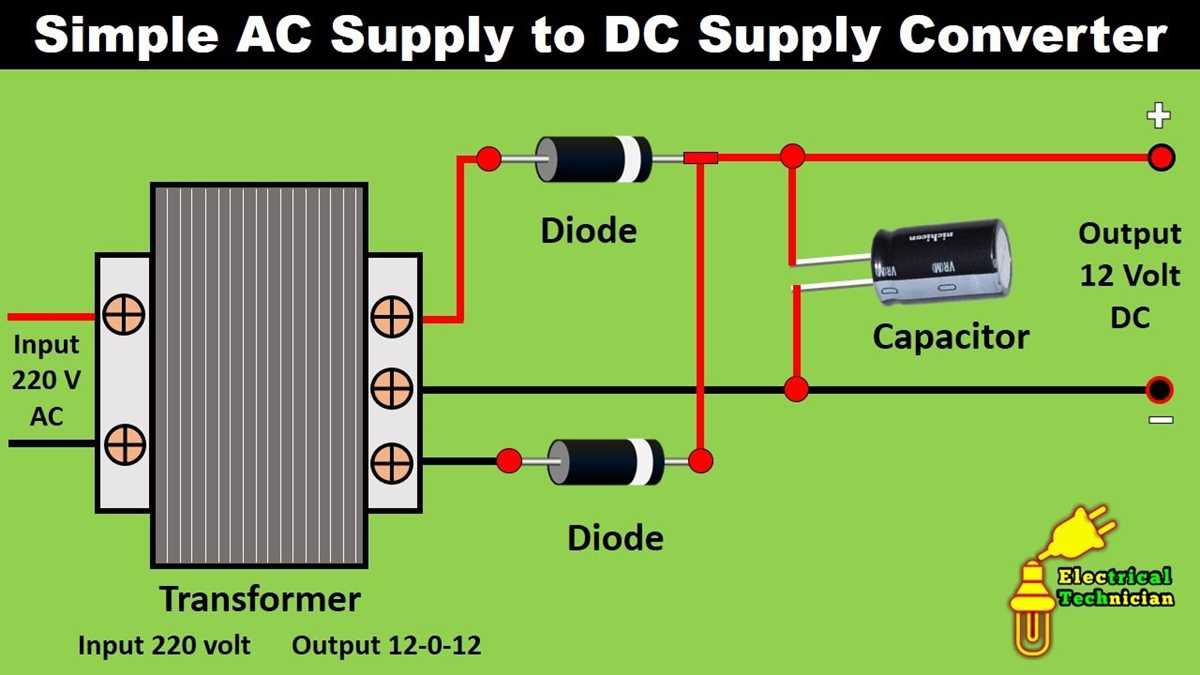

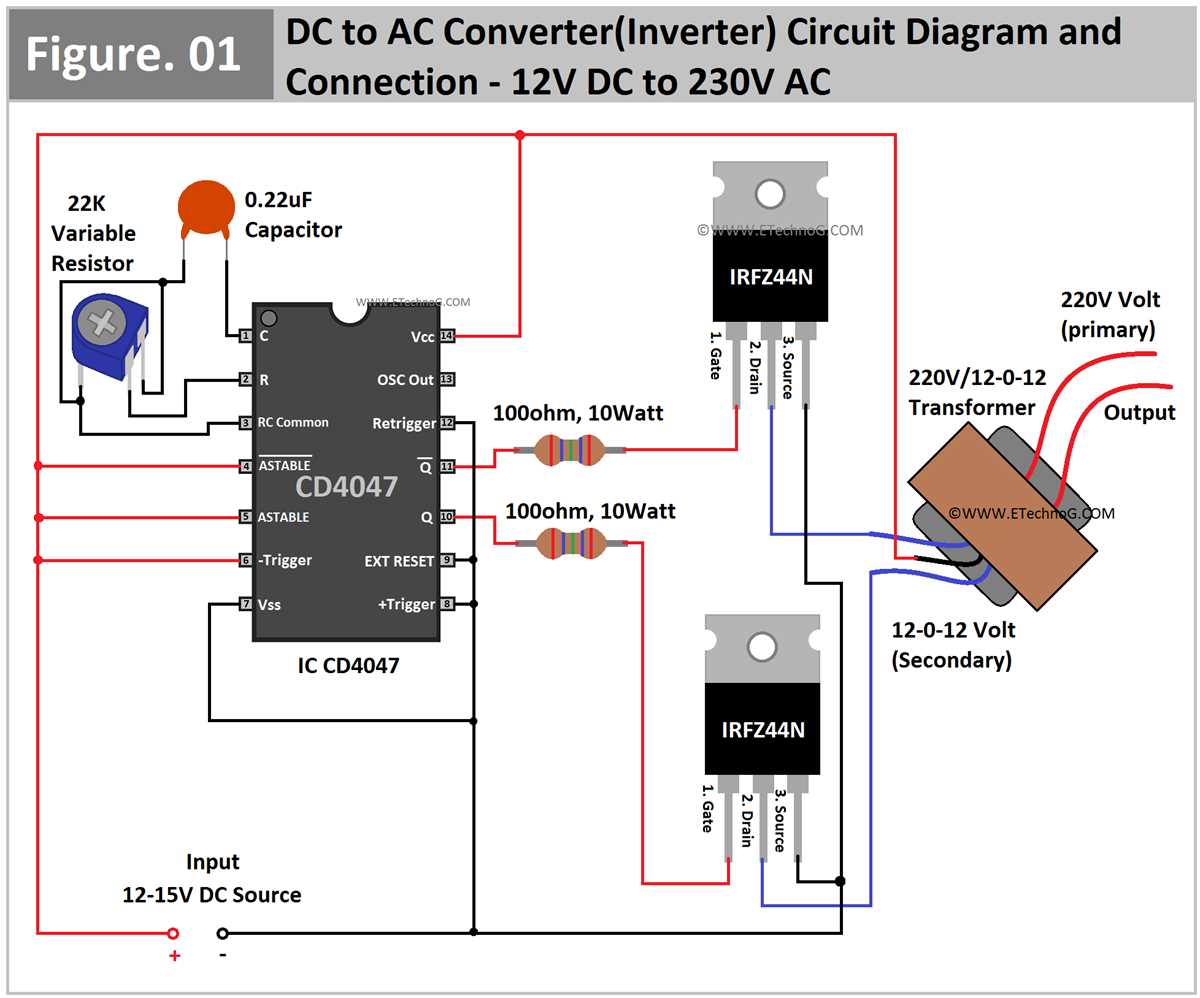

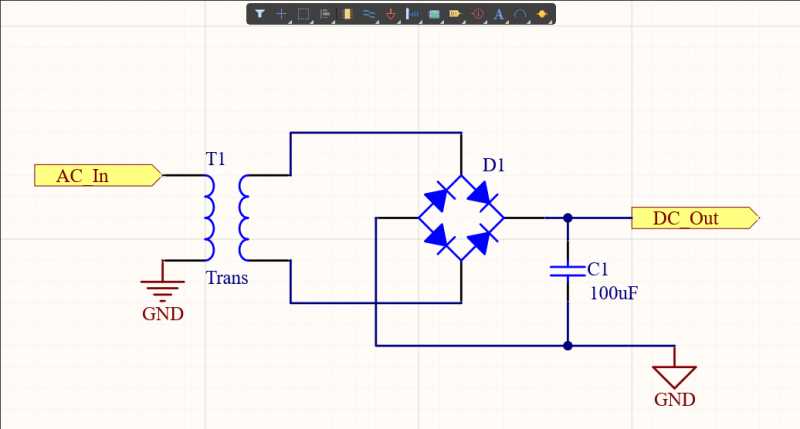

Start with a step-down (buck) configuration if your input exceeds the target output by 3V or more. A Schottky diode (e.g., 1N5822) reduces power loss–critical for efficiencies above 85%. Pair it with an N-channel MOSFET (IRFZ44N) for switching frequencies between 50–200 kHz to balance size and heat dissipation. For microcontroller-driven designs, opt for a PWM-capable IC like the LM2596, ensuring a 35V input tolerance and 3A output capacity.

Select input/output capacitors based on ripple requirements. A 100µF electrolytic capacitor (25V rating) at the input smooths voltage spikes, while a 22µF ceramic capacitor at the output minimizes high-frequency noise. For low-power applications (e.g., battery-powered devices), replace the inductor with a 10µH ferrite-core coil to prevent saturation. Ensure the feedback resistors (e.g., 1kΩ and 3kΩ) match the IC’s reference voltage (typically 1.25V) to stabilize output.

Avoid common pitfalls like undersized traces (1A currents) or omitting a freewheeling diode–these lead to thermal runaway or component failure. For adjustable outputs, add a 10-turn potentiometer (20kΩ) to fine-tune voltage without recalculating resistor values. Test the layout with an oscilloscope: expected ripple should stay below

For high-current designs (>5A), use a synchronous rectifier (e.g., TPS5430) instead of a diode to cut losses by 3–5%. Add an RC snubber (100Ω + 0.1µF) across the inductor to suppress EMI. In isolated setups, a flyback transformer (turns ratio 1:1.5) eliminates ground loops while maintaining regulation. Document component tolerances (±5% for resistors, ±20% for inductors) to predict worst-case performance.

Designing a Step-Down Power Stage: Key Schematic Elements

Start with a synchronous rectifier layout to minimize losses in high-current applications. Use a TPS54331 or similar controller with built-in gate drivers to simplify the power path–these ICs handle input ranges of 4.5V to 28V while delivering up to 3A. Place the input capacitor as close as possible to the high-side MOSFET to suppress voltage spikes; ceramic capacitors with X7R dielectric (10µF at 50V) are optimal. For output filtering, pair a 22µF capacitor with a low-ESR polymer type and add a 1µH inductor–this combination achieves

Route ground returns separately for power and signal traces: star-point grounding prevents noise coupling into sensitive analog sections. Use 2oz copper pours for high-current paths (VIN, SW, VOUT) and 1oz for control signals like EN, FB, and RT/CLK. Enable soft-start by connecting a 100nF capacitor to the SS/TR pin–this ramps output voltage over 1ms, reducing inrush current by 40%. Add a 10kΩ feedback resistor between VOUT and the FB pin, paired with a 5.1kΩ resistor to ground, for precise output regulation.

Include protection features: a 10Ω resistor in series with BOOT limits gate drive current during faults, while a 3A fuse on the input prevents catastrophic failure from sustained overloads. For thermal management, place a 5mm × 5mm thermal pad under the controller IC and populate it with vias (0.5mm diameter) to a ground plane–this reduces θ_JA by 25% in 4-layer PCBs. Test the layout with a 20MHz oscilloscope probe on the SW node to verify

Key Components for a Step-Down Voltage Regulator Design

Select an inductor with a saturation current at least 20% higher than the maximum load current. For a 2A output, opt for a 3A-rated coil with low DCR (e.g., 30-50 mΩ) to minimize losses. Core material matters–ferrite reduces switching noise, while powdered iron handles higher ripple currents. Coilcraft’s XAL6060 or Würth Elektronik’s 744373460 are reliable off-the-shelf choices.

Input and output capacitors dictate stability and ripple performance. Use ceramic capacitors for low ESR (≤ 10 mΩ) near the switching node. A 22 µF X7R capacitor on the input side filters supply spikes, while 47-100 µF on the output suppresses voltage ripple to under 50 mV. For bulk capacitance, pair ceramics with low-ESR electrolytics (e.g., Panasonic EEU-FR1V221) if space permits.

Pick a switching controller IC with adjustable frequency and synchronous rectification. Texas Instruments’ LM2596HV tolerates 60V inputs, but for higher efficiency, Linear Technology’s LT8610 (96% efficiency at 1.2 MHz) eliminates the need for an external diode. Ensure the IC’s quiescent current stays below 100 µA to preserve battery life in portable applications.

The feedback network requires precision resistors (0.1% tolerance) to set output voltage. For a 5V target, use a 10 kΩ upper resistor and a 2.49 kΩ lower resistor with the IC’s internal 0.8V reference. Add a 1-2 nF compensation capacitor between the feedback pin and output to dampen oscillations. Skip this step, and the system may ring at startup or under load transients.

MOSFET selection hinges on R_DS(on) and gate charge. For 5V/2A outputs, a 30V N-channel FET like Infineon’s BSC0912ND (R_DS(on) = 9.1 mΩ) reduces conduction losses. Gate drivers, if separate, should source/sink at least 2A to switch the FET in

Thermal management often gets overlooked. A 2-ounce copper pour under the inductor and FET spreads heat, but for currents above 3A, add a via-connected heatsink or a TO-220 package. Simulate temperature rise in LTspice using the IC’s junction-to-ambient specs (typically 50-60°C/W) before finalizing the layout. A 1°C margin prevents derating under full load.

How to Select the Right Inductor for Your Step-Down Power Stage

Calculate the minimum inductance using L_min = (V_in – V_out) × D / (f_sw × ΔI_L), where V_in is input voltage, V_out is output voltage, D is duty cycle (V_out/V_in), f_sw is switching frequency, and ΔI_L is allowed current ripple (typ. 20–40% of max load current). For a 12V → 5V stage at 500 kHz with 2A max load, target ΔI_L = 0.6A, yielding L_min ≈ 4.6 μH. Always round up to the nearest standard value (here, 5.6 μH) to ensure ripple stays within spec. Verify the selected part’s saturation current exceeds I_out(max) + ΔI_L/2 by ≥20%–for 2A load, choose ≥3A saturation rating.

• Core material:
  • Ferrite (MnZn): Low core loss above 200 kHz; ideal for f_sw ≥ 300 kHz, but brittle–avoid mechanical stress.
  • Iron powder: Cheaper, handles higher DC bias, but higher losses; use for f_sw ≤ 150 kHz or pulsed loads.
  • Sendust: Balances low loss and DC bias tolerance; suited for 100–500 kHz range.
• Winding technique:
  • Single-layer windings reduce proximity effect–critical for >1 MHz designs.
  • Multi-filar windings lower DCR but increase AC resistance; limit to 2 strands for toroids.
  • Measure DCR of prototypes; target ≤ 1% of load resistance for ≥90% efficiency.
• Temperature rise:
  • Estimate power dissipation: P_loss = I_rms² × R_DC + P_core (from vendor curves).
  • Total ΔT ≤ 40 °C over ambient ensures reliability; derate by 20% if ambient > 60 °C.
• Mechanical constraints:
  • SMD inductors save PCB space but require ≥1 mm keep-out for reflow.
  • Through-hole parts tolerate higher currents but need >3 mm lead clearance.
  • Avoid placing inductors near sensitive signals; maintain ≥5 mm distance from switching nodes.

Voltage Regulation Techniques in DC-DC Power Stages

Implement feedback control loops with PID compensators to achieve tight voltage stability under varying loads. A proportional-integral-derivative controller corrects deviations by adjusting the duty cycle of the switching element, typically a MOSFET. For a 5V output, maintain ripple below 20mV peak-to-peak by optimizing the error amplifier’s gain bandwidth–aim for 50kHz to 200kHz, depending on the switching frequency. Higher bandwidth improves transient response but risks instability if phase margin drops below 45 degrees.

Select ceramic capacitors with X7R or X5R dielectric for output filtering to minimize equivalent series resistance (ESR). A 10μF to 100μF capacitor near the load reduces voltage sag during load steps of 0.5A/μs or faster. Combine this with a low-ESR electrolytic (22μF to 220μF) for bulk energy storage in high-current applications. Avoid tantalum capacitors in designs prone to reverse voltage or high inrush currents–they fail catastrophically under such conditions.

Use synchronous rectification in step-down topologies to replace diode losses with low-resistance MOSFETs. A 30mΩ sync FET in place of a Schottky diode can improve efficiency by 5–8% at 3.3V output. Ensure dead-time between high-side and low-side FETs is under 50ns to prevent shoot-through, which generates heat and reduces reliability. Advanced drivers like the TPS28225 integrate adaptive dead-time control to optimize this automatically.

For wide input ranges (e.g., 9V–36V), employ multi-phase interleaving to distribute thermal stress. Two phases with a 180-degree phase shift halve the input ripple current, allowing smaller input capacitors. Each phase’s inductance can be reduced proportionally–e.g., 4.7μH instead of 10μH–improving transient performance. Peak current mode control simplifies loop compensation in interleaved designs by tracking individual phase currents, but requires precise inductor current sensing via series resistors or lossless methods like DCR sensing.

In isolated designs, opt for primary-side regulation (PSR) using auxiliary windings to eliminate optocouplers. PSR achieves ±2% accuracy for outputs up to 12V but struggles with load regulation below 10% of full load. For tighter regulation, employ secondary-side feedback with a flyback topology, using a TL431 shunt regulator and an optocoupler to isolate the control loop. Ensure the optocoupler’s current transfer ratio (CTR) is matched to the TL431’s drive capability–50% to 200% CTR avoids oscillation.

Leverage digital control ICs like the LT8650S for adaptive voltage positioning (AVP) in point-of-load modules. AVP reduces output capacitance by dynamically adjusting the output voltage based on load current, lowering it during light loads to save power and raising it under heavy loads to compensate for IR drops. Configure the AVP slope to match the load’s impedance–typical slopes range from 0.5mV/A to 2mV/A. Test across full temperature range (-40°C to 125°C) to verify stability, as component drift can alter loop dynamics.
