How to Build and Understand a 3-to-8 Line Decoder Circuit with Truth Table

To design a functional 3-to-8 line selector, begin by defining the binary states for each output line. Assign each input combination–from 000 to 111–to a unique single-active output. This ensures the logic block produces an exclusive high signal (e.g., A’⋅B’⋅C’ for output Y0) while keeping all others low. Verify the state chart using a minimal SOP (Sum of Products) form for every output to eliminate redundancy.

For implementation, use an array of NOT, AND, and NAND gates. A 3-input AND gate suffices for each output line, but if gate count is critical, replace three AND gates with one 3-to-8 NAND network, then invert the outputs. This method reduces gate delay to a single propagation step while maintaining accuracy. Simulate using a 5V power supply and standard TTL/CMOS components–74LS138 or CD4515–to cross-check real-world behavior against the theoretical chart.

Wire inputs as follows: the most significant bit (MSB) controls the upper tier (e.g., C connects to the third input of each AND gate), while the least significant bit (LSB) modulates the lower tier. Ground unused pins via pull-down resistors (10kΩ) to prevent floating states. Measure output transitions with an oscilloscope at 1MHz to confirm rise times (≤20ns) and steady-state levels (0V and 4.9V±0.1V). Deviations exceeding 0.3V indicate improper gate biasing or open-circuit errors.

Optimize PCB layout by clustering gate ICs near the input header and routing outputs in parallel buses (≤10mm trace length per group). Use decoupling capacitors (0.1µF ceramic) on every IC’s power pin to suppress ringing. If cascading multiple stages, isolate ground planes to avoid crosstalk–partition the board with a 1mm keep-out zone between high-speed segments. For fault isolation, probe the output enable (OE) pin during testing; a stuck error here disables all lines regardless of input sequence.

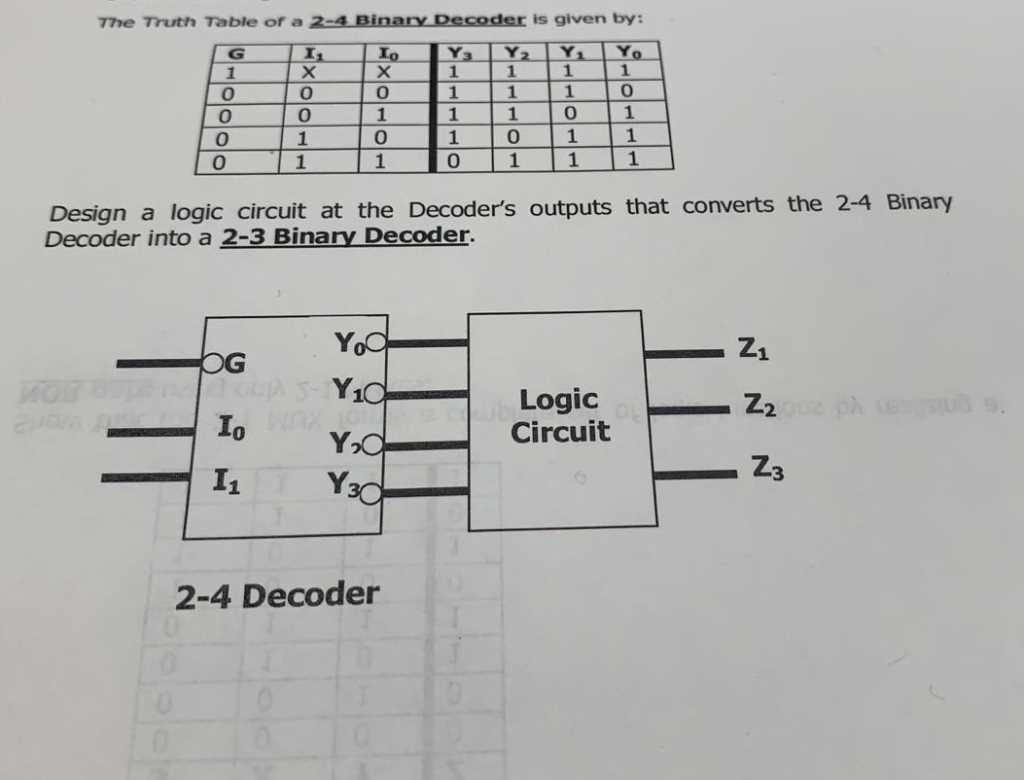

Logical Output Mapping for Binary Selectors

Implement a 3-input binary selector by defining each output line with a distinct minterm. For example, a 2-to-4 line selector activates exactly one of four outputs based on two control bits:

• Input 00 → Output Y0 = 1 (others off)
• Input 01 → Output Y1 = 1
• Input 10 → Output Y2 = 1
• Input 11 → Output Y3 = 1

Use NAND gates exclusively for every stage–two 2-input NAND gates form each NOT, while three 3-input NAND gates combine minterms into outputs. Keep propagation delay uniform by limiting logic depth to three gates per path. Connect an enable line directly to every gate input to force all outputs inactive when needed.

Physical Layout Techniques

1. Place the binary selector inputs along the top edge of the PCB or FPGA floorplan, spacing them at least 0.3 mm apart for reliable soldering or routing.
2. Avoid crossing signal lines by routing horizontal traces on layer 1 and vertical traces on layer 2; use vias only at corners.
3. Assign each output net a unique color in the schematic (e.g., Y0: red, Y1: green) to prevent misconnections during prototyping.
4. Insert a 0.1 µF decoupling capacitor within 2 mm of the power pin for every gate IC; group capacitors by voltage rail (V_CC, GND).
5. Verify netlist connectivity with a multimeter continuity test before applying power–resistance should read below 1 Ω for correct connections.

For larger selectors, cascade smaller units using a hierarchy: group 2-bit binary selectors into blocks, then combine block outputs with an additional layer of logic. Configure each block to handle a unique subset of inputs–this minimizes cross-talk and reduces die area or PCB footprint. Simulate worst-case timing paths with SPICE models to ensure outputs stabilize within 10 ns for 50 MHz operation.

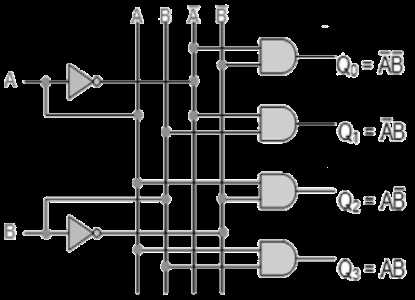

Constructing a Binary to Quad Output Logic Map Sequentially

Begin by defining two input lines, labeled S₁ and S₀, representing all possible combinations of binary states for these signals. List these variations in ascending order from 00 to 11, ensuring each row covers a unique pair.

Assign four output lines, Y₃, Y₂, Y₁, and Y₀, where only one line activates per input pattern. Use the rule: Yₙ = 1 exclusively when inputs match the binary value of n. For example, inputs 10 trigger Y₂ while suppressing all others.

Systematically populate each cell by cross-referencing inputs with outputs. When S₁S₀ = 00, set Y₀ = 1; for S₁S₀ = 01, set Y₁ = 1; continue this pattern until S₁S₀ = 11 maps to Y₃ = 1. Verify no overlap exists–each output column contains a single high signal.

Extend validation by confirming each input combination produces exactly one active output. Anomalies, like multiple high signals or undefined states, indicate errors. Recheck logic gates (AND, NOT) if building a schematic later: Y₀ = S̄₁S̄₀, Y₁ = S̄₁S₀, Y₂ = S₁S̄₀, Y₃ = S₁S₀.

Document the finalized state matrix horizontally for clarity, prefacing columns with Inputs → Outputs. Retain this reference for troubleshooting or translating into gate-level designs–each output’s derivation stems directly from its row’s binary condition.

Transforming Logic Gate Input-Output Data into Boolean Formulas

Identify every output line that evaluates to 1 within the input-output mapping. For each 1 entry, note the corresponding input combination–convert each input bit into a literal: X for high (1), X̅ for low (0). Combine these literals with conjunctions to form a minterm. Group minterms using disjunctions to construct the complete expression.

• List all minterms explicitly–omit any redundancies caused by don’t-care states unless optimization is required.
• Minimize using Karnaugh maps or Quine-McCluskey if multiple minterms share literals–merge adjacent cells to eliminate variables.
• Verify by substituting inputs: every minterm must yield 1 exclusively for its designated input pattern.

Building a Three-Input to Eight-Output Selection Network with Basic Components

Start by defining the three binary inputs–label them A (most significant), B, and C (least significant)–to map each of the eight possible combinations to a distinct output line. Use 3-input AND configurations for each output, where the presence of an input signal acts as a selector, and its absence inverts via a NOT element. For instance, the line corresponding to binary 101 activates when A=1, B=0, and C=1, necessitating an AND with A, NOT(B), and C connected to its inputs. Repeat this logic for all outputs, ensuring no overlap between active lines.

Implement inverter stages (NOT) for inputs B and C–only when their values need flipping–for outputs 4 through 7. Input A requires inversion for outputs 0 to 3. A common mistake is omitting these inversions, which leads to incorrect line activation. Verify each output’s expression: output 0 = AND(NOT(A), NOT(B), NOT(C)), output 1 = AND(NOT(A), NOT(B), C), ascending sequentially until output 7 = AND(A, B, C). For minimal component count, share inverted signals across multiple AND configurations where possible.

Optimize the layout by grouping shared components. For example, the NOT for input B feeds two AND blocks in outputs 2 and 6; route it once as a single signal. Use 2-input AND primitives as building blocks if 3-input versions aren’t available, cascading them: first combine A and NOT(B), then feed the intermediate result alongside C into a second AND. Benchmark propagation delay–direct 3-input implementations typically settle faster than cascaded pairs. Check voltage levels at each stage; logic high signals below 2.4V in TTL (or 70% VDD in CMOS) may cause false triggers.

Validate the entire configuration by cycling inputs from 000 to 111 while probing every output. Expected behavior shows exactly one output high per input combination, with the remaining seven low. Deviations point to wiring errors–most commonly misrouted signal paths or missing inversions. Finalize by adding an enable input (active-high) through an 8-input OR or individual AND enables, letting the selection network remain in a low-power standby when inactive.

Frequent Errors in Prototyping Binary Logic Networks on Breadboards

Always verify the pin mapping of your IC against its datasheet before insertion. A 74LS138, for example, labels inputs A0–A2 as pins 1–3, yet hobbyists often misalign them with adjacent VCC or GND contacts–pins 16 and 8 respectively. This mismatch causes floating inputs, unpredictable outputs, or thermal damage. Mark the IC silhouette directly on the breadboard with a fine-tip pen to prevent mirrored orientation.

Use color-coded jumper wires to distinguish signal paths: red for power rails, black for ground, blue for address lines, yellow for strobes, green for outputs. A single misrouted wire can invert expected behavior silently. Test continuity with a multimeter between source and destination before energizing; breadboard contacts oxidize over time, creating intermittent connections that manifest as glitches in pulse trains.

Critical Power Supply Pitfalls

IC Family	Recommended Voltage (V)	Absolute Maximum (V)	Current Draw (Idle/Active, mA)
74LS	4.75–5.25	7.0	3/8
74HC	2.0–6.0	7.0	0.02/1
CD4000	3.0–15.0	18.0	0.01/1

Exceeding the absolute maximum rating by even 0.5 V triggers latch-up, permanently destroying the chip within microseconds. Linear regulators like 7805 require a minimum 7 V input for stable 5 V output; lower voltages cause dropout, introducing ripple that corrupts decoded sequences. Add a 100 nF decoupling capacitor directly across each IC’s VCC and GND pins–no more than 2 mm from the package–to filter noise.

Signal Integrity Oversights

Floating enable lines are a dominant failure mode. Tie active-low enables (e.g., G2A, G2B on a 74LS138) directly to GND if unused, or route them through a pull-down resistor of 10 kΩ. Similarly, unused address lines should not be left open; connect them to either VCC or GND through a 1 kΩ resistor to define a stable logic level. CMOS families (CD4000) are particularly susceptible to static damage–ground yourself and tools before handling.

Skipping a pull-up resistor on open-collector outputs forces downstream TTL gates into metastability. A 4.7 kΩ resistor to VCC ensures valid high-level transitions. When cascading multiple chips, buffer address lines with a 74LS244 octal line driver to prevent fan-out violations; each LS-TTL output can sink 8 mA but can source only 0.4 mA. Exceeding this limit collapses logic highs to indeterminate voltages below 2.4 V.

Always probe the output nodes with an oscilloscope before connecting peripheral loads. Narrow spikes narrower than 20 ns–undetectable on a logic probe–can toggle flip-flops erroneously. Insert a 100 Ω series resistor on outputs driving long wires (>10 cm) to dampen reflections; without it, ringing reaches ±1 V, violating noise margins. Terminate unused outputs with a 5 kΩ resistor to GND to reduce radiated emissions.

Document each wiring step with photographs or schematic snippets. Breadboard traces are easily disturbed–even minor bumps dislodge jumper connections. Re-verify every pathway after modifications; a single overlooked loop resets hours of debugging. Complete the build incrementally, validating one logic gate at a time against expected response patterns before proceeding.
