Complete Ceiling Fan Wiring Diagram Explained Step by Step
Start by identifying the power source terminals–typically marked L (live), N (neutral), and E (earth). Confirm the circuit breaker is off before handling any conductors. A non-contact voltage tester will verify the absence of current, preventing accidental shorts or shocks. Locate the junction box above the mounting bracket; most modern installations use a three- or four-wire system, though older models may rely on a two-wire configuration without grounding.
Match the supply wires to the device’s internal leads by color: black to live, white to neutral, and green or bare copper to ground. If the unit includes a light kit, a separate blue wire may connect to the lumen output; cap unused strands with wire nuts to avoid stray circuits. Twist the exposed ends clockwise before securing them under terminal screws or inserting them into push-in connectors–stripping exactly 3/8 inch of insulation ensures optimal contact without fraying.
Mount the motor housing securely, ensuring no wires are pinched between the bracket and ceiling plate. Reattach the decorative cover, then restore power at the breaker. Test rotation direction–most units default to counterclockwise for optimal air circulation; reverse polarity on live and neutral wires if adjustment is needed. For pull-chain models, verify the switch sequence: high, medium, low, and off positions should align with clear tactile feedback.
Check for vibrations within 30 seconds of activation; excessive wobble often indicates an imbalance caused by incorrect blade installation or loose mounting screws. Tighten every fastener to 15-20 inch-pounds of torque using a calibrated driver. If humming persists, lubricate the bearing sleeve with SAE 20 non-detergent oil through the designated access port–over-greasing creates drag and reduces efficiency.
Electrical Layout for Rotary Air Circulator Installation

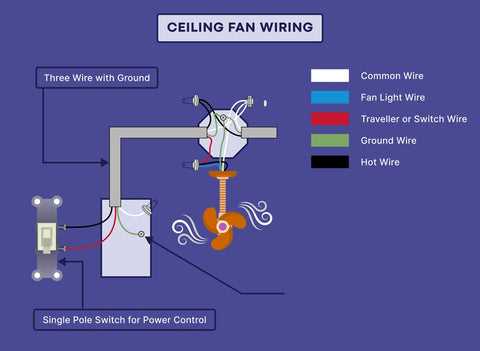

Begin by identifying the power source wires in the junction box: black (hot), white (neutral), and green or bare copper (ground). Verify circuit breaker capacity–most systems require a 15-amp minimum for safe operation, though some motors demand 20 amps if paired with integrated lighting.

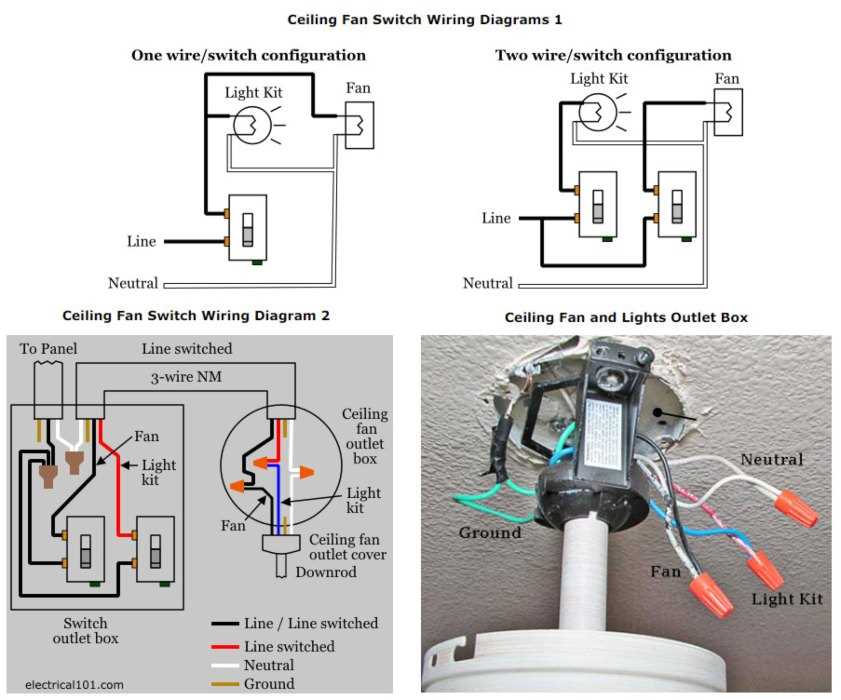

Separate control setups dictate distinct connection methods. For single-switch operation, splice the black feeder wire directly to the circulator’s lead labeled “LINE.” Neutral and ground wires should merge into their respective bundle terminals. Dual-switch configurations split power supply: one line feeds the blade motor, another powers optional illumination components.
Common Circuit Configurations
| Mode | Wiring Sequence | Voltage Tolerance |
|---|---|---|
| Direct Power | LINE → Motor; NEUTRAL/GND → Corresponding terminals | 110-125V AC |
| Speed Regulator | Hot → Controller → Motor; Alternate GND path | 115-127V AC |
| Light Integration | Split LINE → Motor + Lamp; Shared NEUTRAL | 110-130V AC |
Check wire gauge compatibility before connecting–standard installations use 14 AWG for 15-amp circuits, upgrading to 12 AWG if pulling 20 amps. Inspect insulation condition; nicked or brittle sheathing must be replaced to prevent short circuits. Secure all splices with UL-listed twist-lock connectors, then wrap with electrical tape for secondary insulation.
Remote-controlled systems introduce a receiver module between the junction box and circulator assembly. Position the receiver in an accessible location near the unit, ensuring antennas remain unobstructed for signal transmission. Program frequency must match controller settings–consult manufacturer specifications to avoid interference with adjacent devices.
Reversible rotation units include an additional switch mechanism or capacitor-based toggle. Locate the directional control wire (typically blue or purple) and connect it to either the receiver output or a dedicated wall switch. Some models require momentary contact for switching; others toggle with sustained pressure–refer to technical documentation for precise activation timing.
Before finalizing, measure voltage at motor terminals using a multimeter. Acceptable range varies: 108-127V for standard operation, 115-132V if speed control circuitry is present. Fluctuations outside these thresholds indicate faulty connections or inadequate power supply, demanding immediate correction to prevent motor overheating.
Safety Protocol for Final Assembly
Cap all unused conductors with wire nuts before enclosing the junction box to prevent accidental contact. Mount canopy covers flush against the ceiling, ensuring no gaps expose live connections. Restore power and test in gradual increments: first rotation, then illumination if applicable, followed by speed adjustment cycles. Monitor for unusual noise or flickering lights–these signal loose connections requiring re-examination.
Locating Conductors in a Rotary Aerator Electrical Setup
Begin by isolating the wall switch controlling the device. Most residential pendant ventilator circuits include three primary conductors: a live input (typically black or red), a neutral return (white), and a grounding line (bare copper or green). Use a non-contact voltage detector to confirm which wire carries current when the switch is engaged. If the circuit incorporates a light kit, an additional conductor–often blue–may serve as a secondary hot lead for illumination.
Check for a jumper or capacitor between the speed control module and the motor assembly, especially in units with pull-chain switches. In older installations, the neutral may connect directly to the motor housing, while modern systems route it through a dedicated terminal block. A multimeter set to continuity mode helps verify connections without power applied–probe the suspected neutral against the grounding wire; a reading near zero confirms correct identification.
Dual-switch configurations split functionality between rotation and lighting. The second switch usually governs the auxiliary hot lead, which may appear as a standalone red or striped wire. Trace this conductor to its termination point inside the motor canopy–it often feeds a separate speed coil or a dimmable LED driver. If the ventilator operates abnormally (e.g., humming without motion), suspect a misaligned hot-neutral pairing or a severed internal lead.
Grounding paths follow distinct rules: bare copper attaches to the mounting bracket or a dedicated screw within the junction box, while green-insulated wires terminate at the motor chassis. Verify this connection first–poor grounding risks motor failure or electrical noise in variable-speed models. In metal conduit installations, the conduit itself may serve as the grounding path; confirm with a megohmmeter if intermittent functionality suggests resistance issues.
For three-speed models, expect a multi-strand harness connecting the motor’s stator coils. Low, medium, and high speeds correspond to specific strands (typically black, yellow, and gray). Label each before disassembly–swapping them during reassembly causes reversed rotation or burnout. If speeds operate erratically, test for voltage drops across each strand with the unit running; a deviation exceeding 5% indicates a failing capacitor or degraded coil insulation.
Breaking Down Rotary Airflow Device Electrical Connections

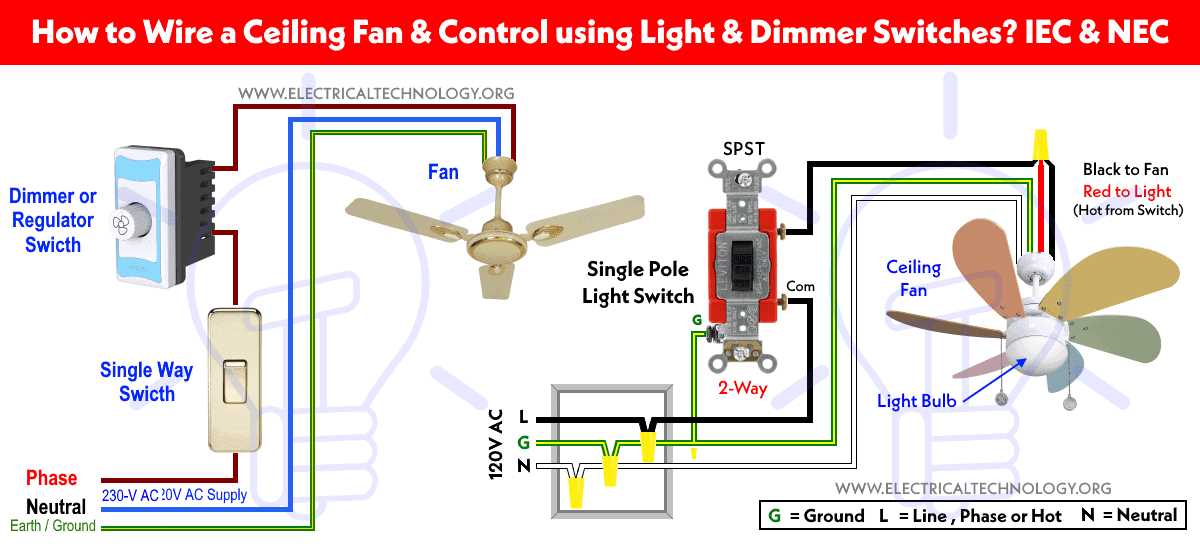

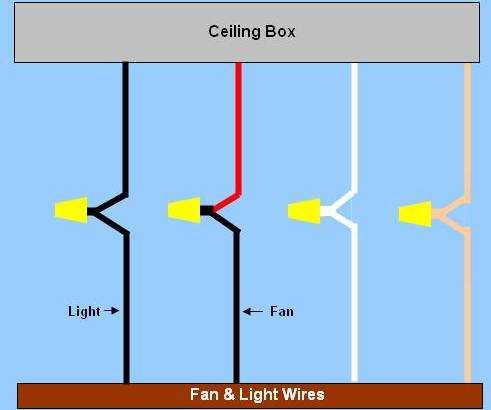

Prioritize safety by switching off the circuit breaker labeled for the fixture’s supply line–verify absence of voltage with a non-contact tester before handling any conductors. Identify the three primary leads: the live (black or red, 120V), neutral (white), and ground (bare copper or green). If the assembly includes a lighting kit, an additional hot conductor (typically blue) will feed the illuminators, requiring connection to a separate wall switch. Match each wire precisely: live to live, neutral to neutral, and ground to ground–twist strands clockwise before securing with wire nuts, ensuring no exposed copper remains. For dual-switch setups, the blue lead connects to the secondary switch’s output, allowing independent control of rotation and illumination.
Troubleshooting Invalid Connections
Humming without rotation often indicates reversed polarity on the motor’s run capacitor–swap the black and blue leads at the fixture’s housing to correct phase alignment. If the oscillator fails to engage, inspect the pull-chain mechanism’s continuity with a multimeter; replace the switch if resistance exceeds 1Ω. Ground loops manifest as intermittent operation–bond all ground wires securely to the junction box’s grounding screw using a pigtail no longer than 6 inches. Verify torque specs: 10-12 in-lbs for wire nuts, 15-20 in-lbs for terminal screws. For installations lacking a neutral in the junction box, install a smart relay requiring only hot and ground inputs, or consult NEC 404.2(C) for approved alternatives.
Integrating Capacitor Leads for Motor Speed Adjustment
Locate the capacitor’s two terminals–one marked for common (C) and the other for run (R). Connect the C lead to the motor’s main winding (typically the thicker wire) and the R lead to the auxiliary winding (thinner wire). Ensure polarity matches: most capacitors use a non-polarized design, but verify with a multimeter if resistance reads zero in both directions. For three-speed units, attach the R terminal to the speed selector switch’s high-speed terminal first, then branch to medium and low via the switch’s internal contacts.
- Use 16-18 AWG stranded copper wire for capacitor connections to handle 2-5A startup currents without voltage drop.
- Secure joints with heat-shrink tubing rather than electrical tape to prevent moisture ingress.
- For dual-capacitor setups (e.g., 2.5µF + 6µF), wire the smaller value to the high speed and the larger to low speed–reversing these will cause overheating.
- Test continuity with the motor unpowered: resistance between C and R should measure infinite ohms; a finite reading indicates a shorted capacitor.
If speed adjustment fails, measure voltage across the capacitor during operation. A reading below 110VAC (for 120V systems) suggests a degraded capacitor–replace with an exact µF-rating unit. For five-wire configurations, connect the run capacitor to the blue (high) and **black (medium) wires, leaving the red (low) wire to bypass the capacitor via the switch. Always discharge stored energy by shorting terminals with an insulated screwdriver before handling.
