Understanding Schematic Diagrams for USB Dongle Hardware Design
Start with a two-layer PCB layout for prototype development. Use a ground plane on the bottom layer to minimize signal interference, especially critical when handling USB 2.0 or serial data streams. Select a microcontroller with native USB support–STM32F103 or ATmega32U4 reduce external dependencies and firmware complexity. For signal conditioning, include a 22Ω series resistor on high-speed data lines to prevent reflections.
Avoid generic USB hub ICs unless simultaneous device emulation is required. Instead, opt for direct connection via microcontroller GPIO with pull-up resistors (1.5kΩ) on D+ to trigger device enumeration. For power regulation, integrate an AP2112K-3.3 or similar LDO with a 2A current limit. This ensures stability during peak load conditions, such as initializing multiple virtual peripherals.
Isolate analog and digital ground planes near sensitive components like crystals or ADCs. Use a 0.1µF bypass capacitor on every VCC pin within 2mm of the component. For debugging, expose test points on UART TX/RX, SWD (CLK, IO), and reset lines. If emulating HID devices, preload descriptors into firmware flash to eliminate runtime parsing latency.
Select connectors based on durability: use USB Type-C for modern compatibility or a robust 2.54mm header for legacy interfaces. For ESD protection, add TVS diodes (e.g., PESD5V0S1BA) on data lines. Ensure the enclosure design accommodates mounting holes for board stability and thermal relief if using power-hungry components like FPGAs.
Validate signal integrity with an oscilloscope before finalizing traces. Keep trace lengths for differential pairs (e.g., D+/D-) matched within 5%. Use a 90Ω termination resistor for USB signals if traces exceed 5cm. For wireless variants, integrate a CC2540 Bluetooth module with antenna tuning performed using a network analyzer to optimize RF performance.
Designing a Compact Hardware Key: Core Circuit Insights
Start with an Atmel ATtiny85 microcontroller for minimal footprint and sufficient GPIO pins–ideal for authentication tokens requiring low power and small board space. Power it via a 3.3V LDO regulator like the MCP1700, ensuring stable operation under 20mA load currents. Include a 0.1µF decoupling capacitor near the VCC pin to suppress high-frequency noise, critical for USB-connected devices.
Use a USB Type-C connector for durability and reversible insertion, pairing it with a 1.5kΩ pull-up resistor on the D+ line to signal full-speed USB 1.1 compliance. For data integrity, add 22Ω series resistors on both D+ and D- lines to prevent signal reflections, especially if trace lengths exceed 50mm. If ESD protection is needed, place transient voltage suppressors (TVS diodes) rated for ±15kV air discharge directly between the USB lines and ground.
Memory and Peripheral Integration
Leverage the ATtiny85’s 8KB flash for firmware, reserving a 512-byte EEPROM block for secure key storage. Avoid external ICs like I2C EEPROMs unless tamper resistance is required–each added component increases failure points. For debugging, expose the RESET pin via a test point, but secure it with a 10kΩ pull-up resistor to prevent unintended resets from stray voltages.
Implement a status LED (red/green) driven by a GPIO pin through a 220Ω resistor, strobing it at 1Hz during active operations. If physical security is a priority, omit the LED–visual indicators can unintentionally leak operation states. Finalize the design with a 3mm mounting hole near the USB connector to anchor the board during insertion force tests, preventing pad detachment after 500+ mating cycles.

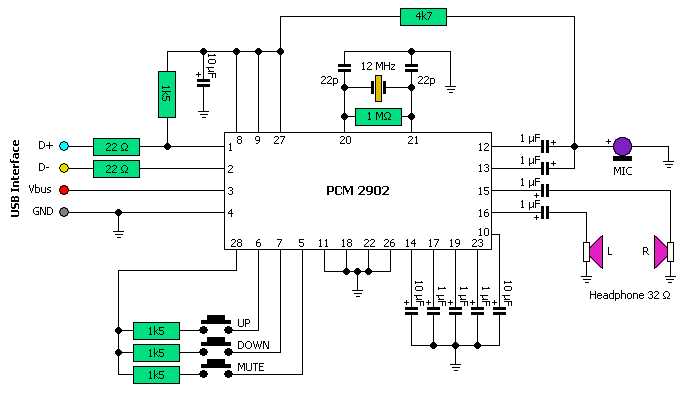

How to Read a USB Peripheral Circuit Blueprint
Begin by identifying power rails marked with VCC, VBUS, or +5V–these typically trace back to the USB connector. Trace lines from the host interface pins (D+, D-, GND, ID) to their termination points on active components like microcontrollers or EEPROMs. Check for decoupling capacitors (usually 0.1 µF) placed within 2–5 mm of IC power pins to suppress noise; their absence will cause erratic behavior.
Locate each integrated circuit and cross-reference its pinout with the manufacturer datasheet. Key pins–power, ground, data, control–must align with labeled nets on the layout. For USB transceivers, note that D+ and D- often require 22–33 Ω series resistors to match impedance and prevent reflections. Omit or misplace these resistors and data integrity fails at high speeds.
| Component Type | Typical Value | Placement Rule |
|---|---|---|
| Decoupling Capacitor | 0.1 µF | Within 5 mm of IC power pin |
| Series Terminator | 22 Ω / 33 Ω | On USB data lines, near connector |
| Pull-up Resistor | 1.5 kΩ | D+ for full-speed, D- for low-speed |
Verify reset circuitry: look for a 10 kΩ pull-up on the reset pin coupled with a 0.1 µF capacitor to ground; these form an RC delay. Incorrect values will either lock the device in reset or allow false triggers. If an external crystal is used, locate its load capacitors (usually 12–22 pF) and ensure the oscillator pins are bypassed with high-speed traces–no vias between the crystal and controller.
Examine USB enumeration logic. For a device to appear on the host bus, D+ must be pulled high with 1.5 kΩ for full-speed operation or D- for low-speed. Missing this resistor prevents enumeration; substituting a lower value risks overloading the host driver. Document every jumper, test pad, or configuration pin–these often toggle firmware modes or debug interfaces and are easily overlooked.
Isolate digital and analog grounds. Split planes reduce noise coupling, but stitch them together at a single point–preferably near the USB connector–using a 0 Ω resistor or ferrite bead. Avoid daisy-chaining grounds; each return path should route directly to this common star point. Misrouted grounds manifest as jitter, packet loss, or intermittent failures at high data rates.
Inspect clock distribution: a USB peripheral typically requires a stable 12 MHz reference. If an external oscillator feeds multiple chips, fan-out buffers or series resistors (33 Ω) prevent reflection. Skipping these on high-speed clocks invites metastability. Trace every clock net end-to-end–broken or unterminated traces cause silent data corruption.

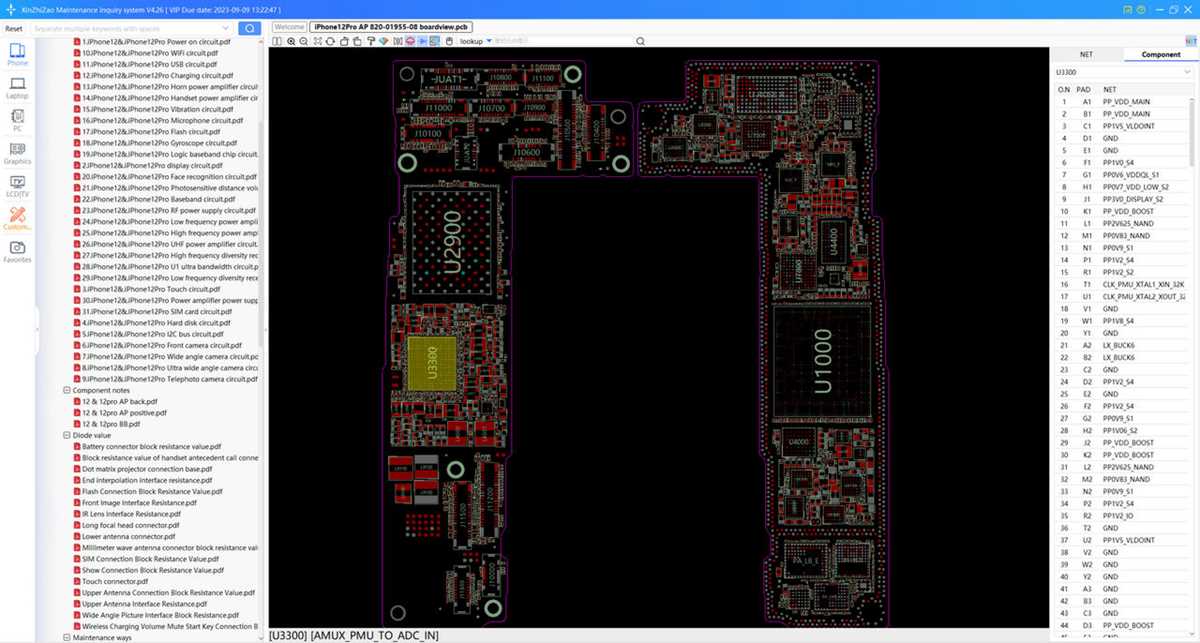

Interpreting Silkscreen Overlays and Hidden Annotations
Decode silkscreen text and hidden layer annotations. Labels like TP1, DFU, BOOT indicate test points, firmware upload pins, or boot mode selectors. Cross-check with firmware documentation to confirm functionality; misaligned labels disrupt production testing. Look for arrows or dashed lines marking signal flow or critical nets–these often highlight nets requiring controlled impedance or shielding.
Validate ESD protection diodes on USB lines. Locate TVS diodes (e.g., SMAJ5.0A) placed immediately after the connector, before any series resistors. Absent or undersized diodes risk permanent damage during hot-plug events. Ensure each diode’s breakdown voltage exceeds the USB supply (typically 5.5 V) yet protects low-voltage logic.
Key Components and Their Symbols in Protection Circuit Blueprints
Begin by identifying microcontrollers–the core of most security devices. Common variants like STM32, ATmega, or PIC series appear as rectangular blocks with labeled pins (e.g., PDIP, TQFP, or BGA footprints). Pin counts range from 8 to 144+, with critical connections marked: VCC (power), GND (ground), USB DP/DM (data lines), and GPIO for custom interfaces. Add decoupling capacitors (100nF) adjacent to VCC/GND pairs to stabilize voltage transients. For onboard storage, flash or EEPROM chips (e.g., Winbond W25Q series) use SPI symbols (SCK, MOSI, MISO, CS)–label these traces clearly to avoid routing errors during prototyping.
Critical Peripheral Elements
- Voltage Regulation: LDO regulators (e.g., AMS1117) appear as three-terminal symbols with IN, OUT, and ADJ/GND. Input/output capacitors (1µF–10µF) are mandatory; place them
- Authentication ICs: Secure elements like Microchip’s ATECC608 use I²C symbols (SDA, SCL) plus a reset pin. Pair these with 4.7kΩ pull-up resistors on SDA/SCL lines. For USB connectivity, a type-C port symbol includes CC1/CC2 pins–use 5.1kΩ pull-down resistors here for host negotiation. Overcurrent protection diodes (e.g., PMEG4010) inline with VBUS traces prevent reverse polarity damage.
- Debug/Interface Ports: SWD (Serial Wire Debug) uses 2–4 pin headers (CLK, IO, optionally GND/VCC). JTAG symbols require TDI/TDO, TMS, and TCK pins; chain devices sequentially if multiple targets exist. UART ports (TX/RX) need cross-connected traces (TX→RX) with 1kΩ series resistors for ESD protection during hot-plugging.
RF modules–if present–demand precise symbol interpretation. Bluetooth SoCs (e.g., Nordic nRF52) combine antenna symbols (meandering line) with pi-matching networks (two capacitors and an inductor). For 2.4GHz designs, PCB trace antennas require a keep-out zone (5mm+) from ground planes; failing this risks detuning. Crystals (32.768kHz for RTC, 16MHz for system clock) appear as a pair of parallel lines with load capacitors (8pF–22pF) on each pin. Always place these components within 5mm of the microcontroller to minimize parasitic inductance.
Step-by-Step Guide to Creating a Circuit Blueprint for a Radio Frequency Adapter
Begin by selecting a professional EDA tool like KiCad, Altium Designer, or EasyEDA–each offers integrated component libraries and validation features. Define the adapter’s core functionality first: list the wireless protocol (e.g., Bluetooth 5.2, Wi-Fi 6), power requirements (3.3V or 5V), and interfaces (USB-C, micro-USB). Sketch a block representation on paper, splitting the design into modules: antenna matching network, RF transceiver (e.g., nRF52840), microcontroller (STM32 or ESP32), power regulation (LDOs or buck converters), and peripheral connectors. Use differential pairs for high-speed signals like USB data lines, keeping traces short and impedance-matched (typically 90Ω). Ground planes should be solid beneath RF sections to minimize noise; route analog and digital grounds separately, joining them at a single point near the power supply.
Component Placement and Validation
Place the RF transceiver as close to the antenna as possible, ideally with a π-network or T-match circuit for impedance tuning. Position decoupling capacitors (100nF) within 1mm of each IC’s power pin; add bulk caps (10µF) for low-frequency stability. For the microcontroller, reserve space for programming headers (tag-connect or 2.54mm pitch) and crystal oscillators (e.g., 32MHz for Bluetooth). Run DRC checks early–verify trace widths (0.2mm for signal, 0.5mm for power), clearance (0.15mm), and via sizes (0.3mm drill). Export Gerber files and validate with a PCB fab’s DRU rules to catch manufacturability issues like acid traps or silkscreen overlaps. Simulate the antenna performance in tools like ANSYS HFSS or Qucs if integrating custom designs, aiming for -10dB return loss or better at the target frequency.
