How to Read and Create Electrical Circuit Diagrams Step by Step
Start by labeling every connection point with alphanumeric identifiers–AB12, VCC_IN, GND_OUT–to eliminate ambiguity in complex layouts. Use Kicad’s Eeschema or Altium Designer for auto-annotation if manual tagging risks errors. Position power rails vertically on the left, signal lines horizontally at the top, and ground references mirrored at the bottom. This H-pattern ensures instant readability across teams without verbal clarification.
Adopt IEC 60617 symbols over ANSI for resistors (rectangles, not zigzags) and transistors (triangular emitter arrows) to align with global manufacturing standards. Group related components–decoupling capacitors within 2 mm of IC pins, pull-up resistors adjacent to their controlled gates–using colored silkscreen layers (red for power, blue for logic) on your PCB layout tool. Apply ratsnest visibility only for critical nets to avoid visual noise.
Explicitly define net classes: 50 Ω impedance for differential pairs, 25 μm width for analog signals, 35 μm for power. Export gerber files with embedded netlist checks turned on; Design Rule Check violations should halt generation entirely. For hierarchical projects, split sheets by function (power, control, I/O) and link them via off-page connectors labeled CN-xxx matching the schematic page number.
Annotate unknown states with placeholder values–R_??? or C_UNKNOWN–and assign footnotes referencing datasheet pages for later verification. Use graphical net flags to mark signal directions rather than relying solely on arrowhead tick marks, which can obscure in dense layouts. For AC analysis, superimpose transient overlays onto the static view using dashed lines and frequency-domain color gradients (yellow to purple for 1 kHz–10 MHz).
Validate cross-probing between layout and schematic using Altium’s xSignals or Kicad’s interactive router; a single-click should highlight the identical net on both views. Disable DRC pop-ups during initial capture to maintain workflow speed, then re-enable after placement. Archive the original schematic alongside gerbers in ZIP named ProjectName_vX_Date_TZ to ensure traceability through revisions.
Schematic Representation of Electrical Pathways
Begin by sketching power sources as horizontal lines at the top or left–positive rails at +5V, +12V, or custom levels–with ground symbols aligned below to establish polarity structure. Label each node numerically (e.g., VCC1, GNDA) and prefix component IDs with their function: RLOAD-3kΩ, CDECOUPLE-100nF, QSWITCH-BD139. Use orthogonal trajectories with 90° bends exclusively; diagonal lines introduce ambiguity in interpretation across teams. When interconnecting integrated circuits, maintain 2 mm spacing between pins to avoid visual clutter and annotate pin functions directly on the trace (e.g., “CLK” for clock, “OE” for output enable) rather than relying on memory or datasheets.
Adopt consistent conventions for passive values–resistors (R), capacitors (C), inductors (L)–and active elements (transistors as T, diodes as D, ICs as U) followed by sequential numbers. For multi-layer boards, distinguish layers using distinct colors (red for signal, blue for power, black for ground) and provide a legend below the layout. Include a scale bar for physical dimensions if the schematic corresponds to a PCB, specifying units (metric preferred). Verify connections with a continuity checker tool before finalizing; cross-reference each net with its designated node on the bill of materials.
Key Components to Include in a Schematic
Begin with power sources–label batteries with voltage ratings (e.g., +5V, -12V) and polarity markers. AC inputs require transformer symbols with winding ratios and ground references. Uninterruptible supplies need clear notation for battery backup duration and switch-over mechanics. Omit generic “power” labels; instead, specify “3.3V LDO” or “24V SMPS” to eliminate ambiguity for troubleshooting or replication.
Signal Paths and Control Elements
- Semiconductors: Use distinct symbols for BJTs (NPN/PNP), MOSFETs (enhancement/depletion), and diodes (Schottky, Zener). Annotate pinouts (e.g., “TO-92: EBC”) and key parameters (VCEO, IC).
- Passives: Resistors must show resistance (e.g., 220Ω ±5%) and power rating (¼W). Capacitors require type (ceramic, electrolytic) and voltage tolerance (e.g., 10µF/50V). Inductors need core material (ferrite, air) and inductance.
- Switches/Relays: Differentiate momentary vs. latching, SPST vs. DPDT, and coil voltages for relays. Include debounce circuits if applicable.
- Microcontrollers: Outline pin functions (e.g., GPIO, UART, ADC), clock sources (crystal/oscillator values), and programming headers (SWD, JTAG).
Grounding and shielding demand hierarchical clarity. Separate analog (quiet return paths), digital (high-speed return), and earth/chassis grounds with distinct symbols. Shielded cables require isolated grounds linked to the shield at a single point. For PCBs, designate star grounds near sensitive components (e.g., op-amps). Include test points (TP1, TP2) for critical signals–avoid vague “to MCU” labels; use “PA3 (GPIO Input)” instead. Annotate noise-sensitive traces with guard rings or ground pours.
Step-by-Step Guide to Sketching an Electrical Schematic from Zero

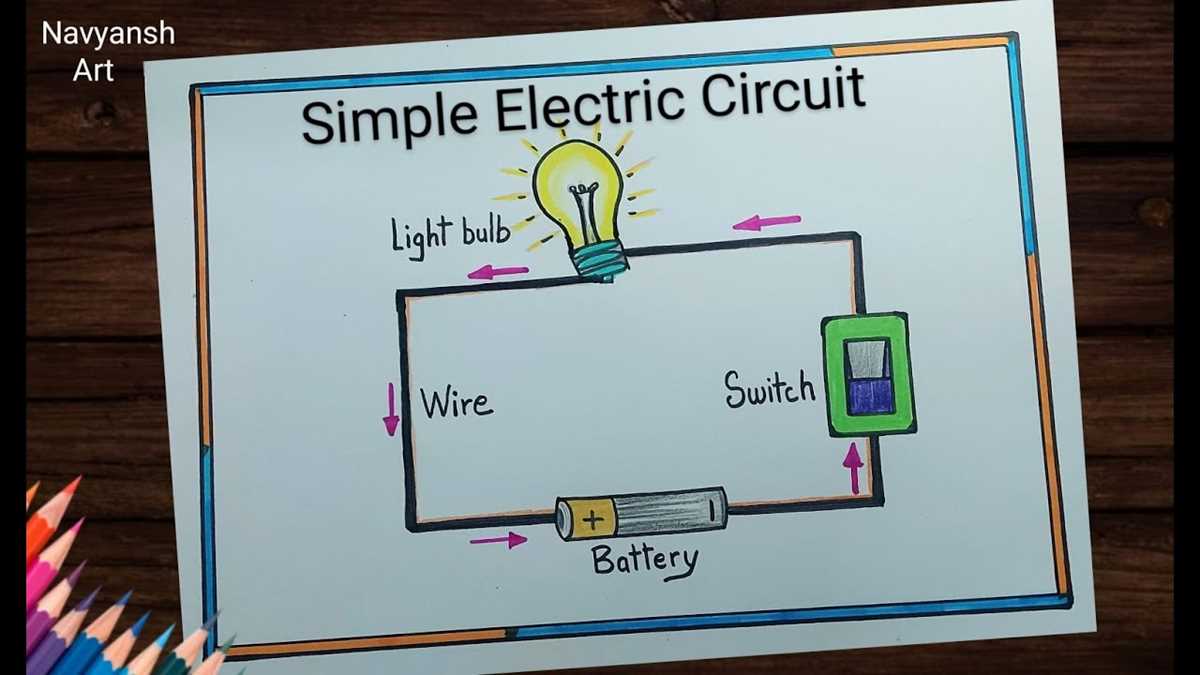

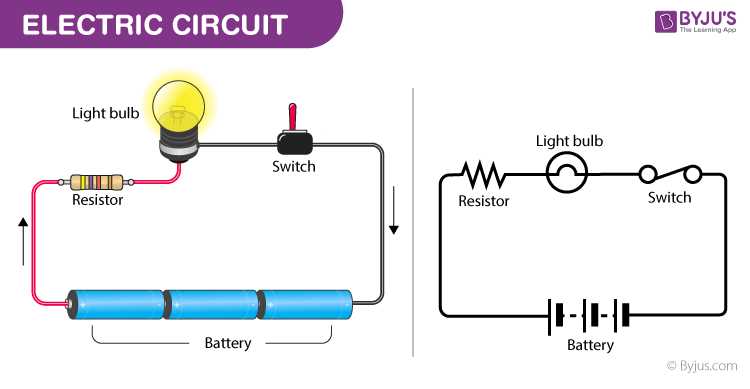

Gather components first: list power sources, resistors, capacitors, transistors, and connectors. Use standardized symbols–ANSI or IEC–to ensure clarity. Start with a pencil and graph paper to avoid errors. Place the power source (e.g., battery) at the top-left corner, with current flowing clockwise. Align components vertically or horizontally to simplify tracing. For example, position a resistor directly after a battery, followed by a switch, then an LED. Label each part with values (e.g., “R1 220Ω”) near the symbol to eliminate confusion later.
- Draw connections as straight lines, minimizing crossovers. If lines must cross, use a small arc to differentiate from junctions.
- Verify polarity for polarized elements (e.g., diodes, electrolytic capacitors). Mark positive/negative terminals clearly.
- Simplify complex paths by breaking them into sub-blocks. Group related elements (e.g., oscillators, amplifiers) within dashed boxes.
- Double-check connections with a multimeter or continuity tester before finalizing. Trace each path manually to confirm no gaps exist.
- Scan or photograph the sketch for digital use. Import into software like KiCad or Fritzing for refinement, if needed, preserving the original layout.
How to Read and Interpret Standard Electronic Schematic Symbols
Begin by memorizing core passive components: resistors use a zigzag line, capacitors show two parallel lines (polarized versions include a curved plate), and inductors appear as coiled loops. These three elements form the backbone of most schematics and dictate current flow, voltage division, and energy storage behavior.
Identify power sources immediately–batteries display alternating long and short lines, while DC symbols feature a single line with a plus sign. AC indicators include a sine wave inside a circle. Always trace power rails first to establish reference points before analyzing other parts of the wiring layout.
Transistors come in two primary types: BJTs (bipolar junction) use a vertical line with three angled connectors, while FETs (field-effect) show a single line with perpendicular branches. The middle lead in BJTs represents the base/gate, controlling current between the outer terminals. Check datasheets for pinout confirmation–misidentification causes irreversible component failure.
Logic gates follow strict IEEE symbols: AND gates curve inward, OR gates flare outward, and NOT gates include a small circle at the output. Complex ICs simplify into rectangular blocks labeled with pin numbers–verify pin functions against the manufacturer’s reference manual rather than relying on schematic labels alone.
Switches break or divert paths and use mechanical symbols: a gap in a line indicates a normally open state, while a dot on a connection shows normally closed. Relays combine a coil (inductor symbol) with contacts (switch symbol)–trace both separately to avoid overlooking switching behavior under load.
Ground symbols appear as downward-pointing triangles (chassis ground) or three descending lines (earth ground). Always confirm if grounds share a common node; floating grounds create unpredictable voltage differences and noise interference in sensitive designs.
Common Pitfalls in Symbol Interpretation
Confusing diodes with LED indicators: standard diodes use a straight line with a triangular arrow, while LEDs add two small parallel lines inside the triangle. Reverse polarity damages LEDs instantly–double-check orientation during prototyping. Zener diodes include an angled line within the arrowhead; their voltage-regulation role differs significantly from rectification diodes.
IC power pins often hide elsewhere–microcontrollers may place VCC and GND at non-sequential pins. Locate and highlight these in the schematic first, as incorrect power application destroys silicon instantly. Decoupling capacitors (typically 0.1μF ceramics) should sit as close as possible to IC power pins–omitting them introduces transient voltage spikes.
Common Mistakes to Avoid When Sketching Electronic Layouts
Omitting ground connections in subcomponents leads to floating nodes, causing erratic behavior. Always ensure every powered element–not just ICs–has a defined return path. For instance, decoupling capacitors placed more than 5mm from a microcontroller’s VCC pin fail to suppress noise, regardless of their value.
Using inconsistent line widths confuses hierarchy: power rails should be 0.5mm thick, signal traces 0.25mm, and control lines 0.2mm. Below is a reference table for trace dimensions:
| Element | Width (mm) | Purpose |
|---|---|---|
| Power Rail | 0.5 | Primary distribution |
| Signal Trace | 0.25 | Data/clock lines |
| Control Line | 0.2 | Enable/reset |
| Analog Input | 0.2 | Sensors/feedback |
Ignoring Parasitic Effects
Trace loops larger than 10mm² radiate electromagnetic interference, especially at frequencies above 1MHz. Design compact paths–keep microstrip inductance below 1nH/cm by stacking signal and ground planes. Copper pours on both sides of a 1.6mm FR-4 board reduce loop area by 40% compared to single-sided designs.
