Step-by-Step Guide to Electrical Outlet Wiring Diagrams
Start by cutting power at the circuit breaker before examining any socket layout. Verify zero voltage with a non-contact tester–this step prevents fatal errors. Sketch the existing connections on graph paper, marking live (hot), neutral, and ground wires with distinct colors. Red for hot, white for neutral, and bare or green for earth ensure clarity.
Use a multimeter to confirm wire functionality. Probe between hot and neutral; expect ~120V for standard residential setups. Cross-check earth connections–proper grounding reads 0.1 ohms or less. Any higher resistance indicates corrosion or loose terminals requiring immediate re-termination.
Follow the National Electrical Code (NEC)’s section 406 for socket configurations. Split-circuit sockets demand pigtail splicing; daisy-chaining increases fire risk. Label each wire’s origin–attic junction box, subpanel, or main service point–as misidentification causes overloads.
Install GFCI protection in kitchens, bathrooms, and outdoor areas. Wrap terminals clockwise around screws, then torque to 12–15 lb-in (manufacturer specs vary). Loose connections generate heat, melting insulation within minutes.
Test polarity after reinstallation. Reverse polarity trips breakers instantly, while open neutrals yield partial voltage–both scenarios damage appliances. Document each socket’s circuit with a numbered tag linked to breaker directory. Maintain this record for future troubleshooting.
Electrical Socket Connection Schematics

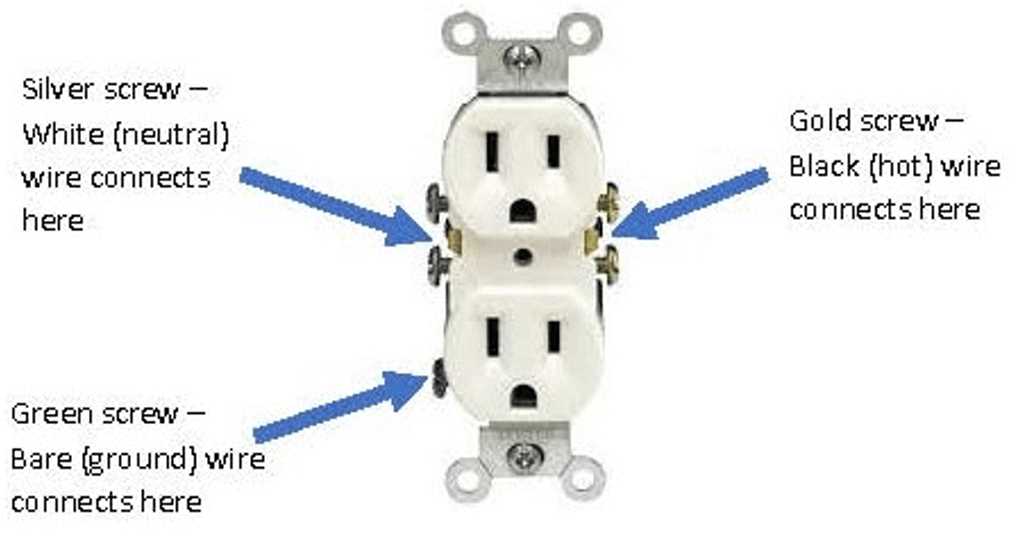

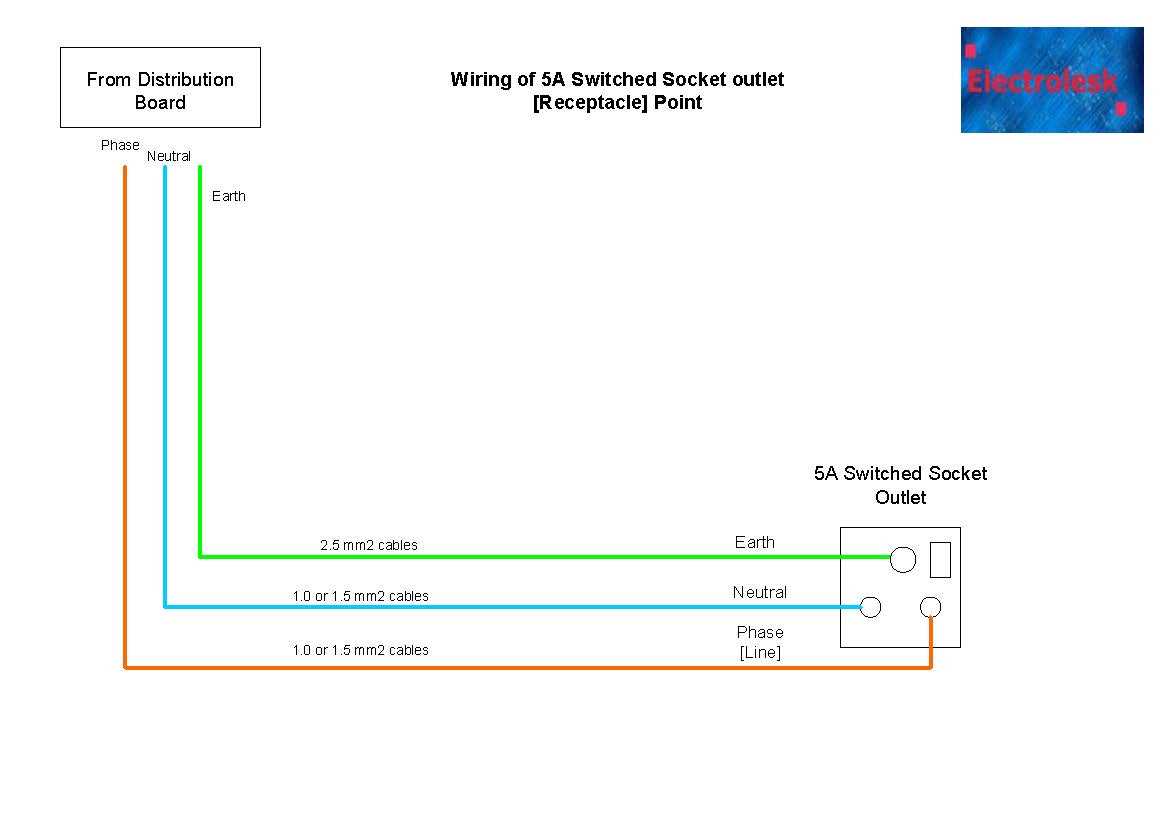

For all single-phase household setups in North America, the standard receptacle uses three conductor paths: hot (black or red, 120V), neutral (white), and ground (bare copper or green). Connect the hot wire to the brass screw, neutral to the silver screw, and ground to the green screw–never reverse these, as miswiring creates severe shock hazards. Verify each connection with a multimeter before energizing; measure 120V between hot and neutral, 0V between neutral and ground.
In split-phase 240V circuits common for dryers or ranges, two hot conductors (each 120V to neutral) deliver 240V combined, plus neutral and ground. Use a four-slot receptacle: connect the red wire to one brass terminal, black to the other, white to the silver terminal, and ground to the green screw. Confirm 240V across the hot terminals and 120V from each hot to neutral. Omit neutral only if the appliance lacks a 120V requirement–check manufacturer specs first.
Common Mistakes and Fixes
- Switching neutral and ground: Results in current flowing through ground paths, tripping GFCI devices. Test continuity between neutral and ground–there should be none.
- Loose screws: Causes arcing, heat buildup. Torque all terminal screws to 12-15 in-lbs; use a torque screwdriver for compliance with NEC 110.14(D).
- Aluminum wiring: Requires CO/ALR-rated devices and antioxidant paste. Pigtail copper using approved connectors to avoid oxidation fires.
- Shared neutrals in multi-wire branch circuits: Ensure handle ties on breakers to prevent overloading. Calculate load current–neutral must handle sum of both hots if unbalanced.
For GFCI protection in kitchens, bathrooms, or outdoor receptacles, install a GFCI receptacle or breaker upstream. Line-side terminals accept incoming power; load-side terminals extend protection to downstream devices. Press the TEST button monthly–the reset button should pop out, cutting power. If it doesn’t, replace the device immediately; nuisance tripping often indicates worn contacts or moisture ingress.
Specialized Circuits
US shower circuits require a dedicated 20A circuit with a GFCI breaker, not a standard receptacle. UK ring circuits use 32A MCBs with 2.5mm² conductors–connect spurs in a daisy chain, never exceeding 100m total loop length. Australian outlets (AS/NZS 3112) mandate active to the right pin, neutral left, earth bottom; reverse polarity trips RCDs. Always match local codes–CEE 7/5 (Schuko) and BS 1363 have incompatible pin configurations.
Tamper-resistant (TR) receptacles block insertion of single objects via internal shutters. Install these in child-accessible areas; test by inserting a plug–shutters should retract only with simultaneous blade insertion. For isolated ground outlets (orange triangle), run a separate ground path directly to the panel, bypassing all splices. Verify isolation with a megohmmeter–resistance between isolated ground and standard ground must exceed 10MΩ.
When extending a circuit, use the same gauge as the existing conductors–#12 AWG for 20A, #14 AWG for 15A. Splice inside UL-listed junction boxes only, using wire nuts or push-in connectors rated for the wire size (red for #12, yellow for #14). Secure boxes within 10mm of drywall; unused knockout plugs must be installed to prevent drafts and pests. Label all circuits at the panel–omit this step, and troubleshooting becomes a guessing game during outages.
Essential Gear for Electrical Receptacle Setup
Begin with a non-contact voltage detector–this handheld device identifies live circuits without direct contact, reducing shock risks. Choose models with audible and visual alerts, such as the Fluke 1AC-II or Klein NCVT-3, which detect voltages from 50V to 1000V. Test it on a known live source before use to confirm functionality.
A wire stripper with gauge markings is critical for clean, precise cuts. Avoid generic tools; opt for self-adjusting strippers like the IRWIN VISE-GRIP 2078300, which handle 10–22 AWG conductors. Ensure the tool has a crimping slot for securing connectors without damaging copper strands.
Use a torque screwdriver for terminal screws to meet NEC 2020 requirements (10–12 in-lbs for #14 copper). The Wiha 72392 series includes interchangeable bits calibrated to ±6% accuracy. Improper torque causes loose connections or wire damage, leading to overheating or arcing.
Insulated screwdrivers (1000V rated) prevent accidental shorts when working near live panels. Phoenix Contact’s VDE-certified models feature ergonomic handles and color-coded shafts for quick identification. Replace worn tips immediately–damaged insulation compromises safety.
| Tool/Material | Specification | Purpose |
|---|---|---|
| Multimeter | CAT III 600V (e.g., Extech EX330) | Voltage/continuity verification |
| Fish tape | Steel or nylon, 1/8″ width | Routing conductors through conduits |
| Junction box | 4″ square, 2-gang (PVC or metal) | Housing splices/connections |
| Wire nuts | Red (for 2–4 #12) or Tan (2–3 #14) | Secure splices without tape |
Romex clamps (NM cable connectors) secure non-metallic sheathed cable to boxes. Use metal-clad clamps for armored cable (BX). Match clamp size to cable gauge–oversized clamps fail to grip, risking pulled conductors. Locktite the set screw to prevent loosening.
Conduit benders require exact measurements for 90° or offset bends. A 1/2″ EMT bender costs ~$50, but investment pays off with precise jobs. Memorize the multiplier for 90° bends (e.g., 6x for 1/2″ EMT) to avoid trial-and-error waste. Mark bend points with a permanent marker before heating.
Grounding pigtails (bare or green #12) connect to devices and boxes. Verify ground continuity with a multimeter–ohms should read near zero. For older homes, test existing grounds; if absent, install a GFCI breaker or receptacle as a safety workaround.
Safety gear includes arc-rated gloves (ASTM D120, Class 2), flame-resistant clothing, and ANSI Z87.1-rated safety glasses. Rubber-soled boots (e.g., Thorogood 8″ lineman boots) provide insulation from accidental ground faults. Store tools in a voltage-rated pouch to prevent nicks or insulation damage.
Material Checklist for Flawless Execution
- #12 or #14 THHN wire (copper, 600V rated)
- Dedicated circuit breaker (15A or 20A)
- Device faceplates (decora or duplex style)
- Anti-short bushings (plastic or steel, for sharp conduit edges)
- Electrical tape (3M Super 33+, UV-resistant)
Avoid Romex rip-offs–use UL-listed cable with printed gauge markings to bypass inspector rejections. For underground runs, opt for UF-B cable rated for direct burial; THWN wire requires conduit. Label all cables with a P-touch printer for future troubleshooting.
How to Decipher Electrical Socket Schematics
Start by locating the grounding symbol–usually a green or bare wire icon with a downward-facing triangle or three parallel lines. This element links to the metallic grounding screw in the fixture, ensuring safety by diverting stray currents. Verify its path: it must connect directly to the grounding busbar in the panel without intermediate splices.
Identify the neutral conductor–denoted by silver screws, white insulation, or blue stripes in modern standards. Trace its route back to the circuit breaker’s neutral terminal. Confirm it mirrors the hot conductor’s gauge (e.g., 14 AWG for 15-amp systems) to prevent overheating. Misidentification risks neutral overload, which can melt insulation.
Examine the line conductor’s color-coding: black, red, or occasionally blue insulation signals the live path. Note its termination point–brass screws on the device or a dedicated wire nut in junction boxes. Check for polarity: the brass screw should align with the narrower slot in duplex sockets. Reverse polarity creates shock hazards even when switches appear off.
Analyze junction points where wires split, indicated by circles or dotted lines intersecting conductors. Each split requires a wire nut rated for the combined amperage (e.g., 15A nuts for 14-gauge wires). Strip insulation back precisely 5/8″ to ensure full engagement without exposed copper, which can arc under load. Verify torque specs: loose connections reach 140°F–enough to ignite nearby dust.
Cross-reference all conductors against the panel schedule. Labels like “Bath GFCI 20A” must match breakers sized for wire gauge (20A breaker for 12 AWG). Skipped labels risk tripped breakers or undersized wires carrying excess current. Measure continuity with a multimeter: infinite resistance between hot and grounding confirms no accidental shorts.

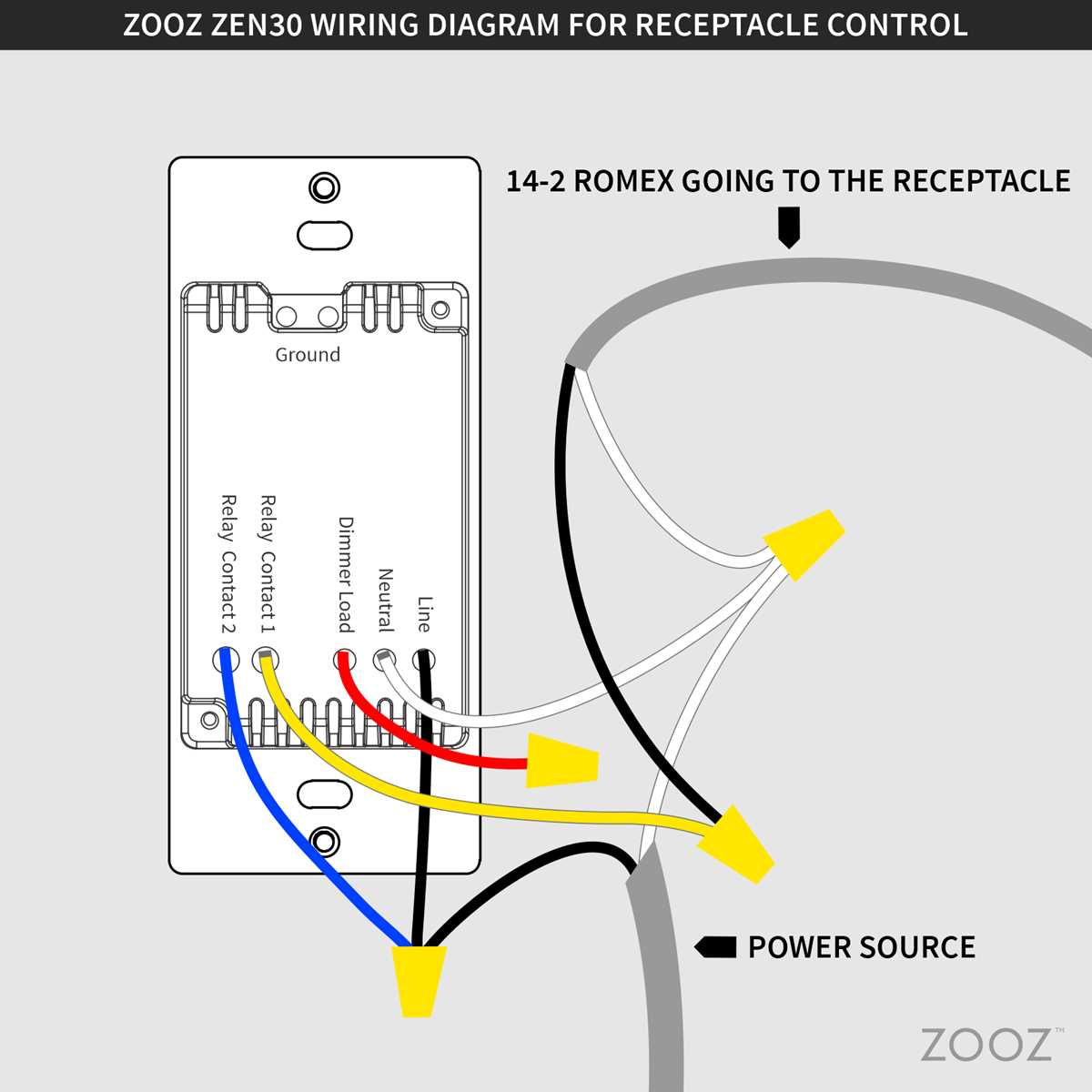

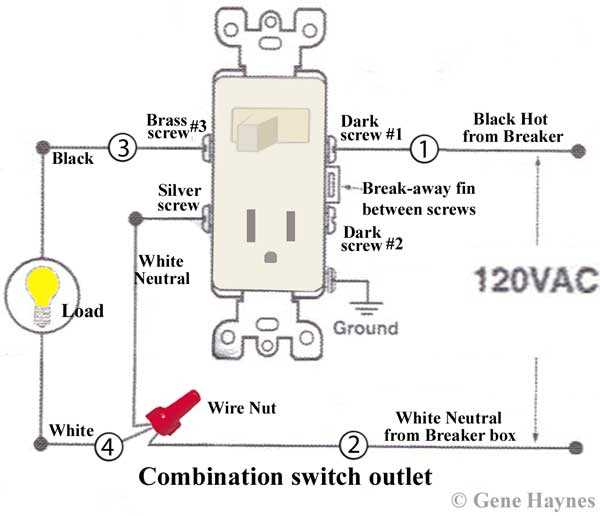

For switched sockets, follow the dashed line separating hot conductor sections. A red wire linking switches to the brass screw indicates a split tab removed between the two outlets–an intentional break allowing independent control. Confirm the switch aligns with the intended conductor: energizing the wrong leg leaves one socket permanently hot, violating NEC 404.2(C).
