How to Wire a Plug Step-by-Step Diagram with Color Coding Guide
For safe operation, ensure the cable strands match the terminal screws: brown to the live (L), blue to neutral (N), and green-yellow to earth (E). Strip insulation to expose 5–7 mm of bare wire–less risks poor contact, more may cause shorting. Tighten screws with 1 Nm torque; overtightening deforms copper, while undertightening leads to overheating.
Check polarity before sealing: reverse live and neutral can damage appliances with capacitors or motors. Use a multimeter on continuity mode–probe the earth pin and the metallic chassis of the device. A reading near 0 ohms confirms proper grounding. Anything above 0.5 ohms indicates high resistance; revisit connections.
Insulate terminals fully. Heat-shrink sleeves eliminate exposed strands better than electrical tape. Apply 600 V-rated materials–standard PVC tape degrades at 80°C, risking bare wire exposure. Trim excess sleeve length to 1–2 mm beyond the terminal to prevent melted insulation from pooling.
Test under load. Plug in a 60 W lamp or equivalent. If flickering occurs, the neutral connection is suspect. For inductive loads (e.g., motors), add a 0.1 µF capacitor across live and neutral to suppress interference–skip this and risk tripping residual-current devices.
How to Safely Assemble Electrical Connectors
Always verify the cable’s voltage rating matches the appliance’s requirements–UK standards mandate 230V for household sockets, while US systems use 120V. Misalignment risks overheating or short circuits.
Strip 15mm of insulation from each wire core, exposing just enough copper to fit securely under the terminal screws. Excessive bare wire invites accidental contact, while too little weakens the connection.
Twist strands of flexible cords clockwise before inserting them into terminals. This prevents fraying under the screw pressure, ensuring consistent conductivity over time.
Terminal Positioning for UK and EU Standards

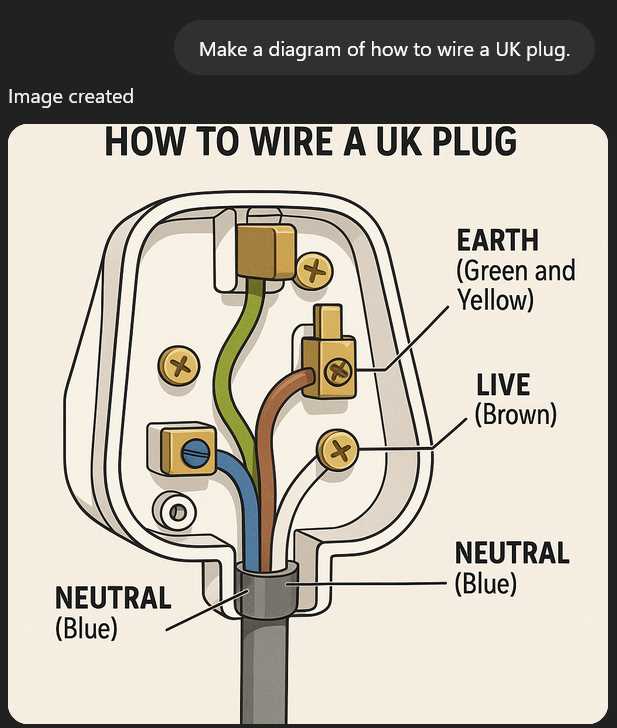

Identify the blue (neutral), brown (live), and green-yellow striped (earth) wires. UK and EU sockets require the earth terminal at the top, neutral to the left, and live to the right when facing the back of the outlet assembly.
Tighten terminal screws firmly–loose connections generate heat, degrading both the conductor and the outlet components. Use a flathead screwdriver to apply steady torque, but avoid over-tightening, which can strip threads.
Double-check for stray strands pressed against the casing or adjacent terminals. Even a single loose filament can create a short circuit or fire hazard.
Fold the excess cable length neatly behind the assembly, ensuring no sharp bends or kinks that could damage insulation. Securing it with a cable grip prevents internal strain when the connector is pulled.
Essential Equipment for Connecting a Power Connector
Use a rated screwdriver with an insulated handle–preferably a flat-head size 3 or 4–to avoid electrical hazards. A non-conductive tool with a comfortable grip reduces slippage when securing terminal screws. Check the voltage rating on the handle (at least 1000V) to ensure safety during live testing or accidental contact. Replace worn or cracked tools immediately; even minor damage compromises insulation.
Select heat-resistant cables with a cross-sectional area matching the appliance’s power draw: 1.25mm² for devices up to 13A, 1.5mm² for heavy-duty loads (e.g., heaters, power tools). Verify the outer sheath’s colour-coding–blue for neutral, brown for live, green/yellow for earth–to comply with regional standards. Strip wires precisely to 5-7mm of exposed copper using a dedicated wire cutter; avoid blade marks that weaken conductivity.
Precision Cutting and Measurement Tools
A wire stripping tool with adjustable notch sizes prevents nicked conductors, which can overheat and fail. For older installations, a multimeter confirms continuity and absence of voltage before handling–set to 200Ω for resistance checks or 600V AC for live detection. Include fine-grit sandpaper (120-220 grit) to clean corrosion from brass terminals, ensuring low-resistance connections.
Additional Safeguards
Non-slip insulated gloves (rated EN 60903) protect against shocks when working in tight spaces or damp conditions. A small LED torch with a focused beam improves visibility in junction boxes; avoid halogen lamps–they generate heat that can damage sensitive components. Keep spare fuse links (3A, 5A, 13A) on hand to test replacements in fused connectors, and use a cable tie to secure loose strands after assembly.
Step-by-Step Color Coding for Secure Electrical Connections
Identify the green-and-yellow striped conductor first–this is exclusively for grounding. Strip 6-8mm of insulation, twist the strands tightly, and secure it under the screw marked “Earth” or with a ♀ symbol. Misconnecting this will violate safety standards and risk electrical shock.
Locate the brown lead–this carries live current. Insert it into the terminal labeled “Live,” “Hot,” or marked red in some jurisdictions. Use a screwdriver to tighten the clamp until resistance increases sharply; loose connections cause arcing and overheating.
Attach the blue conductor next–this is the neutral return path. Secure it in the terminal opposite the live side, typically marked “Neutral” or colored blue. Verify the screw torque matches the live terminal to prevent voltage imbalance or flickering power.
Testing and Verification
Before sealing the assembly, use a multimeter in continuity mode. Probe between the earth pin and metal casing to confirm zero resistance–any reading above 0.5 ohms indicates poor grounding. Next, measure voltage between live and neutral terminals; expect 220-240V (AC) or 110-120V (AC) depending on regional standards. Deviations suggest incorrect connections or supply issues.
Recheck all terminals after reassembling the housing. Tug each conductor gently–proper termination should resist moderate force. For added protection, wrap a layer of electrical tape around the base to prevent accidental shorts when inserting into sockets.
Regional Variations and Exceptions
US configurations often use black (live), white (neutral), and green (earth). Swap brown for black and blue for white if working with North American components. Older installations might feature red (live) and black (neutral)–always cross-reference with local codes before proceeding.
Identifying and Preparing Electrical Connector Parts

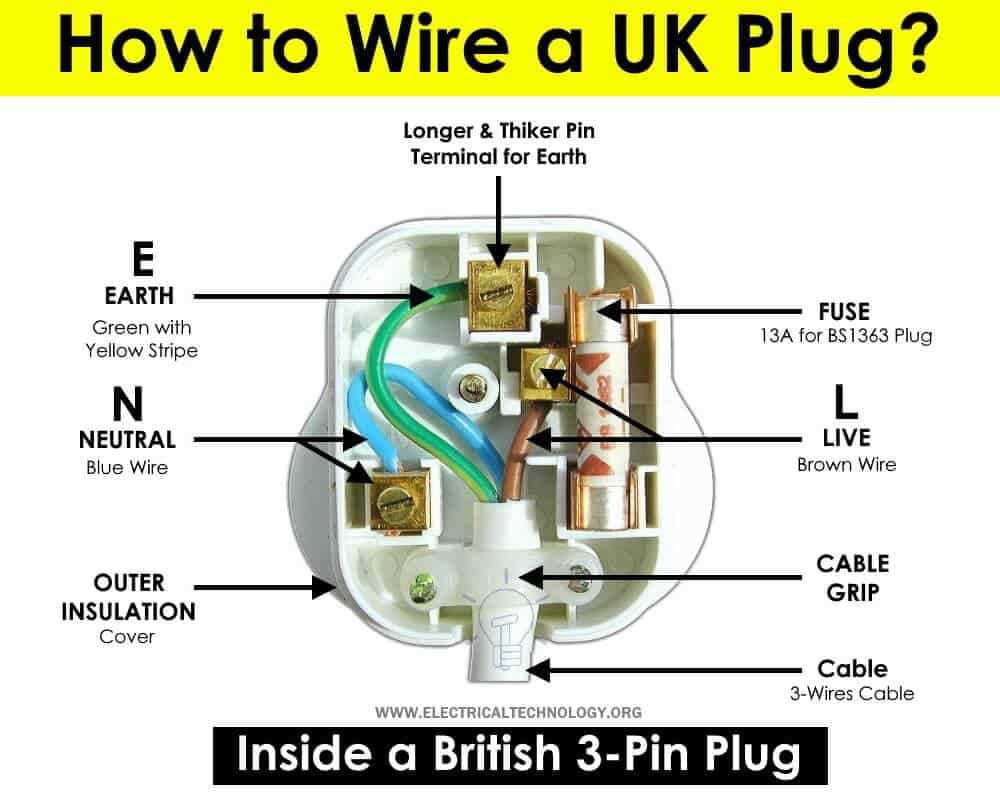

Examine the connector casing for manufacturer markings–most UK models comply with BS 1363 standards, featuring a fuse compartment and three distinct pins: live (brown), neutral (blue), and earth (green/yellow). Verify the cable grip is intact; a damaged grip risks wire slippage under tension, compromising stability. For non-standard connectors (e.g., IEC C14), note the pin configuration–common variants include two-blade designs without earth–but prioritize safety certifications over aesthetics when sourcing replacements.
| Colour Code | Terminal | Function | Voltage (UK) |
|---|---|---|---|
| Brown | Live | Carries current from source | 230V AC |
| Blue | Neutral | Completes circuit return | 0V (reference) |
| Green/Yellow | Earth | Fault current path | 0V (unless fault) |
Trim cable sheathing with a wire stripper calibrated to 5mm–excessive stripping exposes copper to oxygen, accelerating corrosion, while insufficient removal prevents secure terminal contact. For braided cables, twist strands clockwise after stripping to prevent fraying; stranded copper compresses more uniformly than solid core under screw terminals. Use needle-nose pliers to bend each wire at a 90° angle 3mm from the end–this creates a “hook” that locks under terminal screws, reducing vibration-induced loosening in high-use applications.
Match the fuse rating to the device’s current draw: 3A for small appliances (lamps, phone chargers), 13A for devices up to 3kW (kettles, heaters). Check the fuse’s glass for discoloration–a cloudy or blackened interior signals internal arcing and mandates replacement. For connectors without user-replaceable fuses, confirm the internal fuse meets the casing’s marked rating–mismatches (e.g., 5A fuse in a 13A housing) violate UK wiring regulations and create fire hazards.
Tighten terminal screws to 0.5Nm of torque–over-tightening cracks plastic housings, while under-tightening causes resistive heating at contact points. Test continuity with a multimeter: probe the earth pin and the cable’s earth wire; readings above 1Ω indicate corrosion or loose connections. For polarised connectors (e.g., IEC), ensure the live terminal aligns with the device’s inlet–reversed polarity negates fuse protection in some appliances, particularly those with ungrounded metal enclosures.
Safe Techniques for Stripping and Connecting Conductors
Measure the insulation removal length precisely–12mm for standard connectors, reducing to 9mm if terminals are compact. Use calibrated wire strippers with notches matching the conductor’s gauge (0.75mm²–1.5mm² for most appliances) to avoid nicking strands. Rotate the tool 360° once to score insulation uniformly, then pull straight without twisting to prevent fraying. For stranded cores, twist exposed threads clockwise lightly before insertion to maintain integrity.
- Select screw terminals marked for the correct amp rating (13A for UK fuses, 15A for US configurations).
- Insert stripped conductors fully–partial entry risks overheating loose strands under load.
- Tighten screws with a torque driver: 0.5Nm for brass terminals, 0.4Nm for plated steel–over-torquing cracks terminals.
- Avoid soldering flexible strands; heat weakens tensile strength, risking breakage at connection points.
- Secure outer sheaths in cord grips, clamping 8–10mm behind stripped sections to distribute strain evenly.
- Test continuity with a multimeter set to 200Ω range–readings above 5Ω indicate poor contact requiring rework.
