Understanding Electrical Schematics vs Wiring Diagrams Key Differences

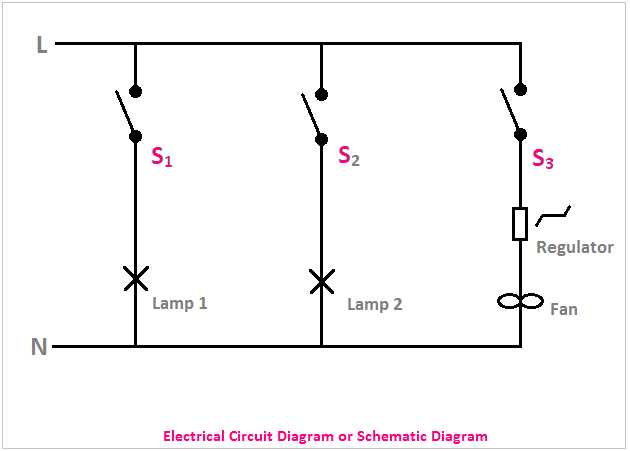

Begin by identifying the functional intent of your electrical layout. A schematic illustration represents components as symbols to show logical connections, prioritizing conceptual flow over physical placement. Use it to validate design logic, troubleshoot signal paths, or communicate system behavior to engineers. Key advantages include simplified representation of complex functions–relays, transistors, or integrated chips–and the ability to isolate subsystems without spatial constraints.

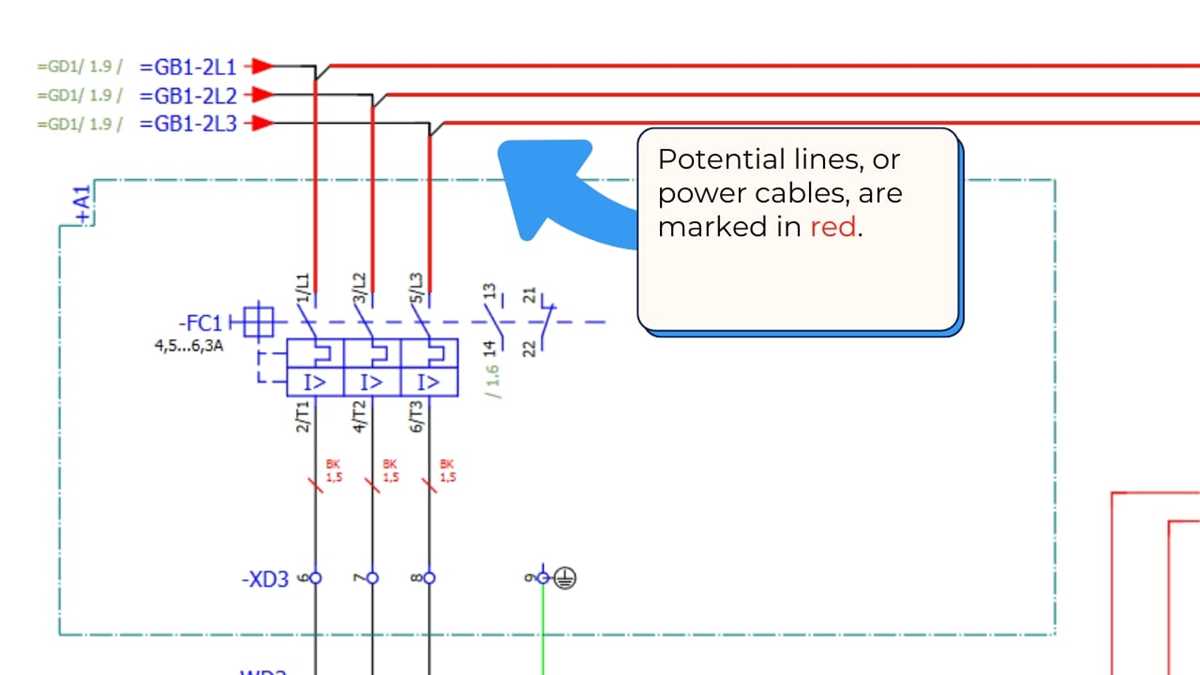

Switch to a physical connection chart when assembling or servicing hardware. This drawing maps exact terminal positions, wire gauges, connector types, and routing paths, ensuring correct installation. It eliminates guesswork during repairs by labeling color codes, fuse ratings, and ground points. For panel builders or field technicians, this format reduces errors in terminations and verifies compliance with safety standards like NEC or IEC.

Select the schematic illustration for prototyping or design reviews; opt for the physical connection chart during fabrication or maintenance. The former abstracts details to highlight functionality, while the latter anchors every wire to its physical endpoint. Confusing the two leads to wasted labor–replace a resistor in a schematic without updating the wiring chart, and the next technician may disconnect the wrong lead. Always cross-reference both documents before modifying live systems.

Tools like KiCad generate schematic illustrations, while AutoCAD Electrical produces physical connection charts. Export both from the same design file to maintain sync. For legacy systems, scan hand-drawn charts into vector formats, then overlay them with schematics in a CAD tool to spot inconsistencies. Color-code revisions–green for verified, red for pending–to track updates across teams.

Choosing the Right Schematic for Electrical Projects

Use a schematic representation when designing or troubleshooting functional logic–these abstract layouts show component relationships without physical routing constraints. Opt for a layout focused on symbols like resistors, transistors, or logic gates, connected by straight lines to illustrate signal flow. This format excels for engineers analyzing current paths, voltage drops, or signal integrity in complex systems like amplifiers or microcontroller designs.

For installation, repairs, or panel assembly, select a physical layout sketch instead–it maps exact terminal placements, cable lengths, and connector types. This practical drawing resembles the actual setup, including wire colors, terminal blocks, and conduit runs. Electricians rely on these to avoid misconnections in machinery, HVAC systems, or residential wiring, where precision prevents hazards like shorts or loose terminals.

Schematic representations omit spatial details, assuming ideal conditions–no bends, twists, or environmental factors. They’re ideal for theoretical analysis but fail to guide real-world placement. Conversely, physical layout sketches often exclude abstract details like ground planes or decoupling capacitors, focusing instead on measurable distances between junction boxes or switch locations for compliance with building codes.

When documenting for maintenance, combine both: annotate a schematic with reference points (“R3 connects to terminal 5 on the control board”) and supplement it with a physical sketch showing the board’s location in the panel. This dual approach reduces downtime during diagnostics, especially in industrial equipment where dozens of identical cables converge at a single motor starter.

For printed circuit boards, schematic tools like KiCad export netlists to auto-sync with PCB editors, but physical sketches remain indispensable for backplane wiring, where manual soldering or custom loom assemblies require exact pinouts and harness lengths. Always cross-verify both versions before energizing a system to ensure no disconnect exists between theoretical design and tangible builds.

Key Symbols in Schematic Layouts Versus Physical Connection Charts

Begin by memorizing resistor, capacitor, and inductor symbols in schematics–they follow standardized IEC or ANSI shapes (zigzag, parallel lines, or coiled lines). Physical connection charts often replace these with rectangular boxes or hexagons, adding terminal labels (e.g., “R1-1,” “C2-A”) instead of component-specific graphics. Always cross-reference the legend: schematics use arrows for current flow, while wiring plans rely on color codes (red/blue) or alphanumeric tags for wires. If a symbol appears abstract–like a dot for a junction in schematics–assume it’s a logical connection; in wiring layouts, dots signal physical solder or crimp points.

Switches and relays demand special attention. In schematic art, switches are simple toggles (open/closed paths) or momentary pushbuttons (a circle with a line). Wiring representations, however, show terminal blocks with numbered pins (e.g., “SW1-3,” “K1-5”) and often include mechanical linkages (dashed lines). For relays, schematics split coil and contacts into distinct symbols; wiring diagrams group them under a single rectangular outline with pin assignments–verify function by tracing labels, not visual icons.

Power sources clarify intent instantly. Batteries in schematics are paired parallel lines (long/short), while wiring art uses circular symbols with voltage ratings or color-filled rectangles labeled “VCC/GND.” For integrated circuits, schematics display pinout boxes with internal logic gates; wiring diagrams substitute DIP outlines with pin numbers–never trust shape alone: check adjacent text for pin functions or signal names. Ground symbols diverge equally–schematics use three descending lines or a triangle, wiring plans show chassis symbols or bare wire ends labeled “GND.”

How Schematic Layouts Map Functional Relationships

Draw logical blocks first–power sources, processors, or transducers–then connect them with straight lines. Avoid diagonal routes; horizontal and vertical traces improve readability. Label each connection point immediately after placement to prevent errors during review. Use standardized symbols (e.g., IEC 60617 or ANSI Y32.2) to ensure consistency across teams. Group related components in proximity; proximity in a schematic often mirrors physical PCB proximity.

Signal flow should progress left-to-right or top-down, following conventional engineering conventions. Highlight critical paths–clock signals, power rails–with thicker lines or distinct colors. Annotate tolerances and voltage levels beside each trace where applicable. For complex designs, split the layout into modular sub-sheets, linking them with hierarchical ports. This approach reduces cognitive load and speeds up debugging.

• Use net labels instead of direct connections for repeated signals (e.g., “VCC” or “GND”).
• Bypass capacitors should sit adjacent to their ICs in the schematic, not spatially distant.
• Ground symbols must face downward; power symbols should point upward for quick visual parsing.
• Avoid crossing lines; use dot indicators for valid junctions, not random overlaps.
• Incorporate test points for oscilloscope probes on high-speed or uncertain signal paths.

Handling Multi-Layer Functional Representations

Layered schematics demand clear demarcation. Assign distinct sheets for analog, digital, and power sections if the design exceeds 200 components. Number pages sequentially and reference parent-child relationships explicitly. For FPGA-based designs, replace gate-level details with black-box symbols; expand only during verification. Use bus notation (e.g., “DATA[7:0]”) to simplify multi-bit signal groupings. Colour-code busses for quick identification during schematic-to-PCB transitions.

Validate logical integrity before finalizing. Simulate the schematic using SPICE or digital simulators to catch floating nodes, incorrect polarities, or missing pull-ups. Export a netlist and cross-check it against the physical PCB constraints–pin counts, pinouts, and package types must align. Document any deviations between the schematic and intended firmware logic in an attached README or comments within the file. Reserve the schematic’s title block for revision history, not decorative elements.

Step-by-Step Approach to Interpreting Electrical Schematics

Locate the power source symbols first. Batteries, alternators, or mains connections appear as standardized icons–long/short lines for batteries, wavy lines for AC sources. Trace these to their first junction point, marking every fuse or breaker along the route. Fuses are typically rectangles with a diagonal line; breakers resemble switches. Record the ampere rating next to each for troubleshooting. Example: A 10A fuse between the battery and control module signals a potential failure point if current exceeds this value.

Identify component symbols systematically. Motors show as circles with “M,” resistors as zigzag lines, and lamps as circles with an “X” or filament symbol. Use a reference table for less common parts:

Symbol	Component	Common Variations
⏚	Ground	Chassis or earth ground
━━━━━	Wire	Dashed: switched; colored: red/black
┬─┐	Relay coil	Normally open/normally closed contacts
▯▯▯	Sensor	Variable resistance or voltage output

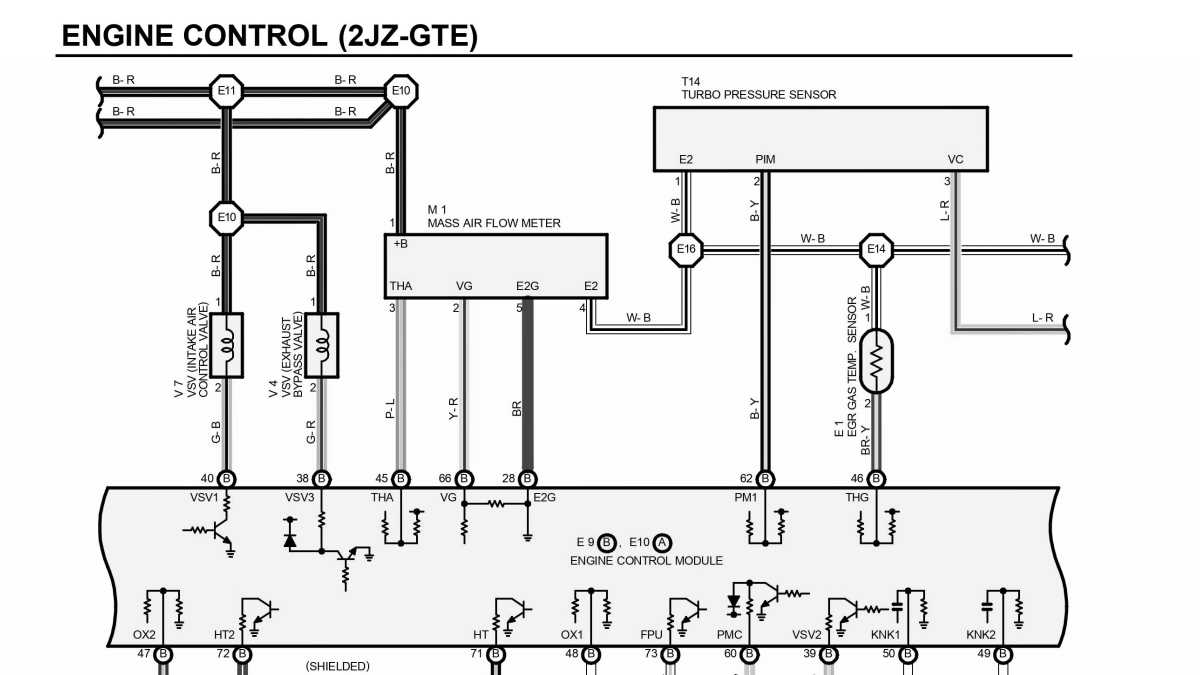

Follow wire colors and labels for continuity. Schematics denote wires by color codes–BK (black), RD (red), BU (blue)–with alphanumeric labels like “30” (battery hot) or “15” (ignition-switched). Cross-reference these with harness diagrams to find physical connectors. Pin numbers on multi-pin connectors appear next to each wire termination; verify these with a multimeter in continuity mode, probing from the schematic’s start to endpoint. Discrepancies indicate broken wires or faulty terminals.

Isolate Subsystems for Clarity

Split complex schematics into functional blocks: lighting, ignition, sensors. Label each section with highlighters or digital layers. For instance, a car’s lighting subsystem includes headlamps, relays, and stalk switches–separate these from the HVAC fan motor or fuel pump circuits. Compare connections against manufacturer specifications, noting voltage drops (typically
