Guide to Building and Understanding Digital Lighting Control Circuit Schematics

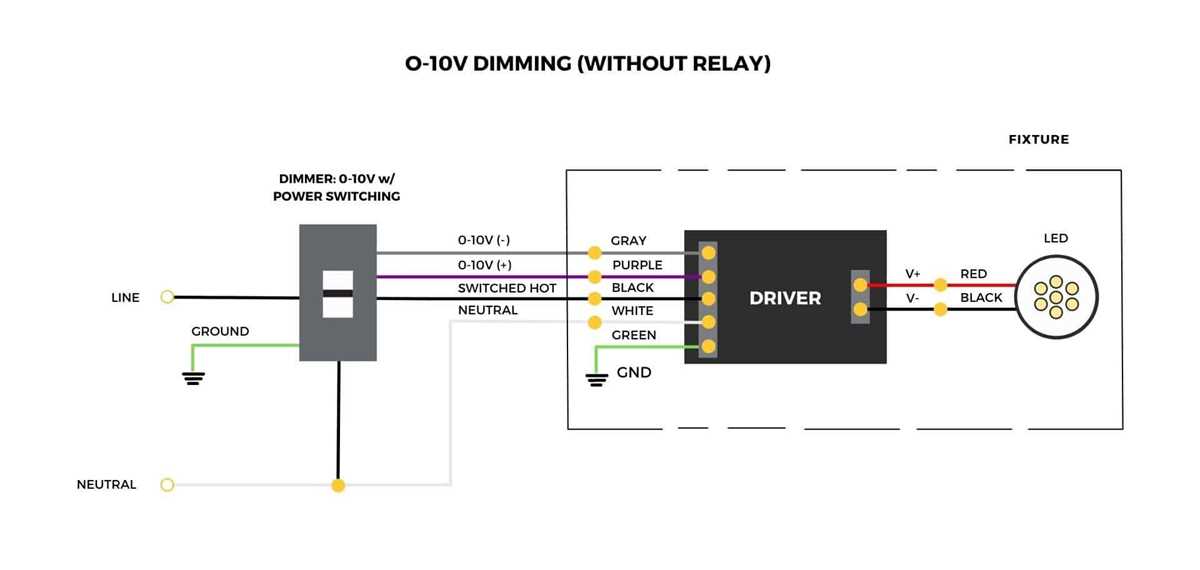

Start with a modular approach: split your circuit into power delivery, signal processing, and load switching blocks. Isolate each section using optocouplers or relays to prevent noise propagation between logic and high-current paths. For dimming, use pulse-width modulation (PWM) at frequencies above 800 Hz to avoid flicker–human eyes perceive anything below 500 Hz as unstable. Microcontrollers like STM32 or ESP32 offer built-in PWM generators, but verify their drive strength; pair them with logic-level MOSFETs (e.g., IRLZ44N) if controlling high-wattage LEDs or halogen banks.
Grounding is non-negotiable. Route a star ground from all subsystems back to a single point near the power supply to eliminate ground loops. For AC-powered setups, use galvanic isolation via transformers or isolated DC-DC converters (e.g., Traco TEN series) to meet safety standards like IEC 60950. Include transient voltage suppressors (TVS diodes) across inductive loads–motors or relays–to clamp voltage spikes that can fry microcontroller pins or corrupt memory. Test with an oscilloscope; spikes should not exceed 10% of the nominal voltage.
Select communication protocols based on range and speed. For short-range control (under 10 meters), employ I²C or SPI–fast and hardware-efficient. For longer distances, use RS-485 (differential signaling) with terminators at both ends to prevent reflections. For wireless setups, LoRaWAN suits low-data, long-range needs (kilometers), while Bluetooth Mesh handles dense, short-range networks. Always encrypt wireless links: AES-128 is the minimum for preventing replay attacks or unauthorized overrides.
Thermal management dictates longevity. Calculate junction temperatures for all semiconductors–LEDs, transistors, voltage regulators–using their datasheet θJA values and expected power dissipation. Heatsinks or forced airflow become mandatory if dissipation exceeds 1 W/cm². For dynamic loads, implement closed-loop temperature feedback with NTC thermistors or linear thermal sensors (e.g., LM35) to trigger shutdowns or throttle PWM before components overheat.
Power efficiency hinges on topology. Buck converters outperform linear regulators above 3.3 V, but introduce switching noise–add LC filters to smooth output. For multi-channel setups, use a single high-current buck converter followed by low-dropout regulators (LDOs) per channel instead of independent converters; this reduces quiescent current and simplifies EMI compliance. Always derate components: capacitors should handle 2× the expected ripple current, and MOSFETs should block 1.5× the maximum voltage.

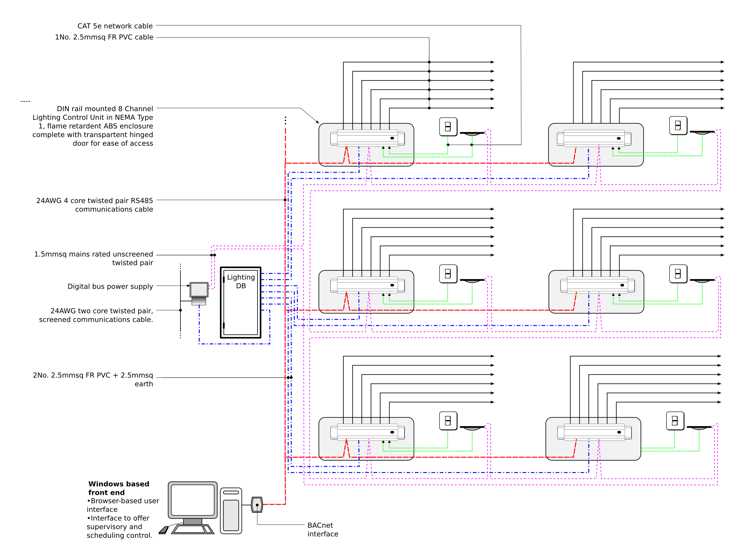

Automated Illumination Circuit Blueprint
Begin by segmenting the power distribution network into four isolated zones, each governed by a PWM-enabled microcontroller (e.g., STM32F103 or ESP32). Assign unique I2C addresses to each node (0x20–0x27) to prevent bus collisions, and ensure a 10kΩ pull-up resistor on SDA/SCL lines for reliable signal integrity. For high-current LED arrays (≤3A per channel), use MOSFET drivers (IRFZ44N) with optocouplers (PC817) to isolate logic-level signals from power surges. Route all ground connections to a single star point near the main DC supply to minimize voltage drops.
Critical components for real-time responsiveness:
- Current-sensing resistors (0.1Ω ±1%) on each LED string to trigger overcurrent protection at 110% of nominal load.
- Schottky diodes (1N5822) across inductive loads (e.g., relays) to suppress back EMF spikes >40V.
- Capacitive smoothing: 1000µF electrolytic + 0.1µF ceramic per 1A of load to stabilize flicker-prone drivers.
- Dedicated watchdog timer (e.g., MAX6373) to reset the system if the main loop hangs for >500ms.
Fault-Tolerant Wiring Layout
Use CAT6 solid-core cable for signal lines and 12 AWG silicone-jacketed wire for power delivery to reduce resistance to 2cm on the PCB, connecting them only at the power supply’s negative terminal. Implement a 3-tier error-handling hierarchy:
- Local recovery: Retry failed PWM adjustments up to 3 times within 20ms.
- Zone isolation: Cut power to affected circuits via solid-state relays if recovery fails.
- System reboot: Engage a hardware reset if ≥2 zones fault simultaneously.
Avoid daisy-chaining components; instead, use a radial branching topology to limit upstream failures. Test all connections with a 5V/1kHz pulse train before full deployment to verify latency
Key Components of a DMX512 Signal Distribution Framework
Begin by integrating a DMX512 console with at least 512 channels and support for RDM (Remote Device Management) for real-time diagnostics. Mid-range consoles like the Chauvet DJ DMX-Animo or Enttec DMX USB Pro offer reliable performance; avoid entry-level models lacking RDM as troubleshooting becomes inefficient. For larger setups, opt for consoles with dual universes, such as the MA Lighting grandMA3 onPC, to eliminate latency when controlling over 100 fixtures. Ensure the console’s output impedance matches the DMX line standard (120Ω) to prevent signal degradation.
Use shielded twisted pair (STP) cable with a minimum of 24 AWG copper conductors and 100% foil shielding to resist interference from power lines and RF noise. For runs exceeding 300 meters, introduce a DMX opto-isolator every 50–75 meters to preserve signal integrity–common models include the Luminex IS-DMX or Pathport Split-2. Avoid Cat5/6 cables unless specified by the manufacturer, as their impedance often deviates from the DMX-512 standard (35–150Ω), leading to data corruption. Ground the shield at one end only to prevent ground loops.
Critical Device Specifications
| Component | Minimum Specifications | Recommended Models |
|---|---|---|
| DMX Splitter | 1 input, 4+ isolated outputs; 250 kbps throughput | ENTTEC DMX Split, Swisson XMT-350 |
| Terminator | 120Ω resistor, 0.25W | Neutrik NADITBNC-F, generic 1/4W resistor |
| RDM Gateway | Dual DMX/RDM ports; USB/ethernet connectivity | ENTTEC ODE Mk2, City Theatrical RDM Gateway |
Prioritize fixtures with built-in DMX input/output loops to cascade signals without requiring additional splitters. High-amperage moving heads (e.g., Claypaky Sharpy) often include pass-through ports–verify their electrical isolation to prevent voltage spikes. For LED tape or low-voltage devices, use DMX decoders like the Chauvet ColorSTRIP or Mean Well LDD drivers with isolated inputs to avoid flicker caused by shared ground paths. Avoid chaining more than 32 fixtures per universe unless using buffered repeaters, as signal attenuation compounds with each device.
Implement network topology rules to prevent address conflicts: assign each universe a unique range (e.g., Universe 1: channels 1–256; Universe 2: channels 257–512) and document all fixture addresses in a spreadsheet with columns for patch, DMX start channel, and power consumption. Use a DMX tester like the Swisson XMT-120 to validate signal strength and detect failed channels in under 30 seconds–regular testing reduces troubleshooting time by 70%. For temporary installations, terminate every DMX line with a 120Ω resistor, even if the final fixture has a built-in terminator, to mitigate signal reflections.
Select power distribution units (PDUs) with per-circuit monitoring to prevent overloads that cause DMX glitches. Midtronics PA240 or Blue Sea Systems PDUs provide real-time current readings–avoid generic PDUs without surge protection, as voltage fluctuations corrupt pixel mapping in RGBW fixtures. Calculate total wattage before connecting fixtures: a 20A circuit at 120V supports ~2,400W; exceeding this risks tripping breakers or damaging controllers. Use PowerCON connectors for high-amperage moving lights to ensure secure connections under vibration or movement.
Step-by-Step Wiring for Art-Net to LED Fixture Integration
Begin with an Art-Net node supporting DMX512 over Ethernet, such as the Enttec ODE MK2 or DMXking eDMX1 Pro. Verify the node’s IP settings match your local subnet (e.g., 192.168.1.50 with subnet mask 255.255.255.0) to avoid conflicts. Connect the node directly to a gigabit-rated switch using a Cat6 cable–avoid hubs or Wi-Fi to eliminate latency.
Configure your lighting console (e.g., grandMA3, Chamsys MagicQ) to output Art-Net. Assign the target universe (e.g., Universe 1) to the node’s IP address within the console’s network settings. For LED fixtures with built-in Art-Net, like the Chauvet Maverick Silens 2 Profile or Robe T2, enable Art-Net mode via the fixture’s menu, setting the matching universe and IP range to align with the node.
Wire the fixtures using 5-pin XLR or etherCON cables for DMX output. Connect the Art-Net node’s DMX output to the first LED fixture’s input, then daisy-chain additional fixtures using a terminator (120Ω resistor) on the final unit’s output. For pixel-mapped LEDs (e.g., WS2812B strips), use a dedicated Art-Net decoder like the LumenRadio Mira or Advatek PixLite, connecting data lines to the fixture’s controller via twisted-pair cable (e.g., Belden 9841).
Test signal flow by activating a static cue at 50% intensity on the console. Use a DMX tester (e.g., Swisson XMT-120) to confirm data integrity at each connection point. If flickering occurs, check cable lengths–Art-Net supports up to 300m per segment, but reduce to 100m for high-refreshrate LED tape. Verify ground loops by disconnecting fixtures one at a time; remove power supplies sharing earth paths if interference persists.
Optimize performance by limiting Art-Net universes to 32 per node where possible–consoles like MA Lighting’s dot2 handle 64 universes efficiently, but exceeding this risks packet loss. For large installations, segment networks with VLANs and assign unique IP ranges (e.g., 192.168.2.x for rig sections). Document all IP assignments, universe mappings, and cable paths in a spreadsheet for troubleshooting; include MAC addresses of critical nodes for recovery.
