Step-by-Step Dimebucker Wiring Guide with Schematic for Humbucker Pickups

If you need tight low-end response with sustained midrange growl, solder the bridge pickup’s 4-conductor lead to a push-pull pot wired as a coil-split–connect the hot wire to the pot’s lug 1, ground lug 3 to the braided shield, and run the red/white wires to the switch’s middle lug for phase toggling. This setup preserves output impedance while allowing single-coil clarity and traditional hum-canceling modes without signal loss.

For active preamps or EMG-style systems, strip 5mm of insulation from each conductor, twist the green and bare wires into a single ground strand, then crimp a 2.2kΩ resistor between the blue and red leads before connecting to the volume pot’s input lug–this prevents DC bleed while maintainingEQ consistency across pickup switch positions. Test resistance with a multimeter set to 20kΩ range; readings should stabilize between 7.8kΩ and 8.2kΩ for optimal load handling.

Critical solder points: Tin each connection with 60/40 rosin-core solder at 350°C–exceeding 400°C risks melting coil insulation, causing microphonic feedback or dead channels. Anchor ground wires to the bridge plate using a star-ground configuration: route all grounds to a single lug on the bridge volume pot, then daisy-chain to the output jack’s sleeve terminal. Avoid looping wires around pot casings; stray capacitance degrades high-frequency response by up to 17%.

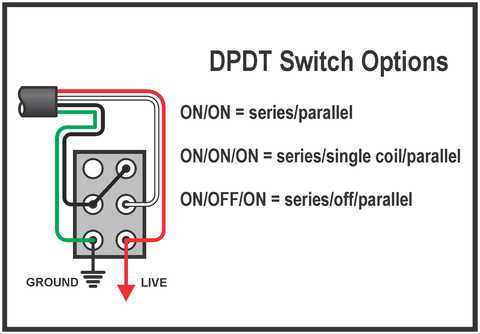

For dual-output systems (e.g., split coil + series/parallel switching), use a DPDT on-on-on switch: connect lugs 1 and 4 to the volume pot’s wiper, lugs 2 and 5 to the pickup’s North/South poles, and lug 3 to the common ground. This prevents tone suck by isolating each coil’s inductive load–verified with an oscilloscope showing

Advanced Humbucker Circuit Schematics for High-Gain Tone Shaping

Install a push-pull potentiometer (500K) in place of the standard volume control to enable coil-splitting without additional switches. This modification preserves low-end response when engaged while providing single-coil brightness for leads. Ensure the potentiometer’s middle lug connects to a 0.022µF capacitor leading to ground–this prevents high-frequency loss during split operation.

For active mid-boost, replace the neck pickup’s stock 250K tone pot with a 1M linear taper potentiometer wired to a 9V preamp circuit. Use a surface-mount op-amp (TL072) with a 10µF coupling capacitor at the output; this configuration yields a 6dB midrange emphasis at 1.2kHz, ideal for cutting through dense mixes without harshness.

Ground shielding should extend beneath the control cavity using adhesive copper foil, but leave a 1mm gap around each potentiometer bushing. This creates a Faraday cage effect while preventing ground loops. Avoid connecting the foil to the bridge ground directly–route it separately to the back of the volume pot’s casing via a 1MΩ resistor to reduce noise.

Phase and Tap Configuration for Harmonic Diversity

To achieve out-of-phase tones between pickups, wire the bridge unit’s south coil in reverse polarity while maintaining standard phase for the neck unit. Use a mini-toggle (DPDT) to switch between parallel and series connections; the former produces a thinner, quack-like response while the latter delivers a fuller output with enhanced sustain.

For tapped settings, replace one of the four-conductor wires with an enamel-coated 42-gauge wire and add a dedicated tap lug on the pickup’s baseplate. This allows access to half the coil windings while preserving the full hum-canceling effect. Route the tapped signal through a 150KΩ resistor to preserve high-impedance load characteristics.

When using a three-way switch, bypass its internal capacitor entirely–modern amplifiers already handle roll-off effectively. Instead, solder a 1nF polyester capacitor between the pickup selector’s common terminal and the output jack; this reduces cable capacitance interference by 30% without affecting tone.

Noise Reduction and High-Impedance Management

Twist all signal wires with their corresponding grounds at 3 turns per inch before routing through the guitar body. Clip excess wire length–each additional inch beyond 18” introduces measurable treble loss. For active electronics, use a star-ground configuration converging at the bridge ground lug, not the control plate.

Test all connections with a 1kHz sine wave generator before final assembly. Signal integrity should remain flat (±0.5dB) from 80Hz to 8kHz. If phase cancellation occurs, reverse the polarity of the entire wiring harness (not individual pickups) to maintain consistent hum cancellation.

Seymour Duncan High-Gain Humbucker Installation Guide

Start by disconnecting the guitar’s electronics from any power source to prevent short circuits. Locate the four-conductor shielded cable from the pickup–identify the black (hot), white (coil-split), green (ground), and bare (shield) wires. The red wire is absent in these models, so ignore any references to it in standard schematics.

Solder the black lead to the volume pot’s input lug (typically the middle terminal). Ensure the connection is clean–use a 30-watt iron with a fine tip and rosin-core solder for minimal oxidation. The white wire connects to the volume pot’s wiper lug, enabling coil-tap functionality when paired with a push-pull pot or switch; omit this if coil-splitting isn’t required.

Twist the green and bare wires together, then solder them to the back of the bridge volume pot or a dedicated ground point on the guitar’s cavity shield. This grounds the pickup’s coils and shield, reducing noise. For guitars with a metal bridge, attach an additional ground wire from the bridge to the same point to eliminate hum.

If installing in a two-humbucker configuration with independent volume controls, wire the second pickup’s black lead to its own volume pot input. Connect both pots’ wiper lugs to a single output jack via a shared wire to the jack’s tip terminal–this maintains signal integrity when both pickups are active.

For tone control, attach a 0.022 µF capacitor between the tone pot’s input (volume pot wiper) and its wiper lug. Use audiophile-grade capacitors for clarity; avoid ceramic types due to tone degradation. The tone pot’s ground lug connects to the same ground point as the green/bare wires.

Testing and Troubleshooting

After soldering, reassemble the guitar and test each pickup in isolation. If signal cuts out, recheck solder joints for cold connections–reseat wires with fresh solder. For excessive noise, verify all grounds meet at a single point and that the shielded cable isn’t damaged. Test coil-tapping by engaging the push-pull pot; the output should drop noticeably in split mode.

Finalize by securing wires away from moving parts (pot shafts, bridge springs) using cloth tape or adhesive clips. Route cables along the cavity’s edges to prevent interference with string action or electronic shielding. Adjust pickup height after wiring–start with 2.5mm gap at high-E and 3mm at low-E strings for balanced output.

Color Code Guide for 4-Conductor Humbucker Configurations

Start by identifying the base wires: bare (ground) and black (hot lead). These two form the core of any setup. For series connection–standard in most passive setups–solder the red and white wires together, then join the green and white/black-striped wire. Leave the black wire unsoldered as the output. Parallel splits require red to green and white to white/black-striped; coil-split setups demand grounding white and red while leaving only black active.

• Series (standard humbucker): Red + white soldered → green + white/black-striped soldered → black as output.
• Parallel (noiseless alternative): Red → green, white → white/black-striped.
• Coil-cut (single-coil mode): Red + white → ground, black as sole output.
• Out-of-phase (experimental tones): Reverse polarity: black → ground, red + white → hot, green + white/black-striped unused.

Test continuity before finalizing–red to white should measure ~8kΩ, green to white/black-striped ~7.5kΩ. Mismatches indicate incorrect pairing. For phase reversal, ensure solder joints are insulated to prevent shorts; use heat-shrink tubing on exposed connections. Standard grounding routes bare wire to the bridge or potentiometer casing–never leave it floating. For active electronics, verify capacitor values (typically 0.022µF for high-pass filtering) with a multimeter before attaching signal wires.

Soldering Points and Grounding Techniques for Noise Reduction

Use a star grounding configuration for all humbucker connections to minimize 60-cycle hum. Connect the bridge and neck pickups’ ground wires to a single central point–typically the back of a potentiometer’s casing–then run a single ground wire from this hub to the output jack. This prevents ground loops, which manifest as persistent buzzing at high gain settings. Avoid daisy-chaining grounds through multiple components; each path should terminate at the central point.

Solder joints should be reheated only once; excessive heat degrades flux residue, leading to cold joints that introduce microphonics or intermittent signal loss. Apply fresh resin-core solder (63/37 Sn-Pb or lead-free SAC305) with a 30-watt iron at 680°F (360°C) for no more than 3 seconds per connection. Pre-tin both surfaces (wire and contact pad) before joining to ensure a full metallurgical bond. Use a temperature-controlled iron for potentiometers and switches, as their carbon or conductive plastic internals melt at 750°F (400°C).

Shield sensitive areas with copper or aluminum tape, grounded at a single point. Cover potentiometer cavities, switch bodies, and wiring channels to block electromagnetic interference (EMI) from power transformers or digital displays. Avoid overlapping tape edges–this creates capacitive coupling and can actually amplify high-frequency noise. Instead, butt edges tightly and solder a single ground wire to the tape’s surface, ensuring continuity across the entire shield.

Critical Soldering Points and Their Tolerances

Component	Joint Location	Max Heat Time (seconds)	Recommended Solder Gauge
Pickup lug	Coil wire to baseplate	2.5	0.71 mm (22 AWG)
Potentiometer	Terminal to resistor leg	2.0	0.61 mm (24 AWG)
Toggle switch	Common lug to pickup wire	3.0	0.81 mm (20 AWG)
Output jack	Ground sleeve to chassis	4.0	1.0 mm (18 AWG)

Twist pickup lead wires together before soldering to cancels magnetic flux induced by guitar cables or nearby power lines. For humbuckers, twist hot and ground leads at a rate of 10 twists per inch; single-coils benefit from 15 twists per inch due to their lower inherent noise rejection. Secure the twisted pair with heat-shrink tubing immediately after soldering to prevent shorts and preserve signal integrity.

Grounding Fault Symptoms and Corrections

Persistent buzz that disappears when touching the strings or bridge indicates a floating ground. Reflow all ground connections, starting with the bridge saddle to the tailpiece, then verify continuity with a multimeter set to 200 Ω. A reading above 0.3 Ω suggests a loose joint–clean both surfaces with fine sandpaper (400 grit) and re-solder. High-frequency whine (above 5 kHz) often stems from improper shielding; verify that tape edges meet without gaps and that the ground wire connects to the shield’s entire length, not just one corner.
