Complete Wiring Guide for Direct Online Starter Circuit
Begin with a three-phase motor rated for 400V or lower–verify the nameplate. Use a 230V-rated coil if the control voltage matches single-phase supply to prevent overheating. Insert thermal overload relays in series with the main contacts; adjust the trip current to 110% of the motor’s full-load amperage. Connect the start-stop pushbuttons in series: the normally open start button bridges the coil circuit, while the normally closed stop button lies in line to interrupt power when pressed.
For motors above 7.5 kW, integrate a bypass contactor to shunt the starting resistor or reactor after 3-5 seconds–use a timer relay set to 0.2-second accuracy. The bypass reduces voltage drop on the line and minimizes heat buildup in the resistor bank. Wire the auxiliary contacts of the main contactor to seal the circuit after the start button is released, preventing nuisance drops during transient dips. Ground the metal enclosure through a 6 mm² copper conductor directly to the main earth busbar.
Label each wire with heat-shrink sleeves showing phase (L1, L2, L3), neutral (N), and protective earth (PE). Use crimp connectors rated for 1.5 times the maximum current; avoid solder for high-vibration installations. Test continuity with a megohmmeter before energizing–readings below 0.5 MΩ indicate moisture ingress or damaged insulation. For variable frequency drives, isolate the motor circuit with a 1 mH choke to suppress harmonic currents that can trip the overload relays prematurely.
Install a manual disconnector upstream of the contactor for lockout-tagout procedures–position it within 2 m of the operator station. Mount arc suppression capacitors across the coil terminals to extend contact life; 0.1 µF/400V polypropylene capacitors reduce voltage spikes to below 1 kV. If ambient temperature exceeds 40°C, derate the overload relay by 5% per 10°C above nominal. For outdoor installations, enclose the assembly in a NEMA 4X-rated box with a gasketed cover and conduit entries sealed with weatherproof compound.

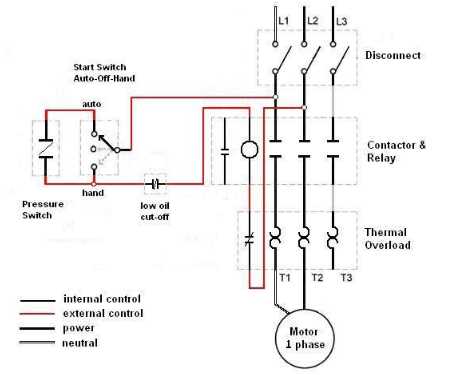

Primary Wiring Layout for Instant Motor Activation

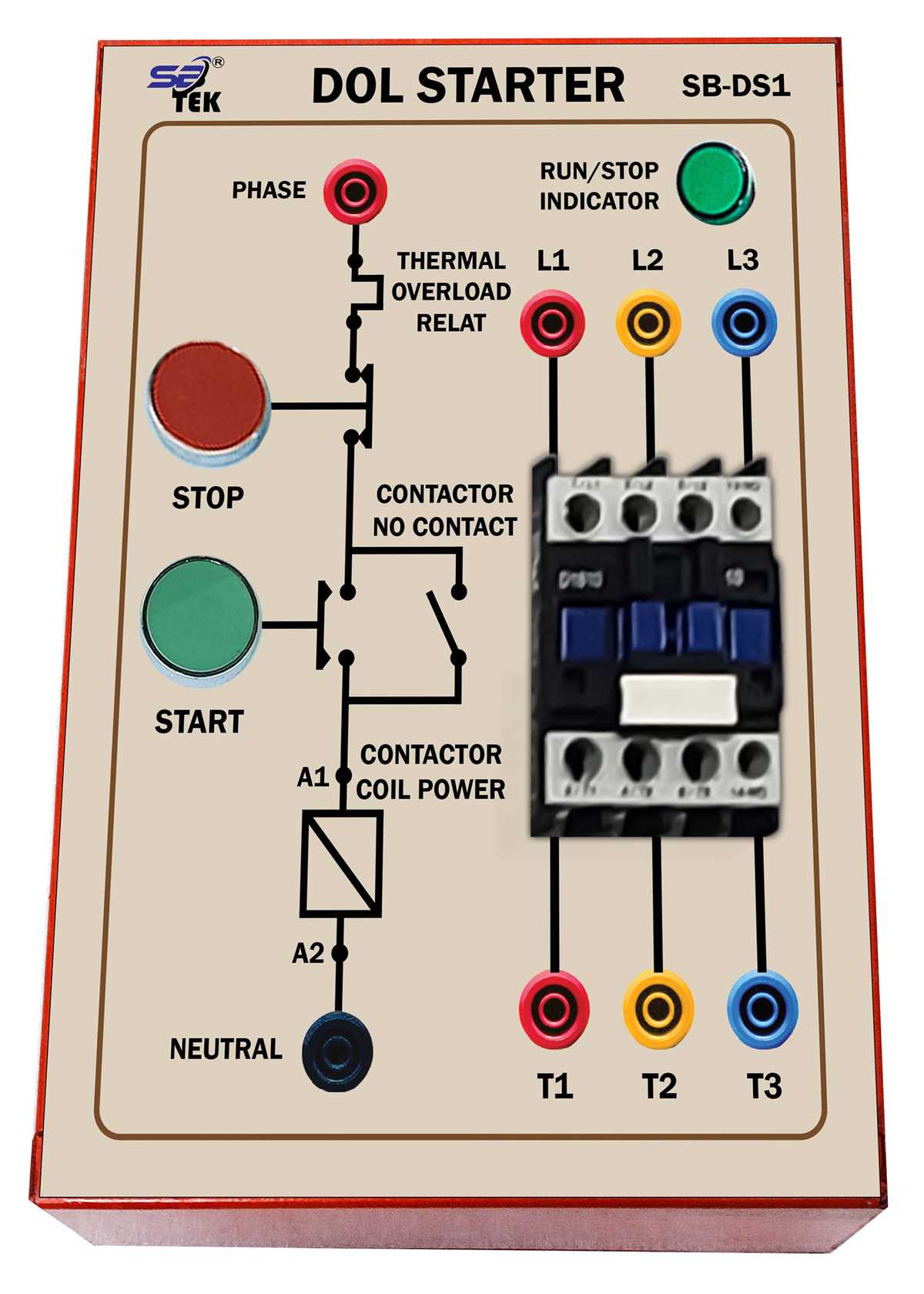

Ensure the main contactor coil links to the control circuit via a normally open start pushbutton and a holding contact, bypassing the button after initial press. Use a 24V AC coil for industrial setups or 12V DC for mobile applications, matching the power source to avoid burnout. Incorporate a thermal overload relay rated at 110% of the motor’s full-load current; position it in series with the motor winding leads, not the supply lines, to detect overheating accurately.
Critical components: A fuse or circuit breaker sized at 300% of the motor’s rated current protects against short circuits–never omit this for motors above 0.5 HP. Connect the auxiliary NO contact of the main contactor in parallel with the start button to maintain the circuit after release. For three-phase systems, wire all three phases through the contactor terminals L1-T1, L2-T2, L3-T3 without crossing polarity; reverse rotation results if L1 and L2 swap.
Additional Circuit Safeguards
Integrate a stop pushbutton with NC contacts in series with the coil circuit–locate it upstream of the start button for immediate disconnection. For overvoltage protection, place a varistor (e.g., 470V for 380V systems) across the coil terminals. Label every wire with heat-shrink tubing: phase conductors (L1, L2, L3) in black, neutral (if applicable) in blue, and ground in green-yellow. Test continuity before powering on–measure zero resistance across closed contactor contacts and infinite resistance across open contacts.
Core Elements of a Full-Voltage Activation Control Network
Select contactors with AC-3 duty rating for motors up to 7.5 kW and AC-4 for frequent inching; IEC 60947-4-1 specifies 1.5× rated current endurance for 600,000 electrical cycles under AC-3, rising to 1×10^6 cycles for properly derated units handling repetitive starts.
Oversize thermal overload relays by 10–15 % above motor nameplate FLA to prevent nuisance tripping during stalled-rotor conditions; Class 10A relays trip at 600 % FLA in 10 s, Class 5 in 4 s, Class 30 in 20 s–match the curve to rotor inertia and start time derived from locked-rotor torque.
Wire control circuits at 24 VAC or 110 VDC if ambient exceeds 50 °C, reducing copper losses by 60 % over 400 VAC loops; use PELV or SELV insulation ratings per IEC 60364-4-41, keeping conductor cross-section ≥1.5 mm² for ≤50 m runs to limit voltage drop below 3 %.
Mount fuse holders immediately upstream of each overload heater, sized at 250–300 % motor FLA for gG/gL types, or use 400 % FLA aR (fast-acting) fuses for motors prone to phase loss, ensuring selective coordination with downstream circuit breakers.
Incorporate a 3-pole, NO auxiliary contact block rated AC-15/250 V on the main contactor; its early-make contact prevents coil de-energization during voltage sags to 70 % nominal, while the late-break contact permits safe PLC interlock programming without race conditions.
For motors exceeding 37 kW, add surge capacitors (0.1 µF/400 V) across each coil terminal to quench inductive voltage spikes up to 1.5 kV, verified via oscilloscope during turn-off at 1.1× rated voltage; film capacitors surpass electrolytic in MTBF by 4× under frequent switching.
Position start-stop pushbuttons within 1 m of the motor or operator station, using 16 mm diameter illuminated units for high-visibility feedback; NO contacts must comply with IEC 60947-5-1 Category 1, ensuring mechanical life ≥3×10^6 operations at 600 V/10 A resistive load.
Label every conductor with heat-shrink sleeves showing loop number, motor tag, and phase (L1, L2, L3); use colour codes: brown/black/grey for line conductors, blue for neutral, green/yellow striped for protective earth–this reduces troubleshooting time by 40 % in field audits.
Step-by-Step Wiring Procedure for an Across-the-Line Motor Controller
Disconnect the main power supply before initiating any connections. Verify the voltage rating of the motor matches the line voltage–common values include 230V, 400V, or 460V. Use a multimeter to confirm zero voltage across all terminals after disconnecting the circuit breaker.
Connect the three-phase input cables (L1, L2, L3) to the incoming terminals of the contactor’s main contacts. Tighten terminal screws to 12–15 Nm torque to prevent loosening under vibration. Route the motor leads (U, V, W) from the contactor’s output terminals directly to the motor terminals–avoid splicing or intermediate junctions to minimize voltage drop.
- Attach the overload relay’s input terminals to the contactor’s output side. Set the current rating on the relay to 110–120% of the motor’s full-load current. Example: For a 10A motor, adjust the relay to 11–12A.
- Wire the control circuit: Connect the start pushbutton (NO) in series with the contactor’s coil and the stop pushbutton (NC). Ensure the coil voltage (typically 24V, 110V, or 230V) matches the control transformer’s output.
- Install a 2A fuse in the control circuit line to protect against short circuits. Use 1.5 mm² stranded copper wire for control wiring; 2.5 mm² for motor leads.
After completing connections, recheck all terminations for correct polarity and secure fastening. Energize the circuit, then press the start button–observe the contactor’s closure and listen for silent operation. If the motor fails to start, verify the coil voltage with a multimeter and inspect the overload relay for tripped conditions. For motors above 5HP, consider adding a pre-charge resistor or soft-start module to limit inrush current.
Common Faults and Troubleshooting in Full-Voltage Activation Circuits
Check thermal overload relay settings first. Factory defaults often misalign with motor ratings. For 10 HP motors, set class 10 relays between 16-20A; verify with a clamp meter during startup. If tripping persists, inspect relay contacts for pitting–clean with 1200-grit sandpaper or replace if resistance exceeds 0.5Ω.
Overheating contactors typically signal coil failure. Measure coil voltage: 230VAC ±10% is standard. If voltage sags below 207V, the coil weakens, causing sticky contacts. Test with a multimeter–resistance should match manufacturer specs (e.g., 24V coil: ~150Ω). Replace if readings deviate by ±15%.
Loose terminal connections generate heat, warping busbars. Tighten M6 bolts to 6-8 Nm torque using a calibrated torque wrench. Use thermal imaging to spot hotspots–normal operating temperature should not exceed 80°C. Silver-plated terminals oxidize faster; clean biannually with contact cleaner.
Voltage Drop Issues
Verify supply voltage at the motor terminal block. A 5% drop from mains to load is tolerable. For 400V systems, measure: if
| Motor Power (HP) | Min. Cable Cross-Section (mm²) | Max. Permissible Drop (V) |
|---|---|---|
| 5 | 4 | 10 |
| 15 | 16 | 8 |
| 30 | 35 | 6 |
Phase imbalance above 2% triggers nuisance tripping. Use a 3-phase analyzer to log voltage symmetry. Swap any two incoming phases if imbalance exceeds 1.5%–this redistributes current evenly across contactor poles.
Arcing at main contacts erodes surfaces over time. Replace worn contacts when pitting depth exceeds 1mm. For heavy-duty cycles (≥20 starts/hour), upgrade to AC3-rated contactors with Cu+Ag alloy plates. Apply dielectric grease to contacts during reassembly to prevent moisture ingress.
Control Circuit Failures
Miswired pushbuttons cause erratic operation. Perform a continuity test: NO contacts should read 0Ω when pressed; NC contacts should open. If resistance fluctuates, replace the pushbutton–spring fatigue is irreversible. For 24VDC control circuits, ensure flyback diodes are employed across relay coils to suppress voltage spikes.
Power factor correction capacitors degrade, increasing inrush current. Measure capacitor ESR with an LCR meter: replace if readings exceed 10Ω. For 7.5kW motors, pair with 25kVAR capacitors–matching is critical to avoid resonance. Insulate capacitor terminals with heat-shrink tubing to prevent accidental shorts during maintenance.
