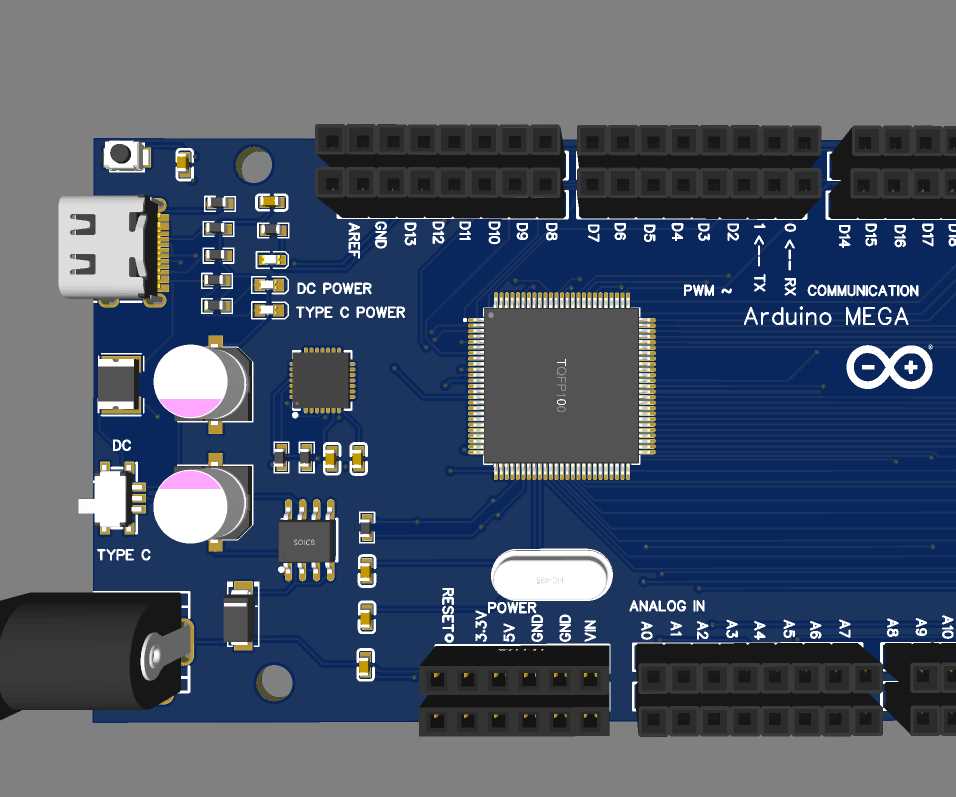

Step-by-Step Guide to Building Your Own Arduino-Compatible Circuit Board
Start with an ATmega328P-PU as the core–it delivers native support for 16 MHz operation and consumes under 1 mA in active mode. Order components in bulk: 10 kΩ resistors, 22 pF capacitors, and a 16 MHz crystal oscillator to avoid delays. Layout the power rails first: use a 7805 regulator to step down 12 V to 5 V with a 10 µF input capacitor and 1 µF output capacitor for stability.
Route the reset line through a 10 kΩ pull-up resistor and add a momentary switch for manual reset. Connect pins 9 and 10 (PB6/PB7) to the crystal, then tie the capacitors to ground. Keep traces under 2 cm to prevent signal degradation. Flash bootloader via ISP header–align pins SCK, MISO, MOSI, RESET–and verify with an AVRDUDE command using -c usbtiny -p m328p -U flash:w:bootloader.hex.
For serial communication, attach TX (PD1) and RX (PD0) to a USB-to-TTL converter with 0.1 µF capacitors on both lines. Test transmission at 57600 baud before deploying sketches. Isolate analog inputs with 1 kΩ resistors to protect against voltage spikes. Use a single-sided copper-clad board (FR-4, 1 oz thickness) and etch with ferric chloride for 10–15 minutes at 40°C.
Validate each connection with a multimeter in continuity mode before applying power. Measure 5 V ±0.2 V at the microcontroller’s power pins. If flashing fails, check ISP clock speed–set to 125 kHz for reliable programming. Finalize the design by adding a polyfuse (500 mA) in series with the USB power line to prevent short-circuit damage.
Build Your Own Microcontroller Schematic: Key Components and Design Tips
Start with an ATmega328P-PU microcontroller as the core. Choose the 28-pin DIP package for easier prototyping on breadboards or perfboards. Connect pin 1 (PC6/RESET) to a 10kΩ pull-up resistor leading to VCC, then add a momentary switch between RESET and GND for manual resets. Avoid using electrolytic capacitors near the reset pin–ceramic 0.1µF types work best to filter noise.
Power regulation requires a 7805 linear regulator for stable 5V output. Input voltage should range between 7-12V DC; exceed 12V risks overheating the regulator. Place a 10µF electrolytic capacitor on both input and output sides of the regulator to smooth voltage fluctuations. For low-power projects, replace the 7805 with an AMS1117-5.0 SMD regulator to save space and improve efficiency.
Connect a 16MHz crystal oscillator between pins 9 (XTAL1) and 10 (XTAL2) with two 22pF ceramic capacitors to ground. Ensure the crystal’s load capacitance matches the capacitors’ value–adjust to 18pF if using a watch crystal for lower power consumption. Keep oscillator traces short to minimize interference; route them away from high-current paths like motor drivers.
- Include a 10kΩ pull-up resistor on pin 28 (PC5/SCL) if using I²C communication.
- Add a 1kΩ resistor in series with any LED connected to output pins to prevent excessive current draw.
- Use a Schottky diode (1N5817) on the input power line to protect against reverse polarity.
- For serial communication, link the TX (pin 3) and RX (pin 2) pins to a USB-to-TTL converter if programming via bootloader.
Troubleshooting Common Issues
If the system fails to initialize, verify the oscillator circuit with a frequency counter. A missing or misaligned crystal will cause the microcontroller to hang. Check for solder bridges on IC pins–use a multimeter in continuity mode to detect shorts. Ensure the power supply delivers at least 50mA; insufficient current causes erratic behavior.
- Brownouts during operation? Add a 47µF capacitor across VCC and GND near the IC.
- Programming errors? Confirm the bootloader matches the fuse settings (e.g., ATmega328P with 16MHz external crystal).
- Unstable ADC readings? Decouple the AREF pin with a 0.1µF capacitor to ground.
- Serial communication issues? Invert TX/RX lines–the pinout on converters varies by manufacturer.
For surface-mount designs, replace through-hole components with equivalent SMD parts (e.g., 1206-package resistors, 0805 capacitors). Use a ground plane on the PCB to reduce noise; separate analog and digital ground traces near the power source. Label all pins clearly–silkscreen text saves debugging time later. Test each subsystem independently (power, clock, GPIO) before integrating peripherals.
Selecting Core Components for a Custom Microcontroller Platform
Choose an MCU based on compute needs: ATmega328P for low-complexity applications (16 MHz, 2KB RAM, 32KB flash), SAMD21 for mid-range (48 MHz, 32KB RAM, 256KB flash), or ESP32 for wireless-capable projects (240 MHz, 520KB RAM, dual-core). Verify package compatibility–QFN and TQFP simplify manual soldering while BGA suits automated assembly. Prioritize power: ATmega328P draws 0.2 mA active vs. ESP32’s 80 mA; add a 3.3V/5V regulator (AP2112K or LM1117) if exceeding MCU’s built-in LDO limits.
| Component | Key Parameters | Recommended Models | Critical Considerations |
|---|---|---|---|
| Primary Processor | Clock speed, flash, RAM, peripherals | ATmega328P, SAM D21, ESP32-S | Bypass capacitors (0.1 µF) adjacent to VCC/GND pins |
| Voltage Regulator | Input range, output current, dropout | AP2112K (300 mA), LT1763 (500 mA) | Thermal pad for >100 mA loads; calculate heat dissipation at max current |
| Crystal Oscillator | Frequency stability, load capacitance | 16 MHz HC-49/US (ATmega), 32.768 kHz tuning fork (RTC) | Place within 1 cm of MCU; match loading capacitors (±10%) to crystal specs |
| Reset Circuit | Debounce time, logic levels | MAX809T (3.08V threshold), momentary SPST | Decouple with 0.1 µF; avoid floating reset pins |
Integrate decoupling capacitors (100 nF ceramic) on every power pin–place within 2 mm of the MCU. For noise-sensitive designs, add a ferrite bead (BLM18PG) between analog and digital supplies. Opt for a 32.768 kHz crystal (Citizen CFS-206) if RTC precision is required; pair with 12.5 pF loading caps. Verify JTAG/SWD pads for programming–avoid exposing these unless debugging is planned. Use Schottky diodes (BAT54) near USB ports to prevent backfeeding into VCC during power-off states.
Step-by-Step Schematic Design for ATmega328P-Based Custom Hardware
Begin by placing the ATmega328P microcontroller at the center of your layout tool. Connect pins 7 (VCC) and 20 (AVCC) to a 5V regulated supply, ensuring a 0.1µF bypass capacitor sits within 2mm of each pin to suppress transient noise. Ground pins 8 and 22 directly to a common star point, avoiding daisy-chained connections that introduce ground loops. Include a 10kΩ pull-up resistor on pin 1 (RESET) to prevent spurious resets during operation.
- Oscillator network: Attach a 16MHz crystal between pins 9 (XTAL1) and 10 (XTAL2) with two 22pF load capacitors to ground. Verify oscillation with an oscilloscope probe (use 10x setting) before proceeding–unstable clock sources cause erratic behavior.
- Power filtering: Add a 10µF electrolytic capacitor across the supply rails near the microcontroller to stabilize voltage under load fluctuations.
- Serial interface: Route pin 2 (RXD) and pin 3 (TXD) to a 6-pin header, including a 1kΩ series resistor on each line to limit current during accidental shorts to external devices.
- ISP header: Dedicate 2×3 pins for programming, mapping pins 17 (MOSI), 18 (MISO), 19 (SCK), 1 (RESET), 7 (VCC), and 8 (GND). Keep traces under 10mm to minimize inductance.
- Optional brown-out: Place a 4.3V Zener diode on VCC with a 10kΩ resistor to ground to clamp voltage sags below the ATmega328P’s minimum operating threshold.
Validate the schematic by exporting netlist and running ERC checks for floating inputs, unconnected ports, and power rail conflicts. Use manufacturer-recommended footprint libraries to avoid pinout mismatches during PCB transfer.
Power Supply Options and Voltage Regulation for Custom Microcontroller Builds
Use a 7805 linear regulator for simplicity when stability matters more than efficiency. It requires only an input capacitor (0.33µF) and output capacitor (0.1µF) for basic operation, tolerates input voltages up to 35V, and delivers a steady 5V with a dropout of 2V. For input currents above 500mA, attach a heatsink (at least 15°C/W) to prevent thermal shutdown. Avoid paralleling 7805 regulators–load sharing is unreliable without active balancing.
Switching Regulators for Higher Efficiency
Replace linear regulators with an MP2307 buck converter module to cut power loss by 40-60%. Configure the module for 5V output by adjusting the onboard potentiometer; measure output with a multimeter while turning the screw until reaching 5.0V (±2%). Input voltage range spans 4.75V–23V, though efficiency peaks at 12V input (92%). Add a 22µF ceramic capacitor (X5R/X7R) across the input and output terminals to suppress ripple below 30mVpp. Keep inductor wires short–lengths over 10mm increase EMI.
USB power adapters rated at 5V/2A provide plug-and-play convenience for portable setups. Verify adapter ripple with an oscilloscope–acceptable levels stay under 100mVpp. For battery-powered projects, pair a single-cell Li-ion battery (3.7V nominal) with an MCP1640 boost converter. Set output to 5V via a 1% 499kΩ feedback resistor; efficiency reaches 95% at 100mA loads. Avoid charging Li-ion cells directly from USB without a dedicated charger IC–improper current limiting risks overheating.
For applications needing 3.3V, an AMS1117-3.3 LDO is robust but inefficient. Dropout voltage is 1.3V, so input must exceed 4.6V; output capacitors require 22µF tantalum or 10µF ceramic for stability. If quiescent current is critical (below 1mA), replace LDOs with a TLV70033: dropout falls to 200mV, and quiescent current drops to 3.2µA. Always place decoupling capacitors (0.1µF) within 2mm of the microcontroller’s power pins–longer traces introduce inductance that disrupts transient response.
