Complete Guide to Magnetek Motor Wiring Schematics for Troubleshooting

Begin by locating the terminal block on the drive assembly–typically marked with L1, L2, L3 for incoming power and T1, T2, T3 for output to the load. Verify the voltage rating on the unit’s nameplate; most models operate at 230V or 460V, three-phase, but miswiring risks immediate damage. Disconnect all power sources before exposing any internal components, including capacitors, which may retain lethal charge even when offline.

For single-phase configurations, connect L1 (hot) to the designated input terminal and L2 (neutral) to the corresponding point, ensuring the ground wire is secured to the chassis. Reverse polarity or loose grounds will trigger fault codes F2, F5, or OL, often mistaken for mechanical failure. Use a multimeter to confirm continuity between terminals–readings should align with the schematic’s resistance values, usually 20–100 ohms across windings.

Torque all connections to 10–12 in-lbs for #10 AWG wire; overtightening strips threads, while under-torquing causes arcing. Bridge the U, V, W outputs if regenerative braking is required, but omit this step for standard operation–incorrect bridging leads to overcurrent trips (code OC-1). For encoder feedback, match the A+, A-, B+, B-, Z+, Z- signals precisely; phase reversal causes erratic speed control or runaway conditions.

Test the system in jog mode before full operation. Start with 10 Hz and monitor for smooth acceleration–jerky motion indicates incorrect parameter P0.1 (acceleration time) or encoder misalignment. If the drive faults at startup, check for ground leakage (>5 mA) or improper shielding on long cable runs (>50 ft). Reset faults by cycling power, but recurrent trips require inspecting the IGBT module for thermal degradation or snubber circuit failure.

For multiple-motor setups, isolate each drive with individual contactors–shared power circuits cause voltage sag and nuisance trips. Label all cables at both ends; standard color-coding (black/red/blue for phases, green for ground) prevents cross-connections. If modifying an existing installation, document changes directly on the schematic–undocumented alterations are the primary cause of prolonged troubleshooting.

Connecting Your Electrical Drive: Key Schematics and Best Practices

Always verify voltage compatibility before making connections. Most 48-frame drives require a single-phase 120V or 230V supply, while 56-frame units typically handle three-phase 208-240V inputs. Check the nameplate for exact ratings–mismatches can damage windings or reduce efficiency by up to 15%.

Use shielded cable for all power leads longer than 6 feet. Ground the shield at one end only to prevent ground loops, which can introduce noise visible as erratic speed fluctuations or overheating in the control circuit. AWG 14 wire suffices for 120V applications, but step up to AWG 12 for 230V to maintain safe current carry.

Terminal Block Layout and Labeling

The main control board includes three primary terminal clusters: L (line), T (load), and U-V-W (for brushless DC variants). Connect L1 and L2 to your power source, ensuring polarity matches the schematic–reversing these may cause clockwise rotation instead of intended counter-clockwise. For three-phase variants, add L3; omit it for single-phase by installing a jumper between L2 and L3.

T1 and T2 terminate at the driven equipment. Use crimp connectors rated for 20% above the expected current–standard 18-22 AWG connectors fail under sustained loads over 10A. For dual-voltage drives, a selector switch toggles between series (low) and parallel (high) winding configurations; improper setting risks overheating the auxiliary coil.

Capacitor placement varies: start capacitors (400-600 µF) connect across T1 and the auxiliary winding terminal, while run capacitors (200-300 µF) sit between the auxiliary and T2. Replace electrolytic models every 3,000 hours–degraded capacitance causes sluggish acceleration and 20% higher startup amperage draw. Non-polarized polypropylene types last longer but require reflow soldering if removed.

Troubleshooting Without Schematic Access

If speed drifts, measure resistance between U-V-W terminals: 2-5 ohms per phase indicates healthy windings; below 1 ohm suggests a short, above 20 ohms signals an open circuit. Disconnect all leads before testing to avoid false readings from ancillary components. For thermal overload, relay clicks but no rotation typically points to a tripped breaker or faulty centrifugal switch–clean contacts with 600-grit sandpaper and reapply dielectric grease.

When replacing switches or relays, match both amperage and form factor. A 10A microswitch won’t handle a 15A load, even if it fits the bracket. Store spares in static-shielded bags; MOSFET gates fail from 5V ESD exposure, causing silent operation despite correct input signals.

Step-by-Step Guide to Identifying Drive Unit Connection Points

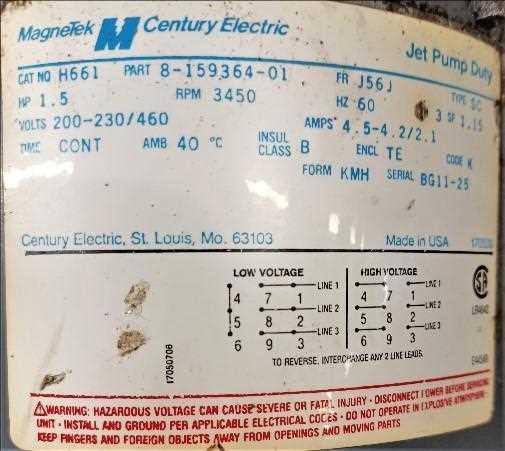

Locate the manufacturer’s data plate secured to the housing–this aluminum or steel tag lists critical specifications, including terminal designations. Typical labels follow NEMA or IEC conventions: T1-T2-T3 for three-phase units, L1-L2 for single-phase, or U-V-W in European models. Cross-reference these markings with the schematic if present, as some manufacturers invert sequences (e.g., T3-T2-T1) to denote reversed rotation.

For capacitor-start induction designs, note the auxiliary winding terminals: Centrifugal switch (CS) and Capacitor lead (C). The CS point connects to a mechanical or solid-state switch that disengages the auxiliary coil at ~75-80% of operating speed. Verify polarity if the unit includes a run capacitor–reversing C and main winding (M) wires causes erratic torque or failure to start. Use a multimeter in continuity mode to trace circuits from the data plate to the actual lugs if labels are obscured.

Brush-type units feature distinct connection arrays: Armature (A1-A2), Field (F1-F2), and Series (S1-S2) for compound excitation. DC units often omit F terminals if shunt-wound; A leads are then higher gauge. Measure resistance between pairs: field coils typically read 50-200 ohms, armature circuits 0.1-5 ohms. Document each reading–discrepancies indicate shorted turns or open circuits requiring replacement before energizing.

Split-phase units omit capacitors but include Start (S) and Run (R) terminals. The start winding has thinner wire and higher resistance (~5-15 ohms) than run (~1-5 ohms). Bridging momentary-start relays to S requires precise timing–prolonged engagement burns the coil. Match terminal screws to color-coded conductors: black (L1), red (L2), blue (start), white (neutral), green (ground). Confirm absence of 120V across start winding after spin-up; leakage here risks pitting.

For VFD-compatible units, locate PE (protective earth) and shield/cable drain terminals–these must connect to chassis ground, not neutral. Inverter-driven models typically use U/V/W format without T designations; verify phase alignment with an oscilloscope before full voltage application. Thermal overloads nest in separate enclosures marked 95-96; reset only after cooling below trip threshold (~130°C for Class F insulation).

Solving Frequent Electrical Problems in Industrial Drive Systems

Check voltage at the input terminals using a multimeter set to AC mode. For 230V systems, readings should be within ±10% of nominal value; 460V units tolerate ±5%. If deviations exceed these limits, inspect the power source, breakers, and contactors. Replace any damaged hardware before proceeding.

• Phase imbalance: Measure across L1-L2, L2-L3, L3-L1. Differences above 2% indicate potential issues with the supply or internal connections.
• Overheating contacts: Verify all terminals are torqued to manufacturer specifications (typically 15-20 lb-in for copper conductors).
• Erratic behavior: Test capacitors with an LCR meter. Values should match labeled capacitance within ±5%. Replace if outside tolerance.

Isolating Control Circuit Faults

Start troubleshooting by disconnecting auxiliary components. Jumper across limit switches and relays one at a time while observing drive response. Note which bypass eliminates the fault. For PLC-controlled units:

1. Verify 24VDC supply at the control transformer secondary.
2. Check signal cables for continuity. Shielded twisted pairs should show less than 0.5Ω resistance per meter.
3. Test discrete inputs with a known voltage source. Healthy inputs typically sink 8-20mA at 24VDC.

Inspect printed circuit boards for discoloration, bulging capacitors, or corrosion. Clean oxidized contacts with isopropyl alcohol and a fiberglass brush. Apply conformal coating to repaired boards operating in humid environments. For 5V logic circuits, ensure proper grounding–common earth resistance should measure under 0.1Ω to chassis ground.

Resolving Thermal Protection Tripping

Measure winding resistance between phases with a megohmmeter. Healthy windings show balanced values within 3% of each other. For a 10HP 4-pole unit, typical readings range 0.2-0.5Ω. Excessive resistance indicates:

• Loose connections: Re-crimp terminals using a hydraulic crimper for AWG 6-10 conductors.
• Broken conductors: Inspect flexible cables for fraying at stress points.
• Internal shorts: Perform a surge test with a growler if balanced resistance shows no obvious faults.

Ambient temperature affects thermal trips. Install auxiliary cooling if ambient exceeds 40°C. For enclosed units, ensure clearance matches NEC Article 430 requirements. Verify thermal overloads are sized per NEC Table 430.250–typically 125% of nameplate current for continuous duty.
