Step-by-Step Guide to Creating Custom Circuit Diagrams at Home

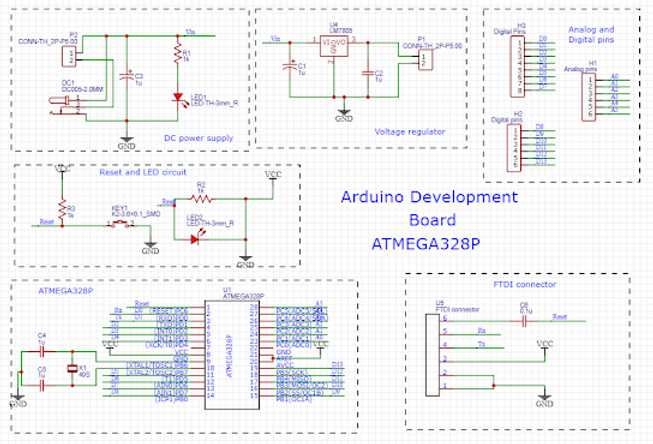

Start with a clear block layout. Break down the project into functional sections–power supply, microcontroller, sensors, actuators, and communication interfaces. Sketch each block on paper or use a simple tool like KiCad, Fritzing, or Tinkercad Circuits before diving into details. This prevents overcomplicating the design early and helps spot missing components. For example, if the circuit drives a motor, mark power requirements (e.g., 12V, 2A) next to the motor block immediately.

Use standardized symbols for each part: resistors (zigzag lines), capacitors (parallel lines), transistors (arrowed lines), and ICs (rectangles with pins). Avoid inventing your own–confusion will cost hours later. Label every component with values (e.g., R1 10kΩ, C3 100µF) and pin numbers (e.g., U1 pin 4 for VCC). If unsure, cross-check with datasheets–most manufacturers provide reference designs that include verified layouts.

Trace signal flow with arrows. A single line represents a connection, but clarify direction where needed (e.g., input → output). For complex routes, use net labels (e.g., CLK, GND) instead of drawing messy intersecting lines. Assign unique names to nets–avoid generic labels like “wire1”–to prevent errors during troubleshooting. Tools like EasyEDA auto-generate netlists from hand-drawn plans, simplifying later PCB design.

Simulate before prototyping. LTspice (free) or Proteus (paid) can verify logic, timing, and power delivery. Load a sample schematic–e.g., an op-amp amplifier with 1kHz signal–and check voltage swings. If the output clips or drifts, adjust resistor/capacitor values in the diagram before ordering parts. For digital circuits, ensure pull-up resistors (1k–10kΩ) on open-drain outputs and decoupling capacitors (0.1µF) near IC power pins.

Test the plan with real hardware. Build a breadboard version, then compare measurements to the diagram. If a 5V output drops to 3.3V, revisit the power section–check regulator dropout voltage (e.g., LM7805 requires 2V headroom). Log changes directly on the plan, not scrap paper. Use colored pens: red for corrections, blue for confirmed values. Once validated, transfer the revised version to a digital tool for final documentation.

Archive the final plan as a PDF and editable file (e.g., .sch, .brd). Include a bill of materials: part numbers (NE555P, not just “timer IC”), quantities, and suppliers. Add a short notes section–e.g., “R7: Replace with 1% tolerance for precision.” Store versions in a cloud folder (Google Drive, GitHub) with dates. Future modifications start from this reference, not memory or guesswork.

Building Your Own Circuit Blueprint: A Hands-On Guide

Start with exact component values before sketching anything. Use a multimeter to verify resistors, capacitors, and inductors–especially if salvaged. A 1kΩ resistor might measure 980Ω due to tolerance; note deviations on paper first. This prevents cascading errors in voltage dividers or filter networks.

Simplify power rails by labeling every node. Color-code VCC (red), GND (black), and signal paths (blue) with markers or digital layers. Confusion between analog and digital ground–even just once–can cause hours of debugging in mixed-signal designs. Reserve green for debugging points like test pads.

Adopt grid-based drafting for precision. Graph paper (5mm squares) works for quick sketches; millimeter paper improves IC pin alignment. For microcontrollers, align pins flush to the grid–misaligned traces waste PCB space and complicate routing later. Use a straightedge for connections longer than 3cm.

Break complex circuits into functional blocks. A power supply section should occupy its own quarter-page, separated by dashed lines. Label inputs/outputs with arrows and component functions: “C3 (10µF) – ripple filter,” not just “C3.” This forces clarity and avoids ambiguity when revisiting the design months later.

Verify connections with ohm mode continuity checks. Before finalizing, probe each net with probes–listen for the beep. Inconsistent traces (e.g., unintended shorts between adjacent microcontroller pins) become obvious quickly. Store a printed copy alongside your layout for reference during assembly.

Error-Prone Pitfalls to Avoid

Never omit decoupling capacitors. Every IC, especially micros and op-amps, requires a 0.1µF ceramic cap

Beware parasitic components in high-frequency designs. A 10cm trace acts as a 20nH inductor at 1MHz, distorting square waves. Keep clock lines (100MHz), use co-planar waveguides with controlled impedance. Measure trace widths with a caliper: 0.25mm for signals, 1mm for power.

Document every modification. If swapping a transistor footprint (e.g., TO-92 to SOT-23), redraw the symbol immediately. Unmarked changes cause mismatches between the diagram and PCB layout, leading to rework. Use version numbers in the filename: “amplifier_v2.pdf.”

Tools That Save Time

Use thermal relief pads for GND fills on copper layers. These small cross-shaped connections prevent thermal isolation during soldering while maintaining low impedance. Generate them automatically in KiCad’s footprint editor by selecting “thermal spokes” under pad properties.

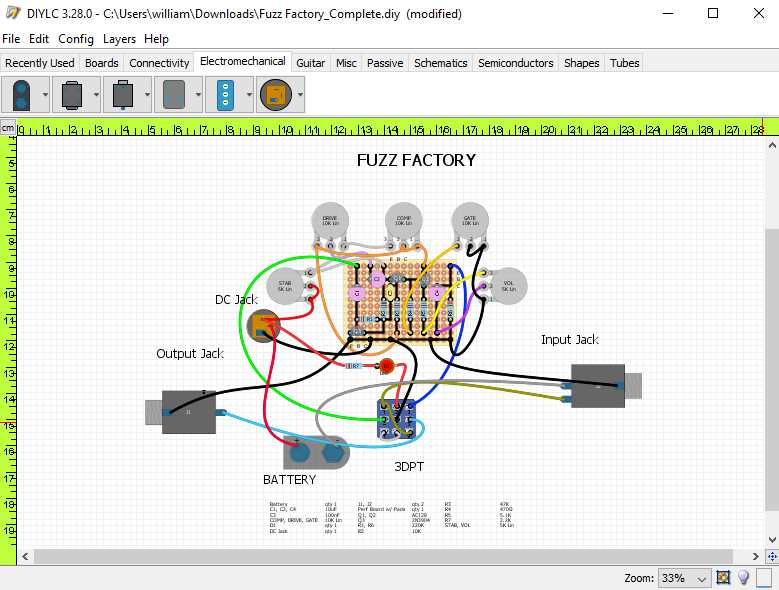

Selecting Optimal Software for Circuit Drafting

Begin with KiCad if open-source solutions suit your workflow. Its built-in component libraries cover 80% of common electronic parts, eliminating manual symbol creation. The integrated PCB layout module synchronizes changes between drafts and physical designs automatically. Recent updates added real-time design rule checks, reducing debugging time by 30%. Cross-platform compatibility ensures team consistency across Windows, macOS, and Linux.

Tool	Best For	Learning Curve	Cost
KiCad	Open-source projects	Moderate	Free
Altium Designer	Professional multi-layer boards	Steep	$4,000/year
Eagle	Quick prototypes	Low	$600/year
EasyEDA	Browser-based collaboration	Very low	Free tier

For precision-critical projects, Altium Designer handles 16+ copper layers with native 3D visualization. The active BOM feature auto-updates component suppliers and pricing during drafting. Native support for STEP models ensures mechanical integration prevents last-minute redesigns. Recent versions improved differential pair routing algorithms, cutting high-speed design iterations by 40%. Cloud-based components allow remote teams to work on identical files without version conflicts.

Consider EasyEDA when cloud collaboration is mandatory. Its browser-based interface requires no local installation, enabling instant team access. Integrated LCSC component library links directly to JLCPCB’s assembly service, skipping separate Gerber file generation. The simplified UI reduces onboarding time for non-engineers to under 2 hours, while still supporting advanced features like hierarchical sheets and SPICE simulation. Version control through Git eliminates manual file naming conventions.

Step-by-Step Process for Building an Electronic Blueprint

Select a focused purpose for your layout: Define the exact function–power supply, signal amplification, sensor interfacing–before placing components. List input/output requirements (voltage, current, frequency ranges) to narrow component choices. For example, a 5V-to-3.3V regulator needs precise resistor values (e.g., 1.2kΩ and 1.8kΩ for TL431) to avoid thermal drift. Sketch a block representation first, grouping related elements (e.g., microcontroller + crystal oscillator) to simplify tracing later.

Follow this sequence for accuracy:

• Pick a tool with schematic capture (KiCad, Eagle, or LTspice) and set grid spacing to 0.1″ for through-hole parts.
• Place major elements in logical flow order: power sources → active components (ICs, transistors) → passive elements (resistors, capacitors) → connectors.
• Label nets explicitly (e.g., VCC_3V3, GND_ANALOG) to prevent cross-talk; use prefixes like R_ or C_ for passive identifiers.
• Route critical paths first–clock signals, high-current traces–using 0.05″ width; keep differential pairs parallel with ≤5mm length mismatch.
• Add decoupling capacitors (100nF X7R) within 2mm of IC power pins; place bulk caps (10µF tantalum) at board edges for distributed stability.
• Verify connections with Design Rule Checks (DRC); test net continuity by exporting a netlist and auditing parasitic inductance in SPICE.
• Document component values, tolerances, and supplier part numbers (e.g., R3 1kΩ ±1% 0805 Vishay CRCW08051K00FKEA) directly on the diagram.

Critical Pitfalls to Avoid

1. Ground loops: Separate analog/digital returns; star-connect grounds at a single low-impedance point.
2. Missing flyback diodes: Add 1N4007 across inductive loads (relays) to clamp voltage spikes exceeding 50V.
3. Incorrect footprint assignments: Cross-check package dimensions (e.g., 0603 vs 0805) against manufacturer datasheets.
4. Signal reflections: Terminate high-speed traces (>20MHz) with series resistors (22Ω–100Ω) at source ends.

Critical Errors to Sidestep in Circuit Blueprint Creation

Neglecting component polarity ranks as the most frequent blunder. Electrolytic capacitors, diodes, and ICs require precise orientation to function. A reversed LED may survive brief testing, but misaligned voltage regulators or transistors will fail immediately–typically burning traces or adjacent parts. Verify datasheets before placement, and mark polarity on both the layout and physical board. For connectors, ensure pin 1 matches across mating surfaces; a 2mm misalignment can destroy communication lines.

Overlooking trace width calculations leads to overheating or voltage drops. Copper thickness (typically 1oz or 2oz) directly impacts current capacity: 0.3mm traces handle ~1A on 1oz copper, while 1mm traces support ~3A. Use calculators like Saturn PCB Toolkit to factor in temperature rise and ambient conditions. Ignoring these parameters risks traces acting as fuses under load, especially in high-current paths like power rails or motor drivers. Additionally, maintain clearance–minimum 0.2mm between traces–to prevent arcing at voltages above 30V.

Skipping ground plane integration invites noise and instability. A solid ground plane reduces EMI, stabilizes reference voltages, and simplifies debugging. Avoid daisy-chaining grounds; instead, use a star topology for sensitive circuits like amplifiers or RF modules. For mixed-signal designs, separate analog and digital grounds, connecting them at a single point near the power source. Poor grounding manifests as erratic behavior, hum in audio circuits, or inaccurate sensor readings–symptoms often mistaken for component failure.
