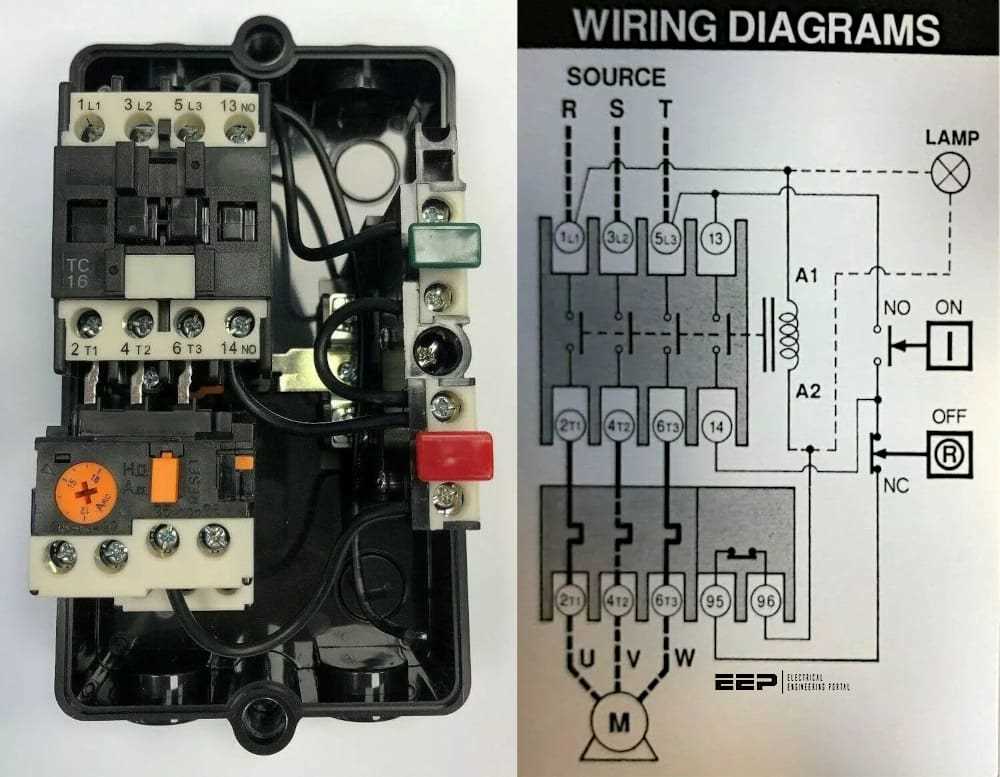

Understanding Direct Online Starter Circuit Diagrams Step by Step Guide

Begin by verifying the thermal overload relay setting matches the motor’s full-load current (FLC)–use the manufacturer’s nameplate data as the baseline. A mismatch here triggers nuisance tripping or, worse, thermal damage within seconds of activation. For motors rated 5 HP or below, apply a 1.15 safety factor to FLC; above 5 HP, use 1.05. Connect the relay in series with the main contactor coil to ensure immediate cutoff during overheating.

Wire the main contactor’s auxiliary NO contact in parallel with the start pushbutton to maintain the coil circuit after release. Omit this step, and the motor halts the instant the button is released–common in hasty assemblies. Use 1.5 mm² wire for 220 VAC coils and 2.5 mm² for 400 VAC to prevent voltage drop under inrush conditions, which can exceed 6–8× FLC.

Place the stop pushbutton in series with the control circuit, not in parallel, to guarantee fail-safe operation. A parallel connection risks latching the coil indefinitely if the button sticks. For three-phase motors, connect the running capacitor (if applicable) across the same phases as the windings it compensates; reverse polarity here reduces torque by up to 30%.

Label every wire at both ends with heat-shrink tubing, not paper tags–vibration loosens adhesive within months. Test insulation resistance between phases and ground with a 500 V megohmmeter before first energization; readings below 1 MΩ indicate moisture or damaged winding insulation, a fire hazard under sustained load.

Size the fuse or circuit breaker in the power feed for 2.5× motor FLC for motors starting under 10 HP, 2× for 10–20 HP, and 1.75× above 20 HP. Smaller ratings nuisance-trip; larger ratings fail to protect windings during stalled-rotor events. For frequent start/stop cycles, substitute a thermal-magnetic breaker with a motor-rated HRC fuse to avoid premature wear.

Direct On Line Motor Activation Schematic Breakdown

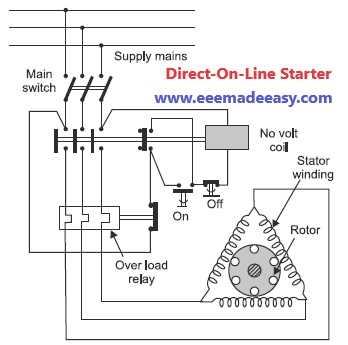

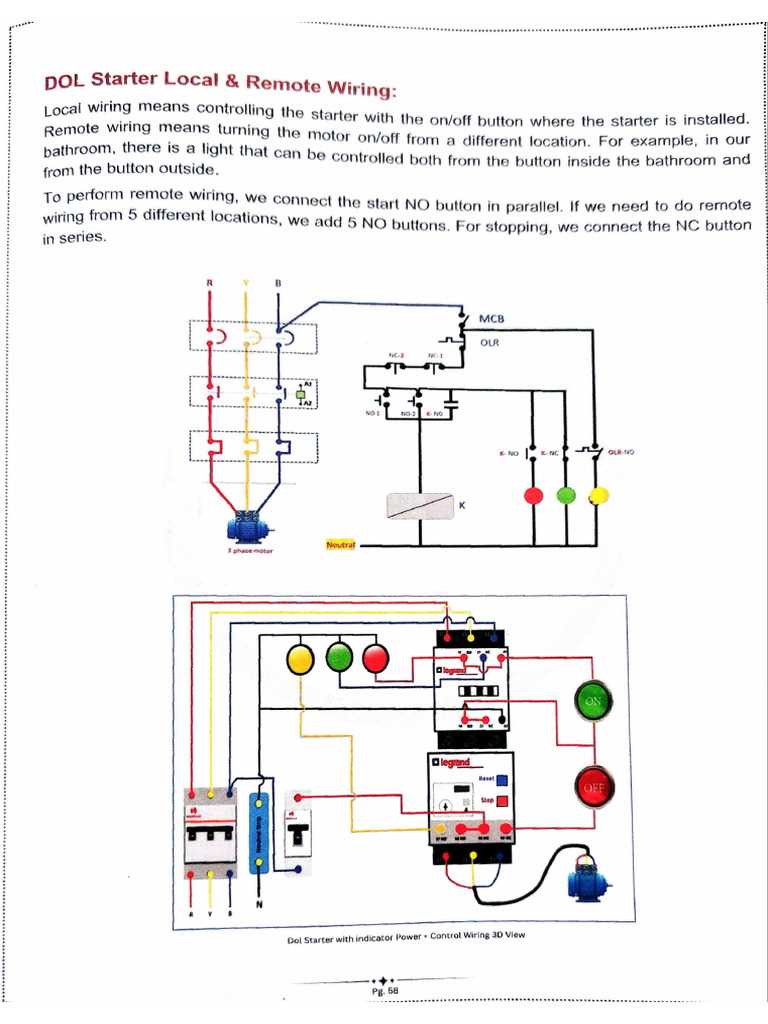

Begin by identifying the three core elements in the schematic: the power supply terminals, the contactor coil, and the overload relay. Connect L1, L2, and L3 directly to the motor windings through the main contactor contacts, ensuring no intermediate components disrupt the path. The coil should be wired to a separate control voltage source–typically 230V or 400V–via a start button and a hold-in contact for seamless operation. Verify the voltage rating of the coil matches the control circuit to prevent overheating or failure.

Position the overload relay between the contactor and the motor. Use thermal overload elements calibrated to the motor’s full-load current (FLC) to avoid false tripping. For a 10HP motor with a 15A FLC, select an overload relay with a trip class of 10A–20A and adjust the dial to 85% of the motor’s service factor. Bypass capacitors or suppressors are unnecessary in basic configurations but may be added near the coil terminals if voltage spikes exceed 5% of nominal values.

Integrate a stop button in series with the coil circuit to interrupt current flow immediately. Place it upstream of the start button to ensure the motor ceases operation even if the start button remains depressed. For remote shutdown, add a normally closed emergency stop switch in the same series path. The auxiliary contact from the contactor should parallel the start button to maintain power to the coil once activated, eliminating the need for continuous manual input.

Test each connection with a multimeter before energizing. Measure resistance across the coil terminals–expect 20Ω–100Ω depending on size–and confirm infinite resistance when the overload relay is set to trip. Check continuity from the power supply to the motor terminals through the contactor when manually engaged. If voltage drops below 90% of rated value at the motor, inspect for loose connections or undersized conductors, particularly on runs exceeding 50 meters.

Label all wires for maintenance clarity: use red for line conductors, black for control circuits, and blue for neutral (if present). Secure terminals with torque values specified by IEC 60947-4-1–typically 2.5Nm for M6 screws. For outdoor applications, enclose the assembly in an IP55-rated housing and use heat-shrink tubing on exposed connections to prevent corrosion. Replace contactor contacts if pitting exceeds 0.5mm or if coil resistance deviates by more than 10% from factory specifications.

Core Elements of a Direct-On-Line Activation System and Their Roles

Install a three-pole contactor with a 24V AC or DC coil rating–never exceed the rated voltage by more than 10%. Select contactors with AC-3 duty class for motors up to 7.5 kW to ensure reliable switching of inrush currents, which can reach 6 to 8 times the full-load current. Verify the contactor’s short-circuit withstand rating matches the upstream fuse or circuit breaker to prevent welding during faults. Replace contacts if pitting exceeds 1 mm in depth.

• Overload Relay: Use a bimetallic or electronic relay with class 10 trip characteristics for standard applications. Set the current between 100% and 120% of the motor’s nameplate rating–never below 90% to avoid nuisance tripping. Test relays annually by simulating overload conditions at 300% current; trip time should not exceed 10 seconds. For motors driving high-inertia loads, opt for class 20 relays to accommodate prolonged acceleration times.
• Fuse or Circuit Breaker: Choose HRC fuses sized at 125% of the motor’s full-load current for general use. For circuit breakers, select a type D or K characteristic with a tripping curve aligned to the motor’s starting profile. Coordinate with the contactor’s breaking capacity–fuses must clear faults before the contactor sustains damage. Document the trip curve coordinates from the manufacturer’s datasheet to verify discrimination.

Integrate a start/stop pushbutton station with maintained-contact switches for safety-critical applications. Wiring should follow the “auxiliary contact first” principle: ensure the contactor’s NO auxiliary contact seals the circuit before the main contacts close. Use 1.5 mm² copper conductors for control circuits, doubling to 2.5 mm² if the run exceeds 50 meters to minimize voltage drop. Label every terminal–phase (L1, L2, L3), motor (U, V, W), and neutral/safety earth–using heat-shrink sleeves for durability.

1. Power Supply:
   • Connect the control circuit to a separate 24V transformer rated for 10VA minimum. Avoid tapping the main motor supply–fluctuations during start-up can cause coil dropout.
   • Use a dedicated earth bar for all protective earth connections. Bond motor frames and metallic enclosures with 4 mm² green/yellow conductors.
   • Isolate the control circuit from the power circuit using a 2-pole isolating switch. Install it upstream of the contactor for lockout/tagout compliance.
2. Motor Protection:
   • Install PTC thermistors in the motor windings if ambient temperatures exceed 40°C or if frequent starts occur. Wire them in series with the contactor coil to trigger shutdown at 130°C.
   • For variable-speed applications, add a surge suppressor across the contactor contacts to clamp transient voltages below 1.2 kV.

Terminate all conductors with crimped lugs–never twist-and-solder. Torque terminal screws to the manufacturer’s specifications (typically 2.5 Nm for M4 screws). Apply a thin layer of anti-seize compound on aluminum conductors to prevent oxidation. After assembly, perform a megohm test between phases and earth with a 500V insulation tester–readings below 2 MΩ indicate compromised insulation and mandate rewinding or replacement.

Step-by-Step Assembly for an Immediate Power Activation Setup

Begin by securing a compatible three-pole contactor rated for the motor’s full load current. The contactor must match the voltage of the power source–typically 230V or 400V AC. Verify the auxiliary contacts support the required control logic before wiring.

Connect the main power lines to the contactor’s upper terminals (L1, L2, L3). Use cables sized according to the motor’s current rating; for example, a 10 HP motor at 400V requires 16 mm² copper conductors. Ensure all connections are torque-tightened to the manufacturer’s specifications to prevent overheating.

Attach the motor leads to the lower terminals (T1, T2, T3) of the contactor. If the motor has overload protection built into its housing, skip this step–otherwise, install a thermal overload relay inline with the motor leads. Set the relay’s trip current to 1.15 times the motor’s nameplate current.

Wire the control circuit using a separate 24V DC or 110V/230V AC source, depending on the pushbutton station voltage. Connect the “Start” pushbutton in series with the contactor’s coil, using normally open (NO) contacts. Parallel the “Start” button with the contactor’s auxiliary NO contact to create a latching mechanism.

Integrate the “Stop” pushbutton as a normally closed (NC) switch in series with the coil circuit. This ensures immediate disconnection when pressed, breaking the latch. For fail-safe operation, wire the emergency stop button as an NC switch in the same loop, prioritizing safety over control logic.

Test the setup without motor load by cycling the pushbuttons. Listen for the contactor’s closure click–delayed or weak activation suggests low coil voltage or faulty contacts. Measure voltage across the coil terminals during operation: 24V DC coils should read near 24V, while AC coils should match the supply within 5%.

After successful dry testing, energize the motor gradually under no-load conditions. Monitor the thermal relay for proper tripping during simulated overloads. If using a digital relay, program the trip class (typically Class 10) and configure any auxiliary functions, such as alarm outputs or remote reset capabilities.
