How to Build and Understand a Down Counter Circuit Schematic Step-by-Step

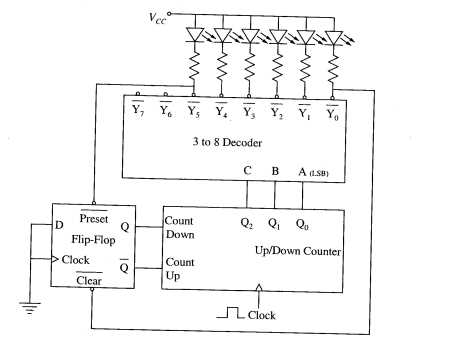

Begin with a 4-bit synchronous binary sequence generator using edge-triggered flip-flops (e.g., 74LS193) wired in cascade. Connect the clock input to a stable 1Hz pulse source–use a 555 timer in astable mode with R_A=100kΩ, R_B=1MΩ, and C=1μF for precise timing. The borrow output should feed back into the asynchronous clear pin via an inverter to halt the sequence at zero, preventing underflow.

For variable preset values, integrate DIP switches directly to the parallel load pins. Assign pull-up resistors (10kΩ) to avoid floating inputs. If requiring decimal output, route the binary signals through a BCD-to-7-segment decoder (such as CD4511) with current-limiting resistors (220Ω) for each LED segment. Ensure the latch enable pin is tied high to display real-time updates.

To optimize power consumption, replace the 555 timer with a crystal oscillator (32.768kHz) followed by a ripple counter (CD4060) to divide the frequency down to 1Hz. For noise immunity, add 0.1μF decoupling capacitors across the power rails of all ICs. Test the schematic at 5V before scaling: verify glitch-free transitions at ≤1MHz clock speeds with an oscilloscope, focusing on propagation delays between flip-flop stages.

Avoid common pitfalls: tie unused inputs to V_CC or ground (never float), and isolate high-current loads (e.g., relays) from logic circuits using optocouplers (PC817). For handheld applications, substitute the 74LS193 with a low-power CMOS alternative (CD4510) to extend battery life by up to 40% without sacrificing speed. Document interconnections using net labels for clarity–label clock lines, outputs, and control pins distinctly to streamline debugging.

Decrementing Sequence Schematic Design

Select a 4-bit binary decremental module using a pair of 74LS193 ICs for compact, reliable performance. Connect the carry-out (pin 12) of the first chip to the down clock input (pin 4) of the second to cascade counts from 15 down to 0 without additional logic. Use a 1 kΩ pull-down resistor on the load (pin 11) and clear (pin 14) lines to prevent erratic resets during power fluctuations.

For asynchronous decrement operations, route the input pulse directly to the count-down pin via a Schmitt-trigger inverter (74LS14) to eliminate switch bounce. Add a 0.1 µF decoupling capacitor between VCC and GND, placed within 2 mm of each IC, to suppress high-frequency noise above 500 kHz. Without this, edge transitions may misfire at clock rates exceeding 10 MHz on breadboards with longer traces.

• Include a 4-position DIP switch on the preset inputs (pins 9, 10, 3, 2) for manual preloading. Set default value to binary 1001 for a start at nine.
• Wire a 330 Ω current-limiting resistor in series with each LED output to prevent exceeding 8 mA per segment.
• Test propagation delay: expect 22 ns max between decremental steps when cascading two ICs at 5 V.

If space constraints demand a smaller footprint, substitute the 74LS193 pair with a single CD4510B. Note the lower 1.5 MHz maximum frequency and reduced drive strength; buffer outputs with ULN2003A Darlington arrays if interfacing with relays or high-current loads above 30 mA.

1. Connect the borrow output (pin 7) to an interrupt-capable microcontroller pin (e.g., Arduino digital pin 2) for zero-crossing detection.
2. Add a 1N4148 diode across the relay coil to clamp induced voltages when switching inductive loads.
3. Program a 1 ms debounce delay in firmware before acknowledging the zero state to filter false triggers from mechanical switches.

Key Elements for Decrementing Sequence Assemblies

Start with a reliable flip-flop module like the 74LS193 or CD40193, which supports synchronous count reduction. These ICs eliminate the need for external logic gates when building multi-stage arrangements–two chips can handle an 8-bit sequence. Pair them with pull-down resistors (1kΩ–10kΩ range) on clock and reset inputs to prevent floating states. For clock signals, a 555 timer in astable mode delivers stable pulses, but a crystal oscillator like the 4MHz HC-49/U ensures precision in time-sensitive applications.

Additional Required Parts

Component	Specifications	Purpose
Resistors	220Ω, 330Ω, 470Ω	Current limiting for LEDs, base resistors for transistors
Transistors	2N2222 or BC547	Switching outputs for higher loads (relays, buzzers)
Capacitors	0.1µF ceramic, 10µF electrolytic	Decoupling noise, smoothing power supply
Diodes	1N4007	Flyback protection for inductive loads
Display	7-segment (common cathode/anode) or LED bar graph	Visualization of sequence states

Use a debounce circuit with a 0.1µF capacitor and a Schmitt trigger gate (e.g., 74LS14) when interfacing mechanical switches for manual triggering. For power, a regulated 5V supply (±5%) prevents erratic behavior–opt for an LM7805 with proper heat sinking. Avoid breadboards beyond prototyping; soldered perfboards or custom PCBs reduce parasitic capacitance that distorts pulse edges in faster sequences.

Step-by-Step Assembly of a 4-Bit Binary Decrementing Sequence Unit

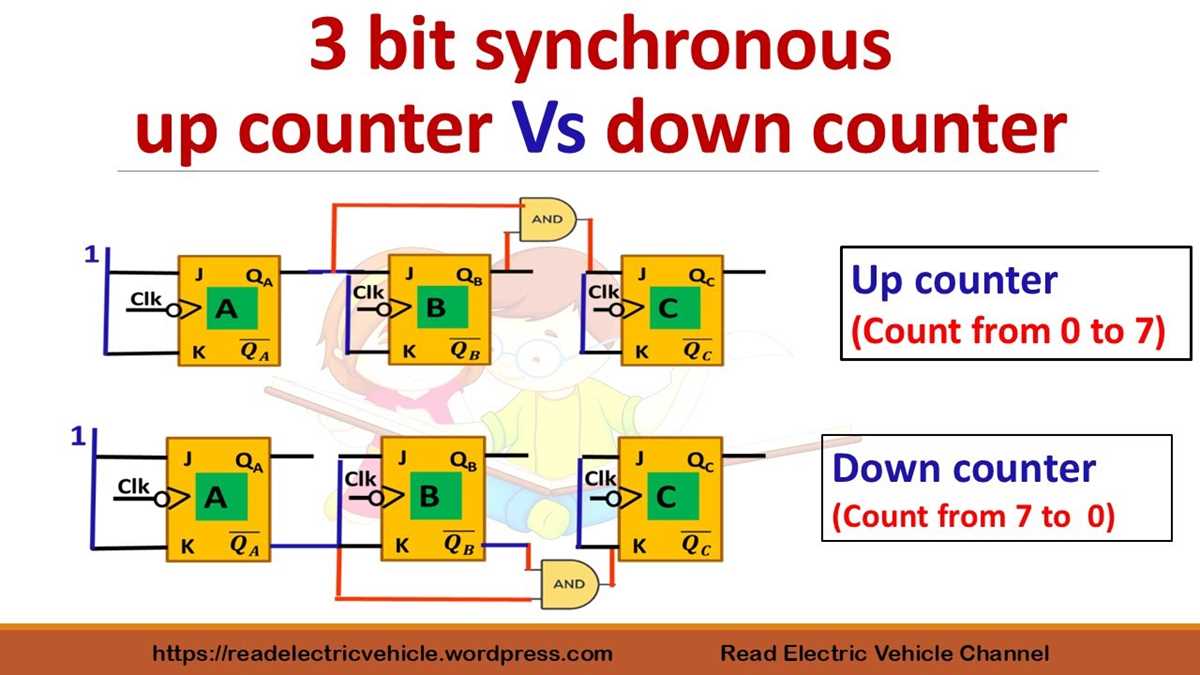

Begin by arranging four T flip-flops in a cascading configuration, ensuring the Q′ output of each stage connects directly to the clock input of the subsequent stage. Use a 74LS112 IC or equivalent for reliable edge-triggered toggling–verify pin assignments against the datasheet to avoid reversed connections. Power the IC with a regulated 5V supply, placing a 0.1μF decoupling capacitor near the V_CC pin to filter transient noise that may disrupt transitions.

Signal Path Integration

Wire a push-button or debounced switch to the clock input of the first flip-flop to act as a manual trigger. For automated operation, replace the switch with a pulse generator set to 1Hz; observe the output states with an LED array–anode to Q′ pins via 220Ω resistors, cathode to ground. Confirm each LED toggles in reverse binary sequence (15 → 14 → … → 0) by monitoring the brightness pattern.

For synchronous resets, tie all CLR pins to a common switch or logic output, using a pull-up resistor (4.7kΩ) for stability. Asynchronous loading requires separate data lines to J and K inputs–connect them through DIP switches or microcontroller ports, ensuring J = K for proper toggling behavior. Test each configuration by cycling the reset switch and verifying the LEDs snap to the all-high state (15) before decrementing.

Add a 4-input AND gate (e.g., 74HC21) to detect the zero state, linking its inputs to all Q′ outputs. Route the gate’s output to a buzzer or interrupt pin if integration with external systems is needed. Calibrate timing by adjusting the clock speed–start at 1Hz, then increase to 1kHz, checking for metastability in transitions by oscilloscope; flickering LEDs signal required adjustments to decoupling or input debouncing.

Frequent Errors in Decrementing Timer Assembly and Solutions

Incorrect power supply polarity tops the list of recurring issues. Reverse voltage damages shift registers and logic ICs within the countdown module instantly. Always verify the input voltage matches the specified range–typically 5V for TTL or 12V for CMOS variants–using a multimeter before connecting. Label power rails clearly during prototyping to prevent confusion later. Test each segment individually with a bench supply set to the correct limits; observe current draw spikes indicating potential short circuits.

Neglecting debounce circuitry in switch inputs causes false triggers. Mechanical buttons generate multiple rapid transitions when pressed, leading the counting sequence to skip values erratically. Implement a low-pass RC filter (10kΩ resistor with 0.1µF capacitor) or a dedicated debouncer IC like the MAX6816. For critical applications, use Schmitt-trigger gates (74HC14) to condition signals. Measure bounce duration with an oscilloscope–values exceeding 15ms indicate hardware failure requiring attention.

Misconfigured Load Resistors and Segment Displays

Driving 7-segment LEDs without appropriate current-limiting resistors results in uneven brightness or burnout. Calculate resistor values using Ohm’s law: subtract the LED forward voltage (2V typical) from the supply voltage, then divide by the desired current (20mA maximum). Mismatched resistor values distort numeral shapes, making ‘8’ appear as ‘0’ or ‘3.’ Test displays individually with a 5V supply and 220Ω resistors before integrating into the full sequence. Verify segment continuity with a continuity tester to detect cold solder joints early.

Ignoring signal propagation delays disrupts timing accuracy. Sequential elements like flip-flops require stable clock edges; asynchronous signals cause race conditions where the count jumps unpredictably. Use synchronous reset inputs and ensure all components share the same clock source–oscillators or crystal modules (4MHz minimum) prevent skew. Simulate timing diagrams in LTspice or similar tools before physical assembly. For high-speed applications, replace ripple carry configurations with look-ahead carry modules to eliminate accumulated delays.

Overlooking power decoupling capacitors leads to erratic behavior. Place 0.1µF ceramic capacitors across each IC’s VCC and ground pins, as close to the package as possible. Bulk capacitors (10µF) near the power entry point stabilize voltage during transient loads. Noise from switching power supplies can corrupt reset signals–isolate sensitive traces with ground planes and shielded cables. Measure supply ripple with an oscilloscope; amplitudes above 50mV require additional filtering or a linear voltage regulator.
