Step-by-Step Guide to Drawing a Basic Electrical Circuit Schematic

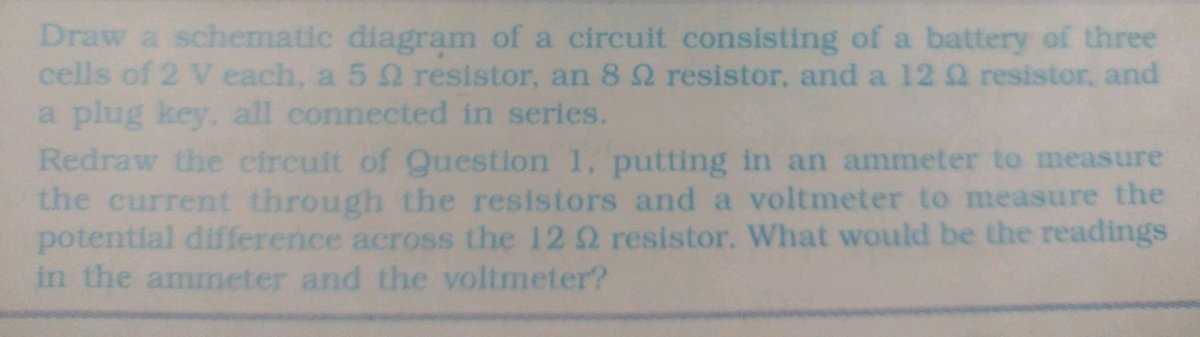

draw a schematic diagram of a circuit consisting

Begin by identifying core components required for your layout. For a basic power supply setup, list the power source, resistive load, switching element, and ground connection. Use standard symbols: a straight vertical line for the power rail, a zigzag for resistors, and perpendicular lines intersecting at 90 degrees for junctions. Label each element immediately–voltage sources with Vin, resistors with R1, etc.–to avoid ambiguity during assembly.

Position components logically. Place the power source at the top, followed by the switch directly below to control flow. Route current through the primary load next, ensuring minimal crossovers. For parallel branches, align secondary resistors vertically beneath the main path. Keep spacing uniform–2 grid units between adjacent symbols and 4 units for horizontal spacing–to maintain readability. If incorporating capacitors, orient them vertically with polarity markings (+) and (-) aligned.

Verify connectivity before finalizing. Trace each path manually: confirm power reaches the load, switches toggle correctly, and ground returns are complete. Use bold dashed lines to highlight critical paths (e.g., feedback loops) and thin solid lines for auxiliary connections. For multi-stage designs, group related elements–amplifiers, filters–into modular blocks. Add annotations in 8pt Arial near each component, specifying nominal values (e.g., R1 = 1kΩ).

Export the final layout as a vector-based file (SVG or EPS) to preserve scalability. Convert colors to monochrome if printing–use black for signal paths, gray for background. Include a legend if the design exceeds 10 components, mapping symbols to their functions. For complex layouts, split sections across multiple pages, ensuring consistent labeling (e.g., Page 1: Power Stage, Page 2: Control Logic).

Designing a Graphic Representation of Electronic Components

Begin by selecting a clear, standardized notation system like IEC or ANSI to label every element in your layout. Use distinct symbols for resistors (R), capacitors (C), transistors (Q), and power sources (V or I), ensuring consistent orientation–horizontal for lines and vertical for component connections. Group related parts logically: place power rails at the top and bottom, signal paths centrally, and ground references near the base. Annotate values directly beside each symbol (e.g., 1kΩ, 10μF) to eliminate ambiguity during prototyping or debugging.

  • Connect nodes with straight lines, avoiding diagonals where possible–orthogonal intersections improve readability.
  • Use arrows to indicate signal flow direction, particularly for analog signals or feedback loops.
  • Separate high-voltage sections from low-power control areas with dashed lines or labeled zones.
  • Add test points (TP) at critical junctions for verification, especially in complex multi-stage configurations.
  • Include fuse ratings (F) next to protection components, specifying current limits (e.g., 250mA).

For integrated circuits, replace internal details with a rectangle labeled by function (e.g., U1: 555 Timer), showing only input/output pins. If the layout spans multiple pages, use hierarchical blocks with cross-reference labels (e.g., VCC → Page 2, Net A). Validate connections by tracing each path manually: confirm ground returns, ensure no floating pins, and verify polarity-sensitive parts like electrolytic capacitors or diodes. Export the final version in a vector format (SVG/PDF) to preserve scaling, and attach a bill of materials listing exact part numbers, tolerances, and suppliers.

Identify Core Components for Your Electrical Blueprint

Select a power source matching the project’s voltage and current demands. Alkaline batteries (1.5V per cell) suit low-power wearable prototypes, while lithium-ion packs (3.7V nominal) deliver higher energy density for drones or portable tools. For mains-powered designs, opt for switching regulators (e.g., LM2596) over linear types (7805) to minimize heat loss–efficiency jumps from 40% to 90% at 12V inputs. Verify dropout voltage; a 5V regulator needs at least 7V input to avoid brownouts.

Component Typical Values Critical Constraints
Resistors 10Ω–1MΩ (E24 series) Power rating (≥0.25W for pulse loads), tolerance (1% for precision)
Capacitors 10pF–1000µF (X7R, NP0) Voltage derating (≥2× working voltage), ESR (≤0.1Ω for decoupling)
Inductors 1µH–1mH Saturation current (≥1.5× peak load), DCR (≤0.2Ω for efficiency)

Microcontrollers should align with computation needs–8-bit ATmega328P handles simple tasks (GPIO toggling, ADC reads) while ARM Cortex-M4 (STM32F4) supports floating-point DSP for sensor fusion. Memory constraints matter: 32KB flash suffices for basic control loops, but edge AI demands ≥256KB for neural network models. Prioritize clock speed only after peripheral requirements; a 48MHz Cortex-M0 outperforms 200MHz ESP32 for real-time analog signals due to dedicated DMA channels.

Signal integrity dictates passive component placement. Place decoupling capacitors (0.1µF X7R) within 2mm of every IC power pin–spacing beyond 5mm causes 50mV spikes in 10MHz designs. For high-speed traces (USB 2.0, MIPI), match impedance to 90Ω differential (50Ω single-ended) using controlled-length routing; serpentine delays must stay

Select the Right Symbols for Each Electronic Component

Standard IEC 60617 symbols must be your default choice for resistors, capacitors, and inductors–these adhere to international conventions and eliminate ambiguity. For resistors, use the rectangular shape with a proportional line thickness (0.5–0.7 mm) to distinguish between values; a 1 kΩ resistor should never share the same visual weight as a 10 MΩ. Polarized capacitors require a plus sign (+) adjacent to the straight plate, while non-polarized types omit it entirely. Transistors demand precision: the arrow on BJTs always points *toward* the emitter, never away, and MOSFET body diodes should align with the substrate connection.

Verify Symbol Consistency Across Standards

ANSI and JIS symbols deviate from IEC, creating potential errors if mixed–stick to one standard per layout to prevent misinterpretation. Ground symbols vary: IEC uses three descending lines (triangle optional), while ANSI prefers a single bold line–never combine both. Logic gates follow strict IEC rules: AND gates have a flat input side, OR gates curve inward, and XOR gates include a double line. Voltage sources demand clarity: DC uses a long and short parallel line, while AC alternates with a sine wave symbol–misplacing these can reverse polarity assumptions.

Opt for explicit labels for lesser-known components like photodiodes (insert the wavy arrow *inside* the triangle) or thyristors (gate tap positioned *below* the cathode). Avoid creative deviations–custom symbols slow verification and violate EDA tool compatibility. Rotate symbols only in 90° increments to maintain readability; angled placements (e.g., 45°) corrupt signal flow clarity. Prioritize symbolic fidelity over aesthetic preference–errors propagate through manufacturing and troubleshooting.

Establishing Reliable Links Between Electrical Contact Points

Prioritize direct solder joints for high-current pathways to minimize resistance and thermal losses. Use 22 AWG or thicker wire for connections exceeding 1A, ensuring strands are properly tinned before joining. Verify insulation displacement connectors (IDCs) for low-voltage signal lines, particularly in PCB-mounted applications–check manufacturer specs for maximum insertion cycles (typically 50–100) to avoid degradation. For transient-heavy environments, parallel redundant links reduce failure risks; stagger connection lengths by at least 20% to prevent inductive coupling.

  • Apply anti-corrosion coatings (e.g., silver plating, conformal spray) to exposed metal interfaces if the assembly operates above 60% relative humidity.
  • Crimp terminals using tools calibrated to the gauge–imperfect crimps create micro-fractures detectable by 5x magnification.
  • Align plated through-hole (PTH) vias with a 1:1 aspect ratio for single-layer boards; ratios exceeding 8:1 risk incomplete barrel filling during wave soldering.
  • Use star grounding for mixed-signal designs, isolating analog/digital reference nodes at a single point to eliminate ground loops.

When terminating stranded wire to screw terminals, twist conductors 180° clockwise before inserting–a single 360° twist reduces pull-out force under vibration by 40%. For thermoplastic-insulated cables, maintain a 3mm clearance from heat sources exceeding 85°C to prevent insulation creep. Validate connections in high-frequency setups with a vector network analyzer; reflections above -30dB indicate impedance mismatches requiring adjustment of trace widths or via spacing.

  1. Fuse all power distribution nodes within 150mm of the source–longer runs increase fault propagation time.
  2. For battery-powered configurations, isolate charge/discharge nodes with Schottky diodes (forward drop ≤0.3V) to prevent reverse current.
  3. Test every node-to-node link with a multimeter in continuity mode–resistance readings above 0.5Ω suggest cold joints or oxide buildup.
  4. Document polarity and signal direction on the layout; reversed connections in H-bridges or sensor interfaces damage components irreversibly.

Optimizing Board Arrangement for Readability and Performance

Group high-frequency signal paths in clusters, separating analog and digital domains with solid ground planes or isolation slits. Maintain a 3W spacing between parallel traces carrying 10MHz+ signals to minimize crosstalk–calculate clearance using W = 0.25 × trace width for microstrip or W = 0.12 × trace width for stripline configurations. Route power rails perpendicular to signal traces in adjacent layers, using 45° bends instead of 90° to reduce impedance discontinuities. For mixed-signal designs, place ADCs/DACs at the intersection of domains, ensuring return paths for digital currents never cross analog ground splits.

Hierarchical Labeling and Physical Grouping

Assign distinctive silkscreen labels (e.g., “VCO_CTRL”, “DAC_OUT+”) with 1mm text height and 0.15mm stroke width, placing them adjacent to but not overlapping pads. Use color-coded filled rectangles on soldermask layers to denote functional blocks–red for power management, blue for RF, green for digital logic. Arrange components in logical signal flow order: left-to-right for data converters, top-to-bottom for power regulation. Reserve the center of the board for critical timing elements (crystals, PLLs), keeping bypass capacitors (0402 size, 0.1µF/X7R) within 2mm of IC power pins.
