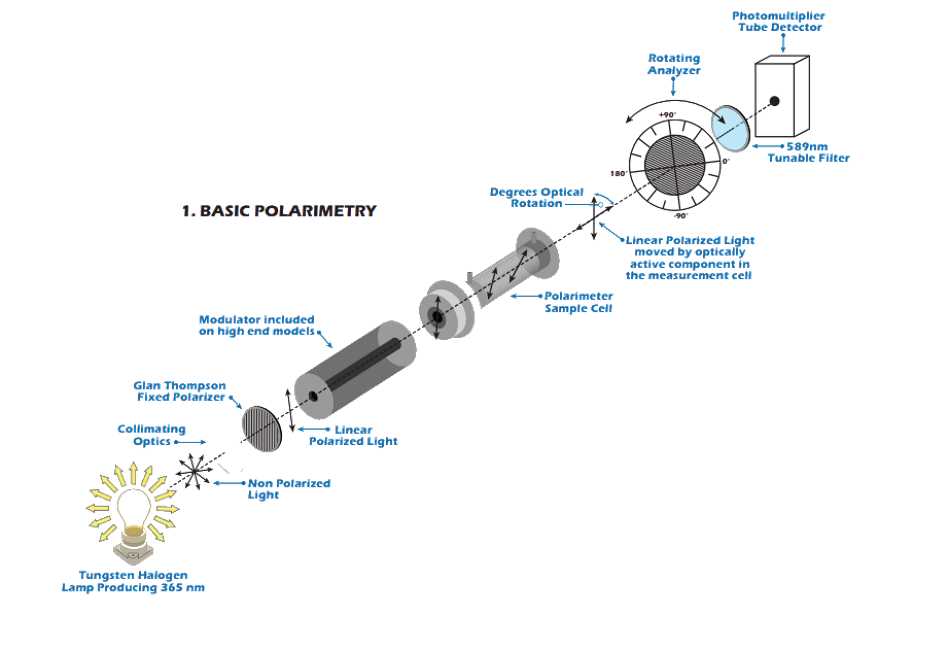

Schematic Representation of a Standard Polarimeter Setup and Components

Begin with a light source emitting monochromatic radiation–sodium vapor lamps (589 nm) or laser diodes (e.g., 633 nm) deliver consistent linear polarization. Position a Glan-Thompson prism or equivalent polarizing filter immediately after the source to isolate a single plane of oscillation. Ensure perpendicular alignment between the polarizer’s transmission axis and the light’s propagation direction; misalignment exceeding 5° degrades signal resolution.

Introduce a sample cell with precisely calibrated path length–standard borosilicate glass tubes (100 mm) suit most organic compounds, though quartz or fused silica cells (50–200 mm) prevent stray birefringence in high-precision measurements. Maintain optical clarity: contaminants or uneven surfaces scatter light, introducing errors up to 15%. Fill the cell with the analyte solution at a concentration yielding 0.5–1.5° rotation for optimal detection sensitivity; dilute further if readings exceed ±45°.

Install an analyzer (second polarizer) downstream of the sample, rotating it in 0.1° increments via a micrometer-controlled mount. For automated systems, couple a stepper motor (e.g., NEMA 17) with 200 steps/revolution for finer angular resolution. Detect transmitted intensity using a photodiode (Si-based for visible spectra) shielded from ambient light; position it as close to the analyzer’s exit face as possible to minimize beam divergence losses.

Zero the instrument by adjusting the analyzer to maximum extinction (minimum light transmission) with the sample cell empty. Record the angular position at which extinction occurs, then repeat with the analyte present. Subtract the two readings to obtain optical rotation (α). For chiral compounds, rotate the analyzer clockwise if the solution is dextrorotatory (+α) or counterclockwise for levorotatory (−α); inversion indicates enantiomeric excess.

Validate accuracy by measuring a reference standard–2-butanol (α = +13.5° at 20°C, c = 10 g/100 mL) or sucrose (α = +66.5°, c = 0.1 g/mL)–and recalibrate if deviation exceeds 0.2°. Temperature fluctuations alter rotation angles by ~0.3%/°C; use a thermostatted water bath (20 ± 0.1°C) for samples with high temperature coefficients (e.g., glucose solutions). Clean optical surfaces with lint-free wipes and isopropyl alcohol; residue from acetone or chlorinated solvents induces false birefringence.

Constructing a Visual Representation of Optical Rotation Measurement Devices

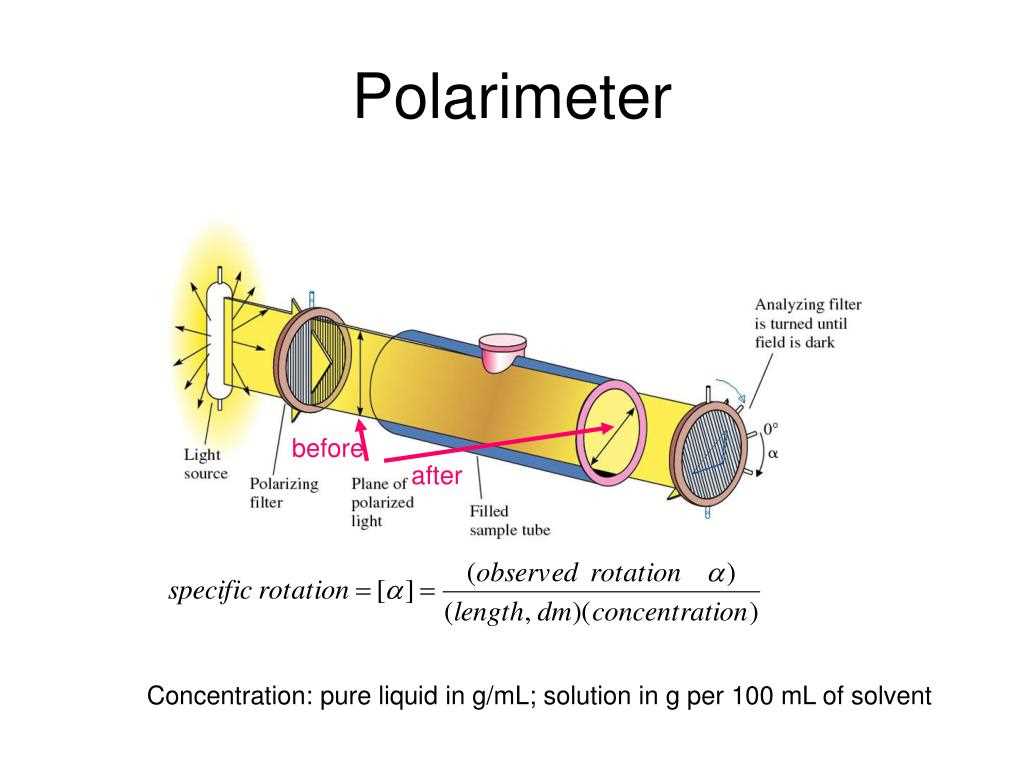

Begin by segmenting the illustration into functional blocks: light source, polarizing filter, sample chamber, analyzing filter, and detector. Position the light source–a sodium lamp emitting 589 nm (D-line) or a laser for monochromatic output–on the far left. Align the initial polarizer vertically, ensuring its transmission axis is fixed at 0° to establish plane-polarized light. The sample chamber, depicted as a cylindrical tube (standard 1–2 dm length), must include inlet/outlet ports for liquid specimens and temperature regulation coils if required. Adjacent to the chamber, place the second polarizer (analyzer) at a 90° angle relative to the first to achieve extinction in the absence of an optically active sample.

Critical elements to annotate:

• Light path: Use dashed arrows to trace the beam’s trajectory through each component, marking wavelength shifts or intensity changes with numerical values (e.g., “98% transmittance”).
• Angular notation: Label the analyzer’s rotation angle (θ) with a protractor-style arc, noting the zero-point baseline. Include a graduated scale (±180°) for enantiomeric excess calculations.
• Instrument specifications: Add dimensional callouts for the sample tube (e.g., “10 cm path length”) and indicate detector sensitivity (photodiode response range: 400–700 nm).
• Control systems: Integrate a feedback loop symbol (curved arrow) between the detector and analyzer to denote automatic null-point adjustment mechanisms found in modern devices.
• Optional features: Denote ambient light shielding with a dotted boundary around the detector and heat management symbols (radiator fins) near the light source.

For liquid samples, specify concentration metrics directly on the tube (e.g., “0.1 g/mL sucrose in water”). Use color-coding to differentiate optically active vs. inactive media (blue for dextrorotatory, orange for levorotatory). Avoid symbolic representations–prioritize functional labels tied to measurable parameters.

Key Variations in Instrument Layouts

1. Manual vs. automated: In manual systems, replace the feedback loop with a human operator symbol adjusting the analyzer dial. For automated setups, include a microcontroller unit with I2C data lines connecting detector to analyzer.
2. Spectropolarimeters: Extend the light source depiction to show a monochromator prism (dispersing 300–800 nm) and replace the single-wavelength detector with a CCD array.
3. Circular dichroism adapters: Add a PEM (photoelastic modulator) between sample and analyzer, labeling modulation frequency (50 kHz ±10%). Indicate left/right circularly polarized light paths with spiral arrows.

Optical Component Selection for Precision Polarization Measurement Systems

Begin with a light source emitting at a stable wavelength to minimize spectral drift. Laser diodes at 633 nm or 830 nm offer narrow bandwidths ideal for consistent polarization analysis, avoiding the complexities of broad-spectrum sources like LEDs. For high-sensitivity applications, a linearly polarized laser provides superior extinction ratios over 100,000:1, reducing background noise that obscures weak signals.

Glass polarizers must match the operational wavelength range while maintaining minimal absorption losses. Crystalline quartz Glan-Thompson prisms excel in visible to near-infrared bands, achieving extinction ratios above 10⁶ with low insertion loss, but introduce beam deviation requiring precise alignment. Wire-grid polarizers, though less efficient, tolerate wider angular acceptance and thermal fluctuations, making them suitable for compact setups where space constrains component positioning.

Sample cells should use fused silica windows for UV-visible transparency or calcium fluoride for extended IR coverage, ensuring material birefringence does not exceed 10 nm/cm. Anti-reflective coatings at the operational wavelength reduce stray reflections that distort polarization state measurements. For liquid samples, maintain pathlength uniformity–typically 10 mm–to avoid inconsistent optical rotation readings across the beam profile.

Modulation elements like photoelastic modulators or liquid crystal retarders dynamically alter polarization states at kHz rates, enabling lock-in detection to isolate weak signals from ambient noise. Select modulators with drive frequencies outside mechanical resonance ranges of the setup to prevent spurious vibrations from introducing phase errors. Calibrate retardance values against known standards, accounting for temperature dependence–±0.01° per °C in some materials–which disrupts long-term stability.

Detectors require high quantum efficiency at the chosen wavelength, with silicon photodiodes covering 200–1100 nm and InGaAs alternatives extending to 1700 nm for IR applications. Minimize dark current via thermoelectric cooling for low-light conditions, targeting

Optimal Placement of Illumination and First-Stage Filter for Precision Optical Analysis

Align the monochromatic emitter at a fixed distance of 25–30 cm from the sample holder to maintain consistent irradiance across the 4–6 mm beam diameter. Use a low-pressure sodium lamp (589.3 nm) or a laser diode set to a stable current of 18–22 mA to avoid thermal drift; deviations exceeding ±0.5 mA introduce measurable ellipticity errors.

Position the linear filter immediately after the light source, ensuring its transmission axis is strictly perpendicular to the optical bench. Mount it on a micrometer-adjustable holder with vernier scale resolution of 0.01° to eliminate misalignment artifacts during calibration. Verify the filter’s extinction ratio exceeds 10⁵:1 using a reference standard such as a calcite Glan-Taylor prism before each measurement cycle.

Angular Adjustment Protocol

Rotate the filter’s plane by exactly 45° relative to the analyzer’s zero position to maximize sensitivity. Confirm this angle with a digital protractor reading ±0.05° accuracy; failure to achieve this precision reduces measurement resolution by up to 12% due to cosine error. Secure the filter with a locknut tightened to 8–10 N·cm torque to prevent vibrational creep during prolonged scans.

Insert a 2-mm aperture diaphragm between the filter and sample chamber to collimate the beam, eliminating stray light gradients that distort intensity readings. Locate this diaphragm 5 mm downstream of the filter; closer placement risks scattering artifacts, while greater distances introduce beam divergence.

Environmental and Mechanical Considerations

Enclose the entire light path in a thermally insulated housing maintained at 20.0 ± 0.1 °C; temperature fluctuations above ±0.3 °C induce birefringence drift in the sample, altering rotation values by 0.2° per degree Celsius. Use vibration-damped optical posts with an axial stiffness exceeding 10⁶ N/m to suppress low-frequency acoustic noise below 10 Hz, which couples into polarization states via stress-induced anisotropy.

Positioning the Cuvette and Detection Element in Optical Rotation Setups

Align the sample holder centrally between the light source and rotating filter, ensuring its longitudinal axis coincides precisely with the beam’s optical path. Quartz or glass cuvettes with 10 cm pathlength provide optimal sensitivity for most organic compounds; shorter tubes for concentrated solutions, longer for dilute. Position the exit window no farther than 5 mm from the detection element to minimize beam divergence, using anti-reflective coatings if stray light exceeds 0.1% of incident intensity.

Mount the analyzer polarizer immediately downstream of the sample holder, oriented at 90° to the initial polarizing element for crossed-polarizer baseline measurements. For manual instruments, fix the angular scale with 0.1° resolution; motorized versions benefit from stepper-driven stages offering 0.01° accuracy. Calibrate the zero-point using air-filled cuvettes–any residual rotation above ±0.02° indicates misalignment requiring azimuthal adjustment of either polarizer.

Critical tolerances: cuvette parallelism ≤ 3 arcminutes, end-window flatness ≤ λ/4, and temperature stability ±0.2°C to prevent refractive index fluctuations. Use glycerin-filled jackets for temperature-sensitive samples; rate of rotation drift should not exceed 0.05°/min under controlled conditions.
