Step-by-Step Guide to Drawing Arduino Circuit Diagrams for Beginners
Use KiCad or Fritzing for rapid prototyping–both handle component placement and wiring without requiring advanced CAD expertise. KiCad exports netlists compatible with fabrication tools, while Fritzing’s drag-and-drop interface suits breadboard testing. For complex designs, Altium Designer offers precise routing but demands familiarity with PCB constraints.
Begin by listing core parts: microcontroller board (Uno, Nano, or Mega), resistors (220Ω–1kΩ for LEDs, 10kΩ for pull-ups), capacitors (0.1µF for decoupling), and sensors (photoresistors, DHT11). Sketch a rough block layout on paper first–group power rails, signal lines, and ground to minimize interference.
Power management is critical. Dedicate separate rails for logic (5V) and motors (12V if used), isolating them with LDOs or switching regulators. Use 100nF capacitors near each IC’s power pin to suppress noise. Label all connections clearly–VCC, GND, SDA, SCL–to avoid miswiring during assembly.
For signal integrity, keep high-speed traces (I2C, SPI) short and route ground returns directly to the board’s central ground plane. Use twisted pairs or shielded cables for analog signals if ambient noise exceeds 50mV. Test each segment incrementally–verify voltage levels with a multimeter before connecting loads.
For off-board components (buttons, relays), add flyback diodes (1N4007) to inductive loads and debounce circuits (0.1µF + 10kΩ) for mechanical switches. Store schematics in GitHub or GitLab as .sch (KiCad) or .fzz (Fritzing) files–include a README with voltage ratings, pin mappings, and calibration notes.
Sketching Electronic Layouts for Microcontroller Boards
Start with a clear purpose–define whether your setup reads sensors, controls actuators, or integrates communication protocols. Minimize wire crossings by placing components logically: power sources near the microcontroller’s input pins, inputs (buttons, potentiometers) on one side, and outputs (LEDs, relays) on the opposite. Use a ground plane or common bus to reduce noise, especially for analog signals.

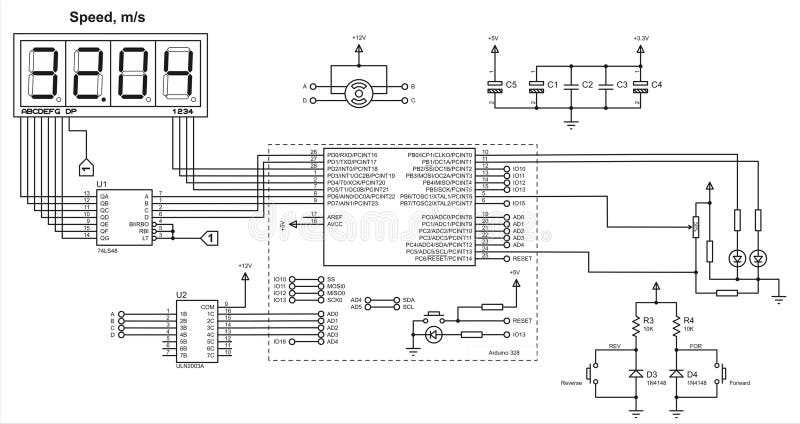

Select schematic symbols that match real-world parts: a resistor marked “R1” should match its physical value, not just the schematic label. Label each net (e.g., “VCC,” “5V,” “GND”) consistently; mismatched labels create debugging errors. For complex designs, group components by function (e.g., motor drivers, display connections) to simplify tracing later.
Test connectivity with a multimeter before applying power. A 0Ω reading between intended connections verifies the layout; resistance indicates broken traces or loose connections. For breadboard prototyping, use short jumper wires to avoid stray capacitance, particularly for high-frequency signals like I2C or SPI.
Document pin assignments directly on the sketch–note digital pins for PWM-capable outputs, analog inputs for sensor readings, and dedicated pins for serial communication. Avoid relying on memory; even temporary setups become permanent projects. Keep a digital copy (PNG or SVG) of the layout with exact pin numbers and component values.
Simulate critical paths before physical assembly. Free tools like Falstad’s Circuit Simulator let you verify logic without soldering. Focus on voltage dividers, transistor switching, and pull-up/down resistors–errors here cause silent failures or damage to components. Confine high-current paths to thicker traces or external drivers to prevent board overheating.
Reuse modular sections across projects. A standard LED-resistor pair, a regulated power supply block, or a debounced switch design saves time and reduces errors. Store these snippets in a library folder for quick access. Prioritize safety: place fuses on power inputs, isolate high-voltage sections, and mark polarity-sensitive components like electrolytic capacitors.
Choosing the Right Software for Schematic Layouts
Start with KiCad if open-source tools suit your workflow. It handles multi-layer boards, integrates SPICE simulations, and exports Gerber files without hidden costs. The library manager simplifies part selection, though custom symbol creation demands patience. Version 7+ improves grid alignment and text placement precision.
Fritzing remains viable for educational projects, especially breadboard prototyping. While its PCB editor lacks advanced features, the drag-and-drop interface accelerates quick proofs of concept. Note that commercial use requires a license, unlike KiCad’s unrestricted model.
Professional-Grade Alternatives
Altium Designer dominates high-end board development with real-time rule checking and rigid-flex support. The unified component database minimizes errors, but the $4,000/year subscription limits access to smaller teams. CircuitStudio offers a lighter version at $1,000, retaining core functionality like differential pair routing.
For Mac users, Eagle’s backend has merged with Fusion 360, bundling mechanical CAD tools. The free tier restricts board size to 80cm², sufficient for most microcontroller projects. Autodesk’s push toward cloud collaboration may frustrate offline users.
EasyEDA provides browser-based editing with 500MB cloud storage in its free plan. The schematic-to-PCB workflow mirrors desktop apps, but internet dependency poses risks during unstable connections. Prototype-sharing features streamline team reviews.
Specialized Workflows
QElectroTech excels in industrial control diagrams with IEC 60617 symbol compliance. Its modular approach avoids unnecessary PCB tools, focusing instead on precise documentation. Developers targeting automotive or medical applications benefit from ISO-compliant outputs.
For FPGA-based designs, Xilinx’s Vivado or Intel’s Quartus include built-in schematic entry tools. These platforms prioritize hardware description language integration, relegating graphical editors to secondary roles. Verify compatibility with your preferred fabrication process before investing time in proprietary formats.
Step-by-Step Guide to Sketching Basic Electronic Blueprints for Microcontroller Boards
Begin with a clear schematic layout on graph paper or digital design software like KiCad or Fritzing. Use standardized symbols for components: a straight line for connections, a rectangle with pins for the microcontroller board, a resistor marked by a zigzag, and an LED depicted as a triangle with a line and a forward arrow. Label each element immediately to avoid confusion later–write “R1” for the first resistor, “D1” for the first LED, and so on. Keep traces short and direct to minimize noise and simplify troubleshooting.

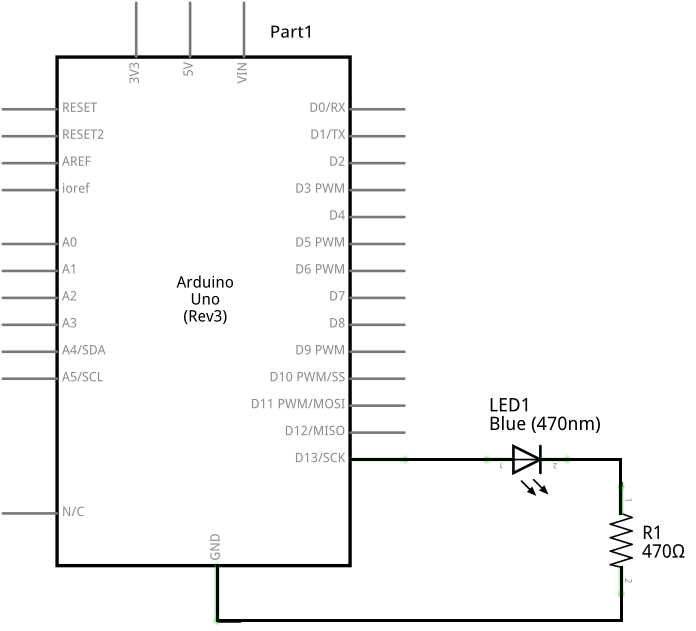

Place the microcontroller board centrally, then arrange peripherals around it. For a basic blink setup, route power from the board’s 5V pin to a current-limiting resistor (220–470Ω) before connecting it to an LED’s anode. The LED’s cathode should lead to ground. If using a breadboard in your physical prototype, mirror its layout in the sketch–split rails for power and ground, and group components by function. Avoid crossing lines; use bridges (jumpers) where unavoidable, marking them clearly.
Critical Component Values and Connections
| Element | Symbol | Recommended Value | Board Pin Connection |
|---|---|---|---|
| Resistor (LED) | Zigzag | 220–470Ω | Digital I/O (e.g., D13) |
| Tactile Switch | Gap with line | N/A | Any digital pin + pull-down resistor |
| Potentiometer | Zigzag with arrow | 10kΩ | Analog input (A0–A5) |
| Buzzer (Active) | Circle with “BZ” | 5V-compatible | Digital I/O + transistor if >20mA |
Test continuity with a multimeter before finalizing the sketch. Probe each connection from power source to component and back to ground. For example, measure voltage drop across the resistor in the LED path–expect ~1.8V for a red LED and ~3.2V for white/blue. If readings deviate significantly, recheck polarity or component values. Color-code lines if working digitally: red for power, black for ground, and blue/yellow for signals.
Add annotations for pin modes and logic. Mark digital pins as “OUTPUT” for LEDs or “INPUT” for switches. For analog sensors, note the expected voltage range (e.g., “0–5V”). Include a legend if the sketch grows complex: “R1 = 220Ω,” “D1 = Red LED,” “S1 = Pushbutton to GND.” Store sketches alongside code comments for reference–misaligned pins are a common debugging pitfall. Use a consistent grid scale (e.g., 0.1-inch increments) for modular expansions later.
Common Pitfalls and Fixes
Reversing LED polarity will prevent it from lighting; verify anode (longer leg) connects to power. Floating inputs from unconnected switches cause erratic behavior–always use a pull-down/pull-up resistor (10kΩ) to define a default state. Overloading outputs (e.g., driving high-current devices without a transistor) damages the board–limit loads to 20mA per pin, 200mA total. For noise-sensitive analog circuits, keep leads short and separate from digital lines to avoid interference.

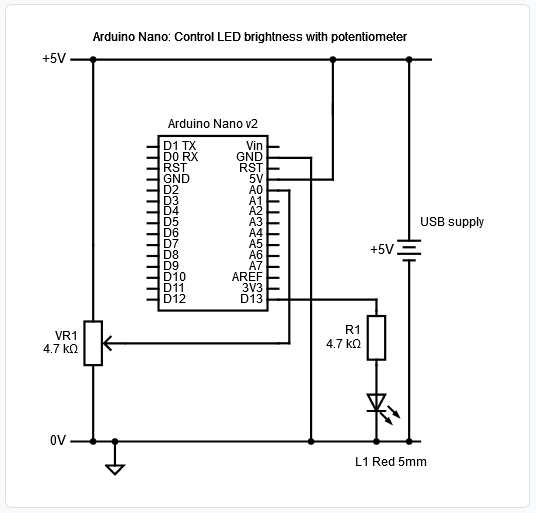

Connecting Fundamental Peripherals: Optoelectronics, Current Limiters, and Input Devices
Always verify the forward voltage and current ratings of optoelectronic indicators before integration. A typical 5mm red LED operates at 1.8V–2.2V with 20mA forward current; exceeding these values risks premature failure. For microcontroller boards like the Uno or Nano, source current from digital pins is capped at 40mA per pin, mandating a current-limiting element. Use a 220Ω resistor for 5V logic or a 470Ω resistor for 3.3V logic to keep current within safe margins–no calculations needed if these standard values are applied.
Position resistors in series with LEDs, never in parallel. Parallel configurations cause uneven current distribution, often leading to one LED drawing excessive current while others dim unexpectedly. For multi-LED setups, wire each branch independently with its own resistor. Avoid daisy-chaining LEDs from a single resistor; the slight voltage variance between devices compounds, resulting in inconsistent brightness or thermal runaway in higher-power arrays.
Calculating Values for Non-Standard Conditions
When interfacing blue or white LEDs (3.0V–3.6V forward voltage), recalculate resistor values using Ohm’s law: R = (Vsource – VLED) / Idesired. For a 3.3V LED on a 5V rail at 15mA, the equation yields (5 – 3.3) / 0.015 ≈ 113Ω; select the nearest standard resistor, typically 120Ω. Never omit this step for high-brightness or specialty LEDs–undersizing resistors accelerates degradation, while oversizing dims output unnecessarily.
Passive input devices like photoresistors (LDRs) or thermistors require pull-down or pull-up configurations to define a default state. An LDR wired to an analog pin without a pull-down resistor floats, introducing signal noise. Use a 10kΩ resistor to ground for pull-down, ensuring stable readings even in low-light conditions. For active sensors (e.g., DHT11, HC-SR04), consult datasheets to confirm signal pin assignments–miswiring the trigger/echo pins on ultrasonic modules damages the device.
Wiring Conventions and Signal Integrity

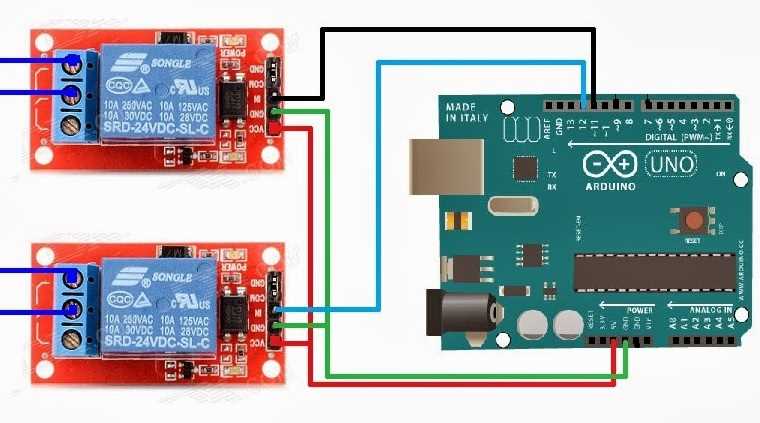

Breadboard power rails mirror each other, but switching rail polarity mid-project invites short circuits. Label rails permanently with tape or markers: red for VCC, blue for ground. For inductive loads (relays, motors), place a flyback diode (1N4007) inverse-parallel to the coil to clamp voltage spikes–absent this, spikes exceeding 50V destroy microcontroller pins. PWM-driven components (servos, dimmable LEDs) perform best with aluminum electrolytic capacitors (10µF–100µF) across power rails to filter switching noise.
Solderless prototyping boards introduce parasitic resistance (~0.1Ω per interconnect). For precision applications, solder connections or use PCB-mount terminals. High-impedance sensors (e.g., pH probes) mandate shielded cabling and star grounding to avoid capacitive coupling. When daisy-chaining peripherals, limit cumulative current to 200mA per rail; exceeding this risks voltage sag, causing brownouts in linear regulators.
Test each connection sequentially using a multimeter’s continuity mode. Touch probes to LED/resistor junctions–absence of beeps indicates open circuits. For sensors, log sample readings without input to establish baselines; drift beyond ±5% signals wiring faults or environmental interference. Replace through-hole resistors with surface-mount components for permanent builds–axial leads fatigue under vibration, while SMD parts endure mechanical stress.
