Step-by-Step Guide to Drawing Accurate Electrical Wiring Diagrams
Begin by sketching the power source–a battery, generator, or mains connection–on the left side of your layout. Label voltage levels (5V, 12V, 24V) and current direction with arrows to avoid ambiguity. Use standardized symbols (IEC 60617 or ANSI Y32) for resistors, capacitors, transistors, and connectors; deviations cause misinterpretation. Group related components (microcontrollers with their decoupling capacitors) and keep high-frequency paths (clock signals, data buses) shorter than 5 cm to minimize noise.
Choose software with real-time validation: Altium Designer flags unconnected pins, KiCad offers design rule checks, and Eagle enforces grid alignment. For low-voltage DC (12V or below), use 0.5 mm traces for signals and 1.5 mm for power; for AC mains, increase to 2.5 mm to handle 10A safely. Annotate each trace with wire gauge (AWG 22, 18) and insulation type (PVC, silicone) if routing includes physical bundling.
Color-code conductors: red for positive, black for negative, green/yellow for ground, and blue for neutral in AC systems. Mark test points (TP1, TP2) at critical nodes and include a component reference table listing part numbers, values, and tolerances (±5%, 1%). For PCB layouts, separate analog and digital grounds with a star topology to prevent cross-talk.
Validate your design against safety standards (IEC 60364, NFPA 70): ensure RCDs interrupt circuits at 30mA, and fuse ratings match cable capacity (1A fuse for 0.75mm² wire). Document switching sequences–label relays, contactors, and transistors with on/off states. For industrial control panels, include a legend explaining emergency stop logic and interlocking.
Crafting Precise Schematic Blueprints
Begin by labeling every conductor with its cross-sectional area in mm² and insulation type–critical for compliance with IEC 60228 standards. Use distinct line weights: 0.5mm for signal paths, 0.7mm for control circuits, and 1.0mm for power feeds to enhance readability without color-coding.
Position components in a logical sequence: source → protection → switchgear → load. Rotate symbols to avoid crossing conductors; a 90° offset for relay coils and contacts reduces confusion. For three-phase systems, align phases vertically (L1 top, L3 bottom) with neutral and ground beneath.
| Symbol | IEC Reference | Spacing (mm) |
|---|---|---|
| Circuit breaker | IEC 60617-5 | 15 |
| Contactor | IEC 60617-7 | 20 |
| Thermal overload | IEC 60617-2 | 10 |
Group related elements in dashed bounding boxes; use dashed lines for mechanical linkages (e.g., motor to gearbox). Annotate wire numbers at both ends of each segment–match these to the bill of materials for traceability. For PLC schematics, separate I/O modules into columns with input/output bridges aligned horizontally.
Apply standardized layer naming: "L1-Power", "L2-Control", "L3-Signals". Hide non-critical layers during review to isolate subsystem errors. Store metadata in the drawing header–project code, revision number, and approval date–formatted as "PROJ-XXX_REV-A_2024-05-15".
Validate diagrams with a 5-step checklist: 1) verify all conductors terminate at viable points; 2) confirm each fuse/circuit breaker rating matches downstream load; 3) cross-reference terminal numbers with device labels; 4) check for orphaned symbols (e.g., a relay coil without contacts); 5) simulate power flow mentally from source to load before final export.
Choosing Precise Instruments for Circuit Schematic Development
Opt for KiCad if open-source flexibility is critical. The platform integrates EEschema for component placement and a built-in PCB footprint editor, eliminating the need for third-party plugins. Version 7.0+ supports differential pair routing and real-time design rule checks–useful for high-speed signal integrity. Free libraries cover 90% of standard parts, but custom symbols require manual creation.
For enterprise-grade projects, Altium Designer provides a unified environment with native schematic-PCB synchronization. The ActiveBOM module automates supplier integration, pulling real-time pricing and availability from distributors like Digi-Key. Licenses start at $3,500/year, but the 14-day trial allows evaluation of features like multi-channel design reuse and version control via Git. Built-in SPICE simulation supports limited mixed-signal analysis.
When budget constraints are severe, EasyEDA combines cloud collaboration with offline functionality. The browser-based editor exports directly to JLCPCB for rapid prototyping, skipping intermediate Gerber generation steps. However, schematic complexity maxes out at ≈500 components before performance degrades. Proprietary file formats (.epro) complicate migration to other tools.
Proteus merges schematic capture with advanced simulation capabilities. Its VSM module executes firmware directly on microcontroller models (AVR, PIC, ARM Cortex-M), simulating peripherals like UART and I2C. The Graph-Based Simulation plots analog signals in real time, though transient analysis lacks accuracy for RF applications above 1 MHz. Licenses scale from $245 for basic schematics to $1,200 for full simulation.
Physical Tools for Analog Workflows
Drafting templates with symbol stencils (e.g., Rapidtables ISO/ANSI set) accelerate hand-drawn designs. Transparent polyester film (Mylar) resists smudging during repeated erasures, while 0.5mm technical pens (Staedtler Mars 700) maintain consistent line weights. For precision, a French curve aids in drawing smooth signal paths around irregular components.
Light tables improve visibility when tracing existing blueprints. A 12″x18″ LED table with adjustable brightness (>3,500 lux) reduces eye strain during prolonged sessions. For scaling, use a proportional divider to transfer measurements between schematics and PCB layouts without recalculating ratios.
Niche Tools for Specialized Needs
OrCAD Capture excels at hierarchical designs with its project manager view, allowing nested sheets up to 10 levels deep. The Constraint Manager enforces electrical rules (e.g., fan-out limits) pre-layout, but requires Windows and costs $2,800 annually. API access enables custom automation via Python scripts for repetitive tasks.
For minimalist setups, Fritzing converts breadboard prototypes to professional schematics via its dual-view editor. The export-to-PCB feature simplifies DIY etching, though copper pour algorithms lack optimization for commercial fabrication. Free for personal use, but its development halted in 2020–compatibility with newer OS versions isn’t guaranteed.
Standard Schematic Icons and Their Real-World Use Cases
Start by memorizing IEC 60617 symbols–these form the backbone of global industry practices and eliminate ambiguity in technical layouts. For example, a simple rectangle with two parallel lines on the ends (resistor) communicates resistance value without additional notation, while a zigzag line (variable resistor) instantly signals adjustability. Always verify local adoption: North American ANSI symbols differ slightly, particularly for switches and relays, but IEC remains dominant in multinational projects.
Ground symbols require clear distinction between chassis, signal, and earth grounds. Use the downward-pointing triangle (earth ground) exclusively for safety circuits connected to physical earth–never merge it with a chassis symbol in power distribution layouts. A lazy approach here risks equipment damage or electric shock; label each type explicitly in multi-level plans where mixed grounding schemes exist.
Switches demand precise representation. A basic SPST (single pole, single throw) uses a gap between two lines, but momentary pushbuttons add a diagonal slash. Double-throw variants (DT) introduce a T-shape–misinterpretation here creates short circuits. For industrial controls, prioritize NO (normally open) and NC (normally closed) contacts; confusing these reverses logic in relay-controlled systems.

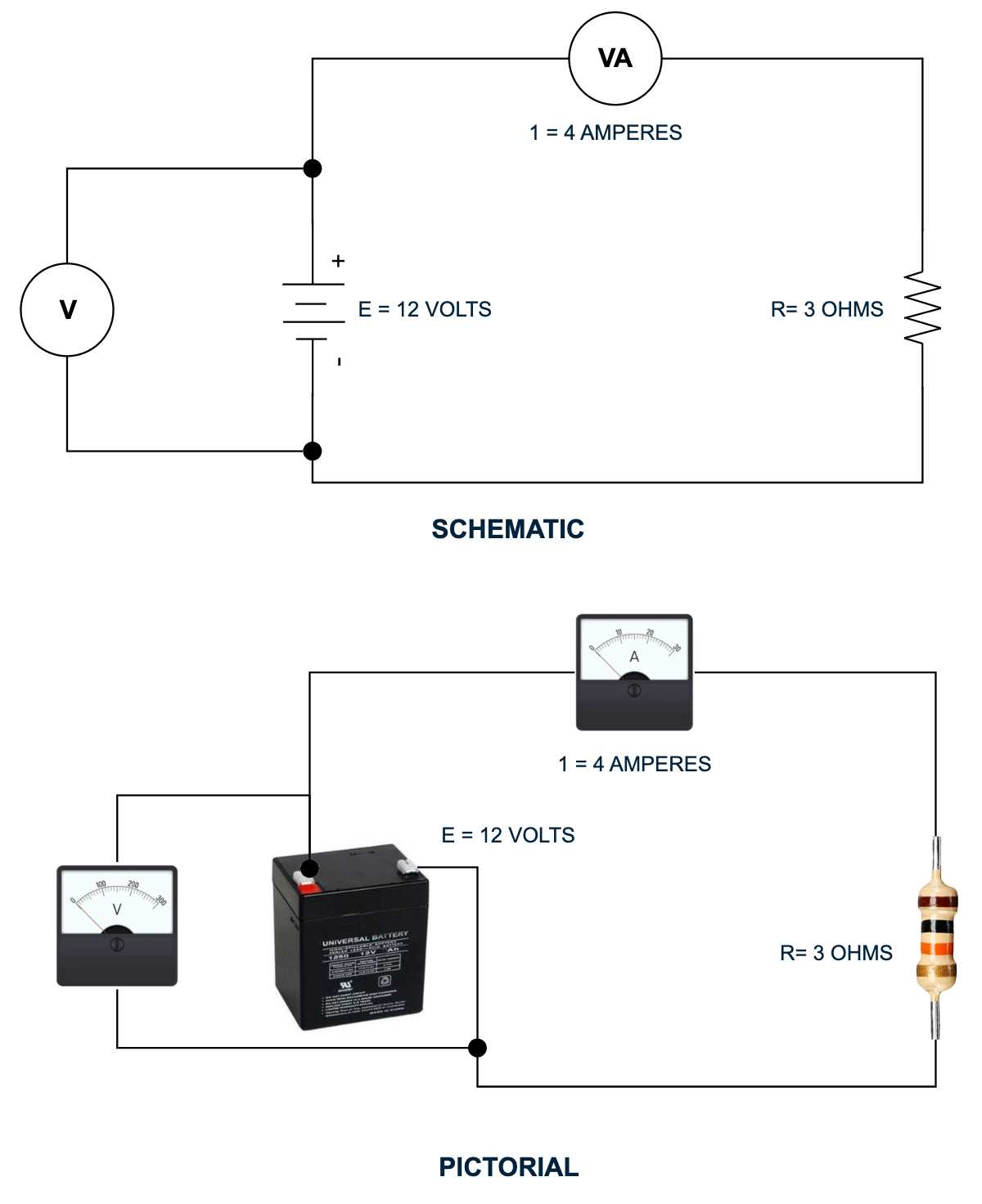

Meters and indicators follow distinct rules. A circle with an arrow (ammeter) measures current; substitute the arrow with a vertical line for voltage (voltmeter). Direction matters–arrow placement shows polarity expectations. For AC applications, add a sinusoidal wave inside the circle. Omitting these details forces technicians to guess probe orientation during troubleshooting.
Semiconductor symbols compress complex behaviors into minimal lines. A diode (triangle + line) dictates current flow direction; flip it to convert from rectifier to freewheeling path in inductive load circuits. Transistors use three terminals–label emitter, base, collector with arrows showing conventional current direction. Mistakes here reverse amplification or shut down switching regulators.
Power supplies separate into AC and DC forms. AC sources use a circle with a sine wave; DC substitutes a single line or plus/minus. Always include voltage ratings near the source–skipping this forces repeated calculations during panel modifications. For batteries, stack short/long lines; adjacent cells imply series configuration.
Transformers require layered symbols. Primary and secondary windings appear as parallel curves or circles with connecting dots showing polarity. Dot placement determines phase relationship; reversing them introduces 180° lag in sensitive motor drives. For autotransformers, merge primary/secondary coils visually to avoid unnecessary complexity.
Fuses and breakers use identical rectangles but differ in context. Fuses (single-use protection) include a thin internal line; breakers (reset-capable) omit it. Always place these immediately after power sources in high-current paths–omitting them accelerates thermal failures in downstream equipment. Include interrupt rating (e.g., “5A” inside the box) to match panel specifications.
