Creating a Practical Drip Irrigation System Layout Step-by-Step Guide

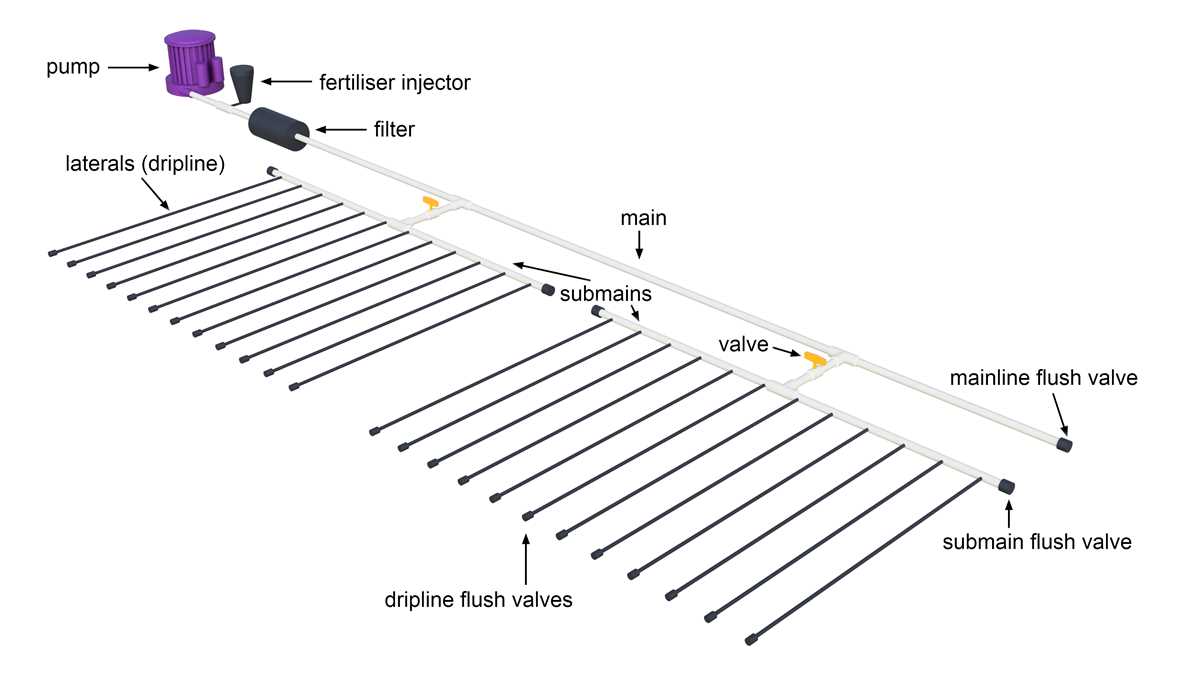

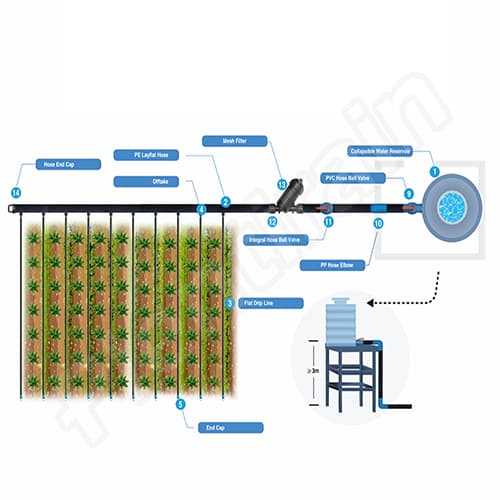

Start with a primary water source delivering 1.5–2.0 bars of pressure, filtered through a 120–150 mesh screen to block debris down to 100–130 microns. Position the filter immediately downstream of the supply valve to prevent clogging in emitter lines. Use schedule 40 PVC or high-density polyethylene (HDPE) tubing for mainlines–16 mm diameter handles flows up to 800 L/h, 20 mm extends capacity to 1,200 L/h. Bury mainlines 15–20 cm deep to avoid UV degradation and accidental damage.

Branch off with 4 mm or 6 mm microtubes every 30–50 cm, depending on plant spacing. For vine crops, place two emitters per plant at opposite root zones; for row crops, space emitters 20–30 cm apart. Self-compensating drippers rated at 2.0–4.0 L/h maintain uniform flow across slopes up to 5%. Insert emitters directly into microtubes using a punch tool to create a 3 mm hole–avoid twisting to prevent leaks.

Install pressure regulators if source pressure exceeds 2.5 bars; most emitters fail at pressures above 3.0 bars. Place regulators at the head of each zone if using multiple sectors. Venturi injectors or proportional dosing pumps integrate fertilizers upstream of emitter lines–calibrate to 2–3 ppm nutrient concentration to prevent salt buildup in soil.

Include flush valves at the end of lateral lines and program weekly 3-minute flush cycles to dislodge sediment. Connect control valves to a 24V solenoid timer with battery backup for off-grid reliability. Solar-powered setups require a 10-watt panel and a 12V deep-cycle battery to drive a 30 L/min pump continuously.

Test system calibration by measuring output per emitter–variation should not exceed 10%. Adjust flow paths if deviation persists, isolating sections with needle valves for fine-tuning. Map subsurface lines on graph paper at 1:50 scale, noting depth, emitter count, and filtration points for maintenance reference.

Precision Water Delivery Plans for Field Systems

Begin by positioning the main line at a 0.5% downward slope to prevent air pockets in 16mm LDPE tubing, ensuring uniform flow rates across lateral lines spaced 0.75m apart for row crops. For orchards, increase lateral spacing to 1.2m with emitters placed 0.4m from tree trunks, using pressure-compensating drippers rated at 2.3 L/h at 1 bar for slopes exceeding 5%. Install a 120-mesh screen filter upstream of the control valve to capture particles larger than 125 microns, reducing emitter clogging by 70% in hard water areas. Place a pressure regulator at 1.5m from the water source to maintain 0.8–1.2 bar at the furthest emitter, critical for systems over 200m in length where friction loss reaches 0.2 bar per 50m.

Component Specifications for 1-Hectare Layout

Element	Specification	Quantity	Notes
Mainline 40mm	PN6 HDPE	250m	Buried 30cm deep; UV-resistant
Submain 25mm	PN4 LDPE	4x120m	Laid perpendicular to crop rows
Laterals 16mm	PN2.5 LDPE, 0.6mm wall	500x8m	Emitter spacing: 30cm for vegetables
Inline emitters	2.1 L/h, PC	12,000 units	Turbulent flow path; 6-year lifespan
Fertilizer injector	Venturi type, 1.5″ inlet	1 unit	Operational range: 2–5 m³/h; acid-resistant housing

Arrange laterals in a herringbone pattern for fields under 0.5ha to simplify maintenance, or use a grid layout for larger areas to reduce the number of fittings by 30%. At each submain junction, install a manual flush valve with a ¾” ball type to remove sediment every 4 weeks during peak season; failure to flush increases emitter failure rates to 18% within 3 years. For automated systems, integrate a solenoid valve with a 24V DC latching mechanism at the head, paired with a moisture sensor set to trigger at 25% volumetric water content for sandy loam soils. Replace all gaskets in compression fittings annually–silicone variants degrade 40% faster than EPDM in chlorinated water above 1.5 ppm.

Critical Elements for an Optimal Precision Watering Blueprint

Begin with a pressure-compensating emitter spaced every 30–60 cm along lateral lines to ensure uniform flow across undulating terrain; 0.5–2 L/h models suit most row crops, while 4–8 L/h units work for orchards.

• Primary filtration: install a mesh or disc filter at the water source–120–150 micron for well water, 200 micron for surface supplies–to prevent emitter clogging.
• Secondary screen: add a 150-micron inline filter at the header to catch debris before laterals.
• Flush-valves: place manual or automatic flush caps at every lateral termination point; open monthly for 30 seconds to purge sediment.

Lay out submains in a looped configuration rather than dead-end runs; this halves pressure drop and allows continuous operation during maintenance. Use 32–50 mm diameter pipes for submains, reducing to 16–20 mm laterals.

1. Layout sequence: map contours first, then align laterals perpendicular to slopes; staple lines every 1.5 m on gradients steeper than 5 %.
2. Submain placement: bury submains 30 cm deep to prevent UV degradation and rodent damage; above-ground sections require thicker-walled tubing (0.6–1 mm).
3. Zoning: divide the system into 3–4 sectors, each controlled by a separate solenoid valve (12 V AC or DC); this allows rotational watering and matches supply to crop needs.

Integrate a fertigation unit immediately downstream of the filtration system; venturi injectors (1–2 bar pressure differential) are cost-effective, while diaphragm pumps offer precise dosing. Calibrate for 0.1–0.5 L/min nutrient flow rate, depending on crop demand.

Add a precise timing controller capable of managing weekly schedules and seasonal adjustments; battery-powered solar units endure power outages, while Wi-Fi models enable remote monitoring. Include rain and soil moisture sensors to override cycles when thresholds are met–typically 15 mm rainfall or 40 % field capacity.

How to Design a Precision Watering System Blueprint

Begin by sketching the primary water source location at the top of your layout–whether it’s a tank, well, or municipal supply–clearly marking its elevation if gravity-fed systems are involved. Use a triangle symbol with a numeric label (e.g., “10m”) to denote pressure or height differences, critical for calculating flow rates later.

Map the main pipeline next, branching from the source to distribution zones. Label pipe diameters in millimeters (e.g., “25mm PVC”) and use arrows to indicate flow direction. For slopes, draw angled lines with percentage gradients (e.g., “2% downhill”) to ensure proper drainage and pressure regulation.

• For emitters, use standardized symbols:
• ⚬ = inline drippers (specify spacing, e.g., “30cm”)
• ○ = micro-sprinklers (note radius, e.g., “1.2m”)
• □ = manifold outlets (label ports, e.g., “6x 4L/h”)

Divide the plot into sectors based on plant types or water needs. Assign each zone a unique identifier (e.g., “Zone A: Orchard”) and calculate its total required flow rate by summing emitter outputs. For example, 50 emitters at 2L/h each demand 100L/h–adjust pipe sizing to avoid pressure drops.

Integrate control components along the main line:

1. Filter: Place immediately downstream of the source (symbol: ◇). Specify mesh size (e.g., “120μm”) based on water quality.
2. Pressure regulator: Indicate PSI/KPa settings (e.g., “25 PSI”) near high-demand zones.
3. Valve: Use manual (▲) or solenoid (△) symbols, noting if automatic (e.g., “Timer-controlled”).

For precision, add a legend with units and a scale bar (e.g., “1:200”). Color-code zones if necessary–green for high-water crops, blue for low-water–to visualize resource distribution. Cross-reference with soil maps to align emitter density with field capacity data (e.g., “Clay: 4L/h/m²”).

Finalize by verifying calculations against real-world constraints:

• Confirm total dynamic head doesn’t exceed pump capacity.
• Check local regulations for backflow prevention (symbol: ⟲) if connecting to potable supplies.
• Save digital copies in vector format (SVG) for scalability, or use graph paper for manual versions with 1mm grid precision.

Key Errors to Prevent in Precision Watering Layouts

Avoid spacing emitters at uniform distances without accounting for plant root zones. Variations in crop types require tailored spacing–tomatoes typically need laterals every 30-45 cm, while trees demand 60-90 cm between points. Ignoring these specifications leads to uneven moisture distribution, causing stress for shallow-rooted plants or waterlogging in deeper-rooted varieties. Always cross-reference emitter placement with horticultural data for the specific species in your layout.

Overlooking pressure regulators in elevation changes guarantees system failure. A 1-meter rise in terrain drops pressure by roughly 0.1 bar; without compensation, low-lying sections flood while upper areas starve. Install pressure-compensating emitters for slopes exceeding 2% grade, and use in-line regulators at intervals proportional to the elevation gain–one per 5 meters for gradients above 5%. Failing this step results in burnout of components in less than one season.

Skipping flow calculations creates bottlenecks. A standard 16mm lateral tube supports 1.5-2 L/h per meter; exceeding this triggers slow starts, uneven drip rates, and emitter clogging. For areas demanding higher volumes, upsize to 20mm tubing or split into parallel runs, ensuring total flow stays within the emitter’s rated capacity. Use a nomogram or digital calculator to balance tube diameter, emitter count, and line length before committing to materials.
