Complete Wiring Guide for Durango 4-Way Trailer Light Connection

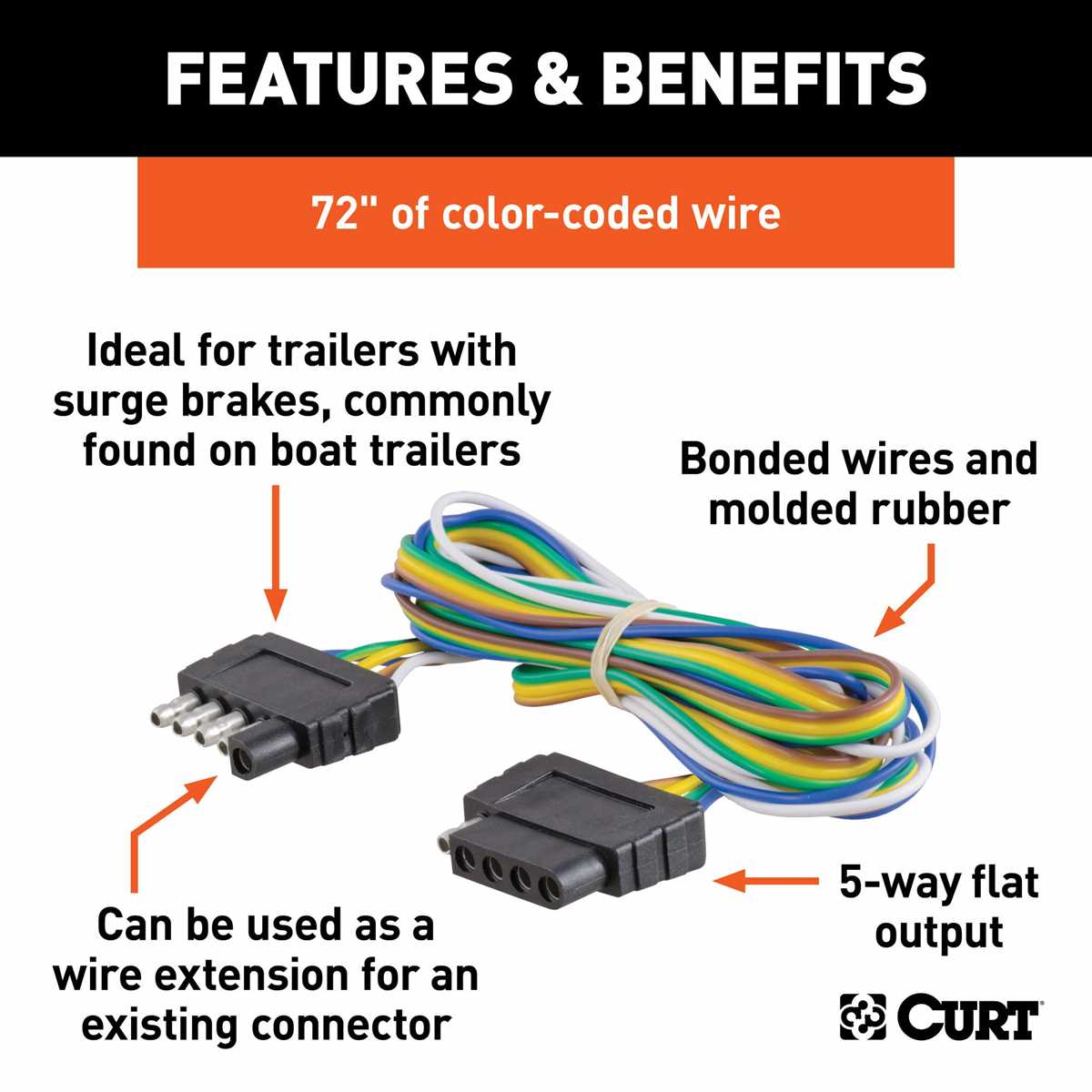

For a reliable electrical connection between a towing vehicle and attached cargo carrier, use a standardized five-wire configuration with the following pin assignments:

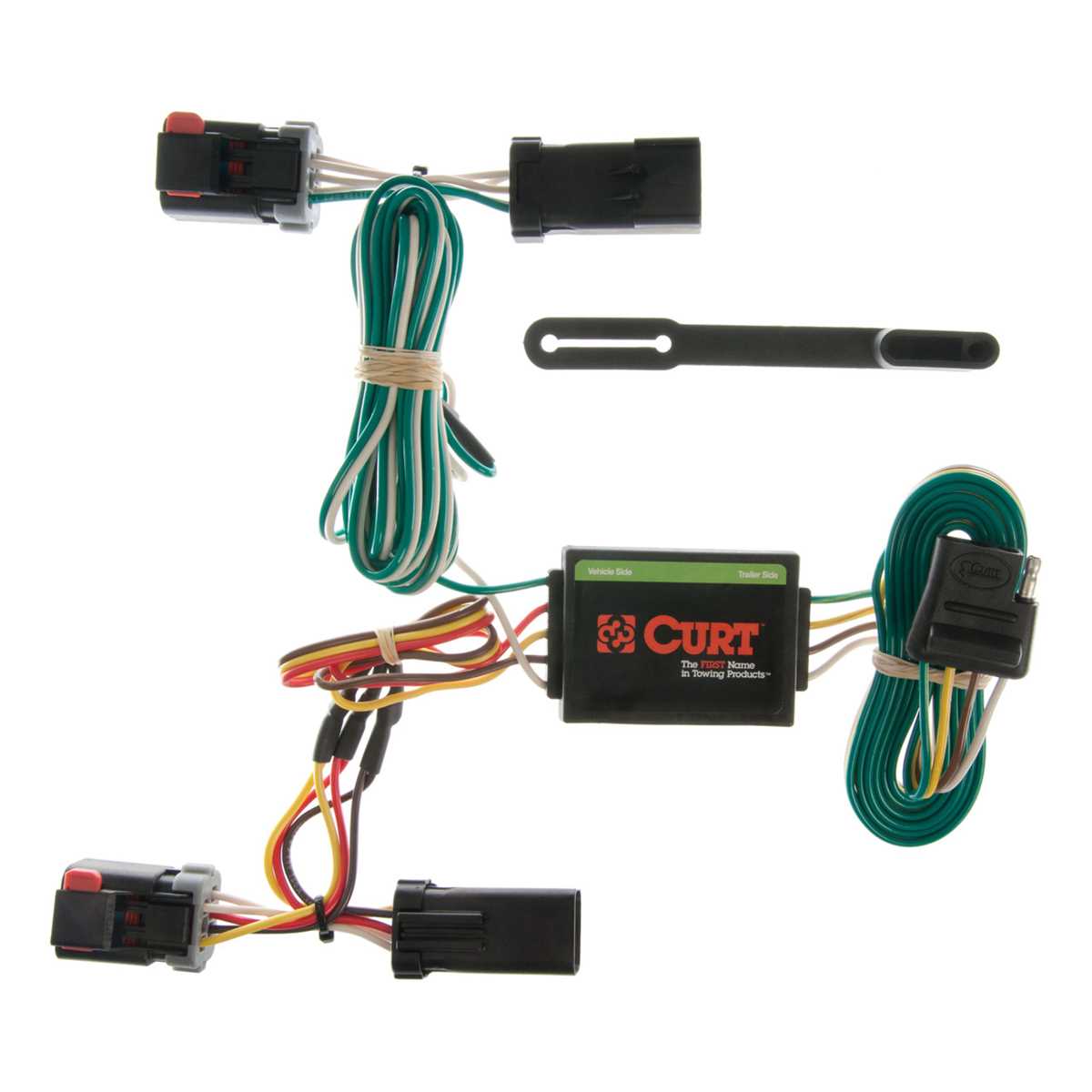

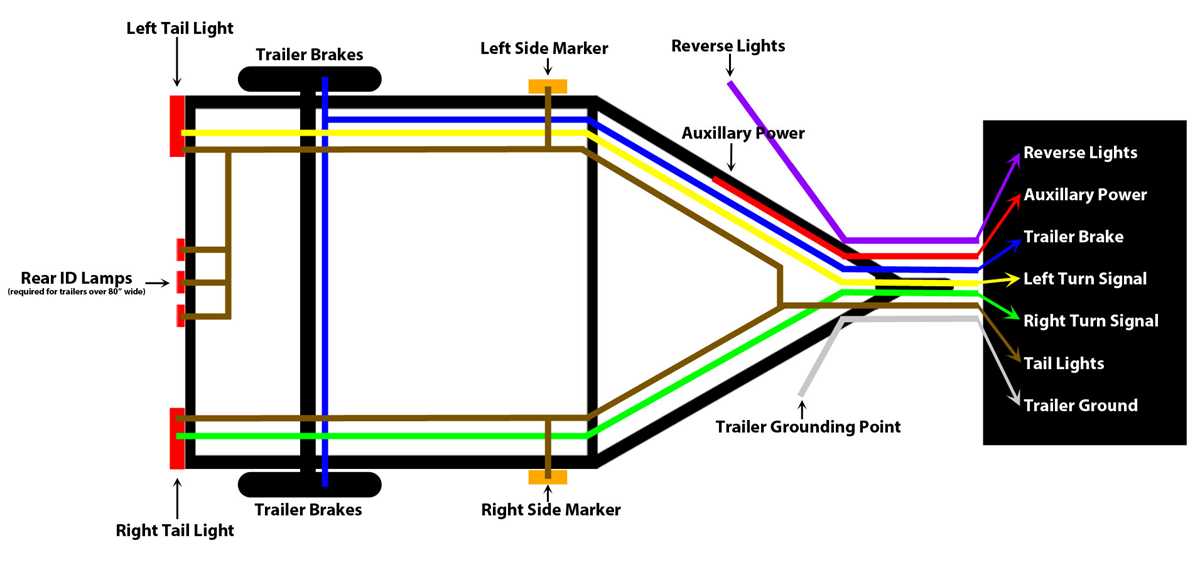

• Yellow (LH turn/brake) – Connects to the left-hand signal lamp, combining turn and brake functions in a single wire.
• Green (RH turn/brake) – Serves the right-hand signal lamp, identical in dual-purpose design.
• Brown (tail/marker) – Powers running lights, including side markers and license plate illumination.
• White (ground) – Must terminate at bare metal chassis points on both vehicles; crimp with ring terminals for corrosion resistance.
• Red (auxiliary brake) (if equipped) – Isolate from turn circuits to prevent signal override during braking.

Verify wire gauge matches load demands–18-16 AWG suffices for LEDs under 2 amps, while incandescent bulbs may require 14-12 AWG to prevent voltage drop over 15-foot runs. Solder splices and heat-shrink tubing outlast crimp connectors in wet conditions.

Avoid daisy-chaining grounds through hitch hardware; corrosion at connection points degrades conductivity within weeks. Test continuity with a multimeter before final assembly–0.5 ohms or less across any junction confirms proper bonding.

For adaptors, use reversed polarity check valves to prevent backfeed damaging vehicle-side fuses. Replace factory-installed connectors every three years if exposed to road salt or high humidity.

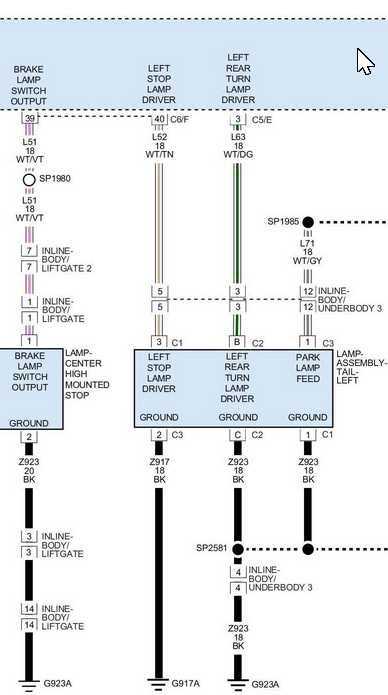

Wiring Guide for Vehicle Electrical Connector Configurations

Start with verifying the pin assignments on your vehicle’s tow harness. Standard setups include brown for running lamps, yellow for left turn/brake, green for right turn/brake, and white for ground. Check the connector’s internal contacts for corrosion or bent pins–clean with a wire brush if needed. Always match wiring colors to the tow adapter; inconsistencies cause short circuits or failed signals.

For troubleshooting, use a multimeter set to DC voltage. Probe the harness while activating each function–brake, turn signals, and running lamps. Expected readings: 12V for active functions, 0V when off. If voltage drops below 11V, inspect the vehicle’s fuse box and relay for weak connections. Replace blown fuses with identical amperage; never exceed the rated value.

Ground integrity is critical. Attach the white wire directly to the vehicle’s chassis using a dedicated bolt–not to painted surfaces or plastic mounts. Poor grounding creates intermittent failures, especially under load. For trailers with LED assemblies, add a load resistor (50W, 6Ω) across turn/brake circuits to prevent hyperflashing. Install resistors at the trailer side, not the vehicle, to avoid overheating.

If connections are mismatched, use a universal wiring adapter with labeled terminals. Splice wires using heat-shrink tubing instead of electrical tape–it withstands moisture and vibration better. For splices, strip ½ inch of insulation, twist strands tightly, then crimp with solder for durability. Avoid twisting dissimilar gauge wires together; voltage drop increases with thinner wires.

Test the system before finalizing. Activate all lights simultaneously to check for voltage sag–dim lamps indicate insufficient power. Upgrade the vehicle’s 15-amp fuse to 20A if running multiple high-draw accessories, but confirm the wiring gauge supports the increase. Double-check all connections with a continuity tester to ensure no unintended bridges between circuits.

Store a spare set of bulbs, fuses, and splices in the vehicle’s toolkit. Label wires during disassembly to prevent reattachment errors. For persistent issues, consult the vehicle’s service manual for relay locations or alternative power sources. Document each step–photographs help during reassembly.

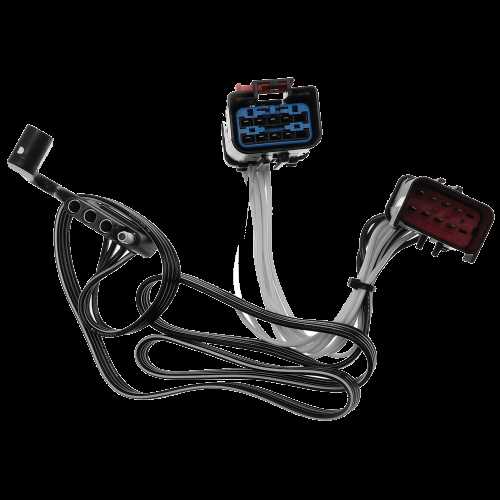

Step-by-Step Wiring Connector Setup for Vehicle Tow Hookup

Begin by identifying the color-coded wires on the vehicle’s rear harness: brown (running lamps), yellow (left turn/brake), green (right turn/brake), and white (ground). Strip ¼ inch of insulation from each wire end, ensuring no strands are damaged or frayed. Use a multimeter set to 12V DC to confirm continuity between the harness and the tow plug socket–avoid relying solely on visual inspection.

• Brown wire: Connect to the pin designated for marker and tail illumination.
• Yellow wire: Route to the left-side signal and brake circuit.
• Green wire: Attach to the right-side signal and brake terminal.
• White wire: Securely crimp to the chassis grounding point, ensuring corrosion-free contact with bare metal.

Twist each wire pair tightly before applying a heat-shrink connector or high-quality butt splice–solder alone risks vibration failure. Test each function sequentially: activate parking lamps, left/right indicators, and brake pedal press. If flickering occurs, recheck ground integrity or inspect for pinched wires near the tow bar mount.

For future diagnostics, label each wire junction with adhesive tags and document the setup with a dated photograph. Store a spare 7-way adapter in the vehicle’s toolkit to bypass unexpected pin misalignment during critical towing scenarios.

Wiring Color Standards for Vehicle Accessory Connectors

Connect the brown conductor to the running lamp circuit–the rear clearance and side marker lamps will share this wire. Verify voltage on a 12–14 VDC circuit with a multimeter before fastening terminals; the brown wire must carry current whenever the headlamps or parking lamps are engaged.

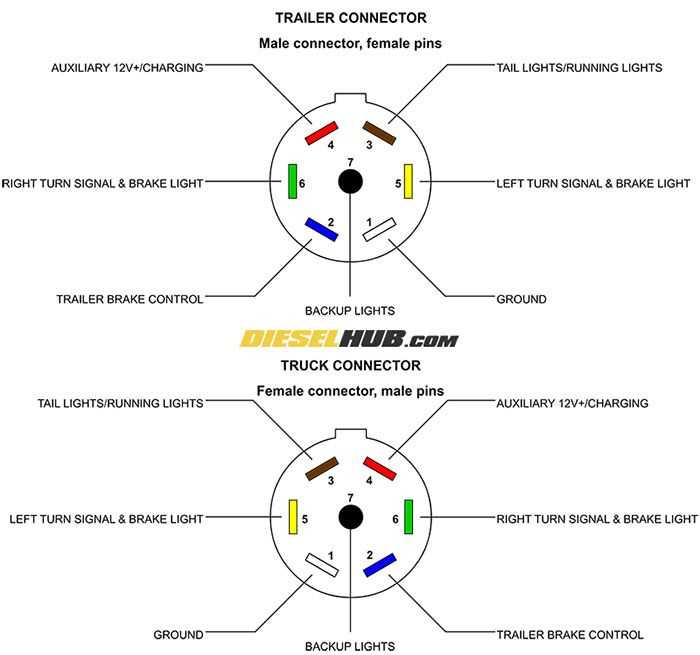

Use the table below to match each pigment to its circuit role. Cross-reference the connector’s pin layout–pins are numbered sequentially from the locking tab (pin 1) to the opposite side (pin 4). Observe polarity: reverse grounding will trip the vehicle’s fuse or damage the BCM.

Wire Hue	Function	Voltage (Key ON)	Ground Source
Yellow	Left turn & brake	12 V pulsed	Chassis
Green	Right turn & brake	12 V pulsed	Chassis
White	Common return	0 V	N/A
Brown	Tail illumination	12–14 V steady	Chassis

Strip each lead 8 mm; crimp with a seamless ring terminal sized for #16–14 AWG copper wire. Insulate splices with heat-shrink tubing (polyolefin, 3:1 shrink ratio) rather than electrical tape–tubing seals against moisture ingress and road spray.

Diagnostic Notes

Test circuits sequentially: start with the ground (white), then tail lamps (brown), followed by turn signals (yellow/green). If a turn signal flickers rapidly, inspect the bulb filament for continuity; a single burnt diode can disrupt the entire blink cycle.

Common Troubleshooting Issues in Vehicle Towing Electrical Setups

Check ground connections first–corrosion or loose terminals disrupt signal flow. Use a multimeter to verify continuity between the chassis and the wiring harness. A faulty ground often mimics bulb failure, causing erratic functioning or complete shutdown of rear lamps.

Inspect the plug and receptacle for bent pins or moisture intrusion. Apply dielectric grease to prevent oxidation, especially in wet climates. Test each circuit individually: brake actuators, turn indicators, and running lamps should show 12V during activation. If voltage drops below 11V, trace the wiring for frayed insulation or poor splicing.

Replace bulbs only after ruling out electrical faults–dual-filament lamps with burnt filaments may exhibit partial operation. Verify flasher relay functionality by swapping it with a known-good unit. Intermittent flickering often stems from loose connections at the tow vehicle’s harness adapter, requiring soldering or crimp repair.

Use a circuit tester to isolate shorts in the wiring loom. Probe each wire color-coded pair: white (ground), brown (tail), yellow (left turn/brake), green (right turn/brake). Damaged insulation near the hitch assembly or suspension components frequently causes grounding issues, necessitating protective conduit installation.

Essential Gear for Wiring Towing Signal Systems

Use a multimeter with at least 10A DC capability to verify voltage (12V±0.5V) at each connector pin before securing connections. Strip 16-18 AWG wire with a ratcheting crimper–avoid standard pliers; improper stripping causes 30% of failures. Heat-shrink tubing (3:1 shrink ratio, polyolefin) prevents corrosion on splices; electrical tape degrades within 18 months. A soldering iron (40W-60W, fine tip) ensures contact resistance below 0.1Ω at butt joints–skip twist-and-tape methods. For ground points, drill ¼” holes and use stainless steel ring terminals (M6 or #10 size) with star washers; painted surfaces require sanding to bare metal. Keep a circuit tester with probe tip (not a bulb tester) to isolate shorts without triggering fuses.

Consumables and Safety Gear

Grab dielectric grease (silicone-based) for plug contacts–it reduces oxidation by 90% compared to bare terminals. Use butyl rubber tape (not silicone) for sealing splices in wet conditions; it self-fuses at 5°C and above. Nitrite gloves prevent copper oxide burns during prolonged handling. A torque screwdriver (0.5-2 Nm range) prevents overtightening of 7-way connectors, which cracks plastic housings. Keep spare mini fuses (20A for circuits, 5A for signals) and waterproof wire nuts (gel-filled) for emergency repairs. For mounting, use 3M VHB tape (4941 series) or hex-head screws (M5×12mm stainless); avoid wood screws–they corrode threads in 12 months under vibration.
