Dyna 2000i Ignition System Wiring Guide for Motorcycle Repair
For precise troubleshooting or upgrades, start by locating the black/yellow wire from the stator–this is your primary charge line delivering 12V AC when the engine runs. Connect it directly to the voltage regulator’s input terminal, ensuring no corrosion or loose crimps disrupt the flow. Skip generic multimeter tests; use a loaded voltage probe to verify at least 13.5V DC post-rectification under 2,500 RPM.
Next, trace the orange wire from the trigger coil to the ignition module’s pulse input. Verify resistance between this wire and ground: 100-400 ohms indicates a functional coil, while readings outside this range signal a failing pickup or shorted harness. Replace the entire harness bundle if insulation frays near the cylinder fins–temporary fixes with electrical tape degrade within 500 miles.
Connect the red power feed wire to the main fuse (10A) via a dedicated relay to prevent voltage droop during startup. Route this wire away from the exhaust headers; secure it with heat-resistant loom near the frame downtube. For ignition timing adjustments, use a strobe set to 3°-5° BTDC at idle–any variance beyond ±1° requires ECU recalibration or replacing the crankshaft position sensor.
Ground the green/white wire from the ignition module to the engine case only, avoiding battery ground points to eliminate stray voltage interference. Test continuity with a low-ohm meter (
Connecting Your Electrical System: A Field-Tested Approach
Locate the engine control module beneath the fuel tank–remove the right-side panel using a T25 Torx screwdriver to access the 12-pin connector. Pin assignments follow a consistent pattern: cylinders 1-4 correspond to positions 1-4 on the harness, while the ignition trigger sits at position 5. Verify continuity with a multimeter; resistance between any cylinder pin and ground should exceed 5 kΩ when the spark plug is disconnected.
Color-coding adheres to an unofficially standardized scheme:
| Function | Wire Color |
|---|---|
| Cylinder 1 output | Red/White stripe |
| Cylinder 2 output | Blue/White stripe |
| Cylinder 3 output | Yellow/White stripe |
| Cylinder 4 output | Green/White stripe |
| Trigger signal | Black/Red stripe |
| Ground ref. | Black |
| 12 V supply | Orange |
Isolate each wire with shrink tubing rated for 125 °C minimum–standard vinyl insulation melts under exhaust manifold proximity.
Route the harness away from the exhaust header by at least 30 mm; use heat-resistant sleeving over the section nearest the cylinder heads. Secure runs with nylon ties every 150 mm, avoiding sharp edges on engine fins. The trigger wire demands a dedicated shielded cable if the run exceeds 600 mm–ignition noise from alternator or high-beam circuits can cause false spark advance at 3500 RPM.
The stator output connects to the orange feed wire via a 30 A fuse positioned within 150 mm of the battery positive terminal. Substitute the factory fuse holder with a waterproof blade-type–corrosion on the stock unit leads to voltage drop under 6000 RPM load. Check voltage at the coil pack with engine running: 13.8-14.2 V indicates proper charging; below 13.4 V confirms stator or regulator failure.
Coil pack resistance should read 0.5-1.2 Ω primary, 10-15 kΩ secondary across each tower. Disconnect the battery negative before probing; accidental short to ground through the meter probe destroys the module. Replace coils if values drift outside spec–misfires at temperature extremes trace back to degraded secondary windings.

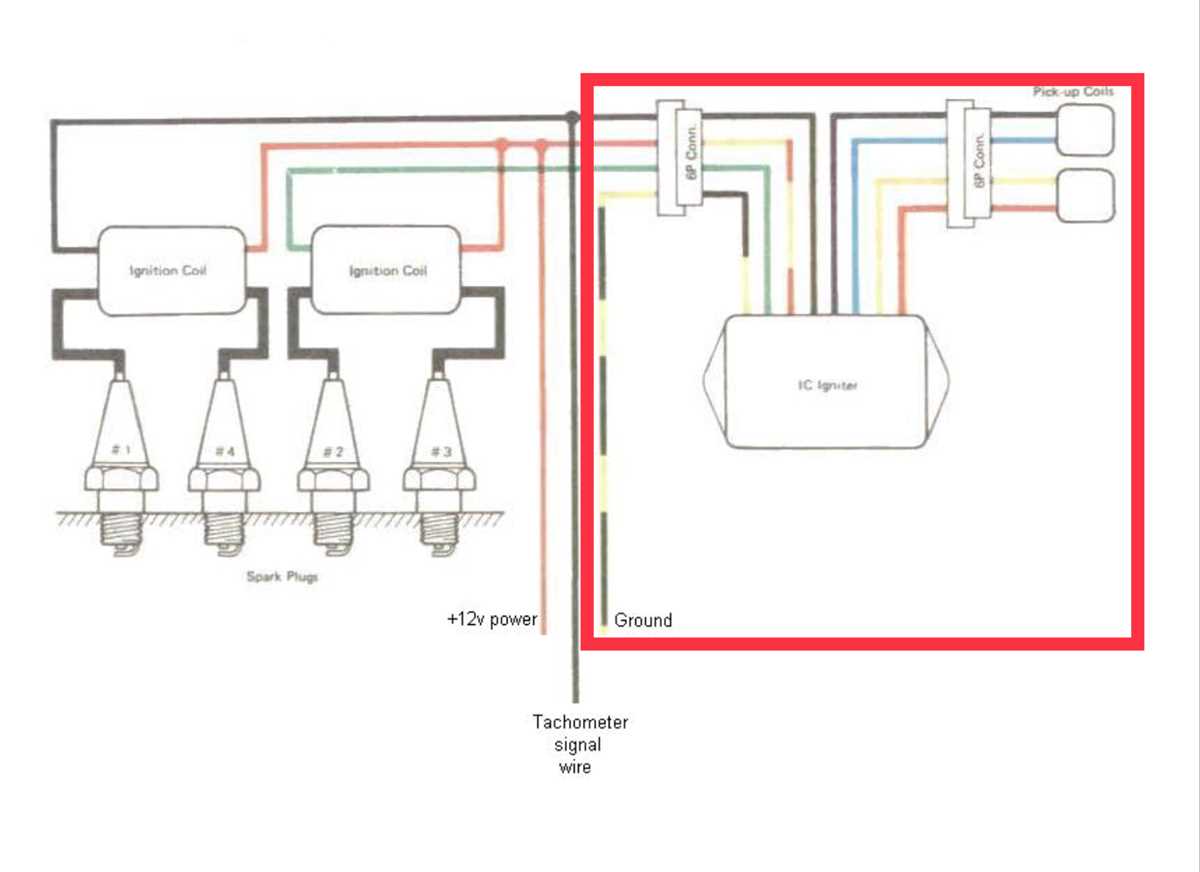

Synchronize timing with a strobe light while back-probing the trigger wire at the module connector. Static timing marks on the flywheel align at 10° BTDC; adjust the sensor gap to 0.4-0.6 mm using a feeler gauge. IDC on a 4-cylinder platform requires 1-4 and 2-3 tower pairs to fire simultaneously–swapping coil leads can produce a 4-stroke sound but drastically alters exhaust note and powerband.
After assembly, load-test the bike on a stand: run engine at 4000 RPM for 10 minutes, then check harness connectors for heat deformation. Any discoloration or softening indicates inadequate insulation or misrouted wires–reinspect routing before road testing. First ride should be limited to 50 km/h for the initial 50 km, allowing the system to stabilize thermally under real-world load conditions.
Finding Key Electronic Control Unit Connection Elements
Begin by removing the right side panel covering the flywheel area–access requires a 10mm socket and a T25 Torx driver for securing screws. The primary pulse generator sits adjacent to the flywheel, identified by a single green wire leading to the CDI box. Verify its position by tracing the wire to connector J1 on the control module, ensuring no abrasions near the engine cover.
- Inspect the kill switch wiring harness first–its black and grey leads terminate at the main harness near the throttle assembly.
- Locate the stator plate behind the flywheel; its three yellow wires (each 1.5mm²) converge into a single white connector leading to the voltage regulator.
- Identify the capacitor discharge box (CDI) mounted under the seat–its three connectors (J1, J2, J3) handle distinct circuits: pulse pickup, power feed, and coil output.
Examine the coil’s secondary circuit by following the thick orange cable from the CDI box to the spark plug boot–resistance should measure 5–15 kΩ. A crimped terminal or brittle insulation here requires replacement of the entire lead, as splices degrade performance.
The stator’s yellow leads (phase wires) must connect to the regulator without tension–route them through the upper frame loop to prevent chafing against the engine block. Secure them with zip ties at 10cm intervals, avoiding sharp edges near the exhaust.
Trace the kill switch circuit from its momentary-contact button: the grey wire runs to the CDI while the black wire grounds to the frame via a dedicated M6 bolt near the airbox. Confirm continuity using a multimeter–resistance should drop to zero ohms when engaged.
- Remove the fuel tank to access the CDI box’s rear–two 6mm Phillips screws secure its bracket to the subframe.
- Disconnect the battery’s negative terminal before probing any connections to prevent short circuits.
- Label each connector using masking tape before detachment; note polarization of J2 (red positive, black negative).
Check the pulse generator’s pickup coil resistance–it should read 200–400 ohms at 20°C. Values outside this range indicate a faulty coil, requiring replacement. Ensure the flywheel’s trigger tab aligns within 0.5mm of the pickup when rotated by hand–misalignment causes timing issues.
The voltage regulator’s white connector interfaces with the stator’s phase wires–verify each slot matches the factory color code (yellow, yellow/white stripe, yellow/red stripe). Crossed connections risk overheating the rectifier or damaging the CDI box. Reassemble by securing all fasteners to 8–10 Nm torque.
Connecting the Electronic Ignition Kit: A Precise Guide
Locate the positive coil terminal–marked with a “+” symbol–and attach the red wire from the control module. Ensure the connection is secure; use a crimp connector or solder for maximum conductivity. For vehicles with a ballast resistor, bypass it by linking the red wire directly to the battery’s positive terminal using 14-gauge wire. This prevents voltage drop and guarantees consistent spark delivery.
Ground the black wire from the module to the engine block or chassis. Scrape away paint or corrosion at the attachment point to avoid resistance. For optimal performance, use a dedicated grounding point rather than sharing with existing electrical components. Verify the connection with a multimeter; resistance should read below 0.5 ohms.
Trigger Coil and Pickup Assembly
Identify the stator’s trigger coil wires–typically white and green–and match them to the module’s white and green/red inputs. Twist the corresponding wires together, then solder or use butt connectors. If the bike uses points, remove them and replace with the module’s pickup coil, aligning the trigger wheel’s teeth with the sensor for accurate timing. Adjust the air gap to 0.3–0.5mm using a non-magnetic feeler gauge.
Route the wires away from moving parts and heat sources, securing them with zip ties. Test the setup by cranking the engine while monitoring spark output at the plug wires with a spark tester. If no spark appears, recheck connections starting with the ground, then coil power, and finally the trigger signals. Use a timing light to confirm advance curves if the system includes programmable features.
Common Electrical Assembly Errors and Prevention
Reverse-polarity connections destroy control modules instantly. Verify terminal labels before energizing any circuit–red leads attach to “+” markings, black to grounding points. Use a multimeter set to continuity mode to confirm pathways without power applied. Incorrect pairing causes immediate component failure, often misdiagnosed as faulty hardware.
- Skipping heat-shrink tubing exposes bare joints to corrosion. Apply adhesive-lined sleeves over every splice, heat uniformly until clear sealant emerges.
- Ignoring crimp quality leads to loose connections. Use ratcheting crimpers with color-coded dies matching wire gauge–yellow for 12-10 AWG, blue for 16-14 AWG.
- Over-tightening terminal screws strips threads. Torque to 4 in-lbs with a precision driver; overtightening compresses strands reducing conductivity.
Ground loops create voltage fluctuations. Dedicate a single star-point ground for all components rather than daisy-chaining returns. Isolate signal wires from power feeds using separated harness runs–minimum 3-inch spacing prevents inductive coupling. Regularly inspect mounting surfaces for paint or oxidation; bare metal contact ensures proper dissipation.
