Complete Guide to Heat Strip Wiring Connections and Electrical Schematics
Begin by verifying the voltage rating of your heating component matches the power source. Most residential systems operate at 240V, while commercial setups may use 208V or 480V. Consult the manufacturer’s data plate–ignoring this step risks thermal overload or premature failure.
Use 10 AWG copper wire for circuits under 30 amps and 8 AWG for higher loads. Aluminum wiring must be avoided; its oxidation properties increase resistance, creating hazardous hotspots. Secure connections with crimp connectors and apply dielectric grease to prevent corrosion in humid environments.
Label each conductor at both ends: L1, L2, and ground. Miswiring a 240V element to a 120V line will reduce output by 75%, while incorrect polarity can damage internal coils. Install a double-pole circuit breaker–single-pole configurations are unsafe for split-phase systems.
Test continuity before energizing. A multimeter should read 0.1–1.0 ohms across the element terminals; readings outside this range indicate a shorted or open circuit. Replace damaged units immediately–resist the temptation to “make do” with tape or makeshift repairs.
Mount the component away from combustible materials. Maintain minimum clearances of 3 inches on all sides for forced-air systems and 6 inches for natural convection setups. Overheating reduces lifespan by 40% and voids most warranties.
Electrical Resistance Heater Connection Guide
Always verify circuit breaker compatibility before installation. For 240V systems, use dual-pole breakers rated 30-50 amps depending on load requirements outlined in the manufacturer’s specifications. Single-phase applications require a neutral wire only if control circuits demand 120V; otherwise, cap it with a wire nut to prevent interference.
Connect element terminals directly to the power supply lines using 10-8 AWG copper conductors, sized according to NFPA 70 Table 310.16 for ambient temperatures up to 30°C. Secure terminal screws with a torque screwdriver set to 25-35 lb-in to prevent loose connections that generate resistance and heat. Avoid aluminum wire for high-current loads due to expansion risks.
Integrate a fusible disconnect switch within 6 feet of the unit, sized 125% of the element’s full-load current. For 20-amp resistive loads, use a 25-amp disconnect with Class RK5 fuses. Include a locking mechanism on the switch handle to comply with OSHA 1910.303(g). Never substitute circuit breakers as primary overcurrent protection for these components.
Safety Device Integration
| Device | Location | Compatibility | Wiring Notes |
|---|---|---|---|
| High-limit switch | Mounted on unit housing | Mechanical or electronic | Connect in series with control circuit; 22 AWG min |
| Thermostat | Remote install per room dimensions | Line-voltage (240V) or low-voltage | For low-voltage, include 24V transformer, 40VA min |
| Contactor | Within 36″ of unit | IEC or NEMA style | Use DPST for 240V, coil voltage must match control circuit |
Seal all splices with heat-shrink tubing rated for 125°C minimum or use insulated crimp connectors pre-filled with antioxidant compound. For outdoor installations, apply silicone dielectric grease to terminal blocks to prevent moisture ingress. Route control wiring away from power conductors to minimize induced voltage; maintain 1″ separation or use shielded cable grounded at one end only.
Test resistance across element terminals with a multimeter before energizing. Expected values range 10-50 ohms for 5-15 kW units; readings below 5 ohms indicate short circuits requiring replacement. After installation, measure current draw under load with a clamp meter – deviation above 2% from specifications necessitates immediate troubleshooting for partial shorts or loose connections.

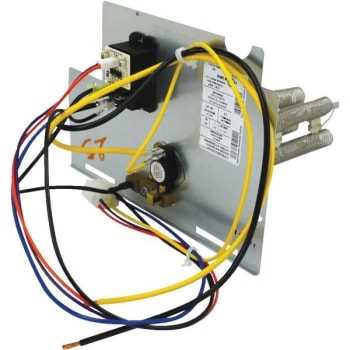

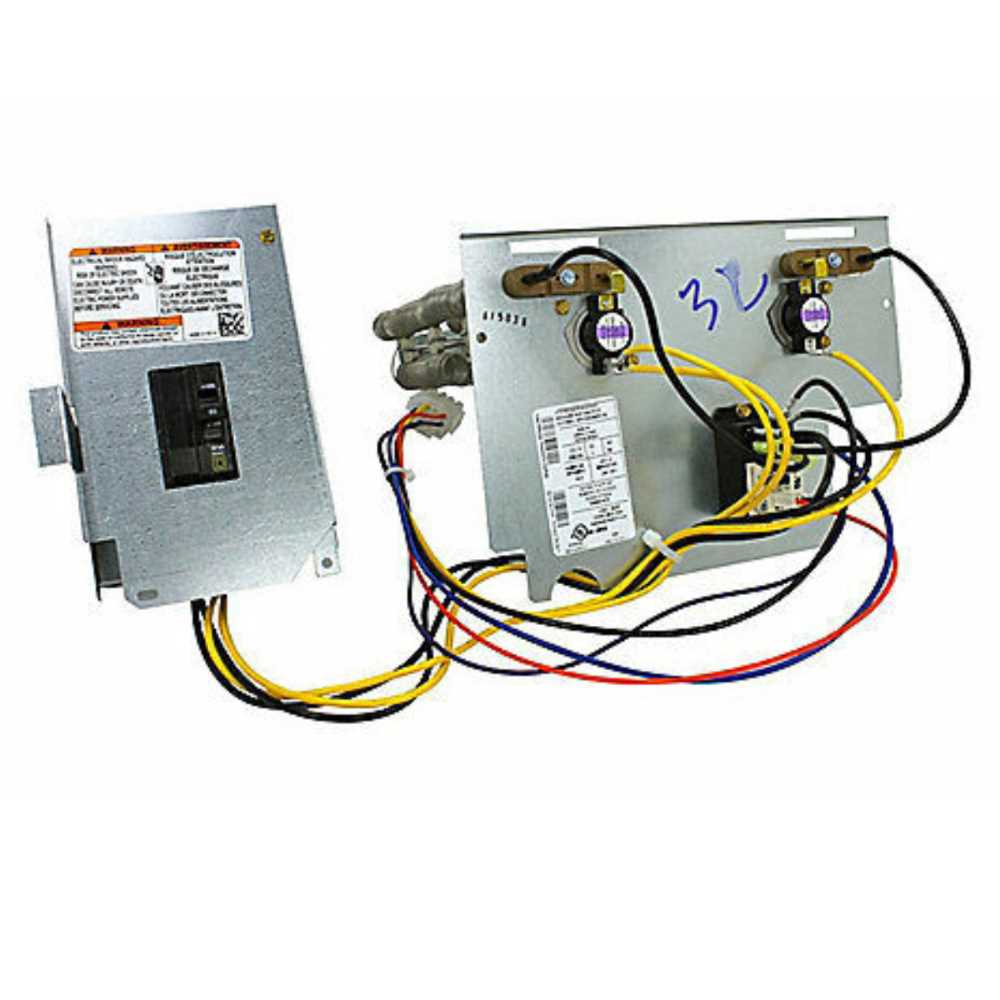

Critical Elements in an Electric Resistive Heating Assembly
Begin by locating the sequencer–this relay-controlled device manages power delivery timing to prevent surges during startup. Verify its coil voltage (typically 24V) matches the control board specifications. A mismatched sequencer will either fail to engage or cause erratic cycling, leading to premature component failure. Check for pitted contacts or discoloration, which signal arcing and necessitate immediate replacement.
Examine the thermal cutoff switch–a bimetallic safety device often rated at 165°F (74°C) for residential units. Confirm its continuity with a multimeter while cold; if open, the circuit is compromised. Bypass testing is not advised–reset-capable models require factory calibration, and manual overriding risks overheating the heating elements or adjacent wiring harnesses. Replace any switch showing signs of corrosion or deformation.
High-Load Conductors and Terminal Blocks
Trace the heavy-gauge conductors (minimum 10 AWG for 240V circuits) connecting the sequencer to the resistive coils. Inspect crimp terminals for thermal stress indicators: brittle insulation, greenish oxidation, or loose fits. Torque all terminal screws to manufacturer specs (usually 15–20 in-lbs)–under-tightened connections create hotspots, while over-torquing cracks porcelain spacers. Use silver-plated lugs for copper-aluminum junctions to prevent galvanic corrosion.
Locate the dual-element configuration–most assemblies use 5 kW banks split into two 2.5 kW segments. Each segment draws roughly 10.4 amps at 240V; exceeding this trips breakers or melts thermoplastic insulation. Test each coil individually by measuring resistance (expect ~11.5 Ω for a 5 kW unit). An infinite reading indicates an open circuit; reconnect or replace the coil if internal wire bonds have fractured. Ensure adjacent air gap spacers are intact–missing or cracked spacers allow arcing to neighboring metal components.
Control Signal Pathways
Identify the low-voltage control wires (typically 18–22 AWG) linking the thermostat, pressure switch, and sequencer. Frayed insulation or pinch points near the cabinet edge risk shorting to chassis ground, triggering nuisance trips. Shielded cable is unnecessary, but bundle loosely to avoid electromagnetic interference with other HVAC signals. Confirm the pressure switch’s cut-in/cut-out values (e.g., 0.5″ WC for blower activation) match OEM specs–adjust via calibration screw only if field-verifiable with a manometer. A failed switch mimics heating element issues; bypass temporarily only for testing, never as a permanent fix.
Installation Guide for Single-Phase Electric Heating Elements
Ensure the main circuit breaker is off before handling any electrical components. Verify absence of voltage at the source using a multimeter set to AC voltage. A reading above 1V indicates unsafe conditions–locate and correct the fault before proceeding.
Identify the thermal cutoff switch, typically marked as “TCO” or “high-limit” on the housing. Connect its two terminals to the corresponding leads from the supply line using 12 AWG copper conductors, torquing screw terminals to 20 in-lbs. Skip this step only if manufacturer documentation explicitly permits it.
Attach the incoming live conductor to the line-side terminal of the contactor. Route the outgoing conductor from the load-side terminal to the heating element’s first terminal block, securing with a crimped ring terminal. Maintain strict separation between neutral and grounding conductors–never combine or interchange them.
For 240V configurations, connect the second line conductor directly to the heating element’s opposite terminal. In 120V setups, link this terminal to the neutral busbar in the service panel. Use wire nuts rated for 90°C minimum; twist clockwise before capping, then tug each connection with 10 lbs of force to confirm mechanical integrity.
Ground the metal enclosure to the equipment grounding conductor using a green or bare copper wire sized per NEC Table 250.122. For installations exceeding 10 kW, upsize the grounding wire by one trade size. Secure the grounding lug to the chassis with a star washer and torque to 30 in-lbs.
Install a dedicated 30A double-pole breaker for 240V systems or a 20A single-pole breaker for 120V. Match the wire gauge to the breaker rating–10 AWG for 30A, 12 AWG for 20A. Snap the breaker firmly into the panel busbars, ensuring full engagement of the clips.
Seal unused knockouts with UL-listed gland fittings to maintain enclosure integrity. Label all conductors within 3 inches of termination points using half-inch vinyl markers: “L1,” “L2,” “N,” “GND.” Cover the panel with the dead front, securing screws to 15 in-lbs.
Restore power and verify operation with an ammeter. Current draw should match the element’s nameplate rating ±5%. If readings deviate, immediately disconnect power and inspect terminations for loose strands, burns, or incorrect polarity.
Standard Color Codes for Heating Element Conductors
Always verify the manufacturer’s documentation before connecting auxiliary heating components–color conventions vary by region and brand. In North America, the most widely adopted standard follows these guidelines:
- Black: Primary live terminal for 240V circuits (line 1).
- Red: Secondary live terminal (line 2) in split-phase systems.
- White (striped or marked): Neutral conductor, often repurposed as a second live wire in 240V-only setups–insulate any exposed white wiring at both ends.
- Green or bare copper: Ground connection–mandatory for safety, never omit.
- Blue, brown, yellow: Alternate live terminals in European or industrial equipment, typically corresponding to L1, L2, L3 in three-phase installations.
For dual-voltage systems (120/240V), the neutral wire plays a dual role–confirm voltage requirements before energizing. Some older appliances use orange for high-leg delta configurations, while newer units prefer purple to denote these connections. Always use a multimeter to test continuity and voltage before making final connections.
In single-phase residential setups, two hot wires (black and red) carry 120V each relative to neutral (white), creating a 240V potential between them. Three-phase commercial units expand this with brown, black, and gray for L1, L2, L3, respectively–ground remains green or bare throughout. Never assume colors match across power sources: a blue wire in one system might serve as neutral, while the same shade in another denotes a hot leg.
Mark non-standard conductors immediately after installation. Use colored electrical tape or heat-shrink tubing to label wires where conventions differ. For example, wrap a white wire with red tape at both ends if repurposed as a hot conductor. This prevents misidentification during future maintenance. Document all custom codes in a schematic attached to the unit.
International standards add complexity. IEC 60446 (Europe) designates:
- Brown: Phase 1 (L1)
- Black: Phase 2 (L2)
- Grey: Phase 3 (L3)
- Blue: Neutral (N)
- Green/Yellow: Protective earth (PE)
Avoid mixing conventions–equipment damage or fire risks increase when combining incompatible color schemes. If replacing a component, match existing wire colors exactly unless the new part’s manual specifies otherwise. When in doubt, consult a licensed electrician for high-voltage auxiliary circuits.
Specialty applications may use unique codes. Medical-grade units often employ violet for isolated circuits, while marine systems prioritize corrosion-resistant tinned copper with navy-specific marking. Always cross-reference with the original build plans or factory service bulletins (FSBs) for OEM-specific deviations.
