Complete Ecobee3 Wiring Diagram Guide for Proper Thermostat Installation

If your HVAC system uses a common (C) wire or relies on power-stealing from other terminals, connect the Ecobee’s Power Extender Kit (PEK) directly to the circuit board. For systems without a C wire, the PEK bridges 24VAC power from the Rc or Rh terminals while isolating the thermostat from potential feedback loops. Always verify compatibility with dual-transformer setups–excessive voltage between Rc and Rh (>0.1V AC) requires separating them and using the kit’s built-in jumper.

Identify the furnace or air handler’s control board terminals before proceeding. Older heat pumps may label the reversing valve as O/B, but newer models often split it into O (cooling) and B (heating). For emergency heat strips, route the E wire to the auxiliary relay–never splice it with the Y terminal. Baseboard heaters or radiant systems demand a dedicated relay for the W2 or W3 connections to prevent overload.

Use a multimeter to confirm terminal voltage before attaching any wires. Standard readings should show 24VAC between R and C, with minimal (Y and G when the system is off. High-voltage wiring (110V/220V) in older thermostat lines will fry the device–replace damaged cables immediately. Label each wire with masking tape during removal to avoid mix-ups.

For zoned systems, install a separate sub-base for each zone controller. Link the zone valves to the Y1, Y2, or W1 terminals depending on whether they operate in heating or cooling mode. Avoid daisy-chaining zone circuits–each must connect directly to the thermostat’s terminals to prevent signal degradation. If humidity sensors are present, wire them to the HUM or DEHUM terminals with shielded 18-gauge cable to reduce interference.

Installation Guide for Smart Thermostat Connections

Before handling any terminals, disconnect power at the breaker to prevent shorts or damage. Label each existing wire with masking tape–note the original terminal designation (R, C, W, Y, G) to avoid confusion during reconnection. For systems with a heat pump, verify if the O/B wire is present; it controls the reversing valve and must be connected to the corresponding port on the new device. If the existing setup lacks a common (C) wire, use the provided power extender kit to attach it to the furnace’s C terminal or an unused wire.

For multi-stage heating or cooling, identify the W2 and Y2 wires on the control board–these must be linked to the appropriate marked inputs on the thermostat base. If the furnace uses a dual-transformer configuration (separate power for heating and cooling), ensure the Rc and Rh ports are bridged with the included jumper unless the manufacturer specifies otherwise. Test continuity between the thermostat’s R terminal and the furnace’s transformer output with a multimeter; readings should be 24VAC ±10%.

When connecting to a humidifier or dehumidifier, locate the HUM and DEHUM outputs on the device and wire them to the respective terminals on the HVAC accessory. For zoned systems, each zone controller’s end switch must be wired in series to the thermostat’s ZONE input to enable proper airflow management. Avoid twisting wires together without secure screw terminals–use crimp connectors or lever nuts rated for 22-18 AWG gauge. Recheck all connections against the furnace’s service manual before restoring power.

After installation, perform a system test by setting a temporary heating/cooling cycle. Monitor the furnace’s response for 5 minutes; if the blower fails to engage, re-verify the G (fan) connection. For heat pumps, observe the outdoor unit–if it runs in heating mode while the thermostat demands cooling, the O/B wire is likely reversed. Restore default settings by navigating to the “Equipment” menu and selecting “Restore to Factory Defaults” if errors persist.

Identifying Correct Terminals for Smart Thermostat Setup

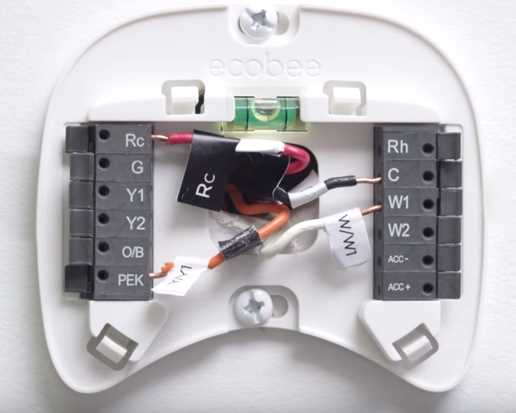

Locate the Rc and Rh clamps on the substitution device’s backplate–these must correspond to the HVAC system’s power supply lines. Rc typically handles cooling power while Rh manages heating; if the existing system uses a single transformer, jumper these terminals. For separate transformers, connect both without a jumper. Misalignment here will prevent startup.

Match the W terminal to the heating relay, usually a white wire leading to the furnace or boiler. Verify voltage between R and W (24V expected) before securing the connection. For heat pumps, the O/B terminal replaces W; confirm the reversing valve operation mode (O for energized cooling, B for energized heating) before attaching the wire.

Assign the Y clamp to the cooling stage (compressor contactor) and G to the fan relay–blue and green wires often mark these but verify with a multimeter first. Systems with auxiliary stages (Y2, W2) require separate clamps; failure to connect these will limit multi-stage functionality. For dehumidification controls, link the ACC+ and ACC- terminals to the corresponding accessories.

Label all wires at the base before detachment from the old control unit. Cross-reference each terminal with the HVAC manual–mismatched connections risk tripping safety locks or damaging equipment. After installation, test each mode (heat, cool, fan) sequentially to confirm proper terminal engagement.

Step-by-Step Power Wire (C-Wire) Connection Guide

Locate the control board inside your HVAC system–typically behind a removable panel near the furnace or air handler. Identify the labeled terminals: R, C, W, Y, and G. Confirm the C terminal is unoccupied; if not, note any existing low-voltage cable attached. Use a multimeter set to AC voltage (24V range) to verify power between R and C–a reading of 20-30V confirms a functional common circuit.

If no C wire exists, select an 18-gauge thermostat cable with at least 5 conductors (or repurpose unused wires). Strip 1/4 inch of insulation from the blue conductor (standard C assignment) and secure it under the C terminal screw. Tighten until snug–over-torquing may damage the terminal. For systems without a dedicated C port, trace the transformer’s secondary side; wire the blue lead directly to the transformer’s common output, ensuring polarity matches the R terminal’s source.

Troubleshooting Common Issues

• No voltage (0V readout): Check the transformer fuse or breaker. Replace blown fuses (typical 3A rating) or reset tripped breakers. Verify the R wire connects to the transformer’s hot output.
• Intermittent power: Inspect for loose connections at the control board or thermostat baseplate. Re-seat wires and test with a continuity checker.
• Short circuit: Disconnect all wires from the thermostat base. Test each conductor-to-conductor resistance; infinite resistance (OL) confirms no shorts. Remove any staples or sharp edges pinching the cable.

Route the new cable from the HVAC unit to the thermostat location, avoiding high-temperature zones (e.g., furnace vents) and sharp bends. Secure the cable every 3 feet with insulated staples or conduit clips. At the thermostat wall plate, strip 3/8 inch of insulation from the blue wire and insert it into the labeled common slot–typically marked C or color-coded blue. Snap the thermostat into place and restore power. Power-on diagnostics appear within 30 seconds; a blank display indicates an unpowered system–reverify the C connection at both ends.

Resolving Frequent Issues in Smart Thermostat Connections

Check the power supply at the control board before assuming sensor failure. Measure voltage between the Rh and C terminals–proper operation requires 24VAC; readings below 20V indicate insufficient power, often traced to a loose wire nut at the transformer or a degraded fuse on the furnace’s secondary circuit. Substituting a multimeter for visual inspection prevents overlooking corroded terminals, particularly common in outdoor condensers with weather-exposed connections. If voltage stabilizes but the system remains unresponsive, swap the Rh and Rc wires; some HVAC models incorrectly label these, causing a no-power state despite correct hookup.

• Verify label accuracy on the subbase–mismatched labels (e.g., G marked as Y) force cooling fans to run continuously when heating is requested.
• Jump the R and G terminals briefly to isolate fan motor issues–failure to start confirms a tripped breaker or seized blower, not an installation error.
• Inspect for ghost voltage (above 0.3V) between C and unused terminals–parasitic signals mislead diagnostics; shielded cables or relocating the transformer to a different breaker resolves interference.
• Confirm O/B polarity reversal if the heat pump cycles erratically–swap wires at the outdoor unit’s reversing valve solenoid, not the smart device’s base.

Compatibility Check: Smart Thermostat Integration with HVAC Configurations

Verify system compatibility by identifying the heating and cooling setup labels on your existing control board. Conventional systems typically use terminals marked R (power), C (common), W (heat), Y (cool), O/B (heat pump changeover), G (fan), and auxiliary labels like E (emergency heat) or L (service light). Single-stage gas furnaces require R, C, W, and G; heat pumps need R, C, Y, O/B, and G, plus E for backup heating if applicable. Multi-stage units demand additional terminals (W2/Y2), while dual-fuel devices prioritize auxiliary heat over heat pump operation–consult the furnace manual to locate these specific contact points.

Use this reference table to match terminal functions with common HVAC types:

HVAC Type	Required Terminals	Key Notes
Single-stage gas/electric	R, C, W, G	Confirm if C-wire exists; retrofit with power extender if absent
Heat pump (with auxiliary heat)	R, C, Y, O/B, G, E	O/B polarity critical: check compressor direction (reversing valve active during heat/cool)
Multi-stage heat/cool	R, C, W1, W2, Y1, Y2, G	W2/Y2 enable secondary stage–verify staging delays in installer settings
Dual-fuel (heat pump + furnace)	R, C, Y, O/B, G, W	Set auxiliary heat threshold below 40°F to engage furnace instead of heat pump

Test compatibility by measuring voltage between R and C at the thermostat subbase–24VAC indicates sufficient power. Systems without a C-wire often require a power adapter or repurposing unused wires (e.g., G to C for fan-only circuits). For heat pumps, O/B voltage differentiates: 24V on O signals cooling mode (reversing valve energized), 24V on B indicates heating. Always disconnect power at the breaker before rerouting connections to prevent short-circuiting low-voltage controls.
