How to Wire an Electrical Plug Step by Step Visual Guide

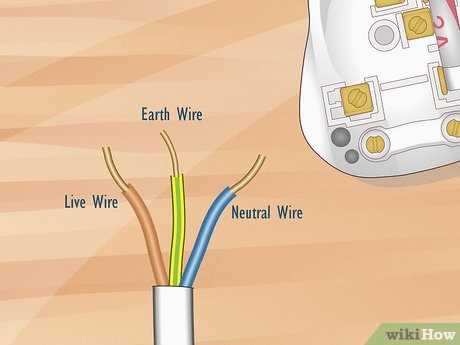

Begin by cutting the outer insulation of the cable to expose the three inner conductors: live (brown or red), neutral (blue or black), and earth (green-yellow). Strip 5–7 mm of insulation from each wire to ensure a secure fit in the screw terminals. Incorrect stripping–either too little or too much–can cause poor contact or short circuits.
Attach the live conductor to the brass terminal, typically marked with “L” or a red screw. The neutral conductor connects to the silver terminal, labeled “N” or using a blue screw. The earth conductor fastens to the green terminal, often with a grounding symbol or “⏚”. Double-check that no bare wire strands protrude, as they can create unintended connections.
Tighten each screw firmly–use a screwdriver with a torque of at least 0.5 Nm to prevent loosening over time. Loose connections generate heat and increase fire risk. For plugs rated above 10A, use crimp terminals or solder ends to improve durability.
Verify color coding matches regional standards: UK/EU uses brown (live), blue (neutral), green-yellow (earth); US standards may vary. Reversing live and neutral can create unsafe conditions even if the device operates. For polarized plugs, ensure the wider prong aligns with neutral.
Test continuity with a multimeter before energizing. Set the meter to ohms (Ω) and probe between terminals to confirm zero resistance on live-neutral and infinite resistance between live-earth and neutral-earth. If resistance is detected, recheck connections.
Secure the cable clamp over the outer insulation–never over bare conductors–to prevent strain on terminals. A loose clamp allows movement that fatigues wires. Use a flame-retardant cable for high-load devices (e.g., heaters) to reduce fire hazards.
For outlets requiring a residual current device (RCD), install a plug-in RCD adapter or replace the socket with an RCD-protected unit. This step is non-negotiable in wet areas or where equipment lacks double insulation.
Connecting Household Outlet Conductors Safely
Before handling any terminal, verify the circuit breaker is off using a non-contact voltage tester. A multimeter set to AC voltage mode should read 0V between the live conductor and neutral–or ground–when testing. If readings exceed 5V, recheck the switch or consider faulty wiring in upstream junctions.

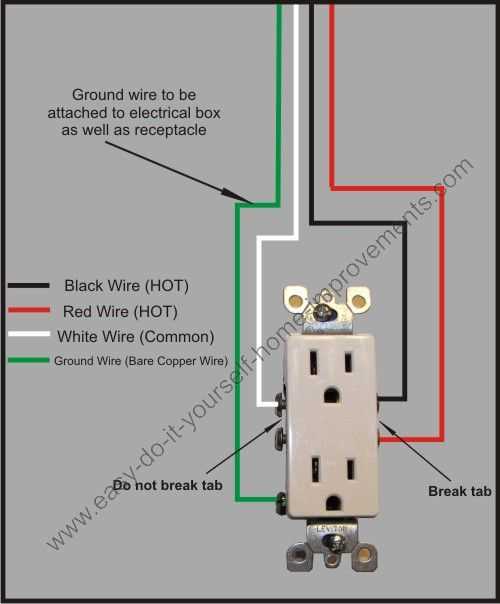

For standard 3-pin sockets in most EU countries, the brown conductor attaches to the right terminal (phase), blue to the left (neutral), and yellow-green striped to the top (earth). North American split-phase outlets require black to brass screw (hot), white to silver (return), and bare copper to green screw (ground). Never assume color codes–always confirm with a localized standard or schematic.
Strip insulation back exactly 12–15 mm for solid conductors; stranded wires need 16–18 mm to ensure proper clamping without exposed excess. Twist stranded ends clockwise before inserting to prevent frayed strands from shorting adjacent terminals. Use pliers–not fingers–to secure screws to 0.5 Nm torque; overtightening can crack the socket housing or shear thin copper.
After securing terminals, recheck connections with gentle tugs–conductors should resist without pulling free. Snap the socket cover shut only after verifying no loose fragments remain inside. Label the circuit breaker panel with the new socket location and load rating to prevent future overcurrent risks.
For sockets near moisture (kitchens, bathrooms), install a residual current device with 30 mA trip sensitivity upstream. In metal junction boxes, connect the earth conductor to the box first before attaching socket terminals–this creates redundant grounding. Always dispose of old outlets by cutting wires back to the box to avoid later confusion.
Standard Color Codes for Common Connector Types (US, UK, EU)
Always verify the live conductor in North American outlets follows the brass screw (gold) terminal–this is non-negotiable for safety. Neutral connects to the silver screw, while the grounding terminal uses the green screw or bare wire. Deviations from this sequence risk reversed polarity, which can damage appliances or create shock hazards.

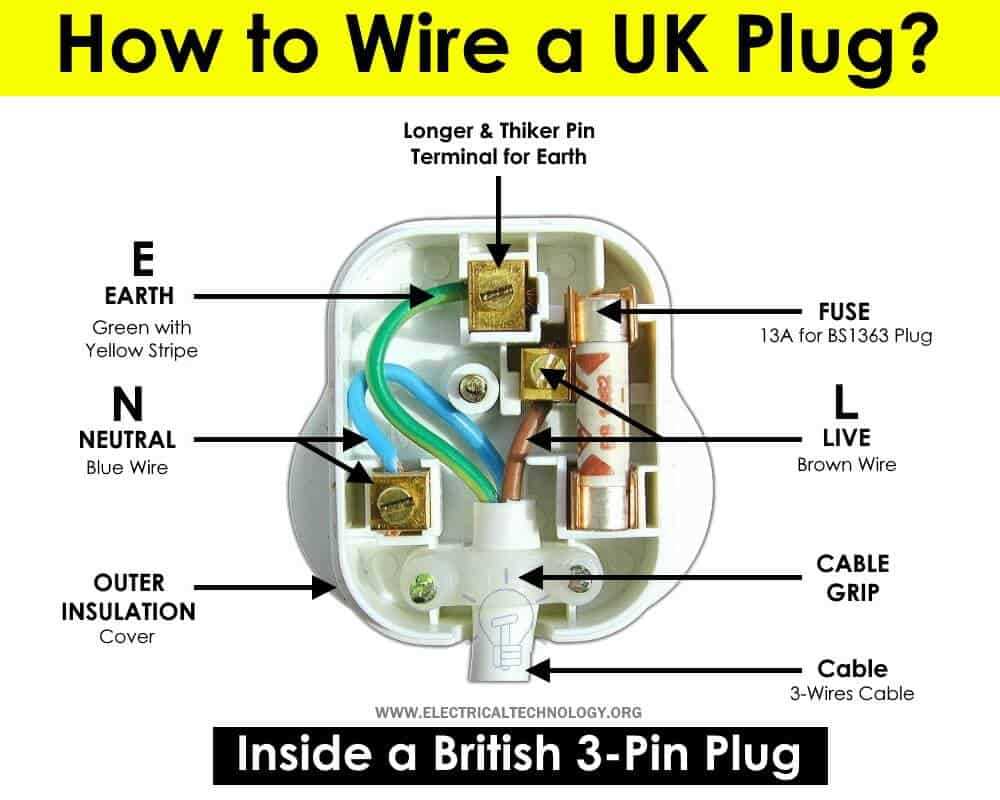

UK connectors (Type G) enforce strict color discipline: brown for live, blue for neutral, and green/yellow striped for earth. Unlike older wiring, modern installations eliminate red and black entirely–confusing them with live circuits invites immediate failure during inspection or worse, electrocution. Test with a multimeter if colors appear faded or repainted.
EU standards (Type F, E) demand consistency: brown (phase), blue (return), and green/yellow (safety path). Some older Schuko sockets may show black (pre-1970s live), but these require replacement if identified. Never assume function based on terminal shape alone–Schuko and French connectors physically differ despite sharing color codes.
When retrofitting or verifying foreign equipment, consult local regulations–US-imported devices with black/gray/white wires must be re-terminated to regional codes. Color-blind installers can use textured sleeves or tactile markers (e.g., raised dots for live) to maintain compliance without relying on visual cues.
Special Cases: Non-Standard and Legacy Circuits
Older UK systems (red (phase), black (return), and green (earth)–label these immediately upon discovery. A single black-neutral among multiple red-lives indicates a shared neutral loop, which violates modern separation rules and requires circuit isolation.
Global Variations and Misconceptions
Avoid trusting “universal” adapters–Australian plugs (AS/NZS 3112) pair red/earthed with active black, while Indian sockets (IS 1293) group green (earth), red (phase), and black (neutral). Mismatches here often result in equipment malfunction or overloaded neutrals. Document every variation during installation to prevent future confusion.
Step-by-Step Guide to Assembling a CEE 7/4 Connector
Cut the cable to the required length, ensuring no excess wire remains outside the housing. Strip 8–10 mm of insulation from each conductor using wire strippers, exposing the copper strands without damaging them. Twist the strands of each wire tightly to prevent fraying during termination. Verify the connector’s internal clamps are fully open before inserting the wires.
Terminal Connections
- Insert the brown (live) wire into the right terminal–marked “L” or colored red. Tighten the screw until the conductor cannot be pulled out by hand. Double-check for stray strands.
- Secure the blue (neutral) wire in the left terminal–marked “N” or blue. Apply the same pressure to the screw as with the live wire.
- Attach the yellow-green (earth) wire to the top U-shaped terminal. This connection must be firm; a loose ground risks shock hazards.
Snap the insulator cover into place, ensuring no wires are pinched between the casing and the body. Test the assembly with a multimeter set to continuity mode–probe the earth pin and the metal shell to confirm a closed circuit. If resistance exceeds 0.5 ohms, disassemble and re-secure the connections. Only then seal the housing with the provided screws, tightening them diagonally to distribute pressure evenly.
Fixing Unstable or Damaged Outlet Contacts
Begin by cutting power at the breaker panel before inspecting terminals–even slight corrosion or oxidation on brass screws or prongs disrupts conductivity. Use a multimeter in continuity mode to test each contact pair: values below 0.5 ohms indicate secure connections, while readings above 2 ohms signal degradation. For oxidized contacts, lightly abrade surfaces with 400-grit sandpaper or a wire brush, then apply contact cleaner; avoid abrasion on plated finishes as it removes protective coatings.
| Fault Type | Tool Required | Recommended Action | Verification Method |
|---|---|---|---|
| Loose terminal screw | Insulated screwdriver (Phillips #2) | Tighten to 12-15 in-lbs torque; replace stripped screws | Pull-test conductors with 5 lb force |
| Deformed prongs | Needle-nose pliers | Bend prongs to 0.5° parallel alignment; discard if cracks appear | Micrometer measurement at thickest point |
| Burnt socket inserts | Small flathead screwdriver | Scrape carbon deposits with brass brush; replace inserts if thickness | Resistance check ( |
For intermittent faults, insert a load tester with thermal camera–hotspots above 60°C reveal poor junctions. Replace worn outlet bodies if internal springs no longer apply >8 N force; test by inserting a standard male connector and ensuring a tactile “snap” during removal. For temporary stabilization during repair, secure connections with heat-shrink tubing around spliced conductors, maintaining proper strain relief.
Essential Equipment and Protective Measures for Socket Modifications
Before handling any connector overhaul, equip yourself with insulated screwdrivers featuring flat and Phillips heads–specifically those rated at 1000V or higher. Verify the voltage rating stamped on the tool’s shaft; substandard insulation risks leakage or short circuits. A multimeter with audible continuity testing simplifies live-dead checks, reducing reliance on visual inspection alone. Needle-nose pliers with ergonomic grips improve precision when manipulating small conductors, while wire strippers calibrated for 14-16 AWG prevent nicking strands, a common cause of overheating.
Non-conductive gloves meeting EN 60903:2003 standards provide tactile feedback without compromising safety; avoid thin latex or nitrile alternatives. Safety goggles with indirect venting prevent arc-flash particles from reaching the eyes, a mandatory precaution when working near main power sources. A non-contact voltage detector (range: 50-1000V AC) alerts to hidden live circuits, but confirm readings by cross-checking with the multimeter before proceeding. Pre-cut insulating sleeves for exposed terminal connections ensure compliance with IEC 60664-1 creepage requirements.
Keep a fire-resistant mat (minimum size: 30x30cm) between the work surface and the appliance to contain stray sparks or dropped components. For UK BS 1363 or Schuko CEE 7/4 connectors, a torque screwdriver set to 0.4–0.5 Nm prevents overtightening, which can crack terminal blocks or loosen connections over time. Before disassembly, snap a photograph of the original configuration as a reference for reassembly.
