Complete 1995 Jeep YJ Wiring Diagram Guide with Color Codes and Schematics
Start by locating the main fuse box under the dashboard on the driver’s side–this is the central hub for nearly all primary circuits. Use a multimeter set to continuity mode to verify connections between the fuse panel and the engine bay harness. A common failure point is the brown wire (ground) leading to the tail lamps; corrosion here disrupts the entire rear lighting system. Replace any compromised terminals with marine-grade connectors to prevent future oxidation.
Inspect the ignition switch wiring by tracing the purple (starter solenoid) and yellow (accessory) wires back to their junction near the steering column. If the engine cranks but accessories fail, the yellow wire’s solder joint may have fractured–resolder it using 60/40 rosin-core solder for durability. For the charging system, focus on the alternator’s two-wire plug: the large red (battery feed) and smaller orange (voltage sensing) wires. A voltage drop above 0.5V across these terminals indicates a failing alternator or corroded connection at the battery post.

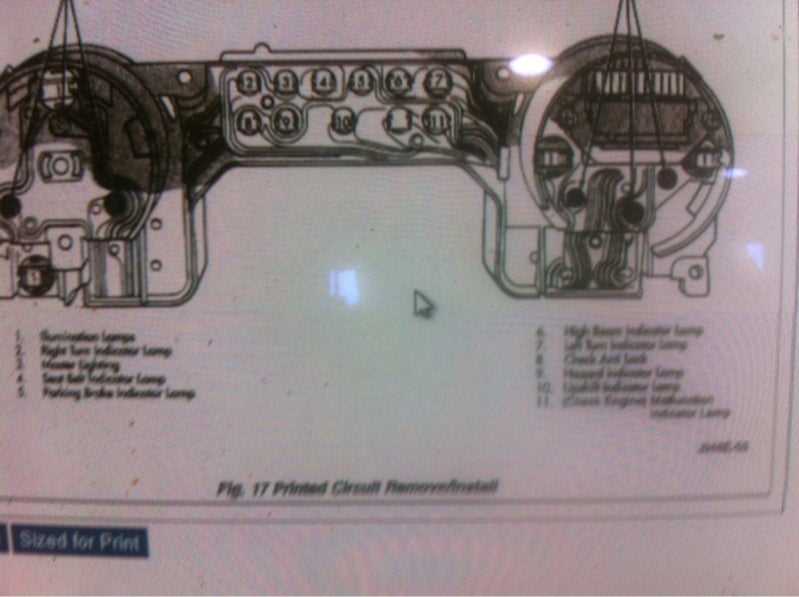

The instrument cluster often misbehaves due to loose bulb sockets or a faulty printed circuit board. Remove the gauge panel and clean the copper traces with isopropyl alcohol and a fiberglass pen. For intermittent gauges, bypass the PCB entirely by soldering jumper wires directly to the gauge terminals–this method restores functionality in 90% of cases. Pay special attention to the blue (fuel sender) and green (oil pressure) wires; incorrect readings usually stem from poor grounding at the sender units.
For auxiliary circuits like the A/C system, verify the light blue (compressor clutch) wire’s relay activation. If the clutch doesn’t engage, test for 12V at the relay socket with the A/C switch on–absence of power points to a faulty pressure switch or broken wire behind the glove box. Use heat-shrink tubing over all splices, especially near the transfer case wiring harness, where movement and moisture accelerate failure rates.
Downloaded schematics often contain errors in wire color codes. Cross-reference any digital files with a physical service manual (Chilton or Haynes) before cutting wires. Keep a notebook documenting each modification–handwritten notes with colored sketches save hours during future troubleshooting. Label every wire with heat-shrink tubing or flag tags; this practice eliminates guesswork when reconnecting detached components.
YJ 1995 Electrical Layout: Hands-On Reference

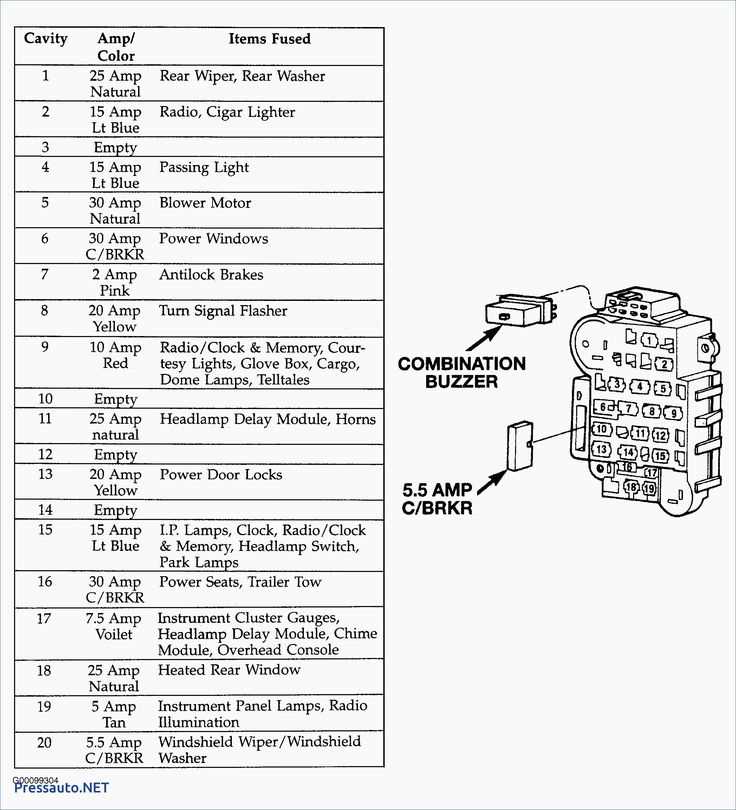

Start by locating the fuse block under the driver’s side dashboard–remove the access panel held by two 7mm screws. Label each fuse position with masking tape before disconnecting the battery’s negative terminal to prevent accidental shorts. Use a multimeter set to continuity mode to verify circuits, probing between the fuse slot and the nearest ground point. If readings exceed 0.5 ohms, clean corrosion from the fuse clips with a wire brush and apply dielectric grease.

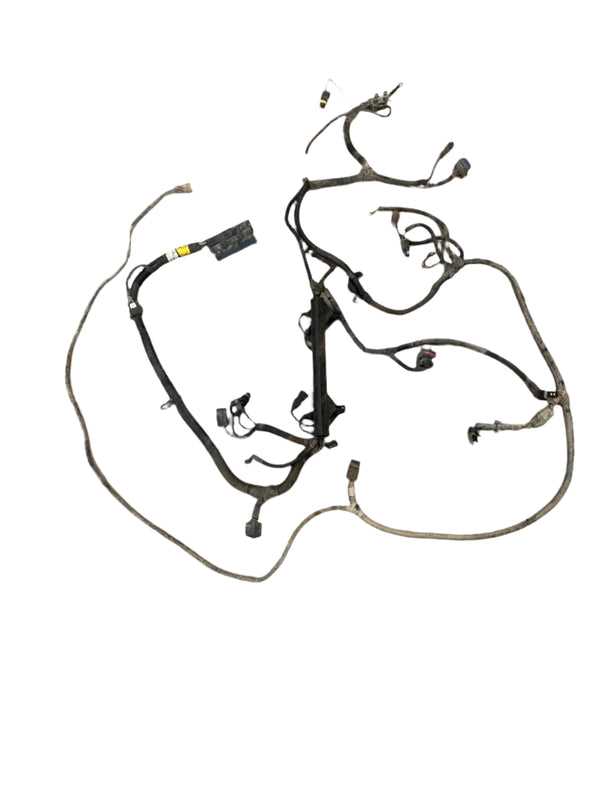

Trace the main harness along the firewall, securing loose sections with zip ties every 6 inches to prevent chafing against the metal edge. The factory harness splits near the steering column into three branches: instrument cluster (light blue/red tracer), turn signals (dark green/white), and ignition switch (yellow/black). Cross-reference wire colors with the factory repair manual, noting that aftermarket stereos often tap the brown/black wire for constant 12V power–relocate this connection to the orange/light blue wire to preserve radio presets during battery disconnects.
The charging system requires a 65-amp alternator with a single-wire self-exciting regulator. Disconnect the alternator’s B+ terminal (thick red wire) and measure voltage at the battery with the engine running–acceptable range is 13.8-14.5V. If readings drop below 13.2V, replace the voltage regulator or test the alternator’s internal diodes using an ohmmeter (forward/reverse bias should show significant resistance disparity). The battery ground strap connects to the driver’s side frame rail via a 4-gauge braided cable; replace it if resistance exceeds 0.2 ohms.
Key Circuit Pinouts
| Component | Wire Color | Pin Function | Test Voltage (KOEO) |
|---|---|---|---|
| Ignition Switch (Run/Start) | Yellow/Black | 30A Feed | 12.6V |
| Fuel Pump Relay | Gray/Red | Control Coil | 0V (energized at crank) |
| Temperature Sender | White/Orange | Signal Ground | 5V (variable resistance) |
| Blower Motor Resistor | Dark Green/Orange | Low Speed | 0-12V (fuse 11) |
For exterior lighting, the headlight switch uses a rheostat-type dimmer–replace it if the instrument lights flicker at idle. The parking brake warning light circuit (light blue/black wire) grounds through the switch itself; splice in a 1N4007 diode if retrofitting LED bulbs to prevent hyperflash. Tail light wiring runs along the driver’s side rocker panel in a gray conduit–inspect for abrasion where it passes behind the rear bumper, as this causes intermittent failures in brake and reverse lights.
When diagnosing no-start conditions, probe the starter solenoid’s S terminal (thin purple wire) for 10-12V during cranking. If voltage is present but the starter doesn’t engage, test the solenoid ground (case-mounted) with a jumper wire–if the starter spins, replace the solenoid. For engine sensors, the crank position sensor (dark blue/dark green) outputs a 400-900mV AC signal; verify with an oscilloscope or substitute a known-good unit if the engine misfires inconsistently. Always reconnect the battery last, tighten terminals to 8 Nm, and perform a parasitic load test with the multimeter (acceptable drain:
Locating the Primary Electrical Bundle Links in a Classic Off-Road Vehicle (YJ Variant)
Begin under the dash on the driver’s side. The large multi-pin connector from the instrument cluster splits into two harness branches: one routes behind the glove box to the fuse block, the other drops vertically toward the steering column. Follow the lower branch–it merges with the thick bundle that exits through a rubber grommet at the firewall. This junction houses the ignition switch feed and headlight relay triggers; label them A1 (yellow/red) and A2 (dark green) before separating.
Trace the firewall grommet bundle rearward. Behind the battery tray, it branches into three directions:
- Forward toward the front lighting assembly–handlebar-mounted fog lamp connectors and turn signal stalks terminate here in a six-way plug;
- Downward into the transmission tunnel–this segment carries the transfer case motor and ABS sensor leads, ending at a 12-pin oval connector;
- Laterally to the rear quarter panel–tail lamp, fuel pump, and rear defroster feeds merge into a single 14-gauge black/white sleeve.
Engine Bay Junction Points
Locate the engine side of the firewall grommet. Three connectors interface with the powertrain:
- 4-pin trapezoidal plug (upper left)–MAP sensor and throttle position sensor;
- 6-pin rectangular plug (lower center)–injector bank and ignition coil;
- Round 3-pin plug (lower right)–alternator field and charge indicator.
Mark each terminal with tape flags to prevent mis-mating during reassembly.
Under the hood, follow the single-wire battery feed along the fender well toward the starter solenoid. This 4-gauge red cable splits near the driver’s side strut tower: one branch feeds the solenoid, the other continues along the inner fender to the main relay box mounted beneath the washer bottle. This box consolidates the main power distribution, sending fused leads to the ECU and A/C compressor clutch.
Access the rear electrical nexus by removing the rear seat cushion and lifting the carpet panel. A white 10-pin connector sits alongside the fuel tank sender, linking the sending unit, rear lamp assemblies, and trailer harness adapter. Inspect the locking tabs–corrosion here mimics fuel gauge fluctuation. Replace the OEM connector if pitting exceeds 0.5mm.
Identify ground studs to diagnose intermittent shorts. Key locations:
- Driver’s side engine block (1/2-inch stud, black/yellow stripe);
- Passenger side firewall (3/8-inch stud, bare copper);
- Frame rail behind rear wheel (M6 bolt, two black leads).
Clean each contact surface with 80-grit emery cloth and apply dielectric grease before reattaching.
Step-by-Step Color Coding for Ignition and Fuel System Circuits
Locate the dark green wire with a thin yellow stripe–this carries the ignition feed from the ignition switch to the PCM. Splice it directly to a 20-amp fuse tap if bypassing the factory relay, but verify voltage stability at the PCM connector pin 30 first; fluctuations above 14.5V indicate a failing alternator diode trio. For fuel pump activation, trace the gray wire with a black stripe from the pump relay socket to the fuel pump relay control–ground this wire momentarily to test pump operation, listening for a 2-second priming cycle without cranking.
Identify the red wire with a dark blue stripe at the coil harness–this supplies 12V ignition power from the ASD relay. Probe it with a multimeter; expected voltage is 12.6V key-on, dropping to 10.5V when cranking. If reading falls below 9.5V, inspect the ASD relay contacts and battery terminals for corrosion, focusing on the positive terminal-to-starter cable connection. Fuel injectors are triggered by the PCM via light blue wires with a brown stripe at injector connectors; back-probe these with a noid light to confirm pulse signal consistency at idle (7-10 ms pulse width).
Orange wire with a white stripe delivers switched power to the fuel pump relay–tap this for aftermarket gauge lighting but add a 10-amp fuse inline to prevent overload. Brown wires with colored stripes manage sensor grounds; bundle these away from high-current grounds (like starter or chassis) to prevent voltage feedback. Purple wire with a yellow stripe from the TPS carries a 0.5V-4.5V signal; calibrate throttle position sensor at 0.8V idle and 4.3V wide-open to ensure accurate fuel trims.
