Practical Guide to Reading and Drawing Electrical Schematics

Begin by identifying the power source–look for symbols representing batteries, AC mains, or power supplies. A vertical line with a plus sign (+) typically denotes a battery’s positive terminal, while a ground symbol (⏚) marks the return path. Trace connections from the source to the load; each component should have a clear, uninterrupted path. If the flow splits, check for resistors, switches, or transistors controlling the branch.

Pay attention to component values. Resistors are labeled with ohms (e.g., 10kΩ), capacitors with farads (e.g., 100nF), and inductors with henries (e.g., 10mH). Datasheets or legend references help decode non-standard symbols. Microcontrollers (MCUs) often appear as rectangles with labeled pins–verify each pin’s function against the device’s datasheet before prototyping.

Use color-coding if the draft lacks labels. Blue for grounds, red for positive rails, and green for signal paths reduce misinterpretation. Cross-reference with real-world wiring: a dotted line may indicate a shielded cable, while a zigzag suggests a resistor’s placement. If components overlap, redraw the layout with spaced-out traces to avoid shorts.

Test continuity with a multimeter before powering up. A missing connection in the plan usually mirrors a missing trace in the build. For complex boards, simulate the design in Spice-based software (e.g., LTspice, KiCad) to catch errors before assembly. Keep a reference sheet of standard symbols–ANSI and IEC differ, and mixing them causes confusion.

Practical Circuit Blueprint: A Real-World Walkthrough

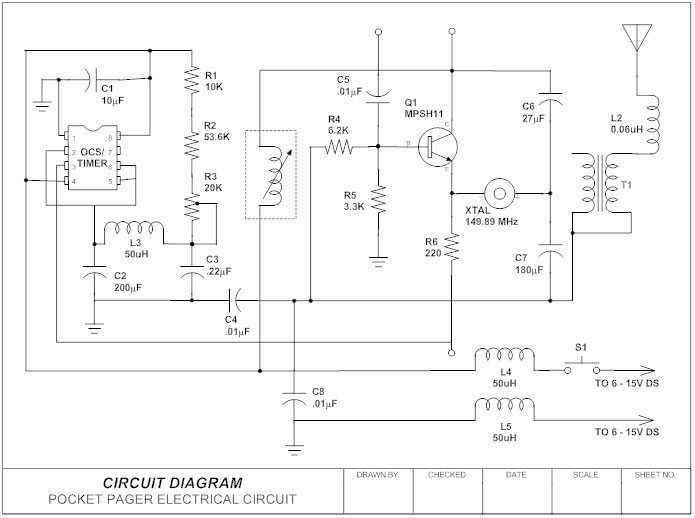

Begin by labeling every component in your layout with a unique identifier–R1, C5, or U3–to eliminate ambiguity. Use a standardized notation system like IEC 61346 for passive parts (resistors, capacitors) and IEEE 315 for semiconductors (transistors, ICs). This prevents misinterpretation when cross-referencing with bills of materials or troubleshooting guides.

Organize your power rails vertically with ground at the bottom and positive voltage at the top. This convention mirrors actual PCB design flows and reduces signal route complexity. For mixed-signal designs, separate analog and digital ground planes with a single-point connection near the power source to minimize noise coupling.

Key symbols to standardize:

• Resistors: Zigzag line, label tolerance (±5%, ±1%) and power rating (0.25W, 0.5W)
• Capacitors: Parallel lines for non-polarized, curved line for electrolytic; include voltage rating (16V, 50V)
• Transistors: Bipolar (NPN/PNP) use arrow on emitter, FETs mark gate with dot
• Connectors: Pin numbering mirrored to physical footprint

Use net labels instead of drawing every wire across the sheet. Assign descriptive names like “VCC_5V” or “SPI_MOSI” and ensure case sensitivity matches firmware definitions. Highlight critical nets with thicker lines or color-coding (red for power, blue for signals) to improve readability during reviews.

Group related functions into modular blocks. A power supply module should cluster the transformer, rectifier, regulator, and smoothing capacitors. Keep input and output nodes clearly defined with labels like “AC_IN” and “DC_OUT”. For microcontroller sections, isolate reset circuitry, clock sources, and programming headers into distinct areas.

Error-Prone Pitfalls to Avoid

• Omitting pull-up/down resistors on open-drain pins (I²C, button inputs)
• Forgetting decoupling capacitors near IC power pins (0.1µF ceramic + 10µF tantalum per VDD/GND pair)
• Misaligning connector pinouts with cable wiring diagrams
• Ignoring thermal relief patterns for high-current traces (>1A)

Export your documentation in multiple layers: a clean version for fabrication, an annotated copy for assembly notes, and a detailed revision with design rationale. Include a netlist comparison step between schematic and PCB layout to catch orphaned components. For advanced designs, add a truth table or state machine flowcharts adjacent to complex logic blocks.

Key Components to Identify in a Circuit Blueprint

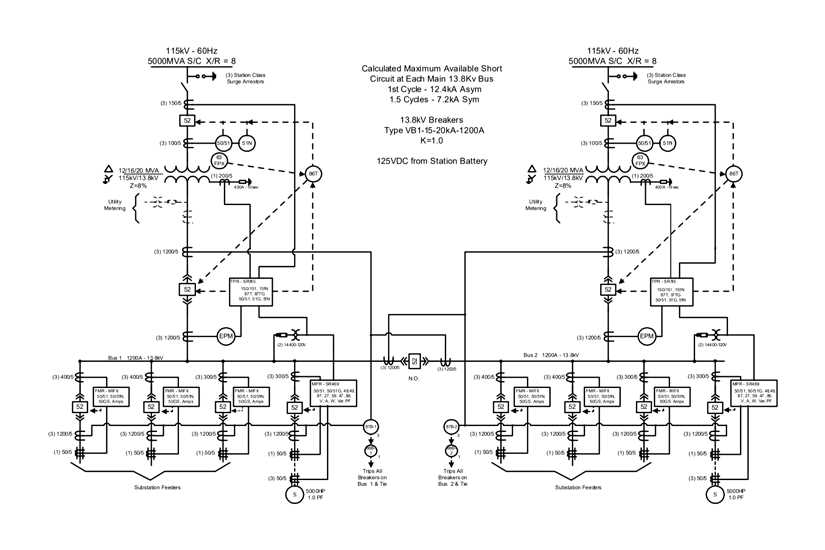

Locate the power sources first–batteries, power supplies, or generators–since they dictate voltage levels and polarity. Note their ratings (e.g., 9V, 24V) and connections (series/parallel) to avoid mismatches with downstream elements. Check for fuse symbols; these indicate current protection thresholds, often marked in amperes (e.g., 500mA). Verify ground symbols–earth grounds, chassis grounds, or signal grounds–to confirm proper reference points for voltage measurements.

Resistors appear as zigzag lines or rectangular blocks, labeled with values in ohms (Ω), kilohms (kΩ), or megohms (MΩ). Look for tolerance bands (e.g., 5%, 1%) if present. Capacitors are paired parallel lines (non-polarized) or a curved line adjacent to a straight one (polarized electrolytic). Their values are in farads (F)–microfarads (μF), picofarads (pF)–and voltage ratings (e.g., 16V) must exceed the circuit’s supply voltage.

Active Elements and Connections

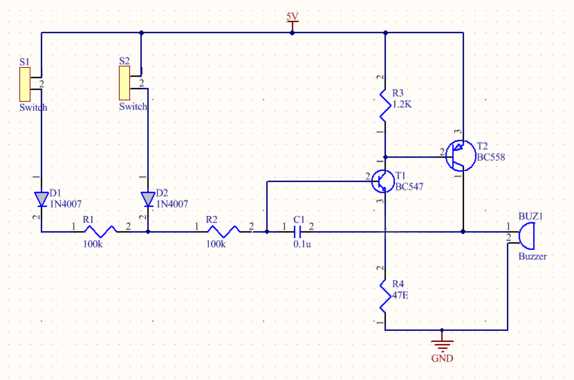

Transistors, whether BJTs or MOSFETs, require three-terminal identification: emitter, base, collector (BJT) or source, gate, drain (MOSFET). Cross-reference part numbers with datasheets for pin configurations. Integrated circuits (ICs) appear as rectangles with multiple pins; each pin’s function (e.g., VCC, GND, OUT) must align with the diagram’s annotations. Watch for polarity markings (e.g., dimple, notch) to prevent reversed insertion.

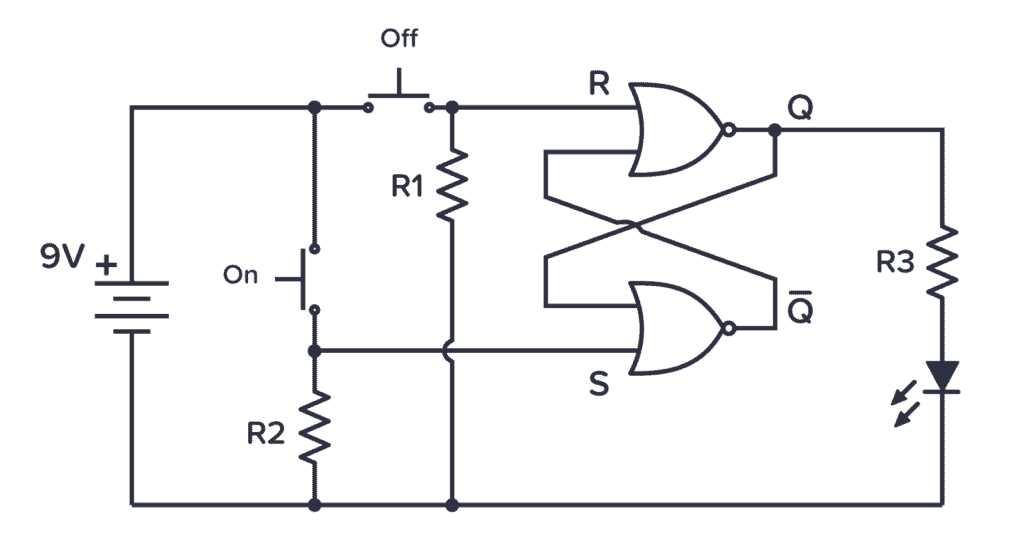

Diodes–standard, Zener, or LEDs–are triangles with a line. The line denotes the cathode; ensure it faces the correct voltage potential. For LEDs, note forward voltage (e.g., 2.1V) and maximum current (e.g., 20mA). Switches and relays show contact configurations: normally open (NO), normally closed (NC), or push-to-make/break. Trace their actuator types (toggle, momentary) and current ratings to match load requirements.

Inductors are coils, often labeled with values in henries (H)–microhenries (μH)–or as ferrite beads. Check for magnetic shielding symbols if near sensitive components. Connectors and headers appear as dashed lines or arrays of dots; count pins and match polarity (e.g., Molex, JST) to physical layouts. Wires are single lines; junctions are dots, and crossings without dots indicate no connection. Use color-coding if available (e.g., red for V+, black for GND).

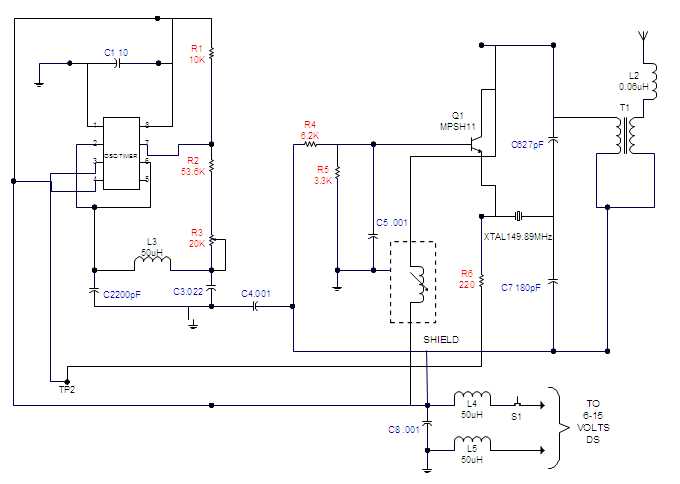

Test points (TP) and measurement nodes are circles or squares, often labeled (e.g., TP1). These simplify debugging; ensure their accessibility on the PCB. Heatsinks or thermal vias may be annotated near power components like voltage regulators. For PCBs, identify silkscreen labels–these correspond to physical markings on the board. Always cross-check component designators (e.g., R1, C3) between the blueprint and bill of materials to confirm values and footprints.

Step-by-Step Guide to Drawing a Basic Lighting Circuit

Select a power source rated for your lamp’s voltage (e.g., 12V DC battery or 230V AC mains). Sketch a straight horizontal line from the positive terminal to represent the live conductor. Insert a switch symbol–a break in the line with a diagonal slash–ensuring it aligns vertically with the conductor. Continue the line to the lamp symbol (a circle with an “X” inside), then return to the power source’s negative terminal via a second conductor, forming a closed loop.

Verify circuit logic: the switch must interrupt the live conductor before the lamp, not the return path. Label all components with exact values (e.g., “SW1 (SPST)”, “LAMP (12V 5W)”) and use consistent line weights–thicker for power paths, thinner for control signals. If using AC, add a fuse symbol (a rectangle with a line through it) immediately after the power source for safety.

Common Pitfalls in Interpreting Circuit Blueprints

Skipping reference designators on components leads to confusion during tracing or troubleshooting. Always verify that each resistor, capacitor, or IC has a unique identifier like R1, C2, or U3–cross-check these against the bill of materials to avoid mismatches. Overlooking polarity markers on diodes, electrolytic capacitors, or batteries can damage hardware; look for +, -, or silkscreen bands, especially on surface-mount parts where orientation isn’t always obvious.

• Assuming all lines are wires: dashed or dotted lines often represent mechanical links, shields, or logical boundaries–read the legend before jumping to conclusions.
• Ignoring signal flow direction: arrows on switches, transistors, or connectors show intended current path; reversing this can result in unintended shorts or open circuits.
• Misreading net labels: identical labels like VCC, GND, or CLK must connect–merge errors here create floating nodes or ground loops.
• Overlooking hidden connections: junctions with a dot mean a direct link; missing this causes false breaks in the path.
• Confusing custom symbols: a circle might denote a test point, light-emitting element, or relay coil–check the symbol key.
• Forgetting fuse or protection devices: these are critical for safety; omitting them during analysis risks overcurrent damage.

Measure twice, trace once–probe with a multimeter before soldering.

How to Label Wires and Connections Properly

Use a consistent naming convention for wire identifiers–assign alphanumeric codes (e.g., “W1,” “L2-A”) rather than generic terms like “red wire” or “input.” Include the wire’s function, voltage rating, and destination in labels (e.g., “PWR-12V-MOTOR” or “SIG-5V-SENSOR”). For multi-conductor cables, label each strand at both ends with matching tags (e.g., “CABLE_A-1/BROWN” paired with “TERMINAL_3/BROWN”). Avoid ambiguity by listing all possible states (e.g., “SW1-NO/NC” for switch contacts).

Place labels directly on wires or near connection points–never rely on color-coding alone. Use heat-shrink tubing, adhesive sleeves, or laser-printed tags resistant to heat, chemicals, and abrasion. For terminal blocks, employ a table to map labels to physical positions:

Terminal ID	Wire Label	Function	Gauge (AWG)
TB1-1	VCC-24V	Power Supply	14
TB1-2	GND-PWR	Return Path	14
TB2-3	CTRL-ON	Relay Coil	18
TB2-4	SIG-4-20mA	Sensor Output	22

Update documentation immediately if modifications occur–cross-reference labels with a master list stored in project files. For high-noise environments, add shield termination labels (e.g., “SHLD-GND”) and mark twisted pairs with polarity (e.g., “TP_A+/TP_A-“). Test labels under real conditions to ensure they withstand operational stresses.
