StepbyStep Guide to Creating Reliable Schematic Connection Diagrams

Start with clear labeling–every wire, terminal, and component must be identified by its designated symbol and reference. Use IEC 60617 or ANSI Y32.2 standards for consistency. Mistakes in notation cause downstream errors; double-check tag placement against manufacturer datasheets before finalizing the layout.

Group related elements logically. Power lines, signals, and grounds should occupy distinct vertical or horizontal zones. Avoid crisscrossing traces–prioritize a star configuration for grounds to minimize noise. For high-current paths (e.g., >10A), widen traces according to IPC-2221 (1 oz copper requires ~1.5 mm width per amp at 20°C).

Add test points for critical nodes. Place them near connectors or microcontroller pins with at least 1.5 mm clearance for probe access. Document expected voltages directly on the print using text annotations (e.g., “V_CC: 5V ±0.2V”).

Validate the layout against the BOM. Verify part numbers, pin counts, and footprint compatibility–mismatches waste hours during assembly. For SMD components, orient pads uniformly (e.g., pin 1 marker always aligning with silkscreen arrow).

Export in multiple formats: PDF for review, Gerber for fabrication, DXF for mechanical integration. Include a revision history block with date, author, and changelog. Never rely on verbal agreements–embed all specifications into the file itself.

Visual Wiring Blueprint: Key Principles

Label every wire in your electrical layout using heat-shrink tubing with printed identifiers or adhesive tags. Use a consistent naming convention: power lines as V+/GND, signal wires as SIG_A/SIG_B, and buses as BUS_1..N. For complex systems, adopt color-coding: red/black for power, yellow for critical signals, green for data buses. Reference IEEE Std 315 for standardized symbols to avoid ambiguity in multi-team projects. Below is a cross-reference table for quick validation:

Component	Symbol	Typical Gauge (AWG)	Max Current (A)
Microcontroller I/O	→|	22–24	0.2
Motor Driver Output	⊔|⊓	16–18	10
High-Power MOSFET Gate	⏚|⚡	18–20	5
USB Data Lines	⚡–⚡	28	0.5

Minimize loop areas in high-frequency or analog circuits by routing paired traces (e.g., differential signals, power/ground) adjacently. For PCB-based blueprints, use a 1:1 width-to-space ratio for traces under 50 MHz; increase to 2:1 for frequencies above 100 MHz. When hand-drawing layouts, avoid 90° angles–use 45° miters to reduce reflection. Ground planes should cover at least 60% of the board’s underside, split only by critical signals (e.g., RF, high-speed clocks). For off-board wiring, twist signal pairs at 6 turns per inch to cancel electromagnetic interference. Always terminate long buses (>30 cm) with resistors matching the cable’s impedance (e.g., 120Ω for CAN, 90Ω for USB).

How to Identify Core Components in an Electronic Blueprint

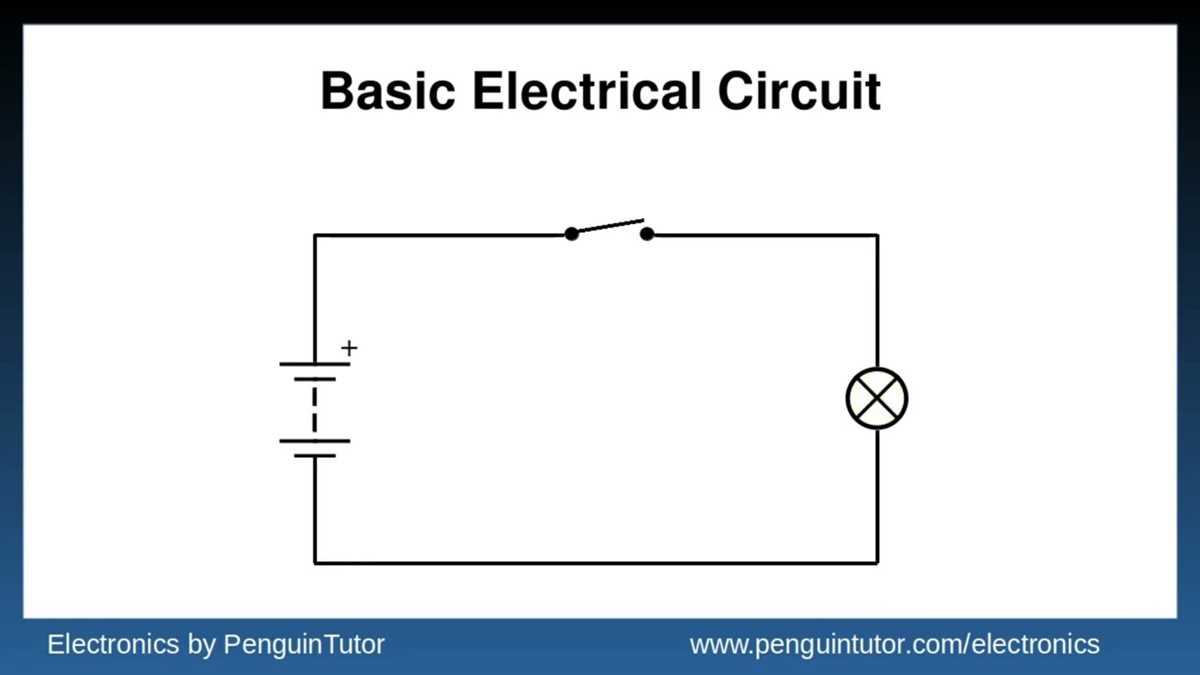

Locate power sources first–batteries, AC/DC converters, or voltage regulators–marked by distinct symbols: a long/short line pair for batteries, wavy lines for AC, or a rectangular block for regulators with labeled input/output pins.

• Look for text near symbols (VCC, GND, VIN, +5V) indicating voltage rails.
• Trace thick lines or buses; these often denote primary power distribution paths.
• Check for decoupling capacitors near ICs–small circular symbols with parallel lines–filtering noise from power supplies.

Microcontrollers and processors appear as rectangular blocks with multiple pins, often labeled MCU, CPU, or a specific model number (e.g., ATMEGA328). Grouped pins for clock signals (XTAL), reset (RST), and data buses (D0-D7) identify them.

Active components–transistors, MOSFETs, and operational amplifiers–use standardized shapes: a triangle for op-amps, a circle with three leads for BJTs, and a curved line with a break for MOSFETs. Verify against legend or datasheet for exact pin assignments (e.g., Gate, Drain, Source).

1. Isolate switching elements–relays (coils and contacts) or solid-state switches–by their unique symbols: a zigzag for relays, a dashed box for optocouplers.
2. Follow control signals leading to these components (e.g., PWM, EN), often thinner than power lines.
3. Identify load paths: resistors (R), inductors (L), and LEDs (D with an arrow) in series with power lines indicate current flow direction.

Data interfaces (UART, SPI, I2C) cluster around microcontrollers as grouped pins with labels like RX, TX, SCL, SDA. Look for pull-up resistors (4.7kΩ) on I2C lines or series resistors (220Ω) on UART traces.

Passive network filters–capacitors, inductors, ferrite beads–appear near signal inputs/outputs. Capacitors (C) across power rails or in series with signals reduce ripple; inductors (L) in power lines block high-frequency noise.

Test points (TP1, TP2) and jumpers (JP1) are small circles or square pads. These often connect to critical nodes–use a multimeter to confirm voltage or signal integrity if physical probing is needed.

Step-by-Step Wiring Methods for Common Circuit Types

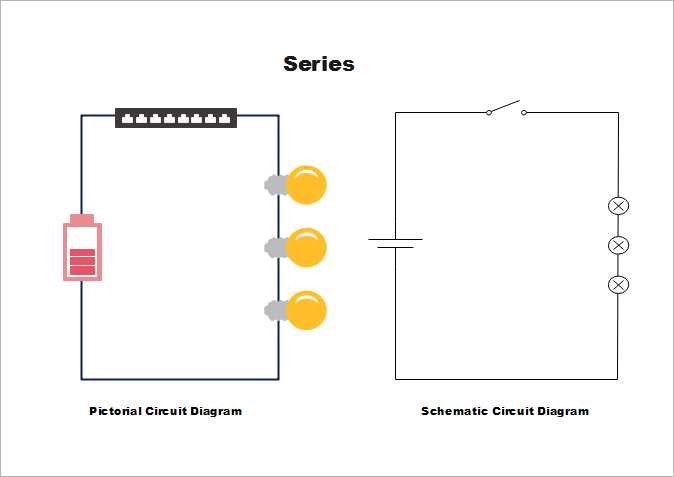

Begin with a series loop by daisy-chaining components along a single conductive path. For a basic LED sequence, solder the anode of the first LED to the power supply’s positive terminal, then link its cathode to the anode of the next LED, continuing until the final component. Terminate the last cathode directly to the ground or resistor. Ensure current-limiting resistors match the LED’s forward voltage–calculate using Ohm’s Law (R = (Vs – Vf)/If) where Vs is supply voltage, Vf is forward voltage drop (typically 1.8–3.3V), and If is desired current (5–20mA). Test continuity with a multimeter before powering on.

Parallel branching demands splitting the power rail into separate paths for each component. Connect all positive terminals to the same voltage source and join all negative terminals to a common ground. For motors, add flyback diodes (1N4007) across each coil to absorb voltage spikes. Use thicker gauge wire (18–22 AWG) for high-current loads like solenoids to prevent overheating. Verify voltage consistency across branches–drop exceeding 0.1V signals resistance issues in joints.

Construct a voltage divider by arranging two resistors in series, tapping the output at their junction. Choose resistor values (R1 and R2) to meet the target output voltage (Vout = Vin × R2/(R1 + R2)). For precision, select resistors with 1% tolerance or better. Avoid loading the divider with low-impedance components–buffer with an op-amp if driving sensitive circuits like microcontrollers. Measure Vout with a multimeter; deviations beyond 2% indicate incorrect values or poor soldering.

For AC circuits, strand 14–12 AWG wire between terminals, securing them with ring or spade lugs. Strip 12mm of insulation, twist strands tightly, and crimp lugs with a ratcheting tool–verify pull strength (>5kg). Label each conductor with heat-shrink tubing (red for live, black for neutral, green/yellow for earth). Use a polarity tester after wiring switches and outlets; reverse connections trip RCDs or damage appliances.

Breadboard prototyping starts with a power rail setup: bridge the two bus strips with jumpers to distribute power evenly. Insert ICs across the center ditch, aligning pin 1 with the marked notch. Route inputs/outputs via short jumpers (

Ground planes in PCB layouts require a continuous copper pour connected to the main ground. Route high-current traces (>500mA) wide (minimum 0.5mm/A) and short to reduce inductance. Decouple ICs with 0.1µF ceramic capacitors near power pins, adding bulk (10µF) caps at the supply entry. Avoid sharp 90° corners–use 45° angles or rounded paths to prevent signal reflections. Expose via stitching at 5mm intervals to improve thermal dissipation.

Twisted-pair wiring for differential signals (e.g., RS-485) pairs each data line with its return, twisting at 10–20 turns/meter. Shield the entire cable with foil or braid, grounding the shield at one end only to prevent ground loops. Terminate differential pairs with 120Ω resistors at both ends for impedance matching. Test with an oscilloscope–common-mode noise exceeding 50mV requires tighter twisting or improved shielding.

Key Applications for Precise Circuit Visualization

KiCad stands as the premier open-source solution for engineers requiring professional-grade tools without licensing costs. Its integrated environment combines ECAD editing (with hierarchical sheet support), Spice simulation, and PCB layout in a single workflow, while its native file format (.kicad_sch) ensures long-term compatibility. The built-in footprint editor and extensive component libraries–including verified symbols from manufacturers like Texas Instruments and Microchip–eliminate the need for manual creation in 95% of use cases. For advanced users, the Python scripting API allows automation of repetitive tasks, such as bulk pin swapping or dynamic net labeling, reducing design time by up to 40% for complex projects.

For teams demanding enterprise-level collaboration, Altium Designer merges schematic capture with constraint-driven PCB design, offering real-time co-editing and version control via Altium 365. Its ActiveBOM feature auto-generates supplier-linked part lists, flagging obsolete components or pricing discrepancies during the design phase–critical for DFM validation. The software’s differential pair routing tools and impedance calculators handle high-speed designs (e.g., USB 3.1, PCIe) with sub-5% trace tolerance, while its native 3D visualization ensures mechanical integration for enclosure design. For hybrid workflows, OrCAD Capture CIS excels with its database-driven approach, linking schematics directly to MRP systems for inventory synchronization; its PSpice integration provides mixed-signal simulation with user-defined models, supporting 10k+ devices per simulation.
