Creating and Reading PLC Panel Electrical Schematic Diagrams for Automation

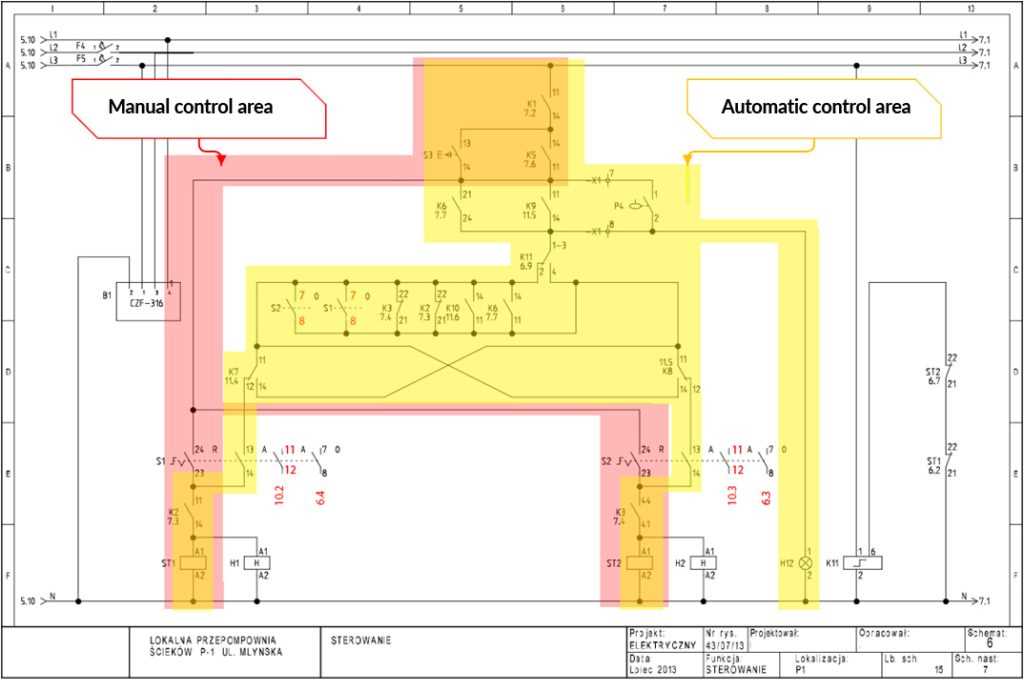

Begin by isolating power distribution paths–segment transformers, circuit breakers, and relays into modular zones. Each zone should handle no more than 12 devices to prevent cascading failures and simplify diagnostics. Use DIN-rail-mounted components with clear spacing: 80mm between rows for wiring access, 30mm between adjacent terminals to avoid interference. Label every conductor with heat-shrink tubing, specifying voltage (e.g., “24V DC COM”) and function (e.g., “MOTOR START”), not just wire numbers. This reduces troubleshooting time by 60% in high-density setups.

Prioritize safety loops by integrating redundant emergency stop circuits. Wire them in series through the controller’s discrete inputs, with mechanical relays bypassing processor logic. This ensures immediate shutdown even if the CPU hangs. For noise-sensitive signals–like encoder feedback or analog sensors–route them in shielded twisted pairs (STP), grounded at a single point (star grounding) to eliminate ground loops. Keep these cables at least 200mm away from power lines carrying more than 10A.

Structure I/O modules by load type: high-current outputs (driving contactors) on the far left, analog inputs (sensors) centrally, and low-power digital signals on the right. This minimizes electromagnetic coupling. Assign terminal blocks with rising clamp numbers (e.g., TB1-01 to TB1-18) matching ladder logic tags (e.g., “TB1-03 = DI_START_PB”). Include a spare terminal for every 5 active connections, pre-wired to a common bus bar for future expansions.

Document every wire path in the blueprint with a netlist table–a list of all connections, including source, destination, gauge, and color code. For example:

Source: Q0.3 (PLC Output) → TB4-12 (Terminal Block) → K1 (Contactor) → M1 (Motor): 1.5mm², Red/Blue stripe.

This eliminates guesswork during assembly or repairs. Use symbols from IEC 60617 standards, but supplement with a legend if deviating–even minor inconsistencies cause 15% more wiring errors.

Verify the layout with a power flow simulation before finalizing. Trace each circuit manually with a multimeter, checking for voltage drops exceeding 3% (e.g., 24V → ≥23.3V at the farthest device). Mark components with QR codes linking to datasheets or installation videos–this cuts commissioning time by 40% for field technicians. For large systems, divide the blueprint into A3-sized subdrawings, each covering one functional segment (e.g., “Conveyor Section” or “Cooling Controls”).

Designing Control System Blueprints for Industrial Automation

Begin by segmenting power and signal circuits on separate rails within the enclosure. Use DIN-rail mounted components rated at 60°C minimum for control logic, with feeders sized at least 20% above calculated loads. Implement shielded twisted-pair cabling for analog signals, grounding screens at one end only to prevent earth loops. Label every conductor with heat-shrink sleeves showing terminal numbers matching the wiring manifest–verify labels withstand 150°C.

Structure the logic layout in modular zones:

• Digital input block: opto-isolated modules accepting 24VDC from field sensors, each channel fused at 100mA.
• Output zone: relay modules switched by 5V transistor drivers, contacts rated 5A/250VAC, transient suppressed.
• Communication hub: dual redundant ports–Modbus RTU on twisted pair and Ethernet/IP over Cat6, both terminated on separate subnets.
• Power distribution: 24VDC busbar stabilised with LC filters, decoupling capacitors on every board to suppress ripple below 50mV.

Annotate every circuit block with exact component values and tolerances directly on the blueprint. Include a legend referencing manufacturer part codes–pneumatic solenoids must list valve orifice sizes, motor starters require thermal overload trip curves. Add a revision table listing changes by date, responsible engineer, and approval signature; store master copies in fireproof vaults and encrypted cloud repositories with biometric access.

Test every connection under load before sealing. Apply 24VDC to inputs, verify logic outputs with an oscilloscope–measure rise times under 5μs. Simulate 80% of rated load across outputs for 72 hours; log thermal gradients hourly. Document failures immediately, trace root cause to component batch or installation error, replace entire lot if defect rate exceeds 1%. Retain test logs for five years minimum.

Critical Elements and Representations in Control Unit Blueprints

Begin by identifying power sources in automation layouts–use distinct symbols for AC (e.g., a sine wave inside a circle) and DC (e.g., parallel lines with a gap). Ensure voltage ratings (24V, 120V, 230V) are labeled adjacent to each source to prevent miswiring. For transformers, mark primary and secondary windings with zigzag or coil symbols, pairing them with exact turns ratios (e.g., 2:1) to guarantee compatibility with downstream components. Ground symbols (a single line with three descending bars) must appear at every voltage level, isolating safety circuits from logic paths.

• Input/Output Modules: Differentiate discrete (binary) and analog signals:
  1. Discrete inputs/outputs: Switches, pushbuttons, or relays–use a square for outputs and a semicircle for inputs.
  2. Analog signals (0-10V, 4-20mA): Employ a rectangle with arrows pointing inward (inputs) or outward (outputs), annotated with signal range.
• Processors and Memory: Represent the CPU with a rectangle divided into slots, labeling communication ports (Ethernet, RS-485) and memory types (RAM/ROM) with hexadecimal addresses. Include firmware version numbers (e.g., v3.2) near the processor symbol.
• Safety Devices: Emergency stops (E-stop) require a mushroom-shaped symbol with a thermal cutoff (normally closed contacts) and dual-channel redundancy for SIL-rated systems.

Always cross-reference symbols with the manufacturer’s datasheet–standardized IEC 60617 icons may vary between vendors (e.g., Siemens vs. Allen-Bradley). For field devices, attach terminal numbers (A1, B2) and wire gauges (e.g., 16 AWG) directly to the connecting lines. Use color-coding: red for high-voltage, blue for neutral, yellow/green for earth. Validate the layout by simulating fault conditions (short circuits, overloads) before finalizing, ensuring protection devices (fuses, breakers) are placed upstream of sensitive components.

Step-by-Step Wiring Logic for Control System I/O Modules

Begin by verifying module compatibility with the voltage levels of your sensors and actuators. Discrete input modules typically accept 24V DC, while analog inputs may require 0-10V or 4-20mA ranges. Check the data sheet forExact thresholds–some modules tolerate ±10% variance, others need precise matching to avoid signal corruption. Label each terminal with the device ID and signal type (e.g., “X0: Limit Switch – Normally Open”) before connecting to prevent miswiring.

Strip wires to 7mm for solid strands, 9mm for stranded copper, ensuring no bare conductor extends beyond the terminal clamp. Torque screw terminals to 0.5 Nm for 1.5mm² wires; over-tightening risks insulation creep or conductor breakage. For inductive loads (relays, solenoids), add flyback diodes across coils–cathode to the positive side–to suppress voltage spikes that can reset the CPU or damage outputs.

Route power and signal wires separately. Keep digital lines perpendicular to AC cables if unavoidable, maintaining ≥100mm spacing. Use twisted pairs for analog signals to reject noise; shielded cables require the drain wire connected to ground at one end only. Daisy-chaining grounds is forbidden–run a separate return for each high-current device to a single star-point earth connector to eliminate ground loops.

Test inputs with a multimeter before energizing. For NPN sensors, measure voltage between the signal and common; a pulled-low reading confirms the switch is closed. For sourcing outputs (PNP), verify the load sees the correct voltage drop when activated–≤0.5V for solid-state, ≤1.5V for relay outputs. Document every test result in a spreadsheet, noting the module channel, expected behavior, and actual measurement.

Implement a staged power-up sequence. First, energize the 24V supply and verify no shorts exist. Next, apply power to the CPU but keep outputs disabled via program bypass. Only after confirming all inputs respond correctly, enable outputs. If a motor starter trips, check for phase imbalance–even a 5% difference can cause nuisance trips in drives rated

Physically secure all connections after final validation. Use ferrules on stranded wire ends for terminals rated

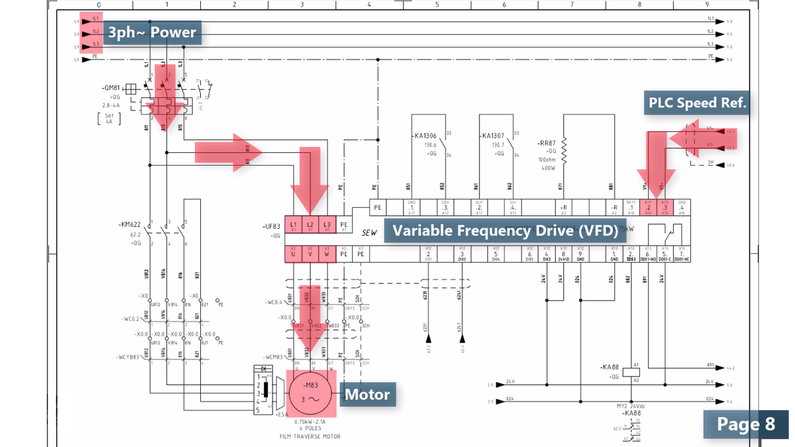

Optimizing Control Cabinet Power Distribution and Safety Components

Start by placing the main circuit breaker at the top of the layout, directly downstream of the incoming voltage source. Use a three-pole device rated for 125% of the anticipated load current, with a short-circuit breaking capacity of at least 10 kA. Position it within 10 cm of the supply terminal block to minimize conductor length and reduce voltage drop.

Incorporate a surge protection device (SPD) immediately after the breaker, matching its voltage rating to the system’s operational levels. Select a Type 2 SPD with a nominal discharge current of 20 kA per pole for industrial setups, ensuring coordination with upstream fuses. Ground connections must terminate at a dedicated busbar, separated from signal grounds by at least 20 cm to prevent noise coupling.

For secondary supplies, use isolated DC/DC converters with reinforced insulation when powering logic controllers from 24V rails. Verify isolation voltages with a 2.5 kV hipot test before integration. Include a reverse polarity diode on the input side of each converter, sized for 150% of continuous current, to protect against miswiring during maintenance.

Designate separate branches for high-power actuators and low-level signals. Use current-limiting resistors on 24V outputs feeding relays or solenoids, calculated as R = (Supply Voltage – Load Voltage) / Inrush Current. For inductive loads, add flyback diodes across coils, rated for 10x the steady-state current. Mark all branches with wire labels at both ends, using alphanumeric codes matching the bill of materials.

Thermal overload relays should precede motor starters, sized to trip at 110% of the motor’s full-load amperage. Select bimetallic or electronic devices with class 10 trip curves for general applications, or class 20 for high-inertia loads. Ensure auxiliary contacts are routed to the controller’s fault handling logic, with redundant feedback signals verified via ladder logic.

Include a battery backup for critical circuits, sized to sustain the load for 30 minutes at minimum. Use sealed lead-acid 12V units with float voltage regulated to 13.6–13.8V. Add a battery monitoring relay with alarm output set to trigger at 11.5V. Connect backup outputs through a double-pole changeover relay to prevent backfeeding into non-essential circuits.

Fuse selection must prioritize selectivity: upstream devices should have a ratio of 1.6:1 compared to downstream fuses. For example, pair a 16A main fuse with 10A branch fuses. Use fast-acting ceramic types for solid-state components and time-delay types for transformers or motors. Label each fuse holder with its rated current and the circuit it protects.

Ground all metallic enclosures via green-yellow wires to a central earth busbar, bonded to the facility’s grounding electrode system with a resistance below 5 ohms. Separate functional grounds from safety grounds by using insulated terminals. Verify all connections with a megohmmeter, ensuring insulation resistance exceeds 1 megohm between live conductors and ground.
