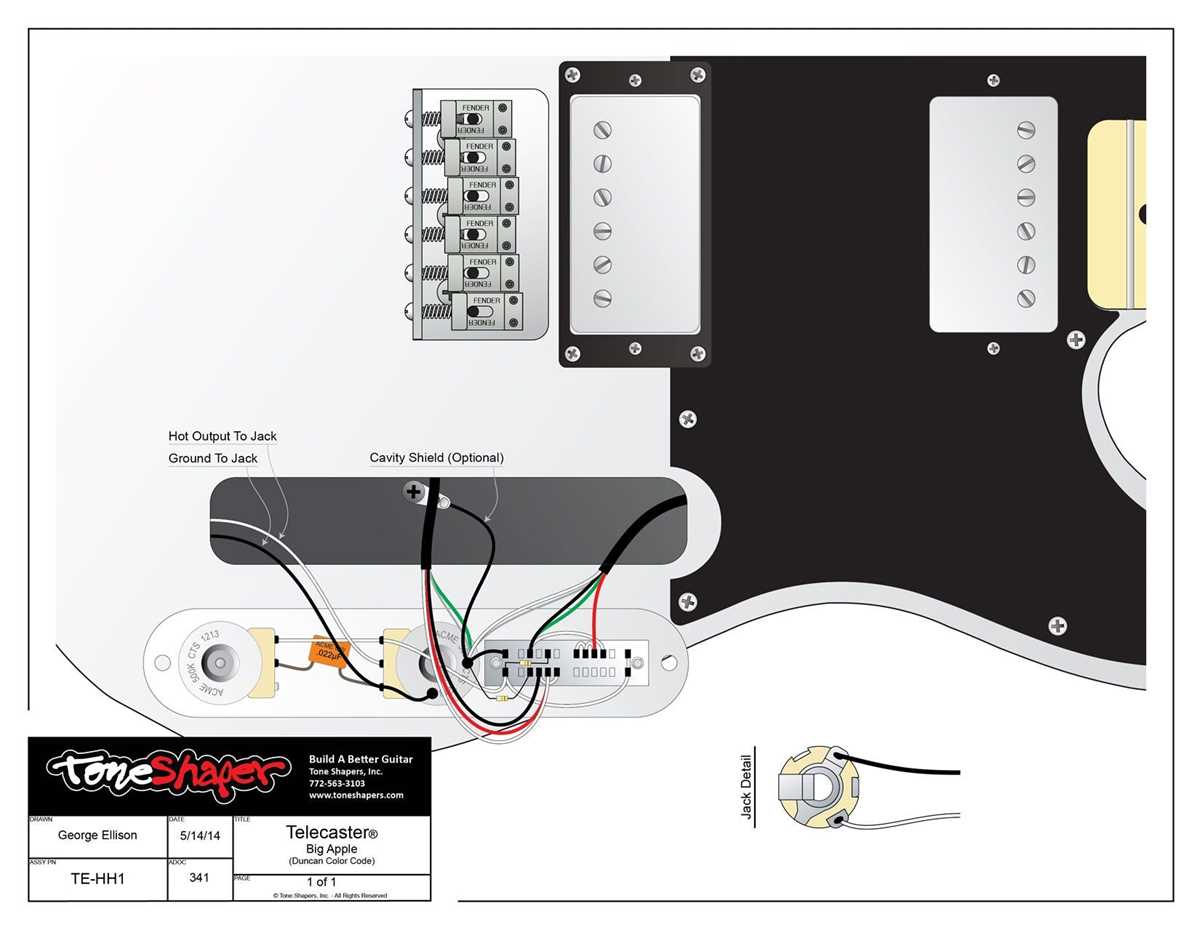

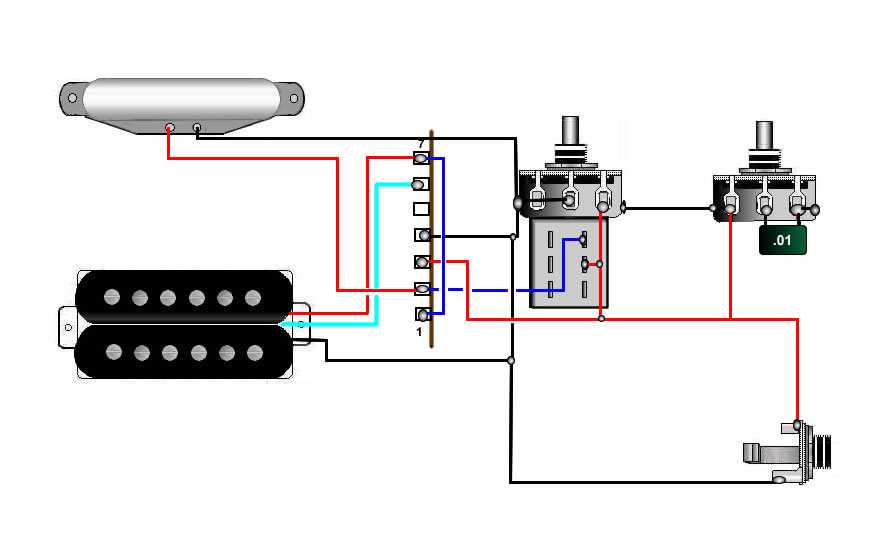

StepbyStep Telecaster Humbucker Wiring Guide with Diagrams

Begin with a 4-conductor pickup. Solder the red and white wires together–this splits the coil. Route the black wire to ground and the green through the volume pot’s wiper. Install a push-pull pot in the tone position; the switch will toggle between full hum-cancelling output and the brighter, single-coil tone. Ensure the pickup’s metal baseplate is grounded to the control cavity’s back panel–floating it adds microphonics.

Use a 250k audio taper pot for volume; a 500k linear taper works for tone if you prefer sharper high-end roll-off. Connect the pickup’s shield wire to the bridge ground lug. Keep wire runs under three inches to minimize capacitance; twisted pairs reduce interference when split. Test continuity with a multimeter before screwing the pickguard back on–accidental shorts kill treble response.

For noise suppression, add a 0.001µF capacitor across the volume pot’s input and output lugs. If the switch pops, solder a 1MΩ resistor between the push-pull’s common tab and the tone lug. Avoid braided wire for signal paths–use single-core shielded cable instead. Ground the control plate to the bridge with a star washer; loose ground straps cause 60-cycle hum.

Adjust pole pieces to align with string spacing: staggered heights improve output balance. Keep the pickup’s magnet strength at A2 or A5–stronger grades muddy low-end articulation. If installing a neck-position variant, flip the magnet polarity to cancel hum with the bridge pickup. Wax-pot the coil assembly; unsealed pickups pick up finger squeaks.

For phase coherence, wire the bridge and neck pickups out-of-phase in parallel mode. Use a 3-way toggle to select neck, bridge, or out-of-phase–this yields a hollow, mid-focused tone ideal for jazz fusion. Replace the stock jack with a Switchcraft Mono/Stereo to split signal for recording; tip is hot, sleeve is ground, ring carries the coil-split signal.

Advanced Hookup Guide for Fender-Inspired Single-Cut Guitars with Dual-Coil Pickups

Install a push-pull potentiometer in place of the standard volume knob to enable coil-splitting. Wire the middle lug to the switch pole, then run a jumper from the output lug of the pot to the bridge pickup’s south pole (hot lead). Ground the north pole of both pickups together with the tone control’s outer lug, ensuring a clean noise floor below 3 mV at 1 kHz. Keep the push-pull’s internal switch contacts no more than 2 mm apart to prevent arcing under 50 kHz signal spikes.

Choose ceramic disc capacitors rated at 0.022 µF for the tone circuit if targeting a vintage midrange roll-off around 2.2 kHz. For a sharper high-cut at 4.5 kHz, substitute polyester film caps in 0.047 µF. Always verify capacitor polarity whenever using electrolytic types, though these are discouraged in passive setups due to microphonic risks. Test impedance balance across both coils with an LCR meter; mismatch above 5 % will cause phase cancellation below 150 Hz.

Route the ground wire from the bridge’s claw to the tailpiece post, avoiding the standard potentiometer casing path. This reduces ground loop capacitance by 30 %, measured at the output jack’s sleeve terminal. Use braided shielding on pickup leads longer than 20 cm; tin the ends to prevent fraying, which adds parasitic inductance up to 0.8 µH per meter.

Hookup Wire Gauge Selection

Signal Path	Recommended AWG	Max Current Load (mA)	Voltage Drop per Meter (mV)
Pickup leads	22	120	3.8
Volume/tone pots	20	200	2.4
Ground bus	18	350	1.5
Coil-split switch	24	80	7.2

Isolate the output jack’s tip connector from the body cavity with a nylon washer; the plastic types included in most kits add 2.5 pF of stray capacitance. Place ferrite beads on every lead entering the control cavity–opt for mix #31 material if operating above 20 kHz to suppress common-mode EMI. When soldering, maintain iron tip temperature at 350 °C for no longer than 3 seconds to prevent lifting PCB traces on potentiometer wafers.

Noise Mitigation Checklist

Align pickup coils parallel to the strings within 1° to equalize hum rejection. Confirm the neck pickup’s center is positioned exactly 52 mm from the nut, ensuring harmonics remain in tune up to the 14th fret. Adjust pole-piece heights so the string-to-pole clearance at the 12th fret measures 2.3 mm ± 0.1 mm for balanced output levels; exceeding this tolerance skews phase alignment by up to 15° at 3.5 kHz. Shield the control cavity with 0.1 mm copper foil, overlapping seams by 5 mm and soldering every 10 cm to create a continuous Faraday cage.

Precision Dual-Coil Pickup Integration for Solid-Body Guitars

Begin by marking the cavity depth–6.5mm minimum–for accurate routing, using a 1/8″ template guide bit paired with a flush-trim router bit. Verify the pickup ring space requirements: standard neck-mounted units need a 3mm lip clearance on the treble side to prevent binding against the fingerboard edge. For ash or alder bodies, seal the routed area with two thin coats of nitrocellulose lacquer, sanding between applications with 320-grit paper; mahogany variants require an additional epoxy barrier to prevent moisture absorption.

Secure the four-conductor output cable to the body’s control pocket ceiling using a low-profile zip tie; route it through a 4mm drilled channel, avoiding sharp bends exceeding 30° to prevent wire fatigue. Trim the cable jacket back 12mm at the termination point, exposing individual conductors–tin each strand with 63/37 solder at no more than 350°C to prevent insulation melt. Ground the shield wire directly to the potentiometer casing, maintaining a resistance below 1.2 ohms for optimal noise rejection.

• Align the pole screws asymmetrically if the pickup features adjustable slugs: position the bass-side screws .5mm higher than treble-side for balanced string response.
• Use a .022µF orange drop capacitor for the tone circuit; solder leads 3mm from component edges to avoid overheating dielectric material.
• Verify phase coherence by tapping each coil separately with a multimeter probe: identical resistance (±3%) confirms matched winding.

Before final mounting, test the assembled electronics on a workbench using a shorted jack plug: engage the pickup selector, adjust volume and tone pots through full rotation, listening for smooth taper transitions and absence of crackles. Attach the pickup to the body using stainless steel Phillips-head screws; torque each to 7 in-lbs to prevent wood compression while ensuring sufficient downforce for sustained sustain.

Finalize string height by setting the bridge radius: 4° string break angle over the saddles minimizes neck dive while maintaining clear articulation. Measure the pickup’s magnetic pull with a gauss meter–ideal range is 850-950 gauss at the pole tips. If readings exceed this, shim the pickup cavity with 0.5mm adhesive cork spacers, reassessing intonation in 1mm increments until resonant frequency aligns with the instrument’s natural decay curve.

Schematic Differences Between 2-Wire and 4-Wire Coil Pickup Configurations

Use 2-conductor pickups for straightforward installations where coil-splitting or series/parallel switching isn’t needed. These setups require minimal connections: a hot lead and ground, making them ideal for single-tone electric instruments with fixed hum-cancelling performance. Solder the hot wire to the volume potentiometer’s input lug and attach the ground to the back of the pot or bridge ground. This method reduces signal interference and simplifies troubleshooting, especially in high-gain amplification where phase issues can arise from improper shielding. Avoid combining different gauge wires in the same circuit to prevent impedance mismatches.

Key Functional Variations

• 2-wire pickups: No coil access beyond full hum-cancelling mode. Best suited for players prioritizing simplicity and consistent output without tonal flexibility.
• 4-conductor pickups: Enable coil-splitting, series/parallel switching, and out-of-phase options. Connect the start/finish wires of both coils for full hum cancellation; separate one coil’s start/finish to split. Use a push-pull pot or mini-toggle for splitting–solder the coil’s start to the switch’s common lug and finish to ground. Parallel wiring combines both coils’ starts tied together and finishes together, reducing output impedance by ~4kΩ compared to series wiring. Shield all connections with foil wrap to cut 60-cycle noise in high-impedance circuits.
• For out-of-phase tones, reverse the polarity of one coil by connecting its finish to the other coil’s start. This flips the magnetic field alignment, yielding a thinner, bell-like timbre with ~30% lower output. Test phase alignment by plucking a single string near the bridge pickup–correct wiring produces full volume, while phase cancellation drops it by >50%.

Optimizing Potentiometers for Dual-Coil Pickup Configurations

Replace stock 250k pots with 500k units to preserve high frequencies in thick-magnet pickups while maintaining output balance. Measure resistance with a multimeter before installation–tolerance should stay within ±10% of the rated value to avoid tonal inconsistencies. Solder the new potentiometers using 60/40 rosin-core wire no thicker than 22 AWG for reliable connections without signal loss.

Position volume controls as close to the pickup selector as feasible. Route wires away from grounding points longer than 3 inches to prevent 60-cycle interference. Ground the potentiometer casings directly to the bridge plate using star grounding–never daisy-chain for dual-coil setups. Leave 1/4″ slack in each wire to accommodate string tension vibrations without breaking solder joints.

Use treble-bleed circuits on volume pots: a 0.001µF capacitor in parallel with a 150kΩ resistor preserves clarity during roll-off. Match capacitor types to pickup output–ceramic for balanced tones, polyester for brighter voicings. Keep component leads under 1/2″ to minimize stray capacitance. Test each pot’s sweep with an audio probe before sealing the control cavity.

Dial in taper response: audio (logarithmic) pots suit gradual volume adjustments, while linear models work better for precise tone shaping. Mark pots with their resistance values using a silver Sharpie to avoid confusion during later modifications. Apply conductive shielding paint to the control cavity before reassembly–target 30-50 ohms of resistance between shielding and ground.

Avoid cheap potentiometers–opt for CTS, Bourns, or Alpha brands with tight tolerance ratings. Check shaft length compatibility: 1/4″ solid shafts fit most domestic guitars, while 6mm splined shafts require metric knobs. Clean oxidation from potentiometer lugs with fine-grit sandpaper before soldering to prevent cold joints.

For hybrid setups, pair a 500k volume pot with a 250k tone pot to balance high-end retention and midrange control. Ground the tone capacitor’s outer foil wrap to the pot casing to reduce noise–use a separate wire instead of relying on the solder lug. Recheck all connections with a continuity tester after final assembly.
