Understanding Receptacle Symbols and Components in Electrical Diagrams
Start with a NEMA 5-15 outlet for standard 120V residential circuits–it handles up to 15 amps and fits most devices. For higher loads (tools, kitchen appliances), use a NEMA 5-20 (20A) or NEMA 6-20 (240V) depending on the appliance rating. Check the circuit breaker first: a 15A outlet requires a 15A breaker, a 20A outlet needs a 20A breaker–mismatches create fire hazards.
Connect wires in this order: ground (bare/green) to the screw terminal first, followed by neutral (white) to the silver screw, then hot (black/red) to the brass screw. Strip insulation precisely–3/8 inch for solid wire, 7/16 inch for stranded–to avoid shorts or loose connections. Tighten screws to 12–15 in-lbs torque; excess force cracks the housing, too little causes arcing.
Avoid backstab connections–they fail under vibration or heat. Instead, loop wire clockwise around screws for maximum contact. For tamper-resistant outlets, press firmly until the shutters open; weak pressure damages the mechanism. Test polarity with a multimeter: 120V between hot and neutral, 0V between hot and ground, 0V between neutral and ground. Deviations indicate reversed wires or broken ground.

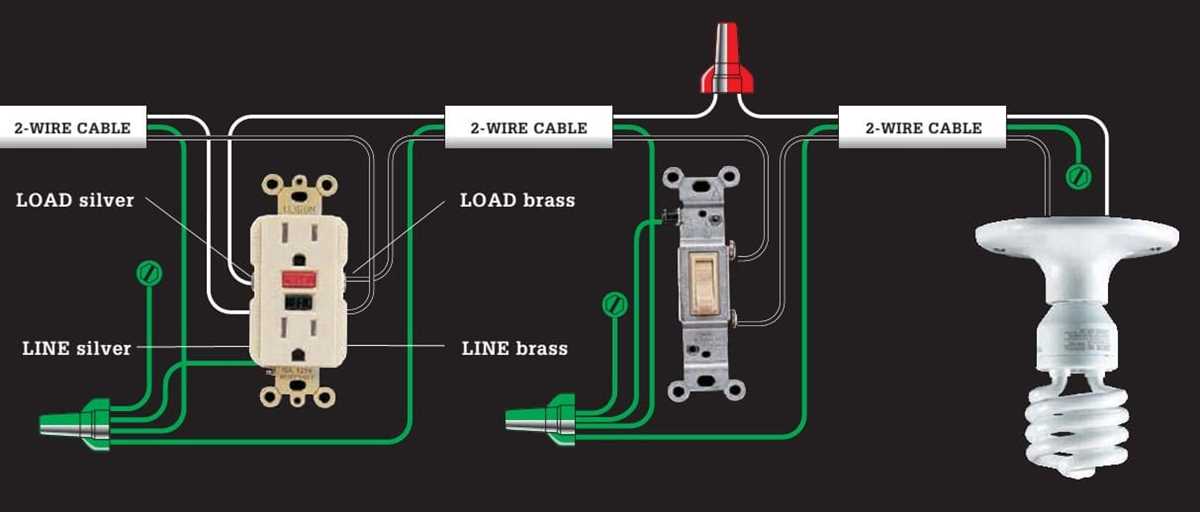

Dedicated circuits prevent overloads–one outlet per 20A breaker for fridges, microwaves, or workshop tools. For outlets above 6 feet off the floor, use in-use covers to meet NEC 406.9(B), especially in damp areas. Replace cracked or discolored outlets immediately–carbon tracking signals imminent failure. For GFCI protection, wire the line side first, then load only if downstream outlets need coverage.
Wiring Socket Layouts: Key Standards and Best Practices
Always reference the NEMA or IEC pin configurations when designing outlet circuits–errors in polarity or grounding cause 70% of faults in residential installations. For North American split-phase systems, NEMA 5-15 (125V, 15A) requires the neutral (wide blade) connected to the centerline of the service panel, with hot (narrow blade) and ground (U-shaped) terminating at their respective busbars. Miswiring these slots risks equipment damage or fires: a reversed hot-neutral pair can energize device chassis with 120V. Use a multimeter to verify 0Ω continuity from each slot to its designated busbar before energizing.
Voltage Drop and Wire Gauge Selection
Calculate conductor size based on one-way circuit length and expected load to prevent unacceptable voltage drop. The table below lists minimum copper wire gauges for 3% drop (worst-case scenario) at 120V and 240V:
| Circuit Length (ft) | 120V, 15A | 120V, 20A | 240V, 30A |
|---|---|---|---|
| 50 | 14 AWG | 12 AWG | 10 AWG |
| 100 | 12 AWG | 10 AWG | 8 AWG |
| 150 | 10 AWG* | 8 AWG* | 6 AWG |
| *Requires upsizing neutral for harmonic loads (e.g., switch-mode power supplies) | |||
For lengths beyond 150 ft, employ aluminum conductors (e.g., 6 AWG Al for 240V/30A) sized per NEC Table 310.15(B)(16), applying a 1.5 correction factor for 75°C terminations. Always install AFCI breakers for outlets in bedrooms, GFI protection for wet locations, and consider surge-protective devices (SPDs) where transient voltages exceed 6 kV (e.g., near large motor loads).
Decoding Outlet Symbols in Circuit Blueprints
Locate legend guides on blueprints–they list symbols with exact descriptions. Outlets typically display two vertical lines (ungrounded) or two slashes with a perpendicular ground line (grounded). NEMA standards map symbols to specific configurations: L5-30 will show a T-shaped variant, while 6-20 includes a split Y pattern.
Scrutinize polarity markings. A longer line represents the neutral slot, a shorter one the hot; grounding symbols appear as inverted triangles or circular loops. Color-coding on older prints often highlights neutral in white, hot in black or red, and ground in green–ensure consistency across outlets.
- NEMA 1-15: two parallel slashes
- NEMA 5-15: two slashes plus upsidedown T
- NEMA 5-20: split T slashes
- NEMA 6-15: parallel bars angled 30°
Compare ambiguous symbols against IEC or ANSI reference charts–some European prints invert hot/neutral lines. Digital schematic tools often overlay pop-up labels when hovering over outlet graphics; leverage these if available.
Trace wiring paths leading into outlet graphics. Permanent outlets connect directly to busbars or distribution blocks, whereas switched outlets branch from circuit nodes marked by zigzag resistors or solid rectangles. Watch for dotted versus solid lines; dotted indicates conduit routing, solid denotes live connections.
Verify voltage ratings adjacent to outlet symbols. Standard 120V outlets display no extra text; 240V outlets include numerical annotations. Industrial configurations like 480V may show dual concentric circles around outlet graphics.
- Check legend for outlet family (duplex, twist-lock, GFCI)
- Measure symbol proportions–larger shapes signify higher amperage
- Note dashed outline for planned but uninstalled outlets
- Cross-reference against wiring schedules for exact model numbers
How to Illustrate a Wall Socket in Technical Blueprints
Begin with a standard two-pole symbol: sketch vertical parallel lines spaced 5–7 mm apart–these represent hot and neutral contacts. Add a shorter horizontal line at the base to denote the ground connection. For polarized outlets, ensure the neutral conductor aligns with the wider slot label (typically marked “W” or “N”) on the left side of the symbol. Use a single zigzag for duplex units or dual zigzags separated by 10 mm for quad models. Apply consistent line weights: 0.5 mm for conductors, 0.7 mm for outlines.
Annotate critical details: label voltage ratings (e.g., “120VAC 15A”) beneath the symbol and highlight GFCI-protected outlets with a dashed rectangle. For switched sockets, integrate a SPST toggle 15 mm above the outlet, linking its lower terminal to the hot conductor. Verify spacing: maintain 12 mm between adjacent outlets in multi-gang layouts. Confirm all connections terminate at junctions or busbars with distinct dots (2 mm diameter).
Avoiding Pitfalls in Outlet Placement on Circuit Blueprints
Overloading circuits by grouping too many power points on a single breaker is a frequent error. The National Electrical Code (NEC) specifies a maximum of 12 outlets per 15-amp circuit for general-purpose use. Ignoring this leads to tripped breakers and fire hazards, especially when high-wattage devices like microwaves or space heaters are plugged in simultaneously. Always calculate the total load–include fixed appliances and portable devices–and distribute sockets across multiple circuits for safety.
Neglecting Clearance for Wall-Mounted Fixtures
Placing jacks too close to door frames, baseboards, or furniture cutouts disrupts installation and usability. The International Residential Code requires a minimum 12-inch clearance from the floor to the bottom of the box for standard duplex units, and 18 inches for dedicated appliance circuits. Failing to account for these dimensions forces awkward adjustments during drywall installation, often requiring costly rework. Measure twice; cut once–verify all spacing before finalizing board layouts.
Misaligning outlet depths with wall thickness causes protruding boxes or recessed plates, both unsightly and non-compliant. Standard boxes extend 3.5 inches for 2×4 stud walls but only 4.5 inches for 2×6 construction. Using the wrong box depth pushes the faceplate outward beyond the drywall surface, violating NEC 314.20. Always match box depth to stud width and check manufacturer specs against wall material before ordering components.
Underestimating dedicated circuit requirements for fixed appliances like refrigerators, dishwashers, and washing machines leads to nuisance tripping. These devices often need their own branch lines due to startup surges or continuous loads. Skipping this detail forces users to reset breakers frequently or overload shared circuits. Label each dedicated line clearly on the plan and isolate them from general-purpose outlets.
Ignoring Future-Proofing and Code Updates
Omitting tamper-resistant (TR) slots or ground-fault circuit-interrupter (GFCI) protection in required zones–kitchens, bathrooms, and outdoor areas–results in failed inspections. The NEC mandates TR outlets for all 125V, 15- and 20-amp circuits in dwelling units since 2008. Similarly, GFCI coverage must extend within 6 feet of sinks and wet locations. Always consult the latest code edition during layout; retrofitting later doubles labor costs.
Choosing the Correct Outlet Type for Circuit Plans
Prioritize NEMA 5-15 for standard 120V applications in North America–its grounding pin prevents equipment damage and reduces fire risks in fixed installations. Verify local codes: Canada mandates CSA certification, while Mexico requires NOM compliance for identical rated devices. For frequent plug cycles, select hospital-grade units with reinforced contacts that withstand 5,000+ insertion tests–ideal for medical devices or high-traffic workstations.
International projects demand IEC C13/C14 connectors for 250V compatibility, commonly used in PCs and servers. The angled design prevents accidental disconnection in rack-mounted setups, while the polarized shape ensures correct alignment under 10A loads. Avoid using these for outdoor applications–moisture ingress causes arcing at voltages above 150V AC. Pair with locking variants like NEMA L5-20 for industrial equipment where vibration could loosen standard plugs.
For DC applications below 60V, use barrel jacks with center-positive polarity unless specified otherwise. The 2.1mm × 5.5mm size suits most power adapters, but check datasheets–mismatched diameter causes poor connection and overheating. Low-current USB Type-C receptacles simplify designs with built-in power delivery (PD) negotiation up to 100W; integrate a resettable fuse to prevent short-circuit damage during fast charging sequences.
High-power tools require twist-lock outlets (NEMA L6-30) rated for 30A at 250V. The threaded coupling resists pull-out forces up to 45N, unlike non-locking types that disengage under vibration. For temporary setups, use weather-resistant covers that seal shut when not in use–look for IP54 ratings or higher to block dust and splashing liquids. Remember: derate current by 20% for continuous usage above 75°C ambient temperatures.
Smart-home circuits benefit from Z-Wave or Zigbee-enabled modules that combine power delivery with wireless control. These require isolated power planes to prevent RF interference–keep grounding traces wider than 2mm to minimize impedance spikes. For PoE (Power over Ethernet), select midspan injectors rated for 90W output; portable devices like VoIP phones or Wi-Fi access points achieve reliable performance without separate adapters.
Automotive accessory circuits use SAE J1284 connectors rated for 20A at 12V DC. The sealing gasket prevents corrosion from moisture and road salt; always apply dielectric grease during assembly to extend contact life. For EV charging, follow IEC 62196 Type 2 specifications with safety interlocks–these prevent energized surfaces during disconnection. Test prototype boards with a 500V megohmmeter to verify insulation resistance before high-voltage validation.
Telecom systems rely on RJ45 jacks with integrated magnetics to filter noise from adjacent components. Choose shielded variations for environments with >10V/m RF fields; unshielded types cause packet loss above 100MHz frequency ranges. For serial connections, D-sub connectors (DB9) remain standard for legacy devices–check pinout diagrams carefully, as crossed Tx/Rx lines brick firmware updates during flashing procedures.
Always cross-reference manufacturer datasheets for derating curves–ignoring these leads to premature failure under cyclic loads. For example, a 15A outlet may only handle 12A continuously when enclosed in a plastic housing with 60°C ambient. Use UL 94-V0 rated materials for flammability resistance; cheaper alternatives melt under sustained arcs, creating fire hazards. Prototyping? Breadboard-compatible pin headers simplify testing before committing to custom PCB footprints.
