Complete 7-Way Trailer Wiring Diagram Guide for Safe Connections
Use a standardized 7-pin RV-style connector for heavy hauling–it handles brake signals, turn indicators, reverse lights, and auxiliary circuits without modifications. Wire colors follow SAE J560 specifications: white (ground), brown (tail/marker lamps), yellow (left turn/brake), green (right turn/brake), blue (electric brakes), red (12V power), and black (auxiliary). Verify these prior to installation; mismatches risk failed inspections or equipment damage.
Strip 1/2 inch of insulation, twist strands tightly, and crimp with red-ring terminals for 16-14 AWG wires; soldering adds durability but isn’t mandatory. Route harnesses away from moving parts and exhaust manifolds–use heat-resistant loom for sections exposed to temperatures above 150°F. Secure connections inside a sealed junction box if operating in wet or dusty conditions.
Test continuity with a multimeter: probe terminals after wiring to confirm each circuit carries 12-14 volts under load. Reversing polarity burns out brake controllers; confirm ground paths by checking voltage drop–should not exceed 0.1V across a 10A load. For ABS-compatible systems, wire the blue circuit to the dedicated pin on the tow vehicle’s harness.

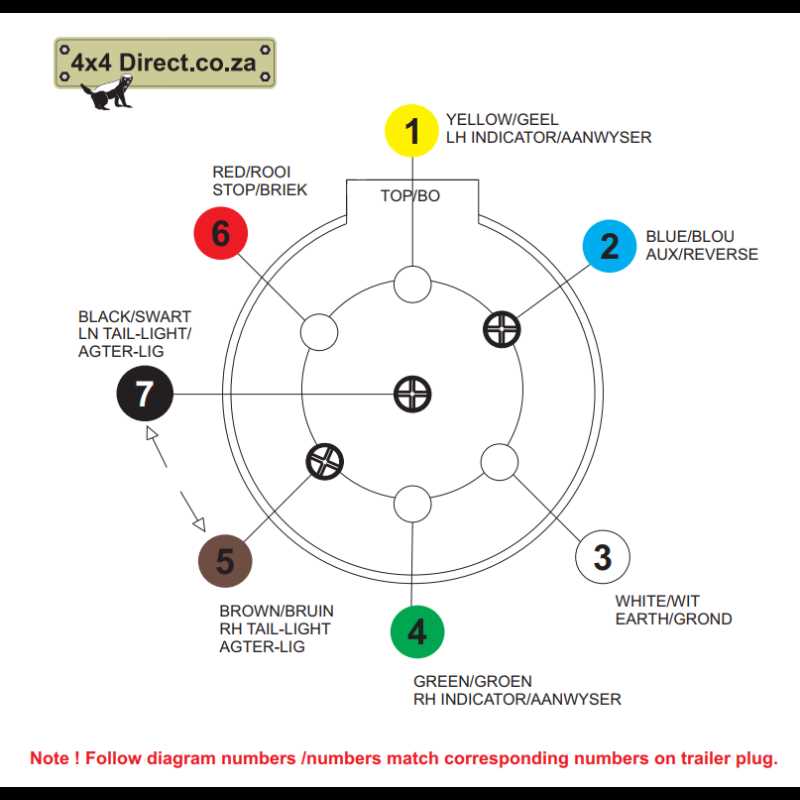

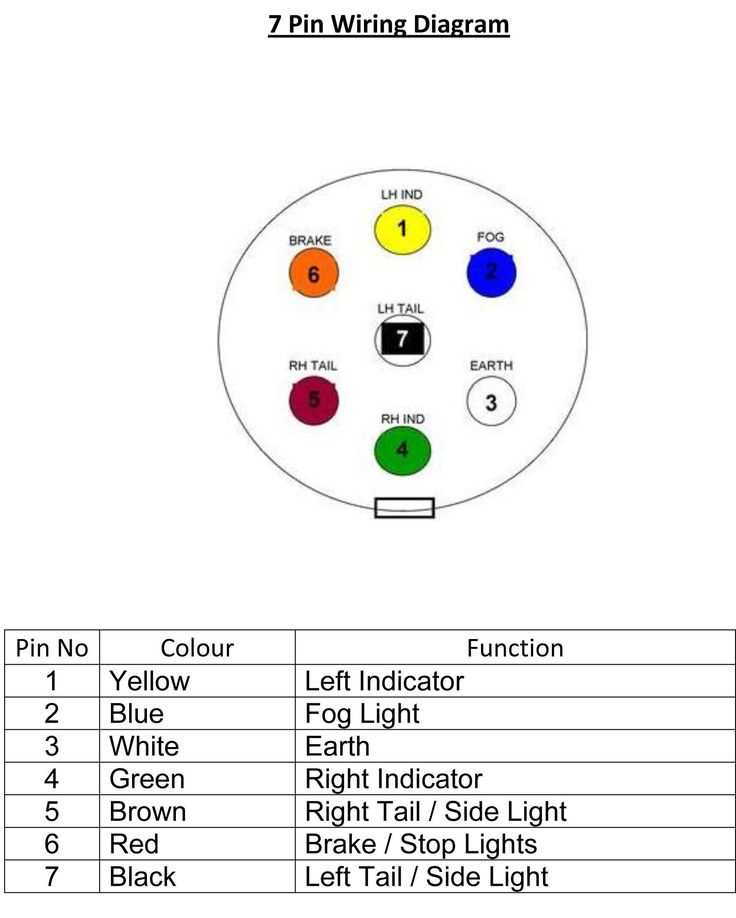

Standard Connector Pinout for Heavy-Duty Vehicle Hookups
Begin by identifying pin positions in the 7-pin round or flat socket using a multimeter set to continuity mode. Pin #1 (typically marked with a yellow stripe) carries the left turn signal and brake light; verify voltage spikes reach 12V when activating the corresponding lever. Pin #2 supplies constant 12V auxiliary power–confirm no voltage drop exceeds 0.5V under a 20A load to prevent overheating.
Pin #3, the white ground, must connect directly to the vehicle’s chassis using an 8-gauge wire or thicker–avoid daisy-chaining grounds through trailer frames, as corrosion at joints creates resistance exceeding 0.1Ω. Measure resistance between this pin and a clean chassis point; readings above 0.3Ω signal poor conductivity, requiring sanding and dielectric grease application.
Pin #4 (right turn/brake) mirrors Pin #1’s behavior; verify synchronization with the left circuit–lag exceeding 100ms indicates a faulty flasher relay or corroded bulb socket. For LED assemblies, bypass the relay with a solid-state flasher rated for 1.5A per bulb to eliminate hyper-flashing.
Critical charging voltage stabilizes at Pin #5 (blue), designated for electric brakes. Test output at 12.6–13.8V under load; surges above 14.2V risk burning brake magnets, while drops below 12V result in weak braking force. Replace worn brushes if voltage fluctuates more than 0.8V during trailer movement.
Pin #6’s red wire activates reverse lights–link this circuit to the tow vehicle’s reverse switch via a dedicated 14-gauge wire. Install a 10A fuse within 18 inches of the power source to prevent short-circuit damage. Check voltage at the socket during reverse engagement; absence of power suggests a blown bulb or faulty switch.
Ensure Pin #7 (green) handles standard tail/licence plate illumination. Dim bulbs often stem from voltage drops–route wiring away from brake lines and exhaust manifolds, maintaining a minimum clearance of 6 inches. Use heat-resistant loom for segments exposed to temperatures above 80°C, and seal connections with adhesive-lined shrink tubing to prevent moisture ingress.
Cross-reference socket color codes against industry standards (SAE J560 or ISO 3731) before finalizing connections. For mixed fleets, note discrepancies: European configurations often swap right turn and brake signals. Document wire gauge, fuse ratings, and chassis grounding points in a maintenance log–update entries after each modification to avoid diagnostic delays.
Key Roles of Each Contact in a Standard Vehicle Socket
Ground (pin 1) must be connected to a clean, corrosion-free chassis point–use a dedicated 8-gauge wire braided directly to the frame, not through a bolt shared with other circuits. Resistance above 0.2 ohms here will cause intermittent brake faults and flickering lights on heavy loads.
The brake control circuit (pin 2) carries PWM voltage; splice only heat-shrink crimp connectors rated for 18 AWG minimum. Avoid single-strand wire–vibration fractures strands over time, leading to sudden loss of brake signal mid-haul. Test voltage drop under full load: maximum 0.5V across the circuit.
Left and right turn/stop outputs (pins 3 and 5) require separate fuses–never combine them. LED lamps draw lower current; use a 7.5A fuse instead of the 15A often recommended for incandescent bulbs. Measure current draw before installation: 200 mA per LED bulb vs. 1.8A for filament bulbs.
Reverse lights (pin 6) double as 12V power for camper accessories–limit total load to 10A continuous. Install a relay if auxiliary devices exceed this limit; bypassing the relay risks overheating the original vehicle harness connector, melting plastic shells within six months.
Auxiliary charge (pin 7) demands a direct battery connection through 10A fuse; do not tap into existing fuse blocks–they lack sufficient thermal capacity for sustained 8A draw. Use marine-grade tinned copper wire to prevent green corrosion at terminals, especially in coastal climates.
Step-by-Step Guide to Building a Vehicle-Connector Assembly from Ground Up
Gather these tools before starting: wire strippers, crimp connectors, a multimeter, heat shrink tubing, electrical tape, and a soldering iron (optional). Use color-coded cables matching the standard pinout: white (ground), brown (running lights), green (right turn/stop), yellow (left turn/stop), blue (auxiliary/brake controller), red (12V power), and black (battery charge). Cut each wire to 18–24 inches–long enough to route through the vehicle harness without tension but short enough to avoid excess slack.
- Strip and prep: Remove ¼ inch of insulation from each wire end. Slide heat shrink tubing onto one end of each before crimping to avoid rework.
- Connect to connector base: Match each stripped end to its corresponding terminal inside the connector housing. Insert the white wire into the center pin (ground) first–it serves as the reference point for all other connections.
- Secure connections: Crimp each wire with a ring or spade terminal, ensuring no bare strands touch adjacent pins. Verify conductivity with a multimeter (2–5 ohms max resistance). Solder joints if vibration is a concern, then cover with heat shrink.
- Test before sealing: Attach the harness to a test board or lights. Activate each function individually:
- Verify ground integrity (white) by checking all lights illuminate.
- Test running lights (brown) for steady output.
- Confirm turn signals (green/yellow) flash at 60–120 cycles per minute.
- Check brake lights (green/yellow) for consistent brightness.
- Validate 12V power (red) and battery feed (black) deliver full voltage.
Route the assembled harness through the vehicle’s frame or conduit, securing it with zip ties every 12 inches to prevent chafing. Connect the housing to the vehicle’s harness using a mating socket, ensuring polarity matches (double-check with a circuit tester). Apply dielectric grease to the connector faces to prevent corrosion. Re-test all functions post-installation–focus on the brake and turn signals, as these are most prone to intermittent failures from poor grounding or loose crimps.
Understanding Color Code Standards for Heavy-Duty Electrical Connectors

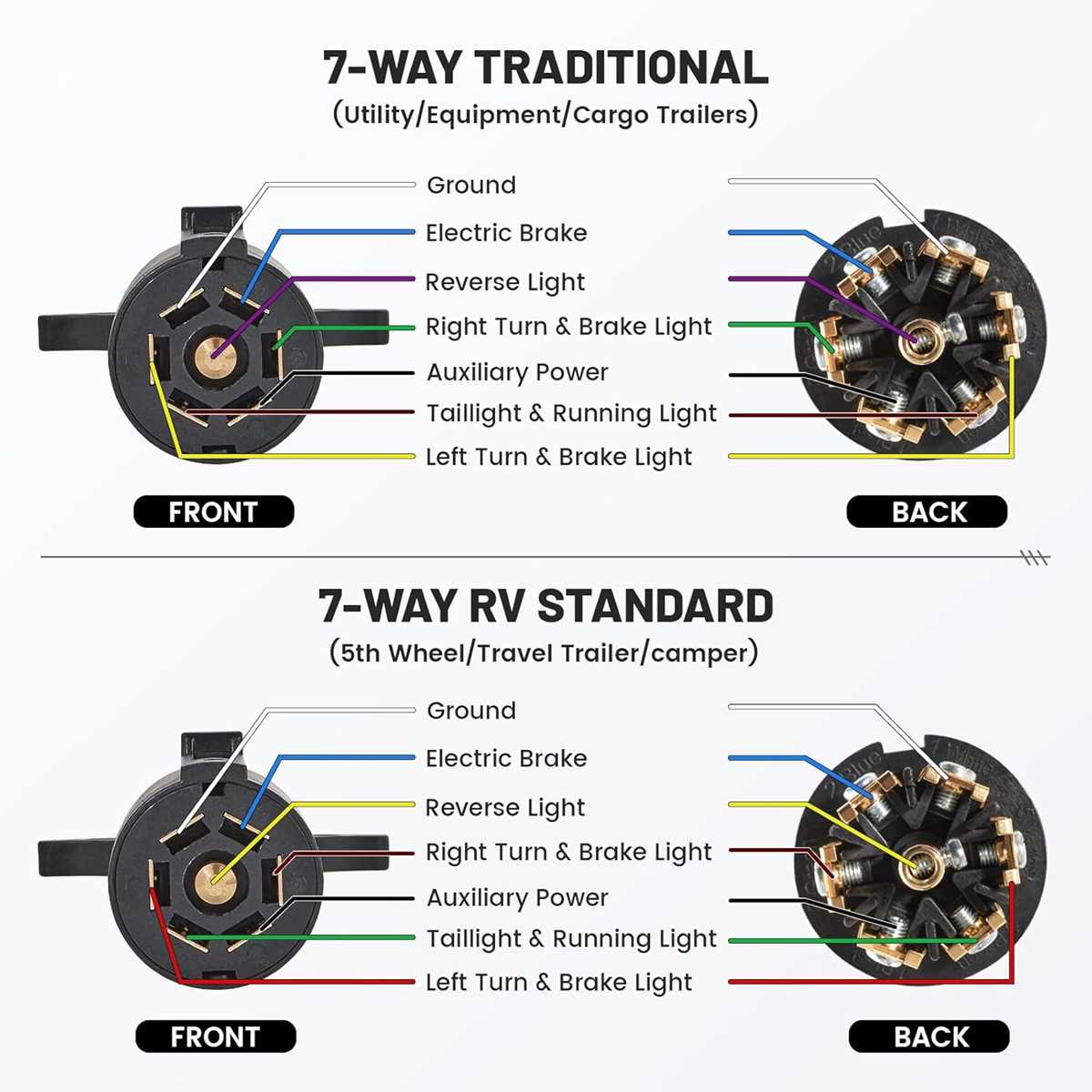

Always verify the standard before installing or troubleshooting any vehicle-to-tow electrical interface. In North America, the SAE J560 standard governs the color assignments for the 7-pin round connector: white (ground, pin E), brown (running lights, pin C), yellow (left turn/brake, pin A), green (right turn/brake, pin F), red (auxiliary power, pin B), blue (electric brakes, pin D), and black (12V battery, pin G). Deviations exist–especially on European or Japanese equipment–so always cross-reference with the manufacturer’s manual. Miswiring can damage the braking system or disable safety lights.
Key Variations Across Markets
European DIN ISO 11446 uses a different layout: brown (ground), black (permanent 12V), blue (left blinker/starter), red (right blinker), green (brake lights), yellow (reverse), and white (fog lights). Australian AS 4735 mirrors North American standards but swaps yellow and green for blinker signals. Aftermarket adapters often mix these codes–test continuity with a multimeter before connecting. Always solder and heat-shrink connections; crimp connectors corrode quickly under road salt and vibration.
For off-road or agricultural equipment, custom setups may repurpose pins–common modifications include using the blue wire for winch control or the black wire for LED work lights. Label every wire at both ends and document changes. A color-coded wiring harness with numbered sleeves (e.g., 3M Scotchcast) prevents incorrect splices during repairs. Never assume polarity–some imported tow vehicles reverse the ground and power wires, risking short circuits or blown fuses.
Key Errors to Sidestep When Connecting a Vehicle Socket
Mismatching pin functions remains one of the most frequent blunders. The standard configuration assigns specific roles–brake lights, turn signals, reverse lamps, and charging circuits–each tied to a distinct terminal. Swapping the yellow (left turn/brake) and green (right turn/brake) wires, for instance, will cause erratic signaling. Verify assignments against a reference chart before crimping connectors, and use a multimeter to test continuity. Polarization matters: the center pin (typically +12V for battery charging) must deliver consistent voltage; mixing it with ground (white wire) risks shorts or electrical fires.
Overlooking wire gauge compatibility invites overheating. Light-duty cables (18-20 AWG) suited for LED marker lamps cannot handle the current drawn by electric brakes or auxiliary power feeds. Use at least 12 AWG for brake circuits and 10 AWG for heavier loads like winches or RV batteries. Secure splices with adhesive-lined heat shrink tubing–electrical tape degrades over time, exposing bare copper to moisture and corrosion. For heavy-duty applications, solder joints followed by shrink wrap outlast crimp connectors, which loosen under vibration.
Corrosion and Environmental Pitfalls
| Material | Corrosion Risk | Mitigation Method |
|---|---|---|
| Copper | High (oxidizes rapidly) | Tin-plated terminals + dielectric grease |
| Aluminum | Moderate (surface pitting) | Anodized coatings + zinc-based spray |
| Steel | Low (if galvanized) | Galvanized connectors + регулярная проверка |
Exposed terminals corrode faster than sealed connections. Apply dielectric grease to every connection point–not just the socket, but also the vehicle-side harness–to repel moisture. For towing in coastal or high-humidity areas, upgrade to gold-plated contacts rated for marine use. Avoid PVC-jacketed wires near exhaust systems; opt for cross-linked polyethylene (XLPE) insulation, which withstands higher temperatures without cracking. Inspect cable runs for chafing against sharp edges, a common failure point overlooked during installation.
Testing Oversights That Lead to Failures
Skipping final voltage checks guarantees undetected faults. Measure each circuit at the socket under load: turn signals should pulse at 12V, brake lights must illuminate without flickering, and the charging line must maintain 13.8–14.4V when the engine runs. Ignition-switch-controlled circuits (e.g., reverse lights) should only activate with the key in the “on” position; improper relay wiring can drain batteries overnight. Use a dedicated circuit tester (*not* a multimeter alone) to verify pin-to-pin continuity, ensuring no accidental short to ground. Log results for future troubleshooting.
